KAWASAKI VULCAN S ‘15-
I TRY CTIO N S M O U N T I N G
SEMIFAIRING DARK NIGHT MODEL
REF 21108

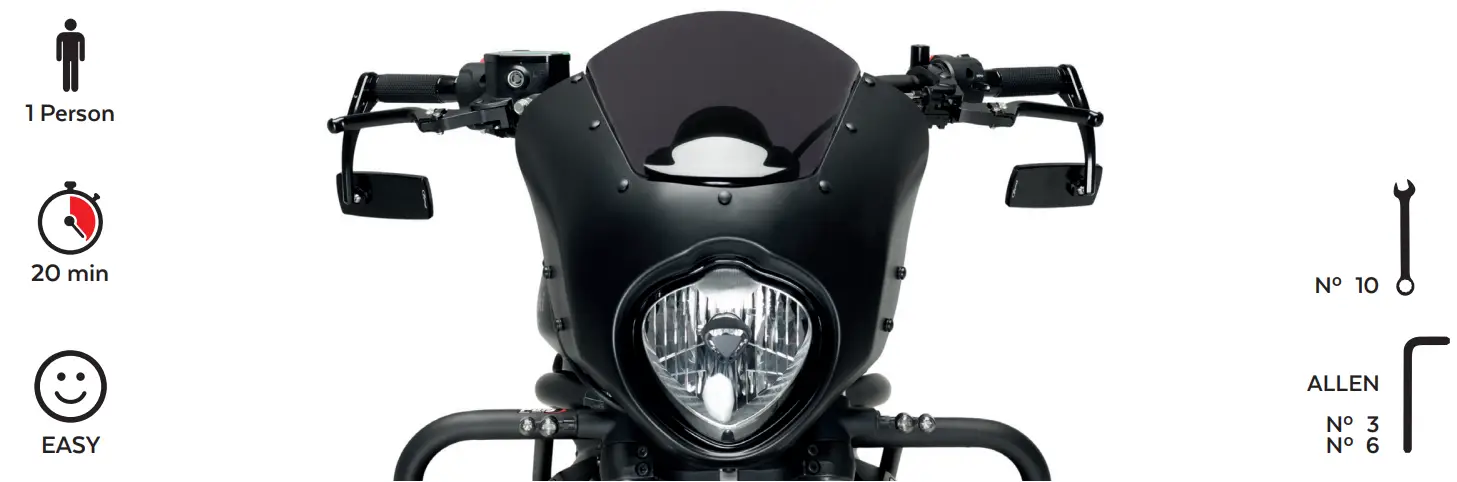

21108 Dark Night Semifaring
It would be convenient to right the semi-fairing screws, especially the ones that are fixed to the motorcycle, whenever you maintain the vehicle. Thanks for your attention.
| ID | PART | DESCRIPTION | QTY | REF |
| 1 |  | Semifairing | 1 | 10901N |
| 2 |  | Screen | 1 | 10904H/F |
| 3 |  | Right support (R) | 1 | SOP3P2R-CUP0012 |
| 4 |  | Left support (L) | 1 | SOP3P2L-CUP0012 |
| 5 |  | Lower support | 1 | SOP3P2I-CUP0012 |
| 6 |  | M8x50 DIN912 Allen screw | 2 | TORNI-D912–532 |
| 7 |  | Ø8,5 x Ø13x 15 spacer | 2 | CASQUE-M—-614 |
| 8 |  | Ø9 xØ6 x8mm silentblock | 5 | AROPASACABLES-3 |
| 9 |  | Ø12xØ6,8×7,3 bush with flange | 5 | CASQUE-1A—750 |
| 10 |  | M5x16 Ø11 ISO 7380 Allen screw | 12 | TORNI-I7380-493 |
| 11 |  | M5 ISO 7380 screw cap | 12 | TAPON——–85 |
| 12 |  | M5x1 nylon washer | 7 | ARNVOOOOOOO245 |
| 13 |  | M5 silentblock | 7 | SILENBTM5-046/1 |

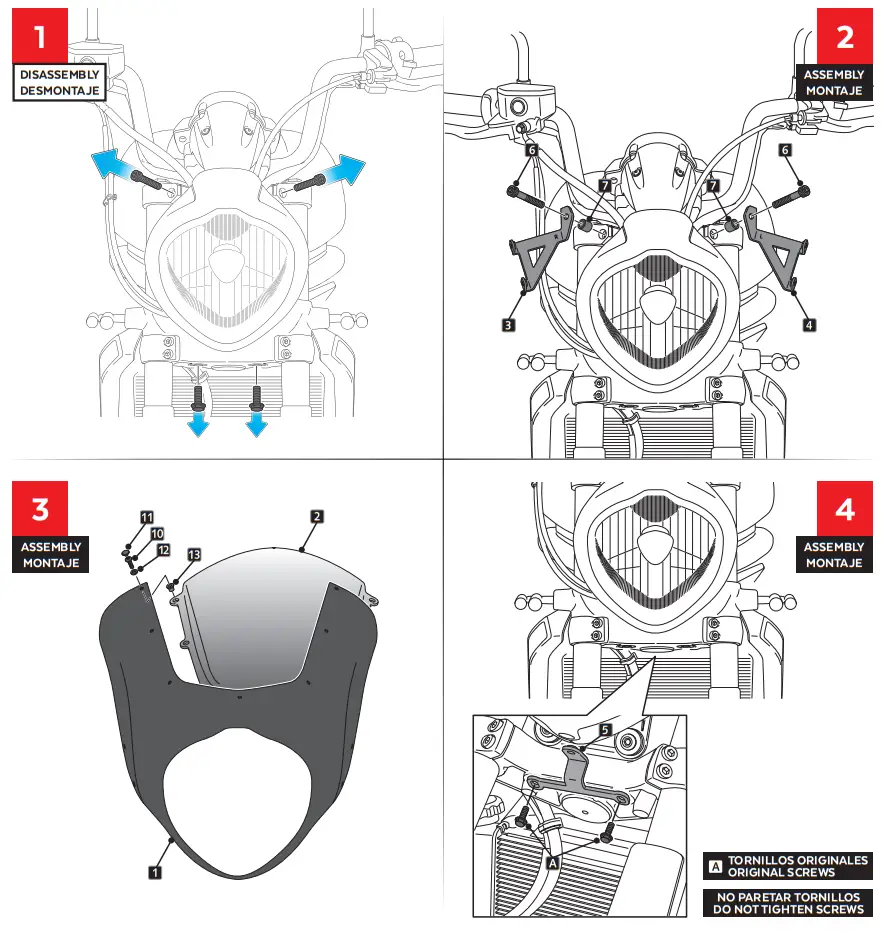

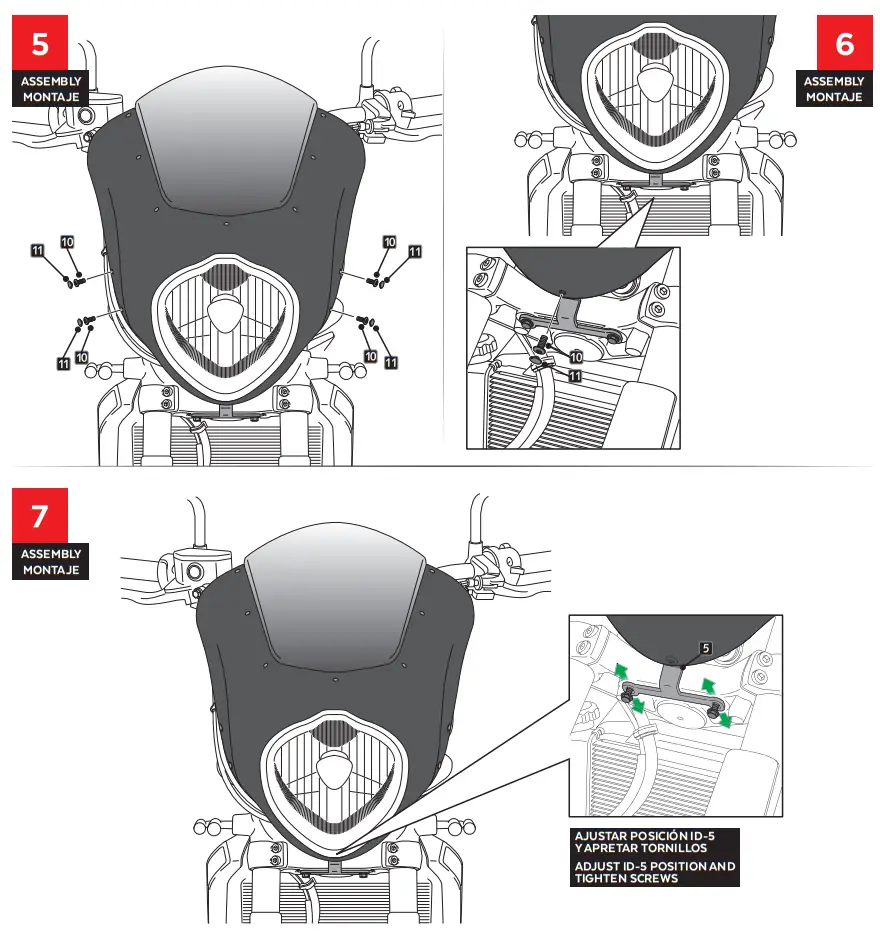

MOUNTING INSTRUCTIONS
Illustrations and layout by: www.ciandisseny.com
CIAN ESTUDI DE DISSENY – Estudi de disseny gràfic i tècnic
