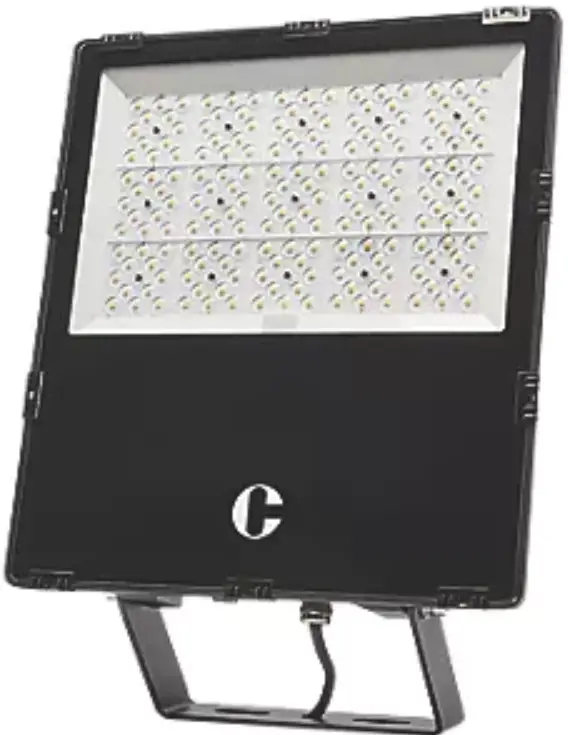

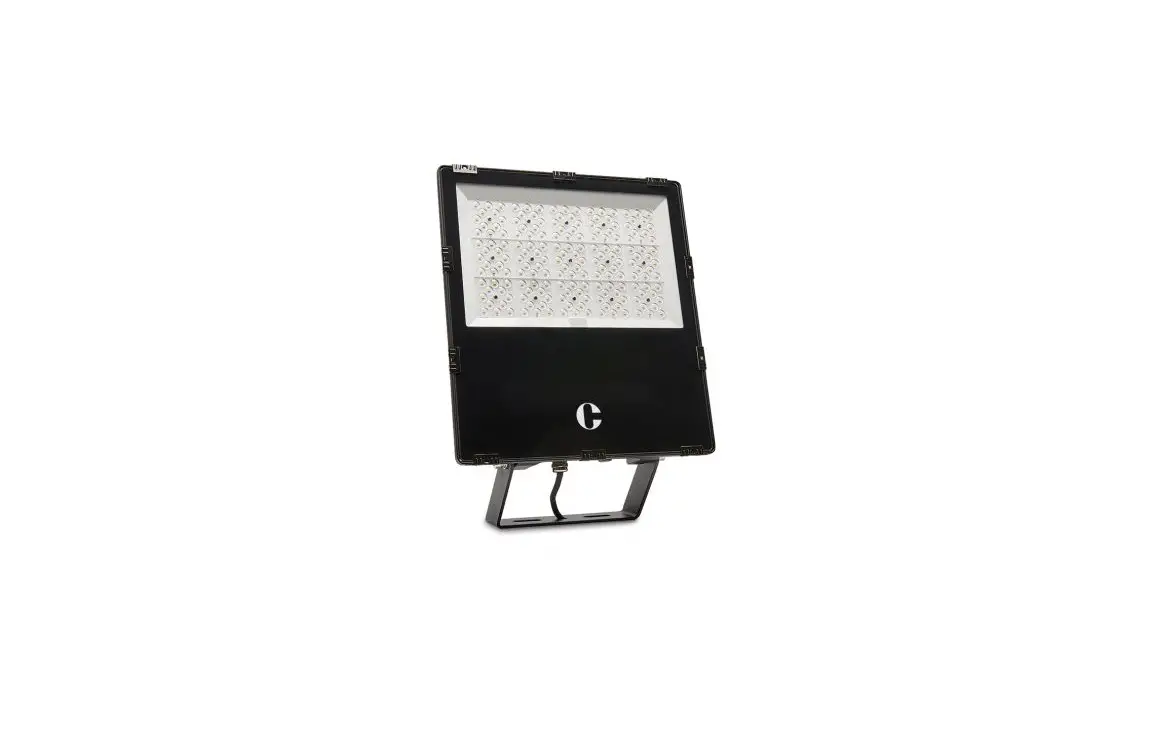

COLLINGWOOD 880KJ K2 Industrial Floodlight
Fitting

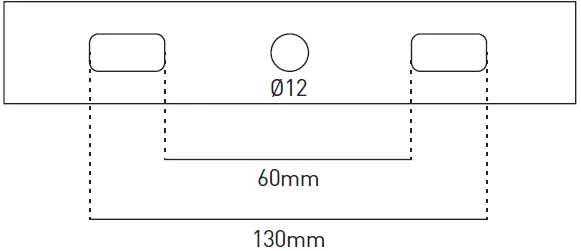

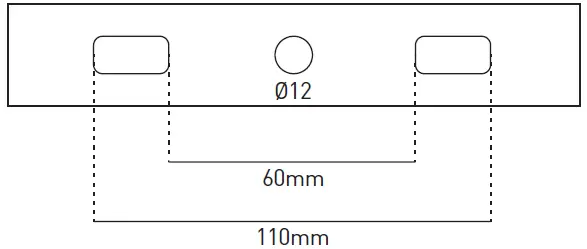

Bracket mounting hole layout
100W / 150W
200W

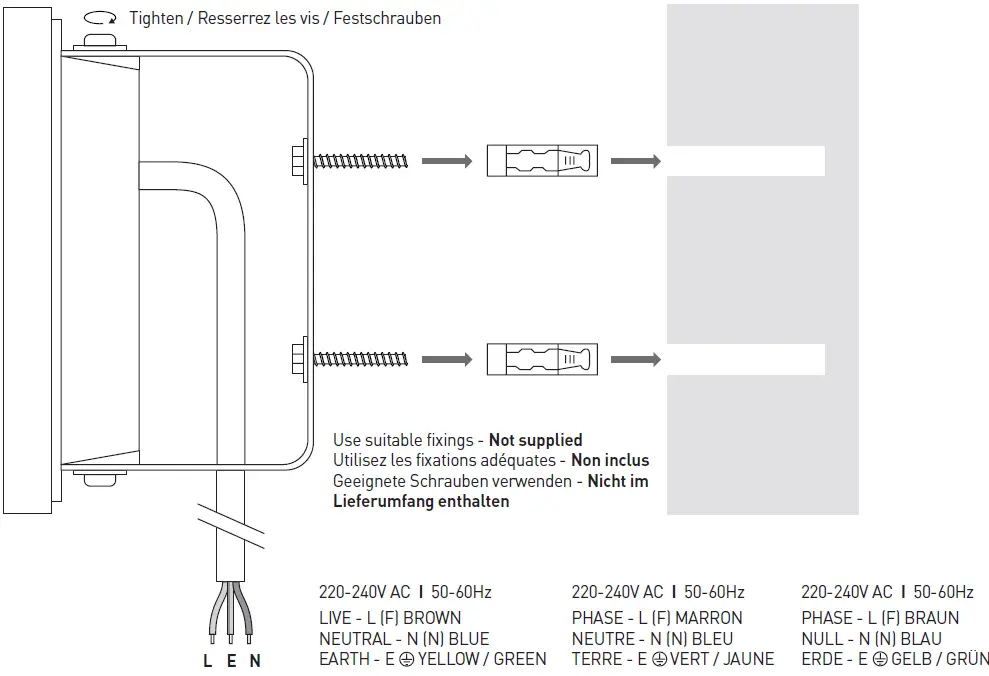

Installation
- a. Fix the flood light to the mounting surface using suitable fixings.
- b. Connect the flying lead to the mains supply. A suitable waterproof junction box or enclosure must be used to maintain the IP65 rating of the product.
- c. Tighten the two side bolts to clamp the floodlight in the required position.
Note:
Avoid installing K2 Industrial floodlight in same circuits with HID lamps
Installation data
- Isolate the mains supply, prior to wiring.
- This unit must be wired by a qualified electrician or suitable competent person.
- This light source of this luminaire is not replaceable. When the light source reaches the end of its life the whole luminaire shall be replaced.
| Product | IFL10 (100W) | IFL15 (150W) | IFL20 (200W) |
| Input voltage | 220 – 240V AC | 220 – 240V AC | 220 – 240V AC |
| Input current | 0.45 | 0.66 | 0.88 |
| Input power | 100W | 150W | 200W |
| Power factor | >0.95 | >0.95 | >0.95 |
| Inrush current | 80A 0.15ms | 100A 0.15ms | 100A 0.15ms |
Disposal of this product should be separate from household waste. Please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resource. Household users should contact their local government office for details of where and how they can take these items for environmentally safe recycling.

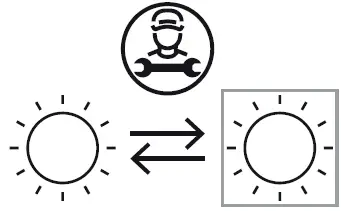

- Replaceable light source by a professional Source

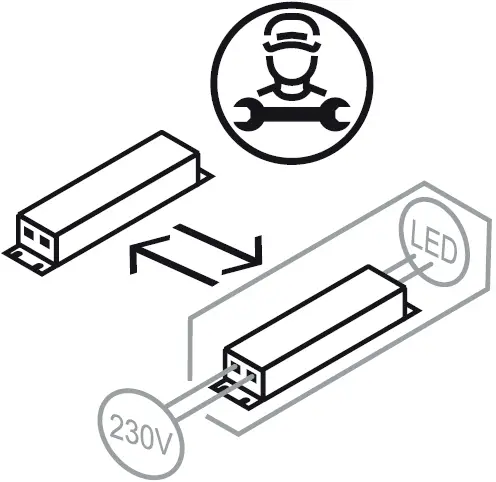

- Replaceable control gear by a professional
5 year warranty
This product contains a light source of energy efficiency class F
