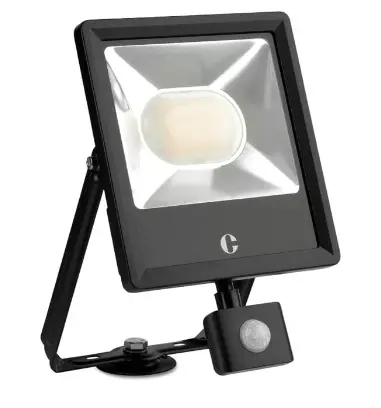

COLLINGWOOD LIGHTING FL05 100W Colour Switchable Floodlight
Installation instructions
Installation
- Set required colour temperature for all units. Switch is located at the back of the floodlight under rubber cover. Use small screwdriver to lever the cover to access the switch.

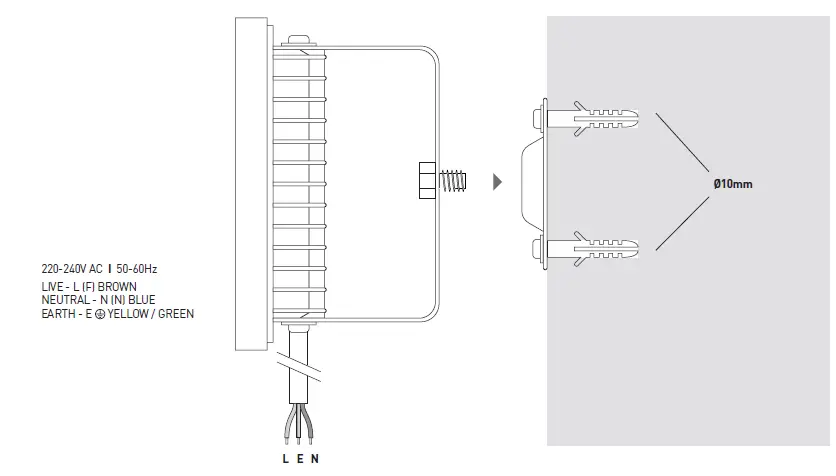

Note: Ensure the rubber cover is fitted correctly after selecting the colour temperature. - Fix the circular wall bracket to the wall. Screws and wall plugs are supplied.
- Locate the floodlight over the circular wall bracket and tighten the screw to secure it in the required position. The aim of the floodlight can be adjusted by turning/tilting the unit.
- Connect the flying lead to the main supply. A suitable waterproof junction box or enclosure must be used to maintain the IP65 rating of the product.
- Tighten the two side screws to clamp the floodlight in the required position.
Note: When the floodlight is switched on for the first time, you may notice a slight presence of condensation behind the glass. The product is fitted with a breathable gland and any condensation will disappear after several hours of use.
Installation data
- Isolate the mains supply, prior to wiring.
- This unit must be wired by a qualified electrician or a suitable competent person.
- The light source of this luminaire is not replaceable. When the light source reaches its end of life the whole luminaire shall be replaced.
| Product | FL05 | FL10 |
| Input voltage | 220-240V AC 50/60Hz | 220-240V AC 50/60Hz |
| Input current | 0.23A | 0.46A |
| Input power | 50W | 100W |
| Power factor | >0.9 | >0.9 |
| Inrush current | 28A/15μs | 75A/6μs |
Disposal of this product should be separate from household waste. Please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact their local government office for details of where and how they can take these items for environmentally safe recycling.
Warranty
- 5-year warranty
