FL01 10W LED Residential Floodlight
Instruction Manual
FL01 10W LED Residential Floodlight
Installation instructions
220-240V AC I 50-60Hz
LIVE – L (F) BROWN
NEUTRAL – N (N) BLUE
EARTH – E
YELLOW / GREEN
Installation
- Set the required color temperature for all units. The switch is located at the back of the floodlight under the rubber cover. Use a small screwdriver to lever the cover to access the switch.
Note: Ensure the rubber cover is fitted correctly after selecting the color temperature. - Fix the circular wall bracket to the wall. Screws and wall plugs are supplied.

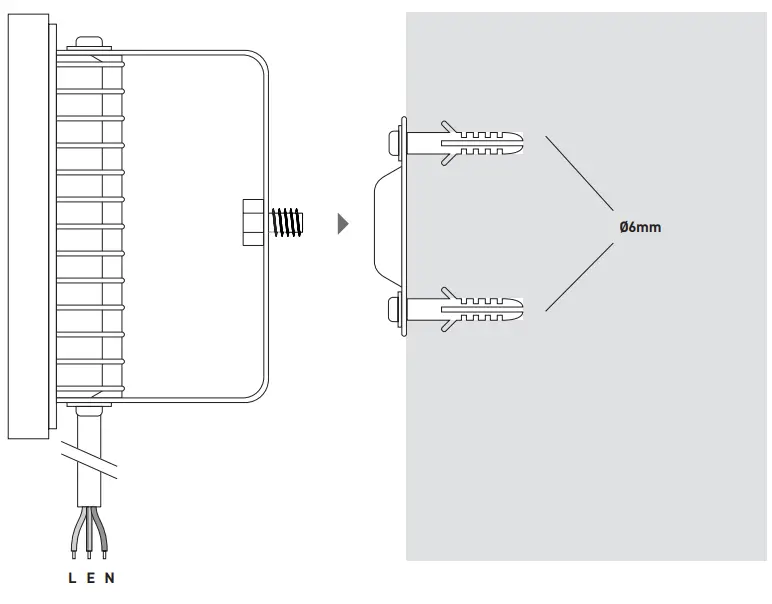

- Locate the floodlight over the circular wall bracket and tighten the screw to secure it in the required position. The aim of the floodlight can be adjusted by turning/tilting the unit.
- Connect the flying lead to the main supply. A suitable waterproof junction box or enclosure must be used to maintain the IP65 rating of the product.
- Tighten the two side screws to clamp the floodlight in the required position.
Note: When the floodlight is switched on for the first time, you may notice a slight presence of condensation behind the glass. The product is fitted with a breathable gland and any condensation will disappear after several hours of use.
Installation data
- Isolate the mains supply, prior to wiring.
- This unit must be wired by a qualified electrician or a suitable competent person.
- The light source of this luminaire is not replaceable. When the light source reaches its end of life the whole luminaire shall be replaced.
| Product | FL01 | FL02 | FL03 |
| Input voltage | 220-240V AC 50/60Hz | 220-240V AC 50/60Hz | 220-240V AC 50/60Hz |
| Input current | 0.08A | 0.16A | 0.14A |
| Input power | 10W | 20W | 30W |
| Power factor | >0.5 | >0.5 | >0.9 |
| Inrush current | 10A/0.3ms | 11A/0.5ms | 30A/5μs |
