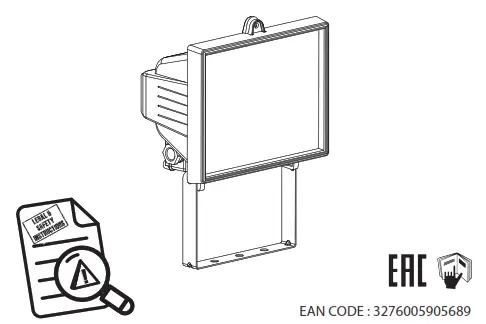

Brenta
EAN CODE : 3276005905689
Original Instructions
Assembly – Use Maintenance Manual

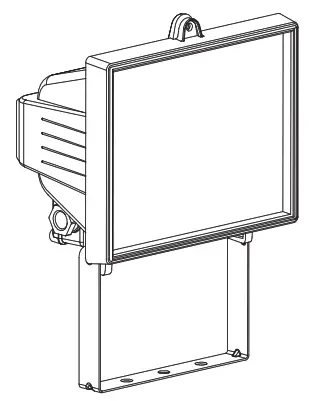

3276005905689 Brent Floodlight
 |  |
Caution danger
Power off
Power up

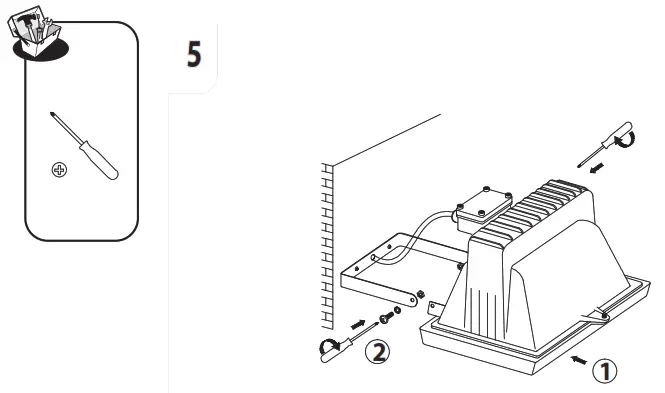

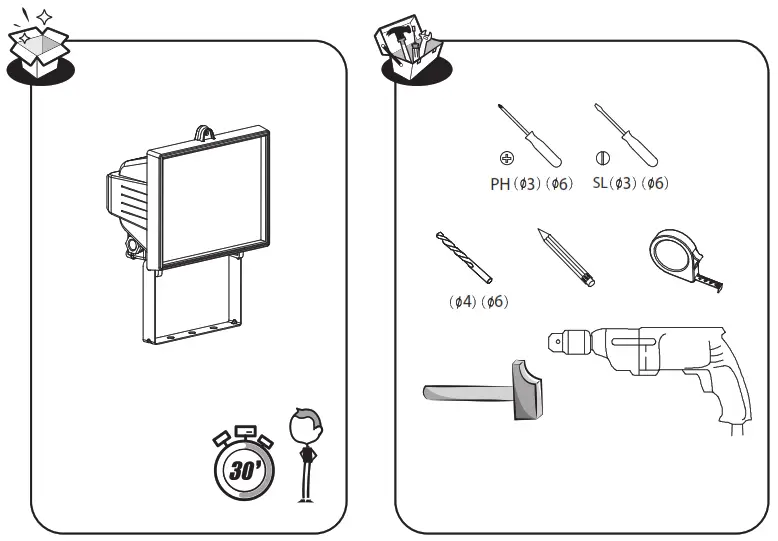

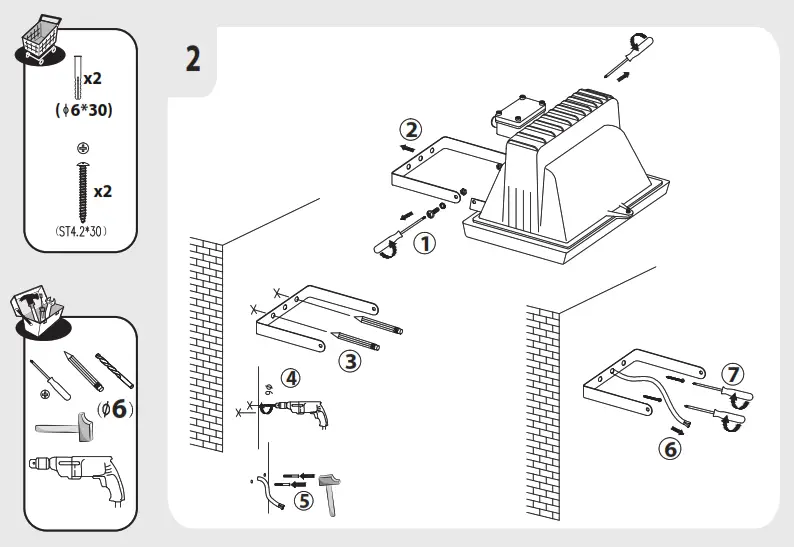

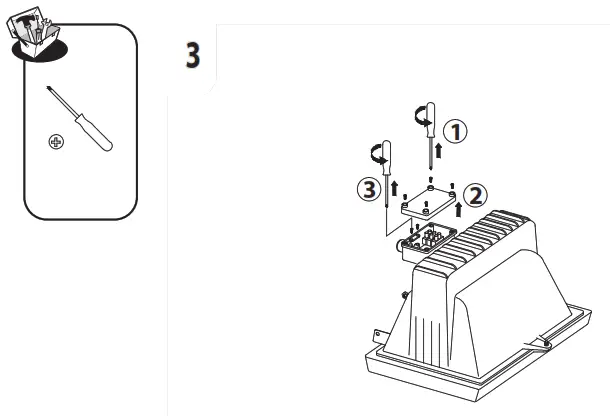

Assembly
Legal & Safety Instructions
 |  |
 |  |
 |  |
Warning symbols
 | Read the instructions |
 | Earthing |

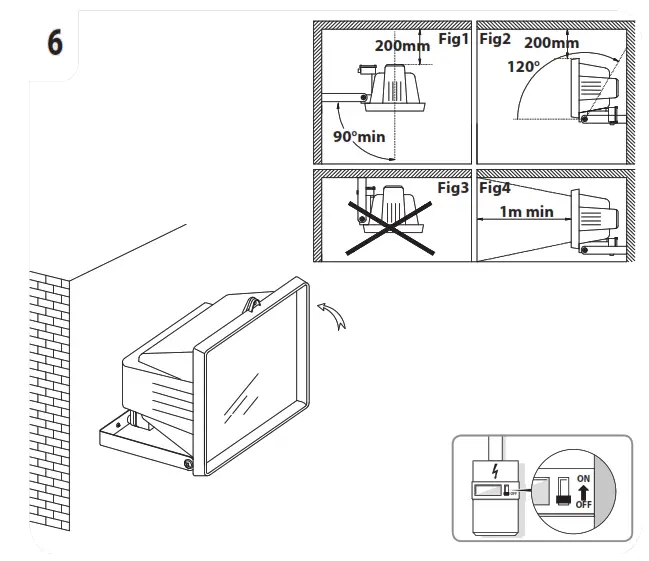

 | Minimum distance from lighted objects(1.0metres) |
General Safety Instructions
Read this instruction manual thoroughly before using the appliance and save it for future reference and if necessary pass the instruction manual on to a third party. WARNING: When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.
1) General
Check if the electrical specifications of this luminaire are compatible with your installation.
WARNNG: The power supply must be deactivated prior to assembly, maintenance, exchanging the bulb or cleaning processes. Remove the fuse or switch the fuse to OFF and secure from reactivation. Care must be taken before drilling fixing holes to avoid any existing wiring or pipework that may be concealed. Keep device out of reach of children and unauthorised persons.
2) Electrical safety

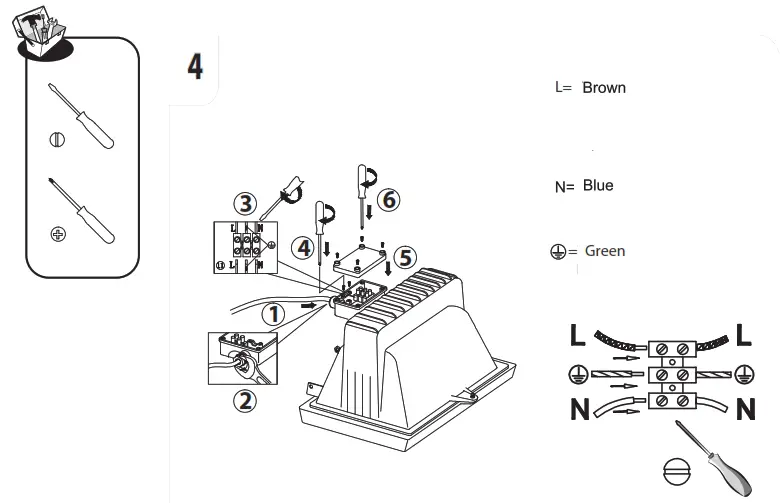

Luminaire should be installed by authorized electrician only acc. to national wiring rules. The earth wire should be longer than L,N wire. please use supply cord at least 3G1.0MM2(PVC wire is forbidden ,suggest using HOSRN-F wire)
Specific Safety Rules
No S pecific Safety Rules Apply.
Environmental protection
CAUTION!
Electrical products must not be thrown out with domestic waste. They must be taken to a communal collecting point for environmentally friendly disposal in accordance with local regulations. Contact your local authorities or stockist for advice on recycling. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.
Appliance specifications
TECHNICAL CHARACTERISTICS | |
| Rated voltage | 220-240V~ |
| Rated frequency | 50Hz |
| Rated wattage | MAX.400W |

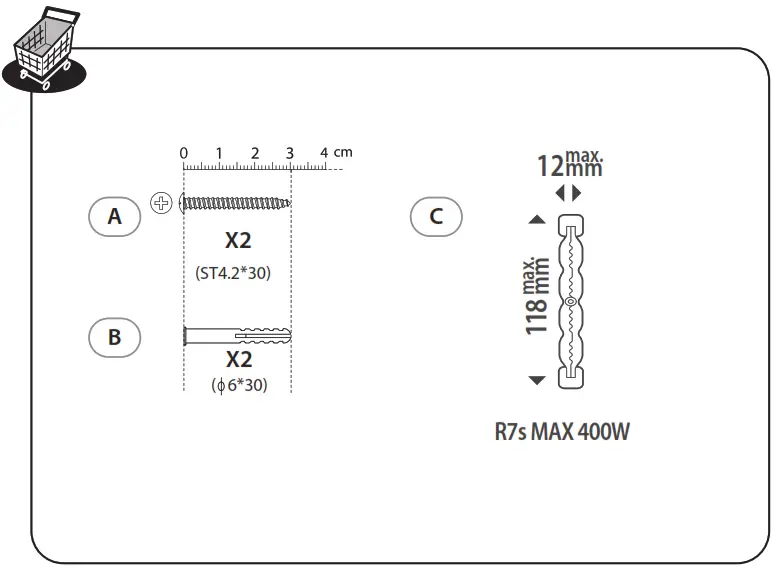

| Bulb rating | R7s MAX.400W EXCLU |
| Protection class | CLASS I |
| IP number | IP44 |
Maintenance / Cleaning

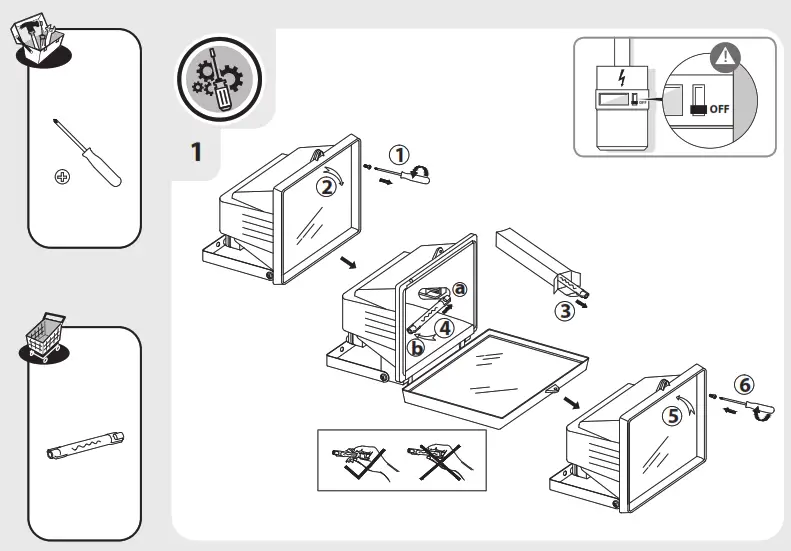

Disconnect from mains before maintenance or cleaning. Repairs should only be carried out by qualified persons and using genuine spare parts. Inappropriate repairing could cause significant danger. Always use bulbs according to specifications listed in this manual. Do not replace bulbs when it is raining. WARNING: The use of any accessory not specified in this manual may present a risk of personal injury.
Others (Service, Repairing, Guarantee, etc …)
Have your product repaired by a qualified person This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user. Please contact the store which you bought the product for after sale services if any.
WARRANTY DURATION
The general legal warranty applies to all products for 2 years from the delivery of the goods and upon providing the receipt as the proof of the purchase. However, INSPIRE goes beyond that. We want you to have the best experience possible with our products, thus we have extended the warranty periods for all INSPIRE products to 5 years.
WARRANTY APPLICATION
For the warranty to be applied, the product must have been installed, used and maintained according to the Instruction Manual guidelines.
QUESTIONS AND CLAIMS
If you have any questions or encounter any problems regarding the use of the product, its performance or visual aspect, you are welcome to contact your vendor through the contact information you will find on the purchasing receipt.
ADEO Services – 135 Rue Sadi
Carnot – CS 00001 59790 RONCHIN
5-year guarantee
