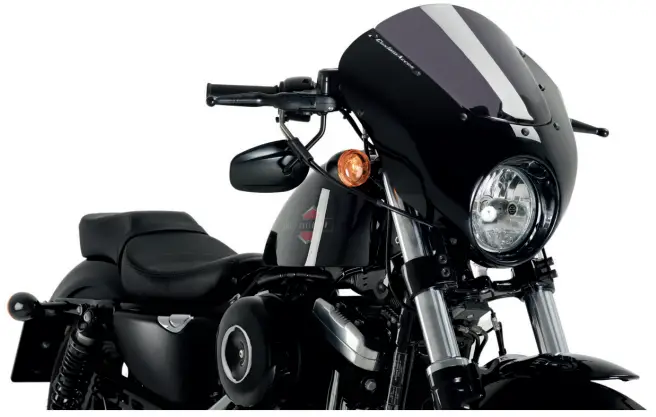

Puig PU-21109F 21098 Semifairing Dark Night Light

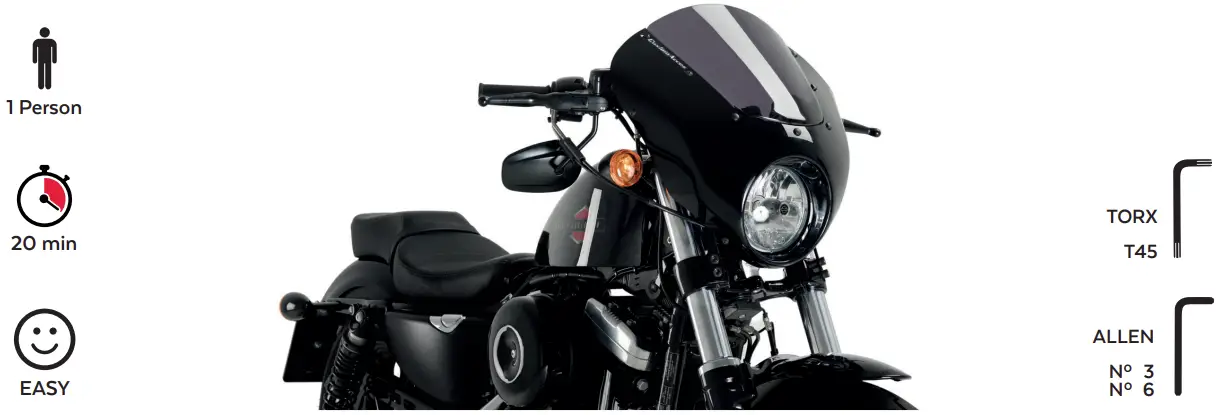

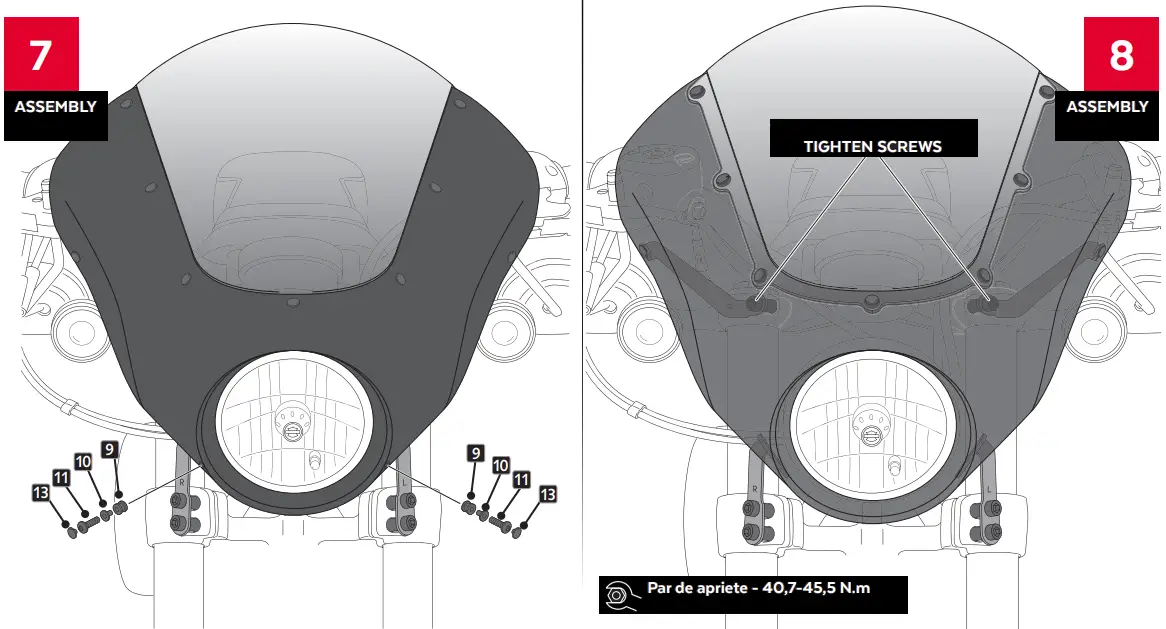

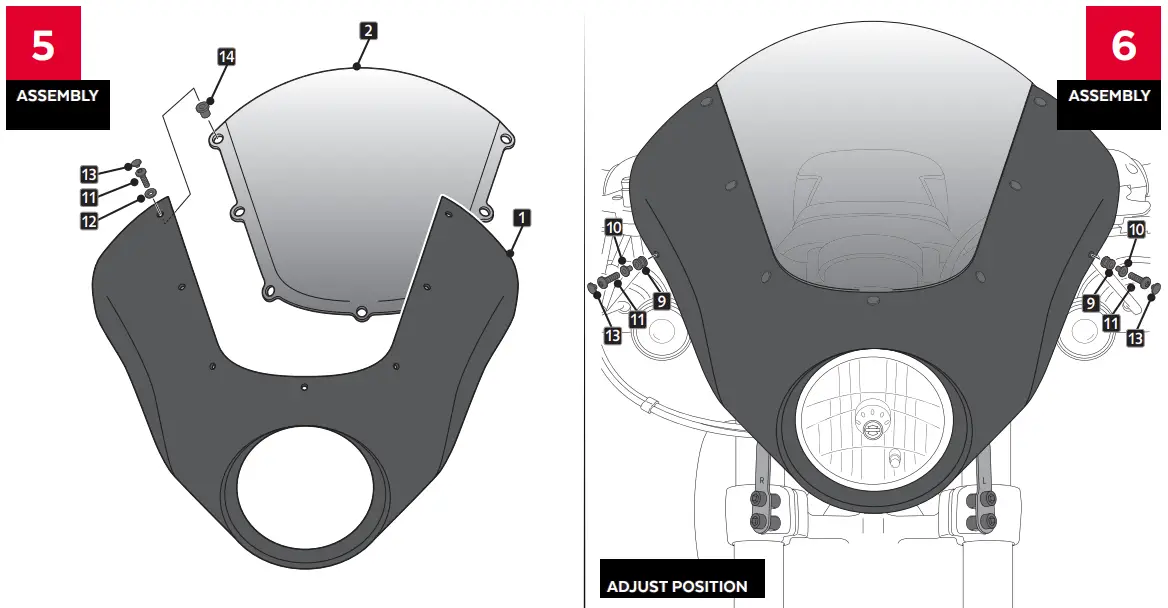

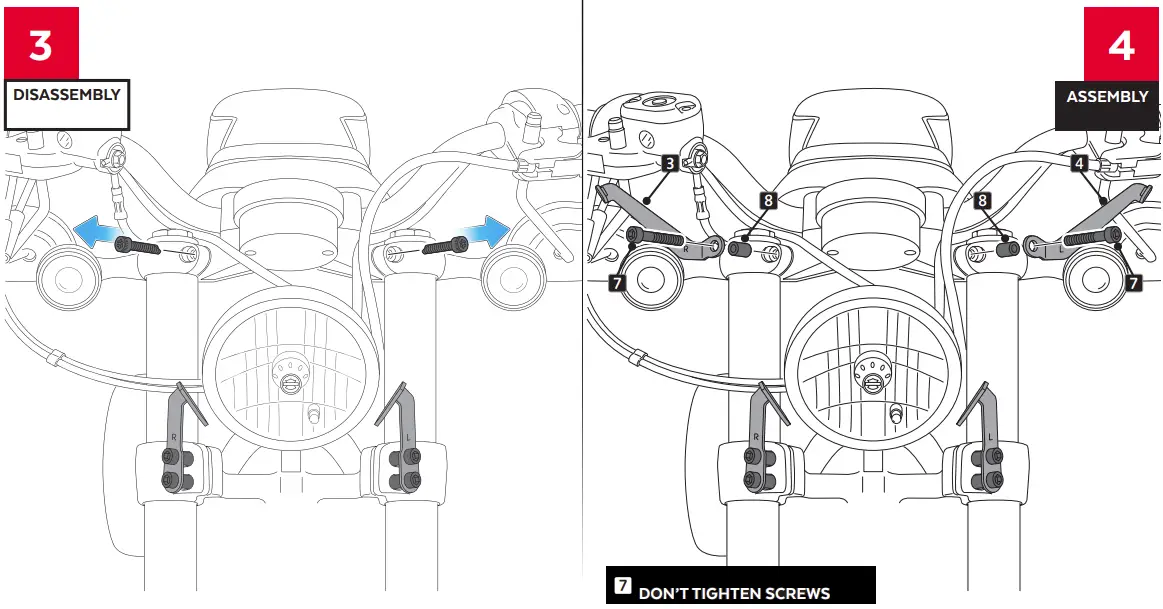

MOUNTING INSTRUCTIONS
 | It would be convinient to retight the semifairing screws, specially the ones that are fi xed to the motorcycle, whenever you maintain the vehicle. Thanks for your attention. |
ID | PART | DESCRIPTION | QTY | REF |

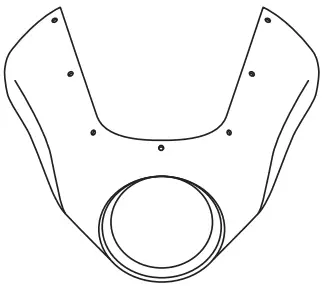

1 |  | Dark Night semifairing | 1 | 10903N |
| 2 |  | Screen | 1 | 10904H/F |

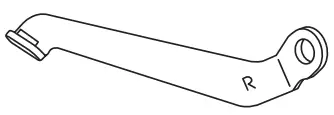

3 |  | Upper Right support | 1 | SOP4P3SRCUP0020 |

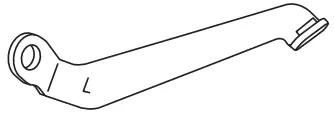

| 4 |  | Upper Left support | 1 | SOP4P3SLCUP0020 |
5 |  | Lower Right support | 1 | SOP4P3IRCUP0020 |
| 6 |  | Lower Left support | 1 | SOP4P3ILCUP0020 |
7 |  | ANSIB 18.3 CLASE 12.9 UNC 3/8” X 56 Allen screw | 6 | TORNI-ANSIB-855 |
| 8 |  | Ø10 x Ø14 x 20 bush | 6 | CASQUI101420299 |
9 |  | Ø9 xØ6 x8mm silentblock | 4 | AROPASACABLES-3 |
| 10 |  | Ø12xØ6,8×7,3 Bush with flange | 4 | CASQUI-1A—750 |
11 |  | M5x16 Ø11 ISO 7380 Allen screw | 11 | TORNI-I7380-493 |
| 12 |  | M5x1 nylon washer | 7 | ARNV0000000245 |
13 |  | M5 ISO 7380 screw cap | 11 | TAPON——– 85 |
| 14 |  | M5 silentblock | 7 | SILENBTM5-046/1 |
