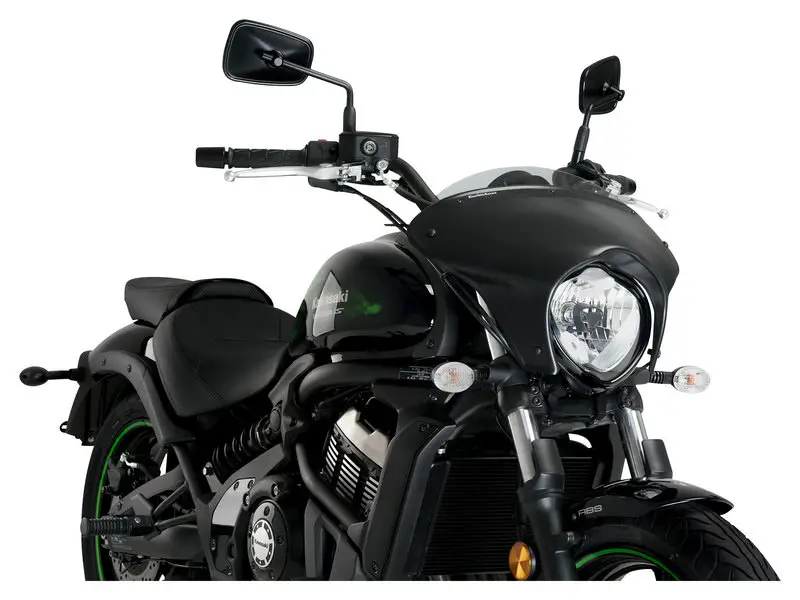

Puig 21074 Semi Fairing Mini Batwing Touring
MOUNTING INSTRUCTIONS
REF 21074
SEMIFAIRING MINI BATWING TOURING MODEL
1 Person
20 min
EASY
PHILLIPS
 It would be convenient to refight the semi fairing screws, specially the ones that are fixed to the motorcycle, whenever you maintain the vehicle. Thanks for your attention. | |||||

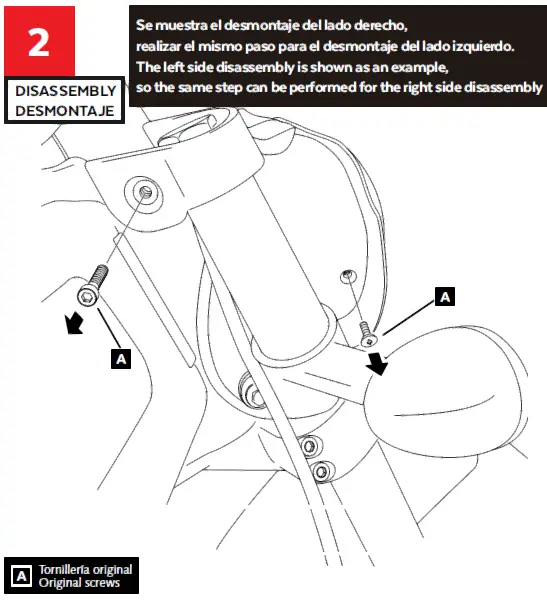

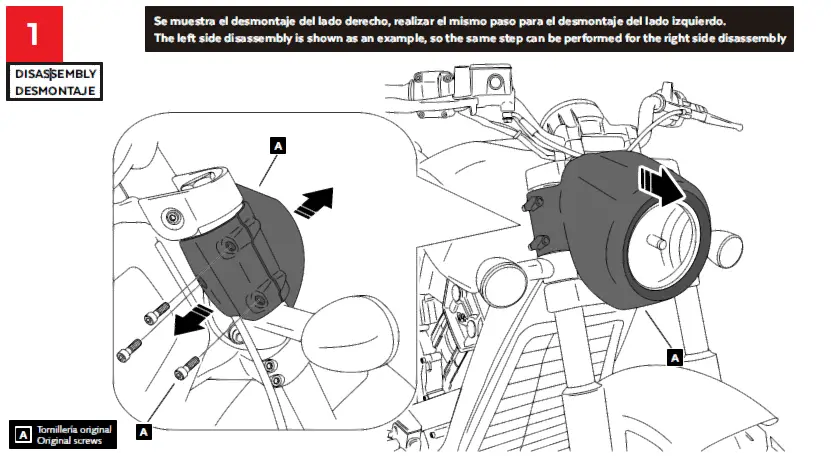

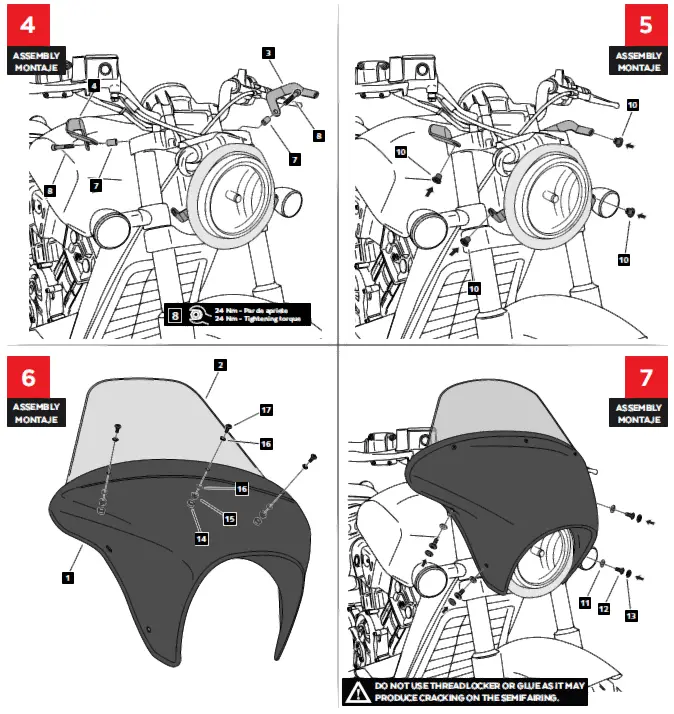

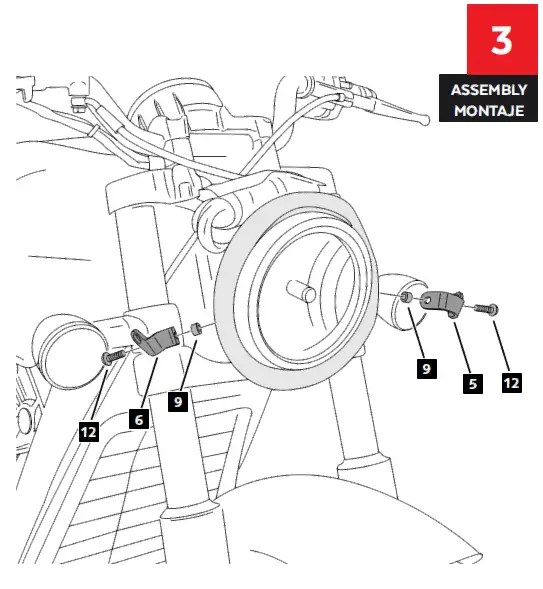

| ID. | PIEZA/PART | DESCRIPCIÓN | DESCRIPTION | QTY. | REF. |

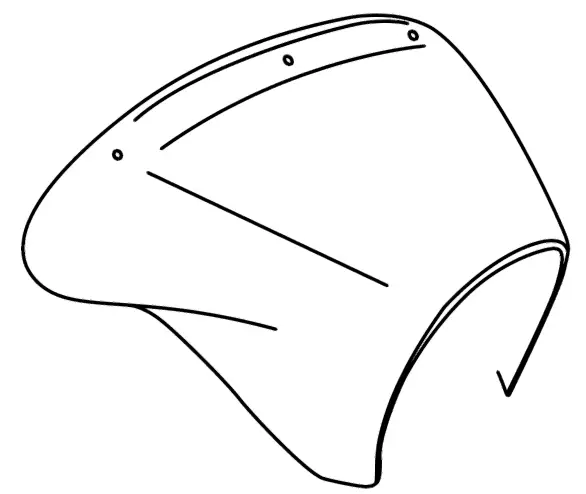

| 1 |  | Semicarenado | Semi fairing | 1 | 10897N |
| 2 |  | Cúpula TOURING | TOURING screen | 1 | 10900 |
| 3 |  | Sported inquired superior ( · ) | Upper left support ( · ) | 1 | SOP4P2L1BTM0021 |
| 4 |  | Sported derecho superior ( · · ) | Upper right support ( · · ) | 1 | SOP4P2R1BTM0021 |
| 5 |  | Sported inquired inferior ( · ) | Lower left support ( · ) | 1 | SOP4P2L2BTM0021 |
| 6 |  | Soporte derecho inferior ( · · ) | Lower right support ( · · ) | 1 | SOP4P2R2BTM0021 |
| 7 |  | Casullo Ø8,5xØ14x15mm | Ø8,5xØ14x15mm arrowhead | 2 | CASQUI81415-101 |
| 8 |  | Tornillo M8x45 DIN 912 | M8x45 DIN912 Screw | 2 | TORNI-D912–622 |
| 9 |  | Casullo Ø8xØ6×5,5mm | Ø8xØ6×5,5mm arrowhead | 2 | CASQUI—- 641 |
| 10 |  | Silentblock M5 | M5 silentblock | 4 | SILENBTM5-046/1 |
| 11 |  | Araneda nylon M5x1 | M5x1 Nylon washer | 4 | ARNV00000000245 |
| 12 |  | Tornillo Allen M5x16 Ø11 ISO 7380 | M5x16 Ø11 ISO 7380 Allen screw | 6 | TORNI-I7380-493 |
| 13 |  | Tapón tornillo M5 ISO 7380 | M5 ISO 7380 cap | 4 | TAPON——– 85 |
| 14 |  | Tapón tuerca M4 | M4 cap | 3 | TAPON——– 91 |
| 15 |  | Tierce autoblock canted M4 | M4 nut | 3 | TUERCAE985-0290 |
| 16 |  | Araneda nylon M4 | M4 nylon washer | 6 | ARNV00000000311 |
| 17 |  | Tornillo M4x12 Ø9 ISO 7380 | M4x12 Ø9 ISO 7380 Allen screw | 3 | TORNI-I7380-800 |
rrDisseny
