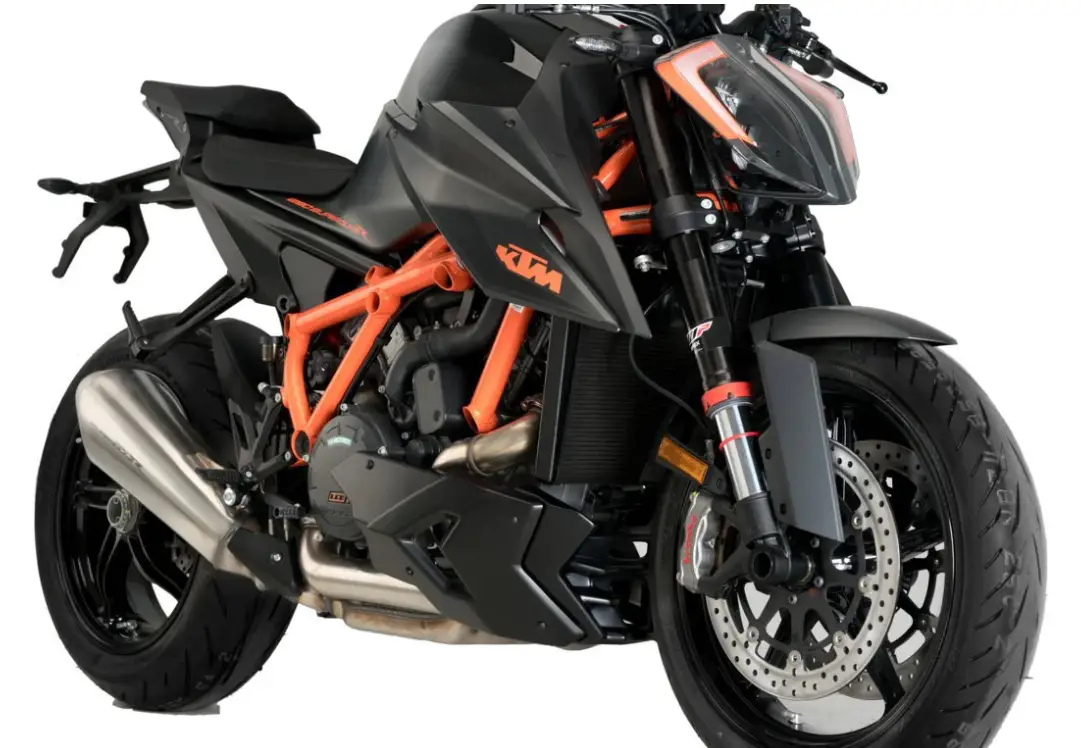

PYRAMID 29900 KTM 1290 Superduke R Belly Pan
Kit Includes
| 1X | 29900LHS | Left-hand Panel |
| 1X | 29900RHS | Right-hand Panel |
| 1X | CFK29900LHS | Left-hand Bracket |
| 1X | CFK29900RHS | Right-hand Bracket |
| 4X | CBOLM50012 | M5 X 12mm Torx Bolt |
| 4X | CWASM50001 | M5 Plastic Washer |
| 4X | CNUTM50002 | M5 Nyloc Nut |
| 1X | CSPAM60006 | 6mm Stainless Steel Spacer |
| 1X | CBOLM50009 | M5 X 20mm Bolt |
Fitting Instructions
Pyramid advise using Loctite ( or equivalent products) on all engine casing mounting points.

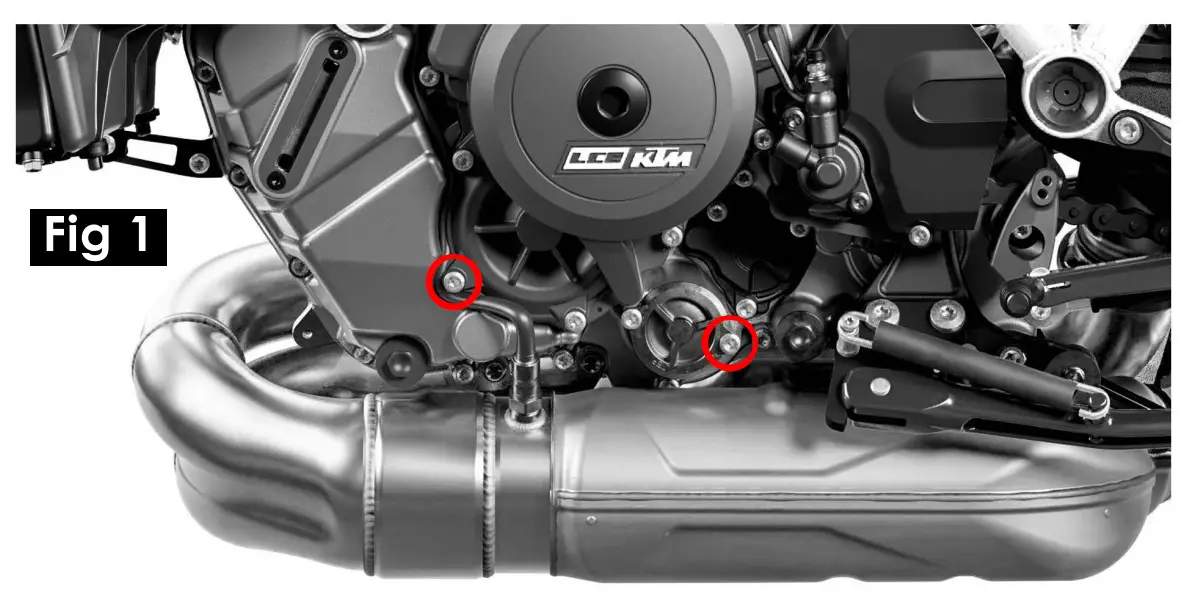

- Fig 1 – RED circles show mounting points on the left-hand side.

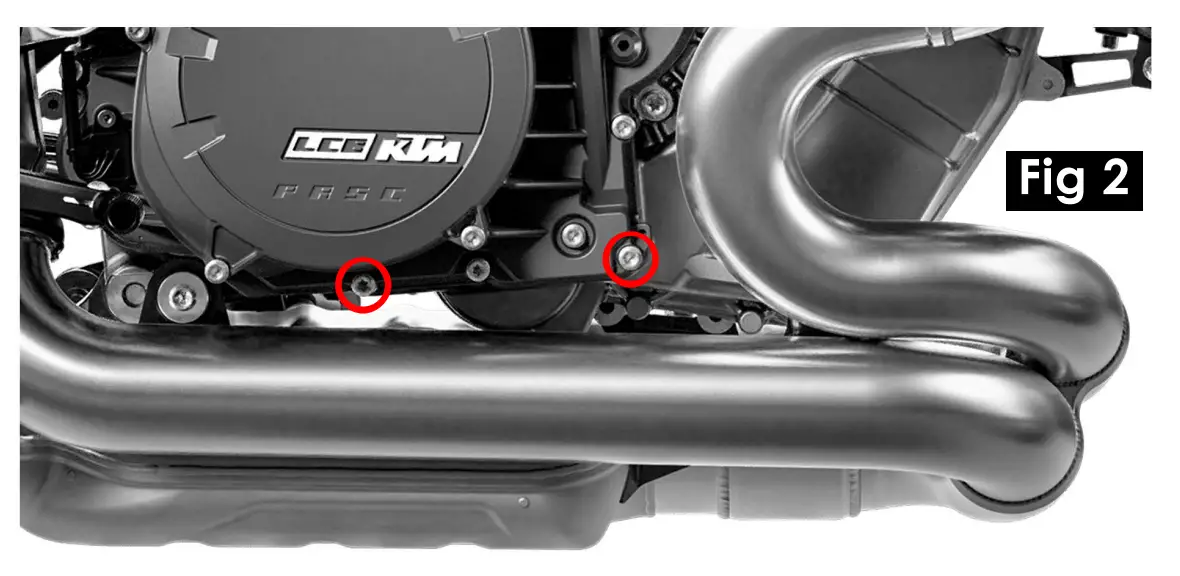

- Fig 2 – RED circles show mounting points on the right-hand side.

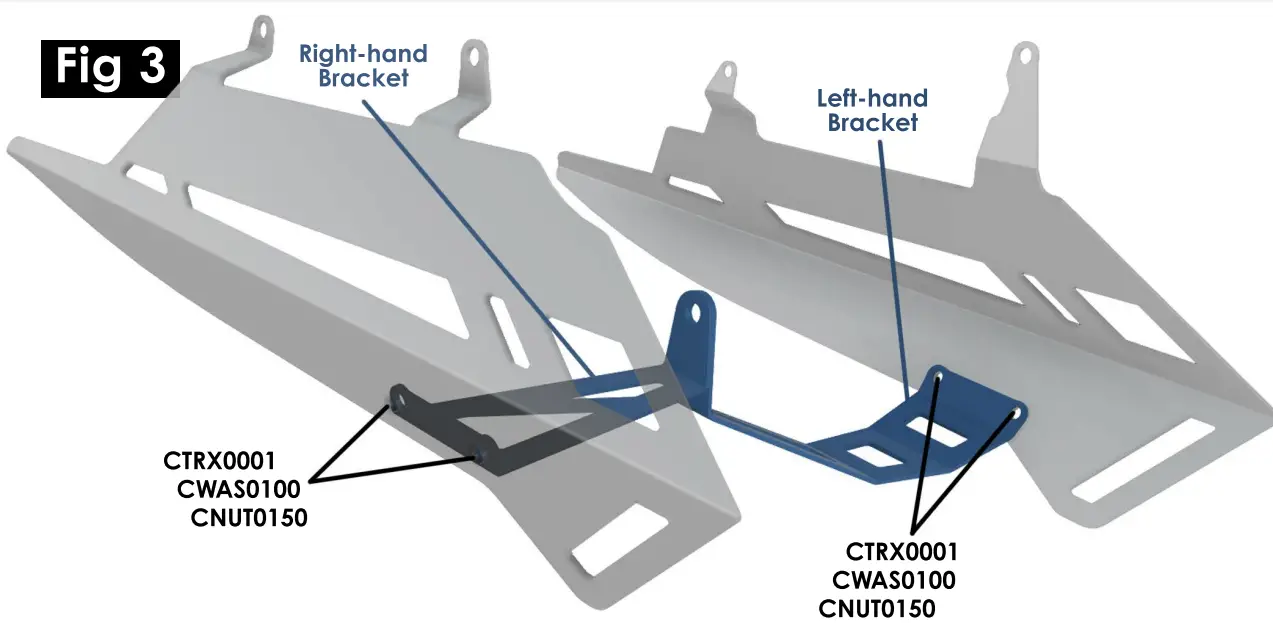

- Fig 3 – illustrates the Pyramid Belly Pan assembly.

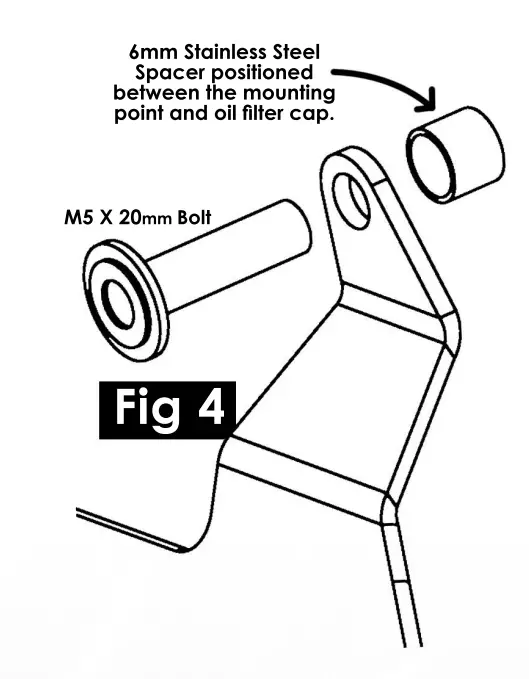

- Fig 4 – illustrates the position of the MS X 20mm Bolt & 6mm Stainless Steel Spacer (rear mounting point left hand side).

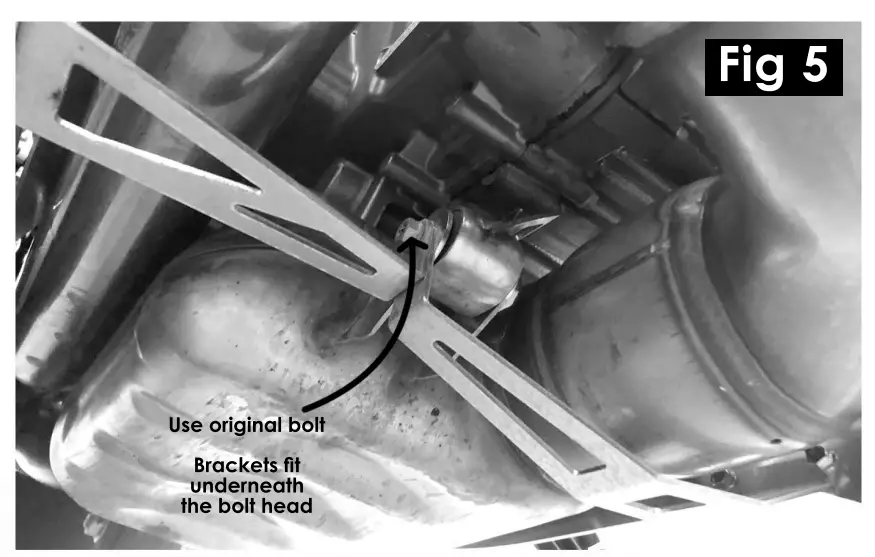

- Fig 5 – illustrates the Pyramid Belly Pan assembly from below the bike. Original bolt is used.
Any questions?
[email protected]
+44 (0)1427 677990
www.pyramid-plastics.co.uk
