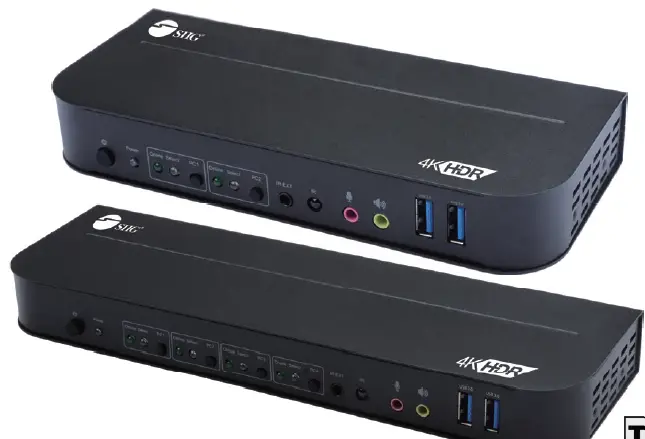

SIIG 2×1-4×1 HDMI 4K HDR KVM USB 3.0 Switch
Features
- Support HDMI 2.0
- Support 4K@60Hz & HDR
- Display EDID bypass
- Support two USB 2.0 ports for wired mous & keyboard use only
- Support two USB 3.0 SGbps ports, SV/900mA
- Support 3.5mm jack for Microphone and Speaker extend Switch control by front panel, IR remote or hotkeys
- Support auto-switch mode
- Support Windows and Mac systems
- Plug-n-play, no driver installation
Package Contents
- HDMI 4K HDR KVM USB 3.0 Switch with RC
- Power Adapter 5V/3A
- USB 3.0 Type-A to B cable x 2 (CE-KV0E11-S1) USB 3.0 Type-A to B cable x 4 (CE-KV0F11-S1)
- IR extender cable
- IR remote control
- User manual
Layout

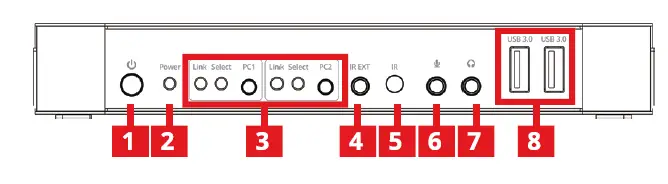

Front Panel
2×1 & 4×1 port define are the same design, the manual use 2×1 layout as example.
- Power Button: Turn on/off the unit
- Power Indicator:
- Input Selection Button:
“Select” lights up to indicate input selection
“Link” lights up when the USB-B port is connected. - IR EXT: Connect to IR Extender cable
- IR: For IR signal reception from the remote control
- Microphone port at console
- Speaker/Earphone port at console
- USB 3.0 hub ports at console for peripherals 5Gbps, 5V/900mA

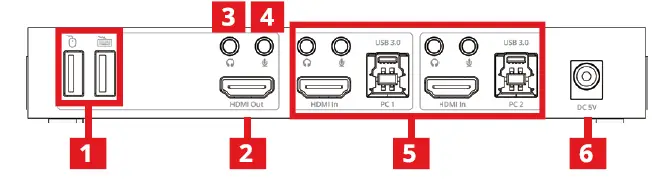

Rear Panel
- USB keyboard & mouse ports at console (for wired keyboard & mouse use only)
- HDMI output: resolution up to 4K@60Hz
- Microphone port at console
- Speaker/Earphone port at console
- PC-x input ports:
- Microphone port for PC-x
- Speaker/Earphone port for PC-x
- USB-8 port for PC-x
- HDMI input for PC-x
- Power Jack: DC 5V/3A
Remote Control
P/N: CE-KV0E11-S1 P/N: CE-KV0F11-S1
- 1.2.3.4: Switch to PC 1 or 2 or 3 or 4
- ◄ : Switch to previous PC
- ► : Switch to next PC
Notice:
- Mouse traversal function: place the mouse on the far right side of the display and continue to slide to the right for 2 seconds, the unit will automatical ly switches to the next port. Switching order is: PC1 ➔PC2➔PC3➔PC4➔PC1
- Hotkey function (It doesn’t work on functional keyboard and on ly the 2 USB-A ports on the back panel can get access to this funct on.)
Hotkey Command

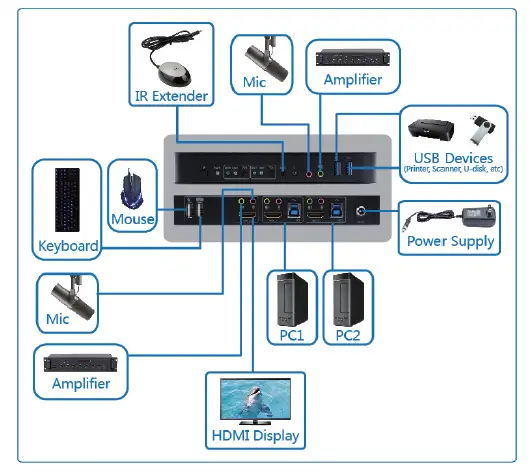

Application
Dear Valued Customer
WE REALLY APPRECIATE
YOUR PURCHASE
-thank you-
Support
For more info or tech support
http://www.siig.com/support
Aug, 2022 Copyright© 2022 by SIIG, Inc. All rights reserved.
