Tesmart Hks0401b2u 4k Hdr Hdmi Kvm Switch User Manual

HKS0401B2U 4K HDR HDMI KVM Switch
User Manual

Features

• Using only 1 set of keyboard, mouse and monitor to control 2/4 computer devices
• Support auto switching to monitor computers in a specified time interval
• Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs
• Available to use keyboard and mouse without any delay after switch input sources
• Support resolution up to 3840*2160@60Hz 4:4:4
• HDCP 2.2 compliant
• With USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM
• With EDID emulators in each input port, keep PCs always having correct display information
• Support analog L/R audio output
• Support HDR and Dolby Vision
• Support keyboard and mouse pass through mode to improve mouse and keyboard compatibility

Packing List

1* 2×1/4×1 HDMI KVM Switch
1* DC 5V power adapter
1* IR remote control
1* User’s Manual

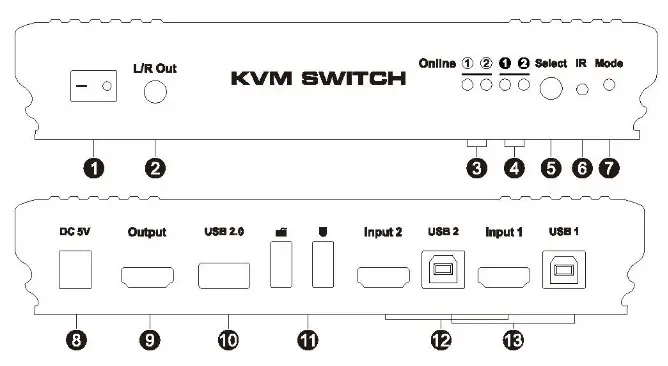

2×1 Panel Description

2×1 Panel Description:

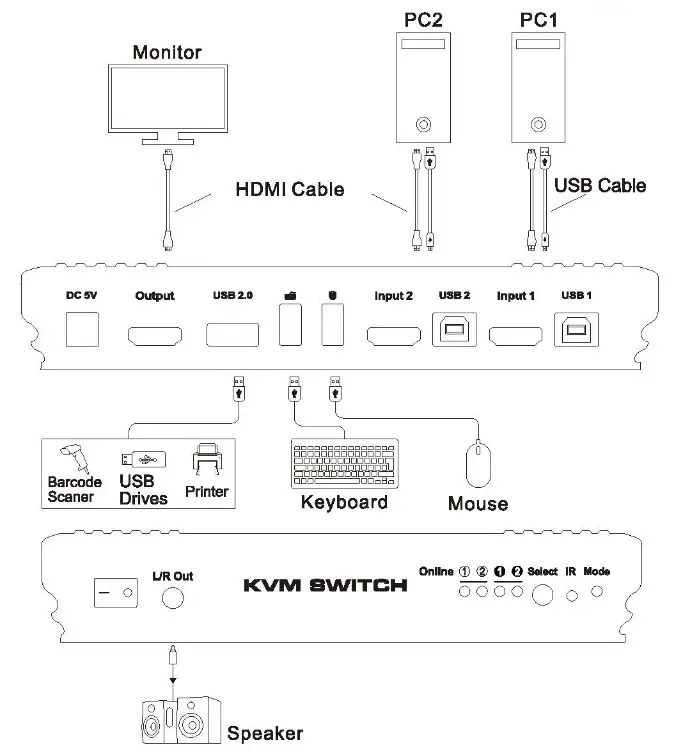

2×1 Connection Diagram:

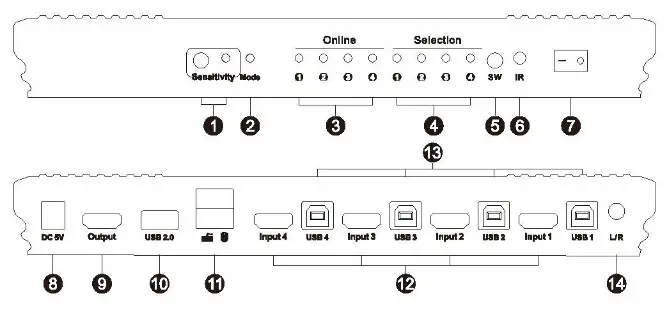

4×1 Panel Description:

4×1 Panel Description:

4×1 Connection Diagram:

HOWTOUSE

1. Setup the connection according to the connection diagram.
2. After all the PCs are started in step 1, then you can switch to any PC by keyboard hot keys, IR keys or the key pad on the KVM front panel. (For example, if you want to control the PC connected to HDMI in 2 just press the [SW] button on front panel, or press digit button [2] on remote control, or the keyboard hotkey commands described following)

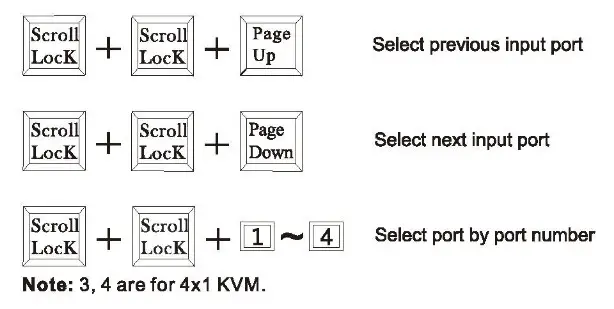

HOW TO USE KEYBOARD HOT KEYS:

1. Hit [Scroll Lock] key twice within 2 seconds, the buzzer will beep once when Scrolllock is pressed the second time.
2.  After step 1 enter following hot key commands within 3 seconds, the KVM will execute the corresponding commands.

.Enable or disable buzzer sound

Enable or disable fast switching mode (Mouse gesture mode) If fast switching mode is activated, then double hit left or right bound of the screen with mouse pointer in 1 second, KVM will switch to previous or next input.

Turn on auto switching mode
Note: The KVM will automatically loop among all the powered on input source within a specified time interval. Default auto switching time interval is 6 seconds, you are able t o change this value by following hot key commands:

Increase or decrease auto switching time interval
Note:1 second per step, the time is up to 250 seconds.

Turn off auto switching mode
Note: Execute this hotkey command to exit auto switching mode.

Turn on/off keyboard and mouse pass through mode
Note: For the best compatibilty, it is better to turn on keyboard and mouse pass through mode. In this mode, the keyboard and mouse are dynamically mapped to  computer, so you are able to use special keyboard and mouse that with multimedia keys or other customized keys.
HOW TO CHANGE THE HOT KEYS COMBINATION:
If no [Scroll Inlock] key on your keyboard or the [Scroll Lock] key is used for other functionality, you can take right [Ctrl] hotkey instead of [Scroll Lock] key by below two ways:

1. Press front panel button [SW] until you hear the buzzer i s beeping, then restart the KVM.
2. Execute hotkey command [Scroll Lock]+[Scroll Lock]+[F 1].

Switch the control hotkey tonight [Ctrl]
After you had done either one of above, the hotkey combinations would be changed to: right [Ctrl]+right [ C t r l ] + [ x x x ] .
Note: xxx refers to keyboard key PageUp, PageDown, 1~4, F 1 1 , F12, SPACE, +/-.
The same if you want t o change the hotkey from right [Ctrl] to [Scrol ILock], you could do as follows:

1. Press front panel button [SW] until the buzzer is beeping, then restart the KVM.
2. Execute hotkey command: right [Ctrl]+right [Ctrl]+[F 1].

Switch the control hotkey to [Scroll Lock]

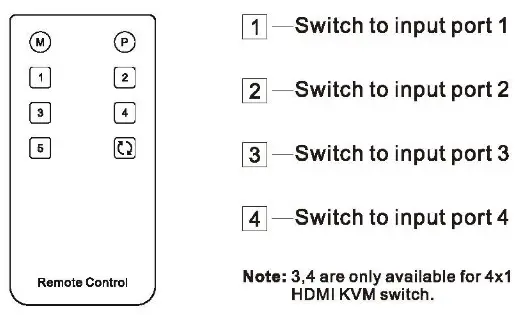

IR Remote Control

Note:

1. For the safety request by some express company, the remote control is not equipped battery by default.
2. Unspecified buttons at above are non-functional.

Verified keyboards and mouses

Note: The above listispart of the verified keyboards and mouses li st. with special HID protocol.

Warranty Information

We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment.
If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to
mechanical, electrical, or other abuse or modifications. If it fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for six (6) months from the day of reshipment to the buyer.
