Tesmart Hks0801a1u-ukbk 8-ports 4k 60hz Hdmi Kvm-switch Control User Manual

4-Port Dual Monitor HDMI KVM Switch
USER MANUAL

HKS0801A1U-UKBK 8-Ports 4K 60Hz HDMI KVM-Switch Control

ENJOY THE VIVID WORLD
HDMI – Dual

Features:

• Using only 1 set of keyboard, mouse and 2 monitors t o control 2 computers
• Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux basic system
• Support resolution up t o 3840*2160@60HZ
• Support hot plug, disconnect or connect devices t o the KVM at any time without turning off PC
• With EDID emulators in each input port, keep PCs always have correct information, prevent displays setting change while switching input ports
• Support front panel button, keyboard hotkeys, IR remote control and RS232 t o control KVM
• Available t o use keyboard and mouse without any delay after switching input sources
• With extra USB 2.0 port, i t is possible t o connect bar code scanner, USB hard device or other USB device
• Support keyboard and mouse pass through mode t o improve KVM compatibility
• Support DCCI

Packing List

– 1 * Dual Monitor HDMI KVM Switch
– 1 * IR remote control
– 1 * IR Receiver cable
– 1* DC 12V power adapter
– 1 * 3 Pins Connector(For RS232)
– 2 * Rack-eras
– 1 * AUX Cable
– 1 * User manual

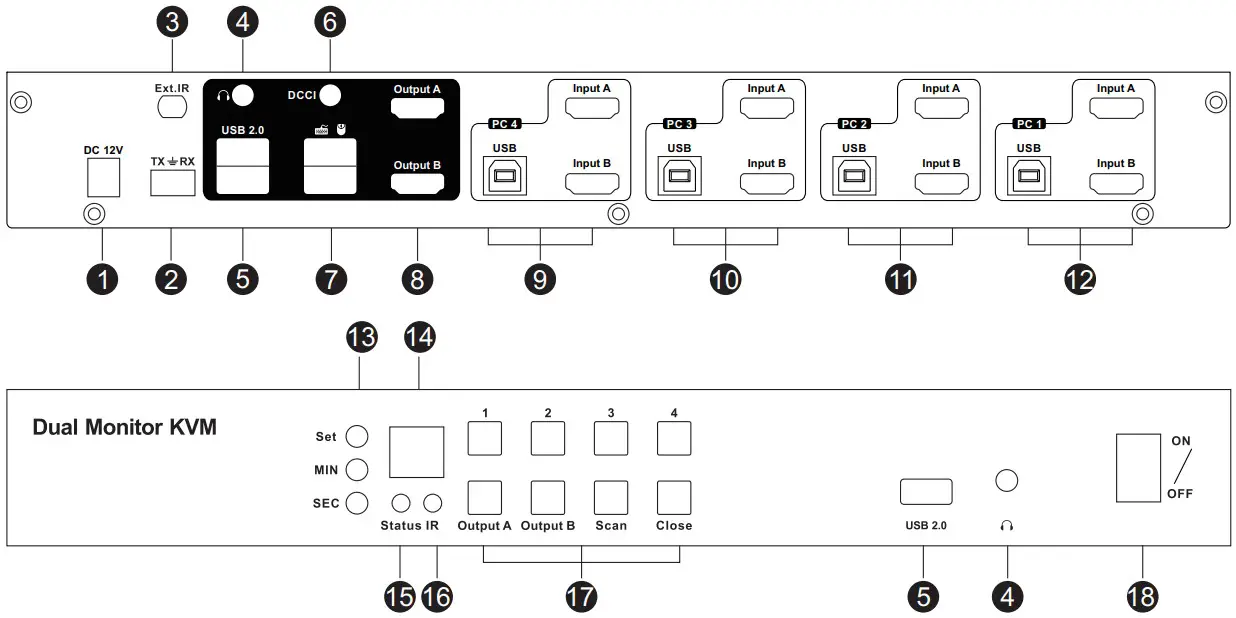

Panel Description:

Connection Diagram:

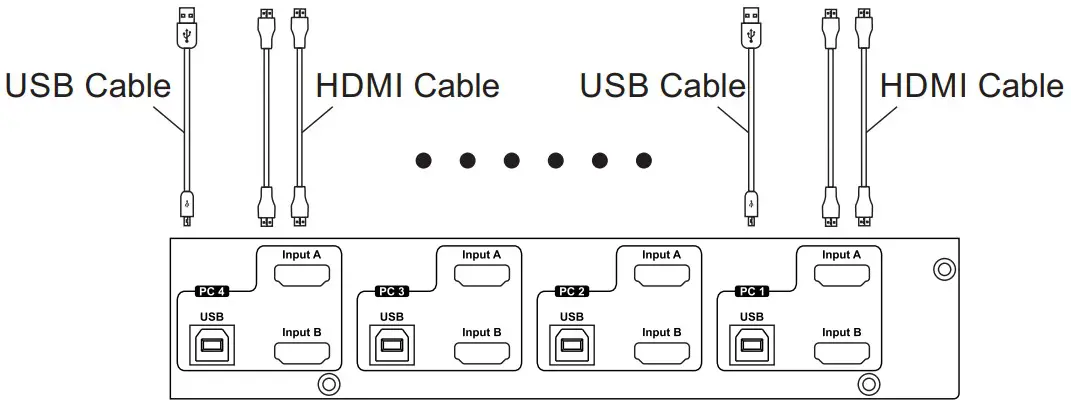

Step1:Connect the two outputs of the PC1 t o the Input A and Input B of the KVM PC1 inputs.
Connect the USB of the PC to the USB of the KVM PC1 inputs with USB type A t o B cable

Note: Both Input A and Input B should be connected to the same computer. If connect only one of them, then the dual monitor function would not work properly.

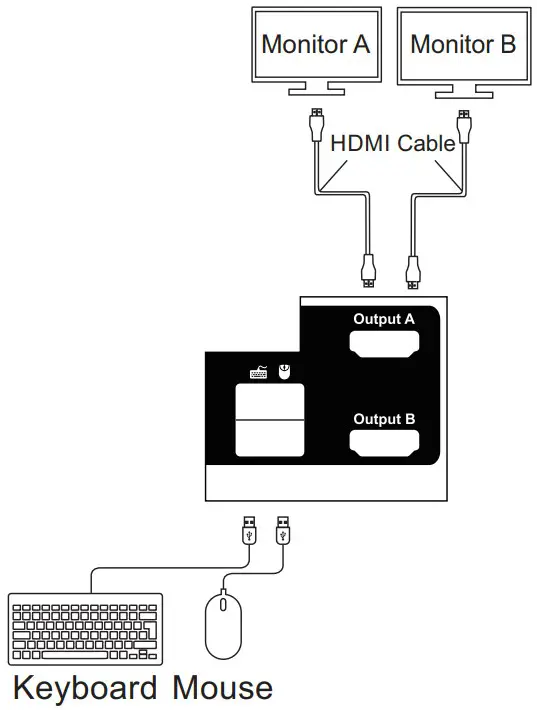

Step 2 : Connect keyboard, mouse and monitors to the specified ports.

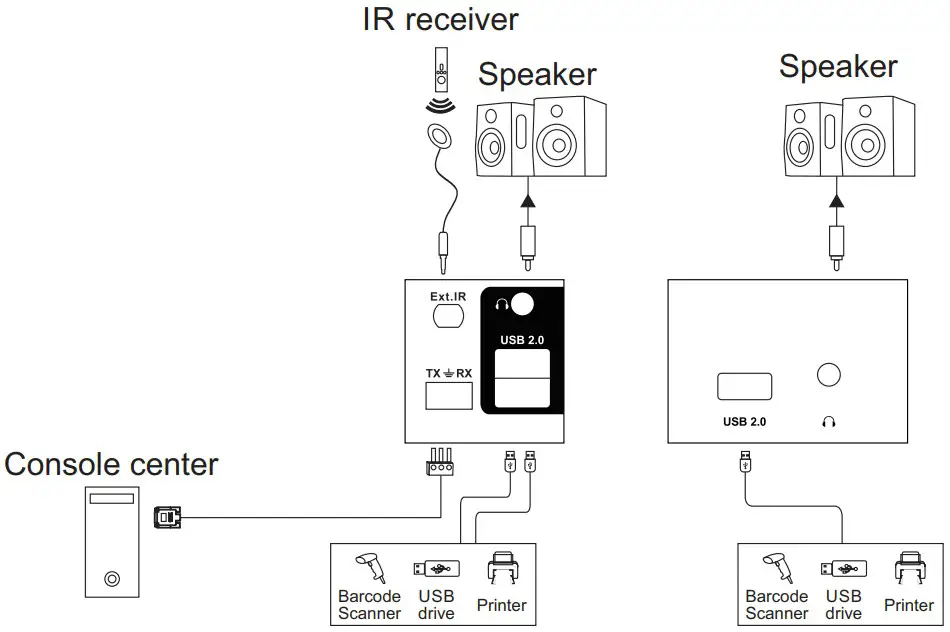

Step 3: Connect speakers, USB devices, Ext. IR and RS232 to the KVM.

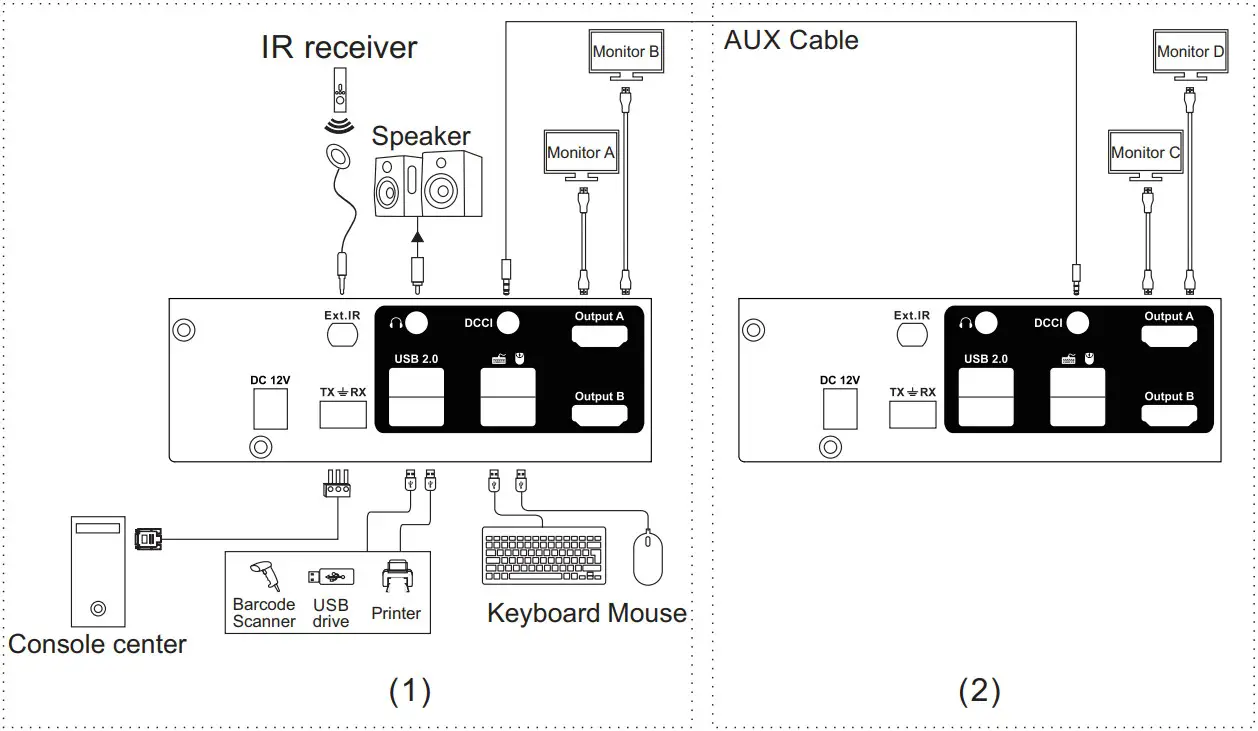

Step 4: Directly connect the DCCI port of first KVM switch according t o above steps, in order t o realize simultaneous display of 4 monitors

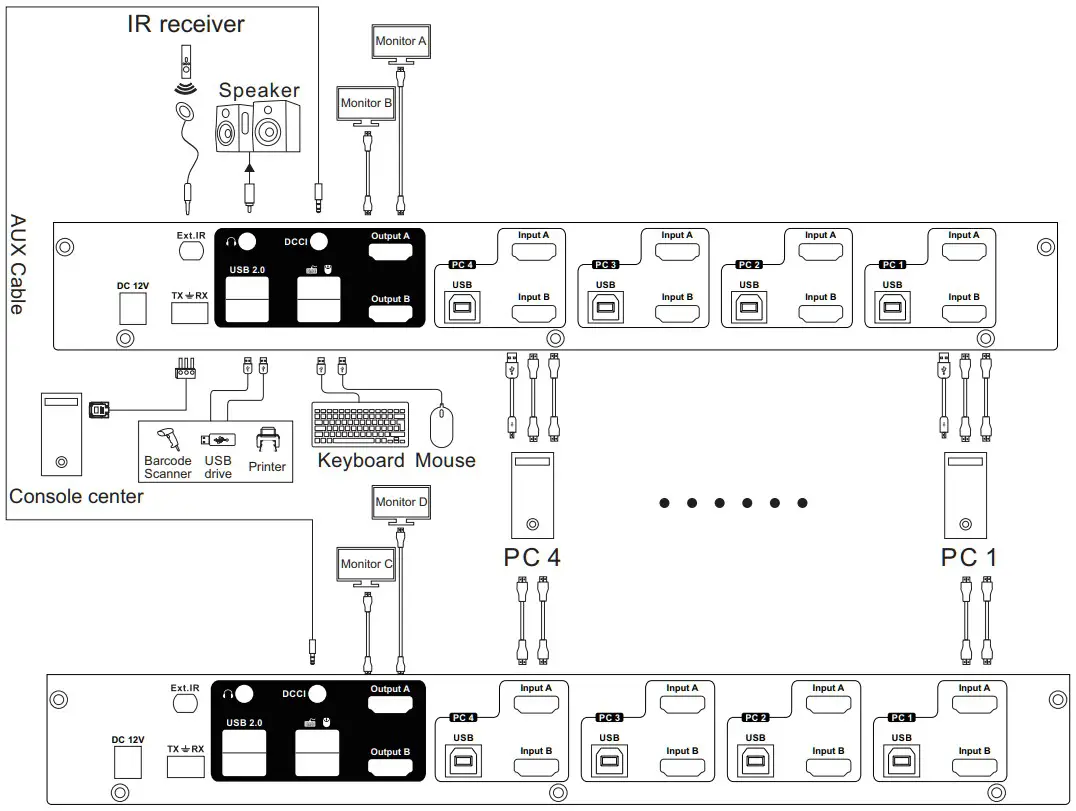

Cascade Diagram

Note: The slave only connects to monitors and computers.
Computers need to connect 4 HDMI cables simultaneously.
Step 5 :  Turn on the power switch to start the Dual Monitor KVM.

How To Use:

1. Set up the connection according t o the connection diagram.
2. After all the PCs are started in step 1, then you can control the Dual Monitor KVM by keyboard hot keys, IR control or the front panel key, the specific control methods are as follows:

How to use keyboard hot keys:

	Press [Alt] key twice t o change active selected computer in display mode 2 Note: Display mode 2 means one monitor display one PC.
	Select port by port number
	Turn off auto switching mode
	Enable or disable buzzer sound
	Turn on auto switching mode Note: Default auto switching time interval is 6 seconds, you are able to change this value by following hot key commands:
	Increase or decrease auto switching time interval Note:1 second per step, the time is up to 250 seconds.
	Turn on or off keyboard and mouse pass through mode Note: For the best compatibility, it is better to turn on keyboard and mouse pass through mode. In this mode, the keyboard and mouse are dynamically mapped to computer, so you are able to use special keyboard and mouse that with multimedia keys or other customized keys.

How to identify whether the KVM is in keyboard and mouse pass through mode?
Turn on the KVM, press [Scroll Lock] + [Scroll Lock] + [F3], if buzzer beeping twice, the KVM is in keyboard and mouse pass through mode. And beeping once means in keyboard and mouse emulation mode.

HOW TO CHANGE THE HOT KEYS COMBINATION:
There are two kinds of trigger hot keys in this product, the default is [Scroll Lock] key, and the alternative is the [Right-Ctrl] key. if [Scroll Lock] key has been used for other functions, you can switch the hot key to [Right-Ctrl] by:
Method 1: Press and keep holding the [Set] button on the front panel until you hear the buzzer is beeping, then restart KVM.
Method 2: Press [Scroll Lock]+[Scroll Lock]+[F1], and you will switch the control hot key to [Right Ctrl].
Vice verse, press [Right Ctrl]+[Right Ctrl]+[F1], and you will switch the control hot key to [Scroll Lock].

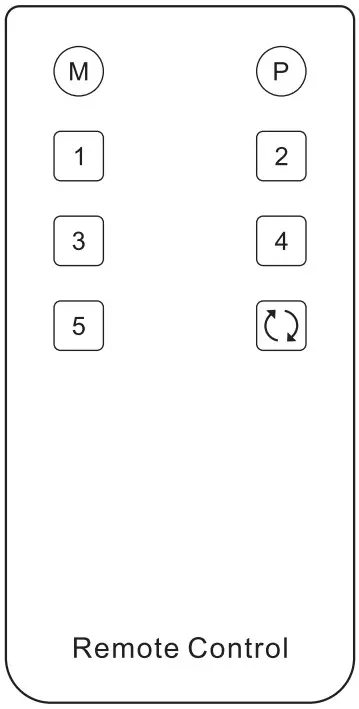

IR Remote Control:

	Switch to PC 1
	Switch to PC 2
	Switch to PC 3
	Switch to PC 4
	The function is the same as the function of the panel key Output A
	The function is the same as the function of the panel key Output B
	Turn on auto switching mode

Note:

1. For the safety request by some express company, the remote control is not equipped battery by default. Please install the button battery CR2025 before using it.
   2.Unspecified buttons at above are non-functional.

RS232 Commands (HEX):

Warranty Information:

We warrant this product as free of defects i n material and workmanship for a period of one (1) year from the date of shipment.
If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications. If it fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for six (6) months from the day of reshipment to the buyer.

Technical Support

Thank you for purchasing the TE Smart 3 Monitors HDMI KVM Switch.
We are here to help you!
Do you need assistance setting up your product?
Please make sure you:
-Visit https://support.tesmart.com for knowledge base and troubleshooting or scan the QR code directly with apps like Twitter.

https://support.tesmart.com/

– Consult [email protected] for technical support.
