oe electrics INSTR1294 QikDoc Locate Clamp Fix

QIKDOC Locate Clamp Fix instructions

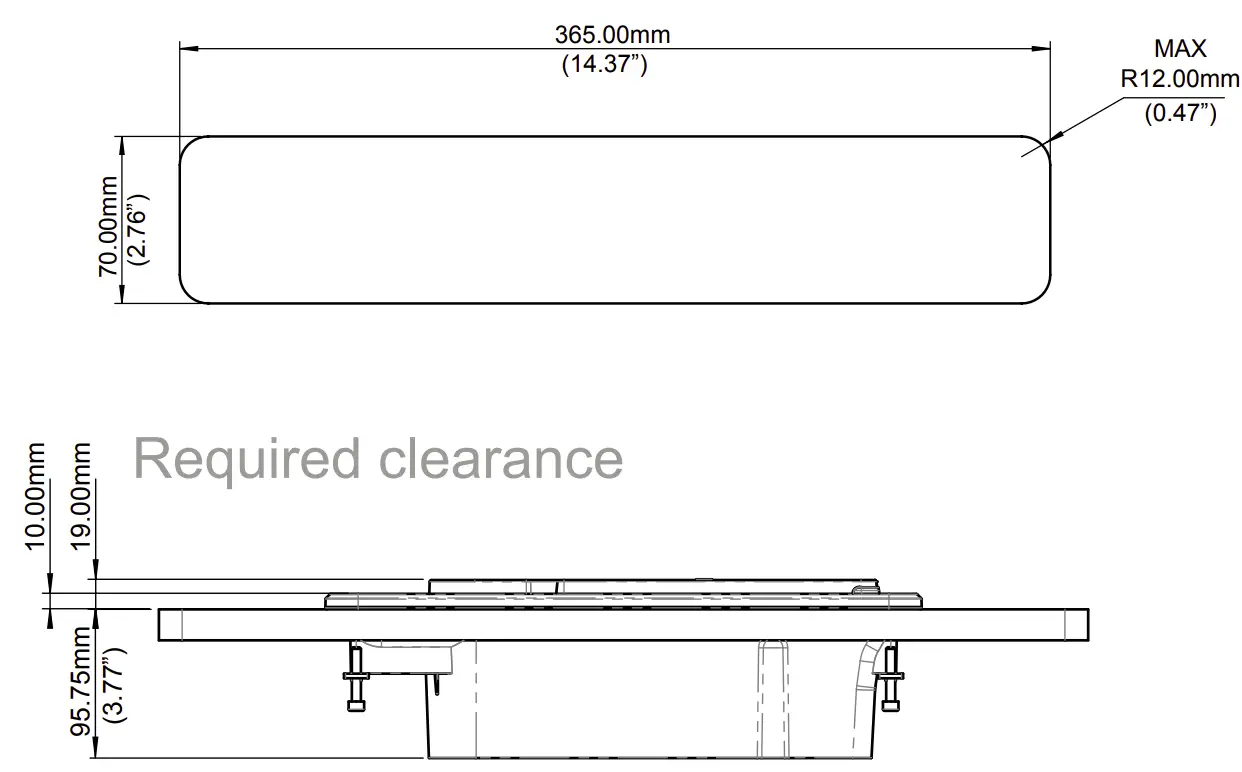

1. Cutout Size

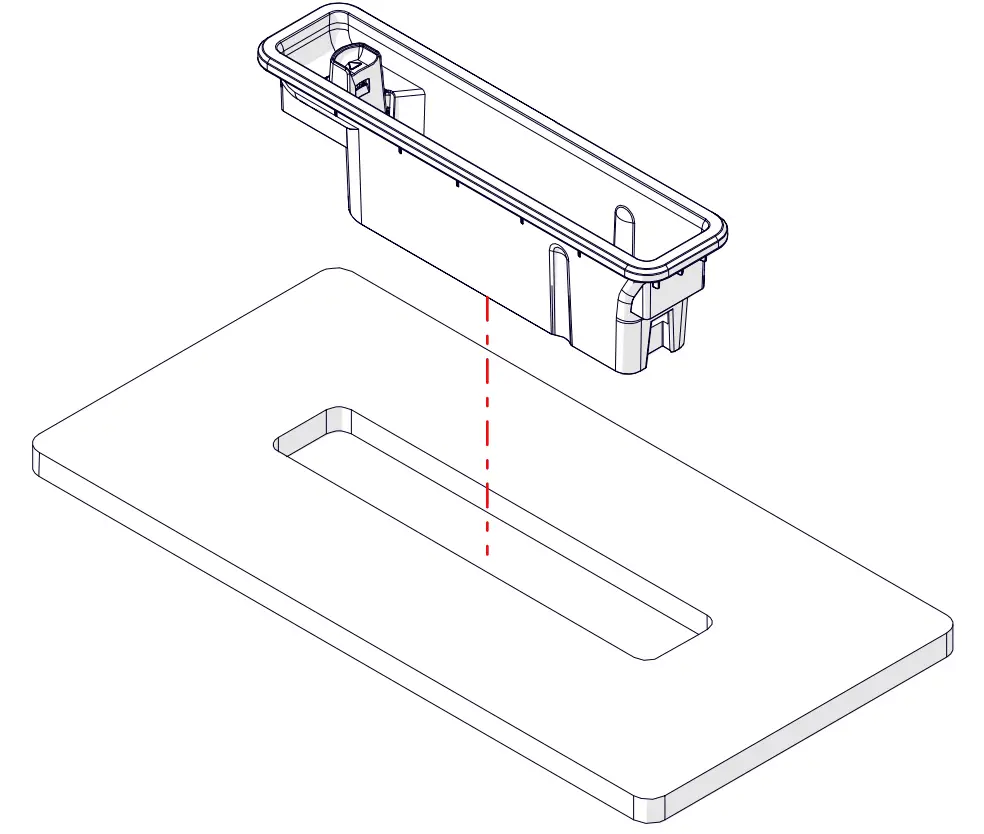

2. Fit QIKDOC into surface

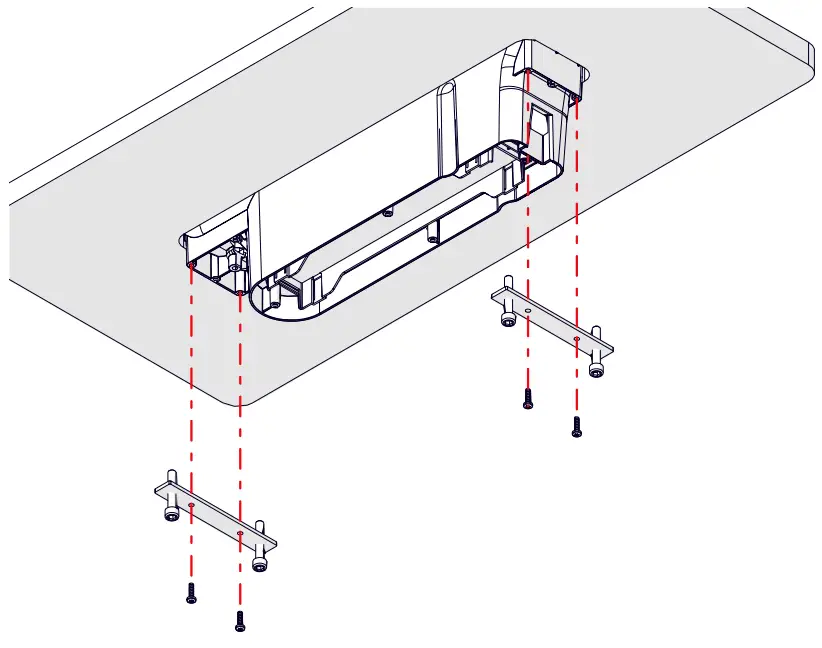

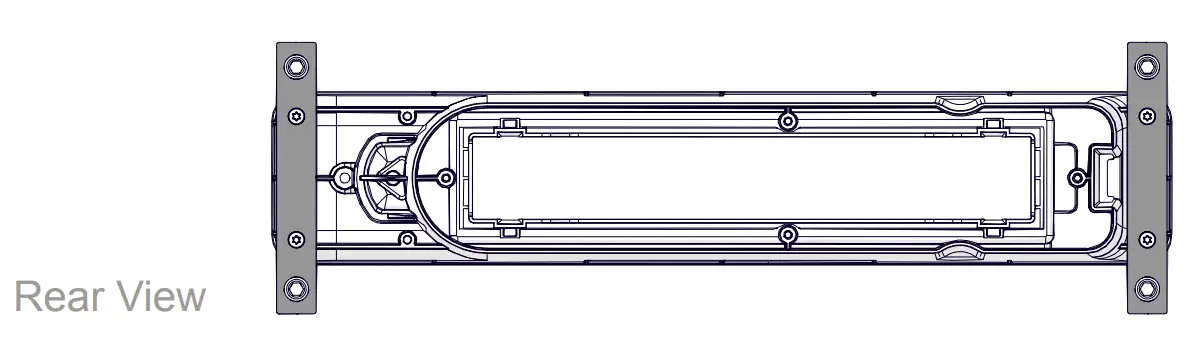

3. Align clamp brackets with QIKDOC and screw into place using screws provided (a T10 Torx bit is required)

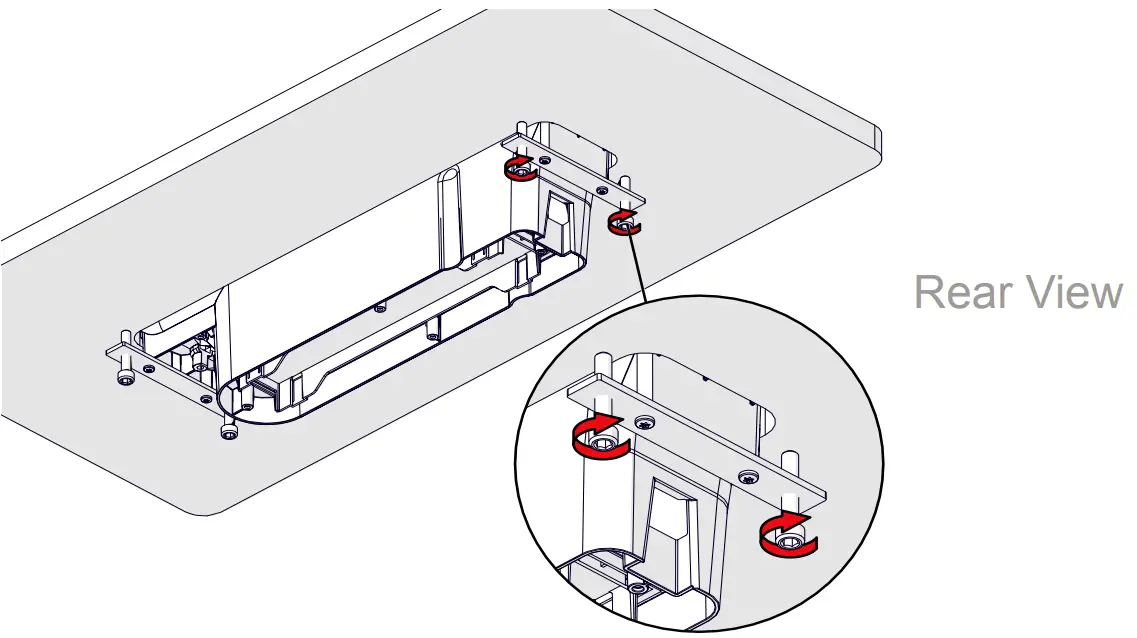

4. Tighten bolts
   CAUTION Do not overtighten

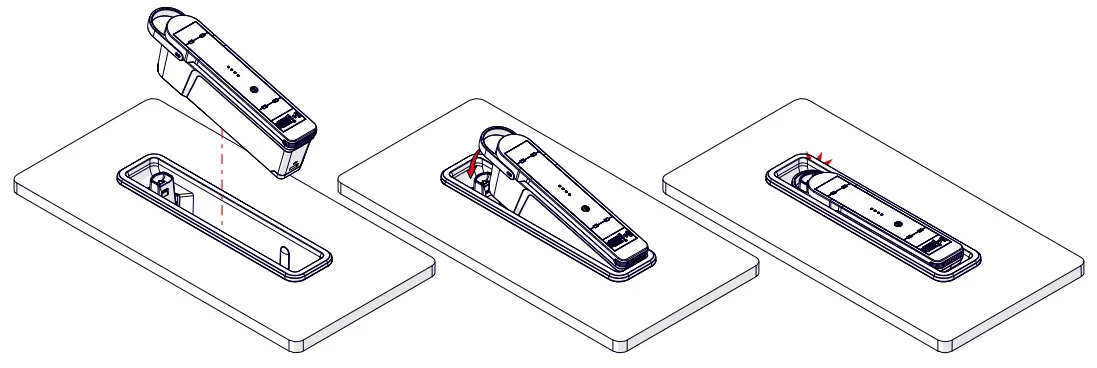

5. Align QIKPAC CARRY with QIKDOC, slide the heel side of the QIKPAC CARRY into QIKDOC first and rotate down until click is heard


   Removing QIKPAC CARRY from QIKDOC

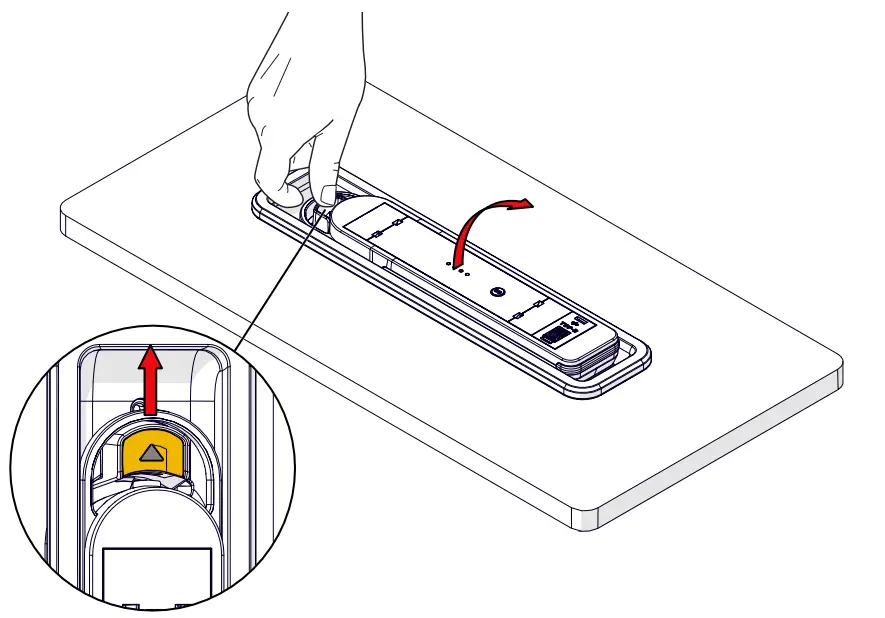

6. Pull thumb release (highlighted orange) to release QIKPAC CARRY

7. Lift QIKPAC CARRY from QIKDOC
