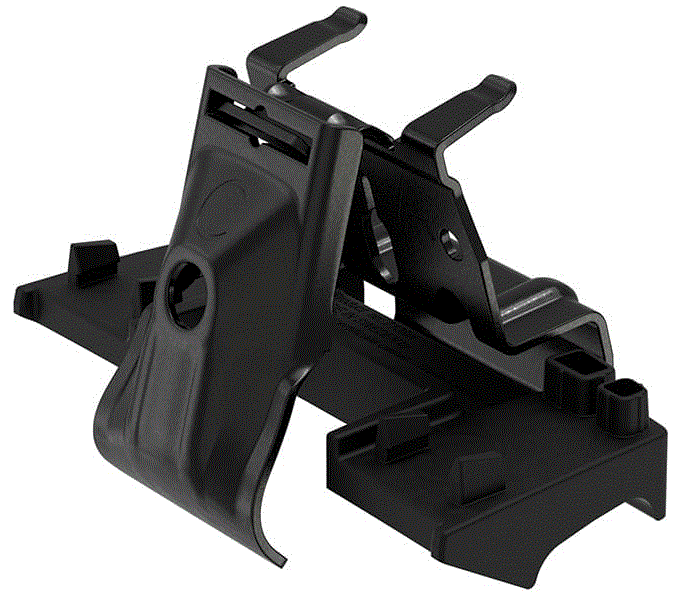

THULE 186164 Clamp Kit
Product Information
The product is a kit with the code number 186164 and is designed for XPENG G9, 5-dr SUV, 22-. It is suitable for vehicles with flush railing. The kit includes a foot pack with a maximum weight capacity of 75 kg/165 lbs, and a maximum speed of 130 km/h 80 Mph or 80 km/h 50 Mph. The kit complies with ISO 11154-E safety standards, and the spare part number is 54201. It includes four foot packs, four screws (x4 079), and two Evo edges.
Product Usage Instructions

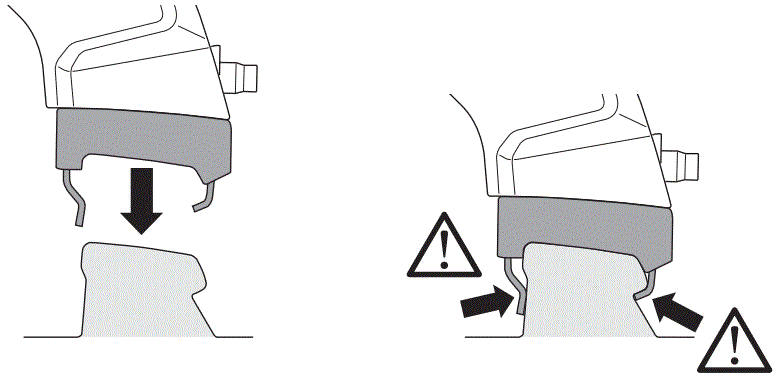

- Ensure that the vehicle has flush railing before installing the kit.
- Open the kit and check if all the components are present.

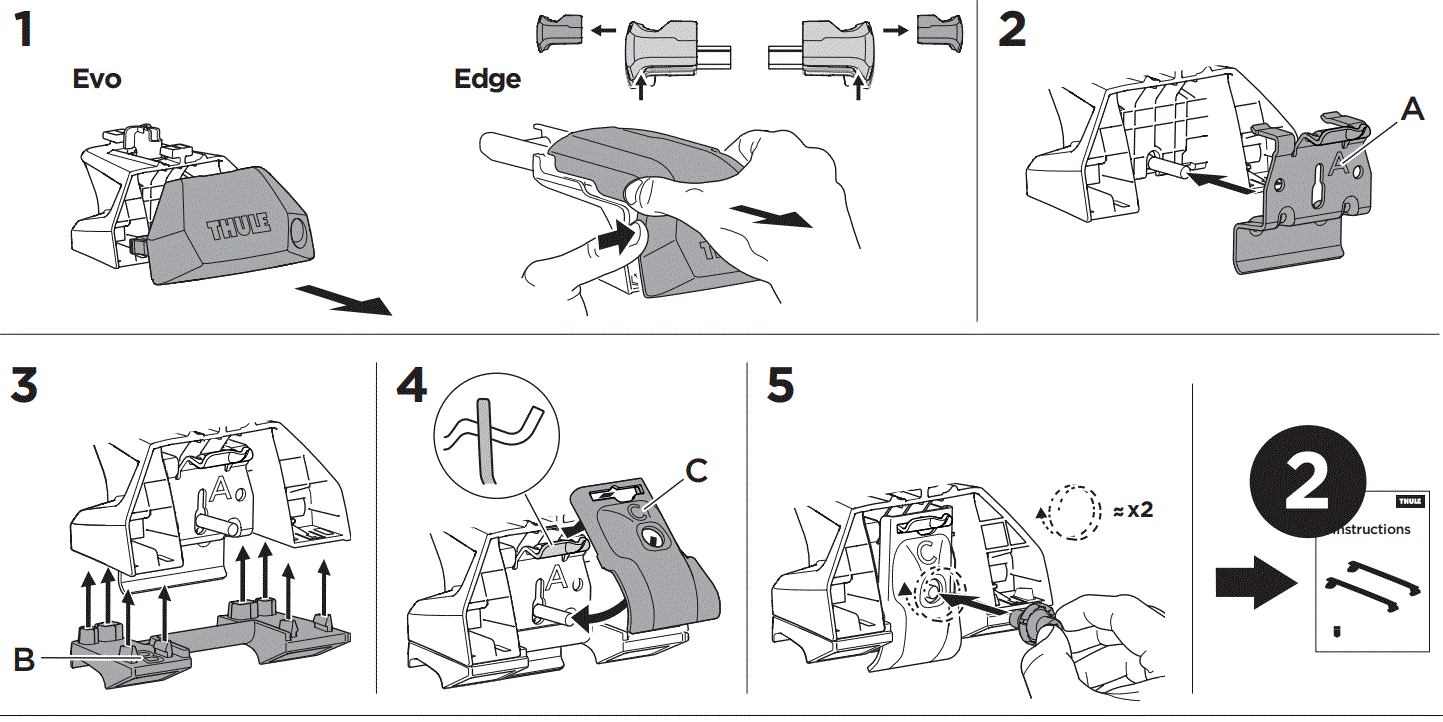

- Attach the foot pack to the flush railing by following the instructions provided in the kit.
- Attach the Evo edge to the foot pack using the screws provided (x4 079).
- Repeat steps 3 and 4 for all four corners of the vehicle.
- Ensure that all components are securely fastened and tightened to avoid any accidents while driving.

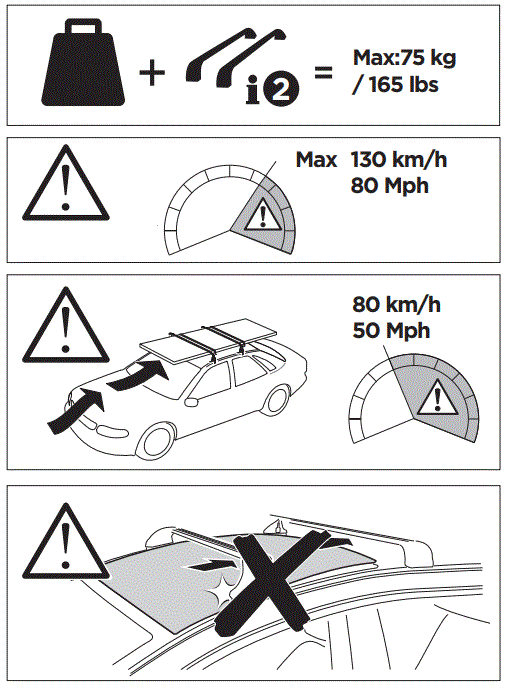

Note: The maximum weight capacity of the kit is 75 kg/165 lbs. Do not exceed this limit as it may cause damage to the vehicle or result in an accident. Also, ensure that the maximum speed limit of 130 km/h 80 Mph or 80 km/h 50 Mph is not exceeded while using the kit.
This kit is only for vehicles with flush railing.

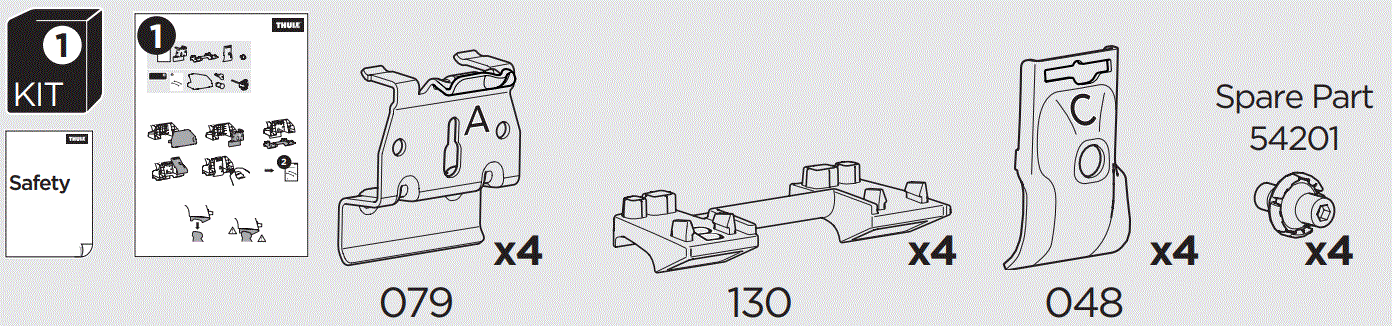

What in The Box
KIT

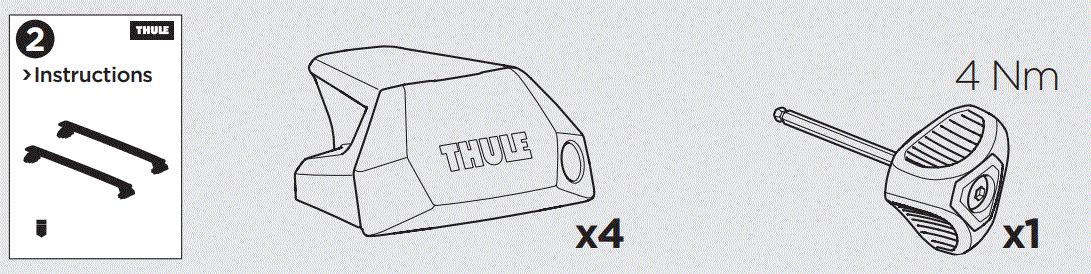

FOOT PACK
Precautions
Installation Instructions
Warning
More Information
- Thule Sweden AB, Borggatan 5 335 73 Hillerstorp, SWEDEN
- [email protected]
- www.thule.com
