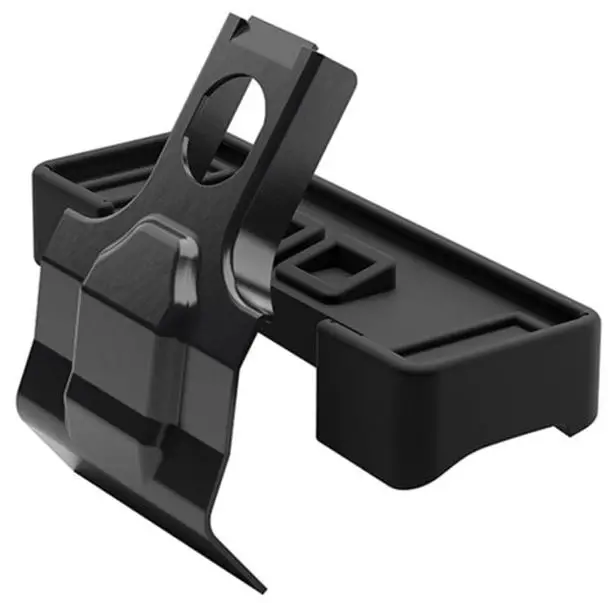

THULE Kit 145317 Evo Clamp Roof Bar Fitting Kit
Product Information
The product is a roof rack kit designed for use on the following vehicle models:
- ISUZU D-Max Crew Cab, 4-dr Pickup, 20-
- MAZDA BT-50 Crew Cab, 4-dr Pickup, 20-

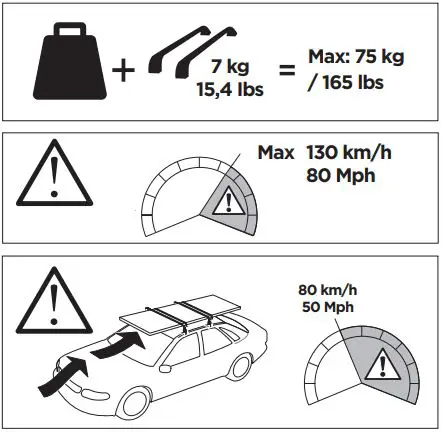

The maximum load capacity of the roof rack is 75 kg / 165 lbs. The maximum speed limit when using the roof rack is 130 km/h (80 mph) for WingBar Evo and WingBar Edge, and 80 km/h (50 mph) for other bars.
Product Usage Instructions
- Ensure that the vehicle models mentioned above match your vehicle.

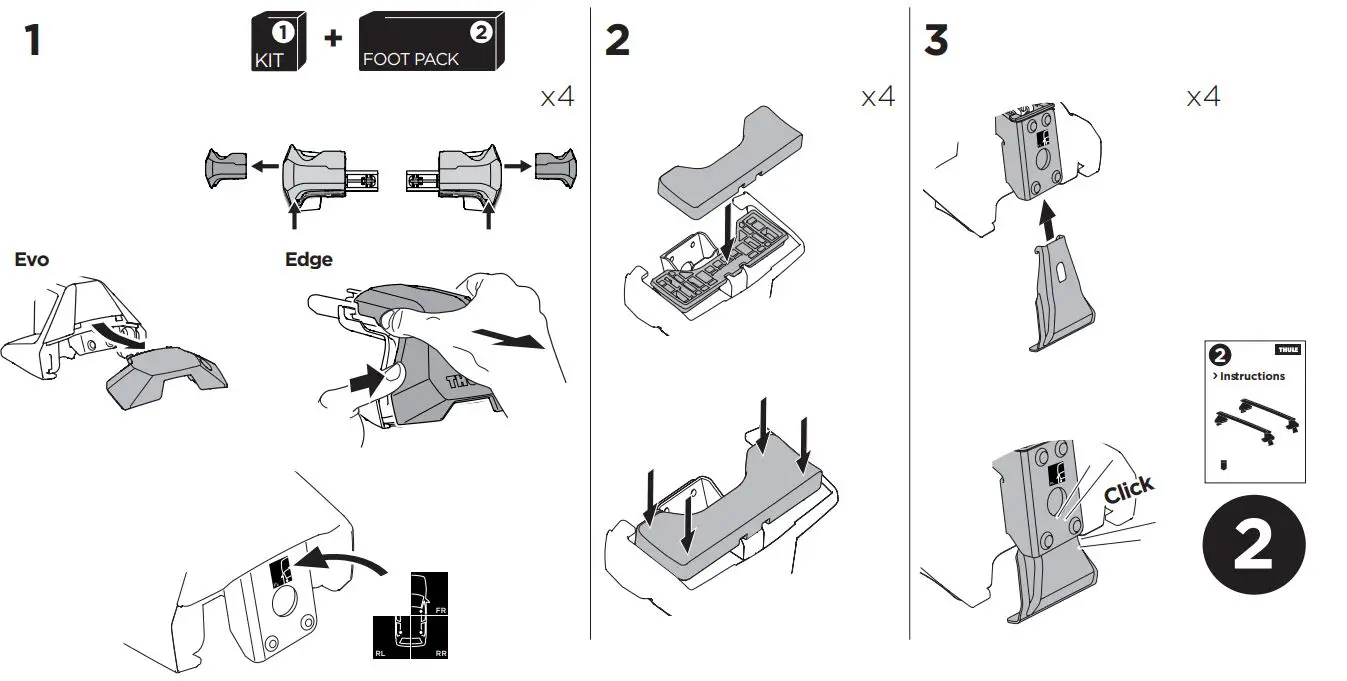

- Start by assembling the Foot Pack components according to the provided instructions.
- Attach the FL RL Safety and FL FR RL RR FL Click RL FR R components to the Foot Pack.
- Install the THULE WingBar Evo on the designated positions on your vehicle’s roof using the provided instructions.
- Repeat the installation process for the second THULE WingBar Evo.
- Refer to the detailed instructions for further guidance on attaching the EVO Edge, 5562092002, and other components.
- Ensure that the roof rack is securely attached before loading any items.
- Do not exceed the maximum load capacity of 75 kg / 165 lbs.
- When driving, adhere to the recommended speed limits of 130 km/h (80 mph) for WingBar Evo and WingBar Edge, and 80 km/h (50 mph) for other bars.
For additional information and support, please visit the official Thule website at www.thule.com.

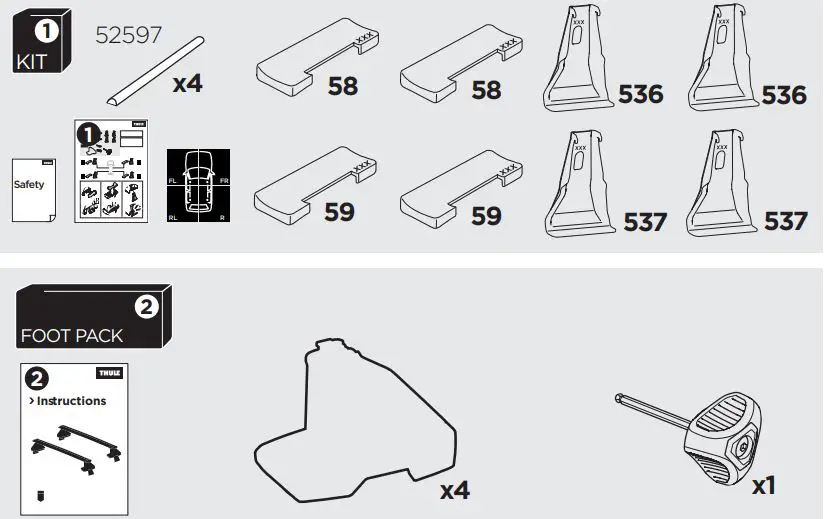

What In The Box

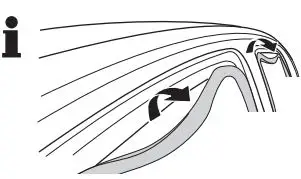

Precautions

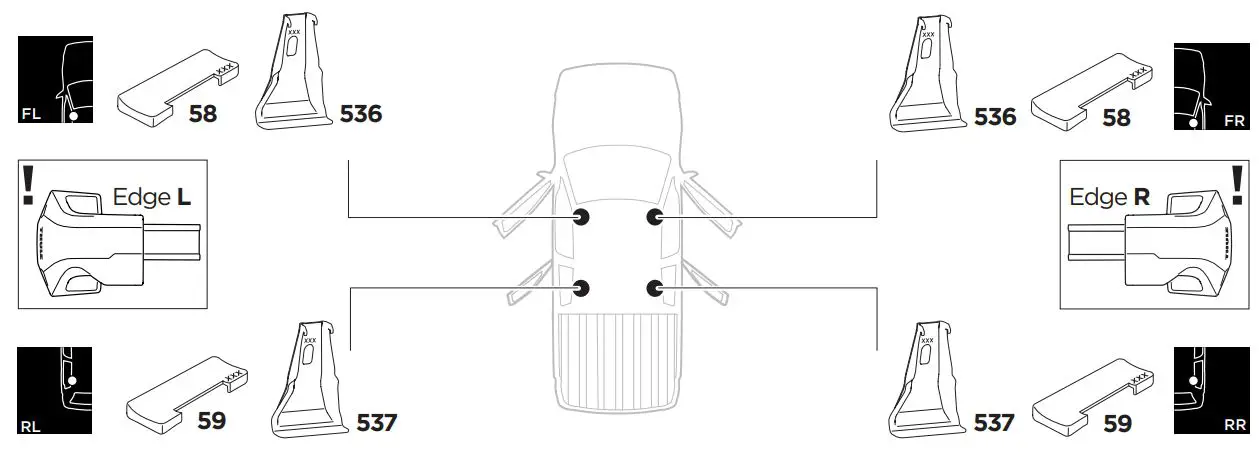

Parts Fittings

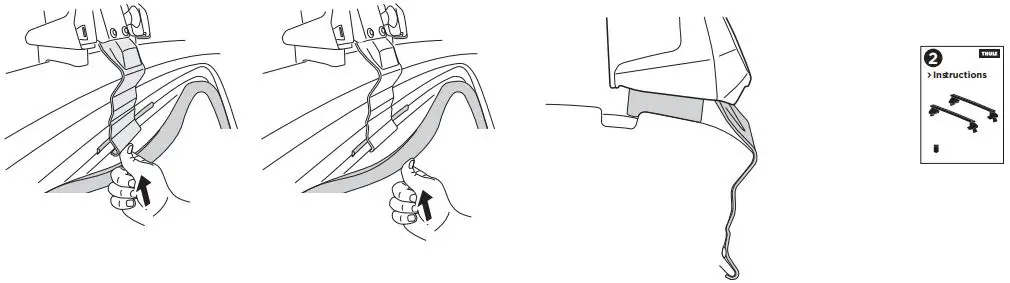

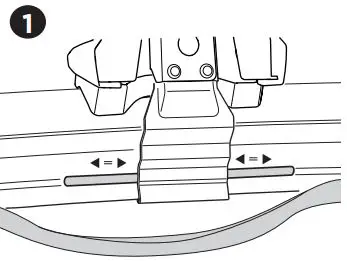

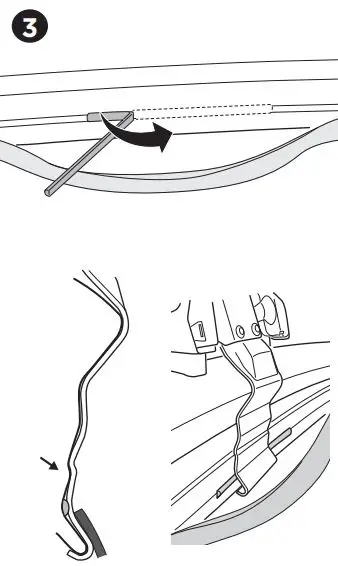

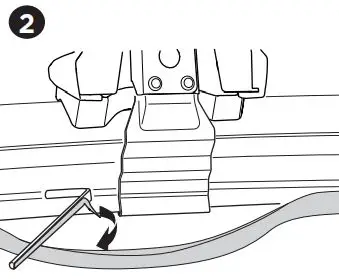

Installation Instructions
Dimensions

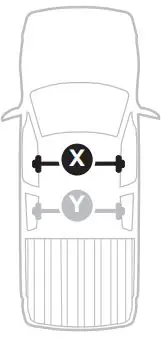

 | Evo X (scale) | Edge X (scale) |
| ISUZU D-Max Crew Cab, 4-dr Pickup, 20- | 43,5 | J |
| MAZDA BT-50 Crew Cab, 4-dr Pickup, 20- | 43,5 | J |
 | X (mm/inch) |
| ISUZU D-Max Crew Cab, 4-dr Pickup, 20- | 1086 mm / 42 3/4“ |
| MAZDA BT-50 Crew Cab, 4-dr Pickup, 20- | 1086 mm / 42 3/4“ |
 | Evo Y (scale) | Edge Y (scale) |
| ISUZU D-Max Crew Cab, 4-dr Pickup, 20- | 43,5 | J |
| MAZDA BT-50 Crew Cab, 4-dr Pickup, 20- | 43,5 | J |
 | Y (mm/inch) |
| ISUZU D-Max Crew Cab, 4-dr Pickup, 20- | 1086 mm / 42 3/4“ |
| MAZDA BT-50 Crew Cab, 4-dr Pickup, 20- | 1086 mm / 42 3/4“ |

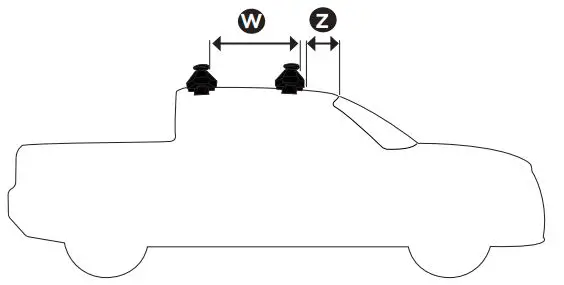

| W (mm/inch) | Z (mm/inch) | |
| ISUZU D-Max Crew Cab, 4-dr Pickup, 20- | 800 mm / 31 1/2“ | 190 mm / 7 1/2“ |
| MAZDA BT-50 Crew Cab, 4-dr Pickup, 20- | 800 mm / 31 1/2“ | 190 mm / 7 1/2“ |
