THULE 186151 Evo Flush Roof Bar Fitting Kit
Product Information
- Product Name: Kit 186151
- Compatible Vehicle: MAZDA CX-30 (DM), 5-dr SUV, 20-
- Compatibility: This kit is only for vehicles with flush railing.
- Safety Certification: ISO 11154-E
- Spare Part: 54201
- Maximum Load Capacity: 75 kg / 165 lbs
- Maximum Speed Limit (with the product installed): 130 km/h (80 Mph)
- Maximum Speed Limit (without the product installed): 80 km/h (50 Mph)
- Manufacturer: Thule Sweden AB
- Manufacturer Address: Borggatan 5, 335 73 Hillerstorp, SWEDEN
- Manufacturer Website: www.thule.com
- Manufacturer Contact: 5562658001
Product Usage Instructions
- Ensure that your vehicle has flush railing for compatibility.
- Using the provided 4 Nm torque wrench, tighten the foot pack screws securely onto the flush railing.
- Attach the Evo Edge kit to the foot pack according to the instructions provided.

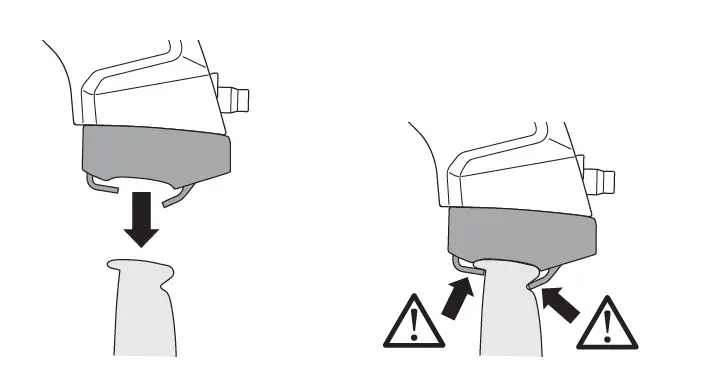

- Make sure the kit is properly aligned and secured before loading any items onto it.

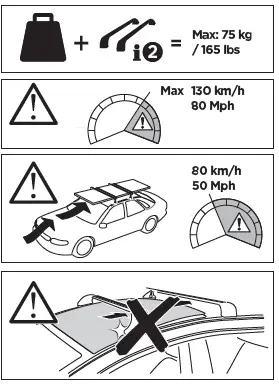

- The maximum load capacity should not exceed 75 kg (165 lbs).
- When the product is installed, do not exceed the maximum speed limit of 130 km/h (80 Mph).
- When the product is not installed, do not exceed the maximum speed limit of 80 km/h (50 Mph).
PACKAGE CONTENT
This kit is only for vehicles with flush railing.

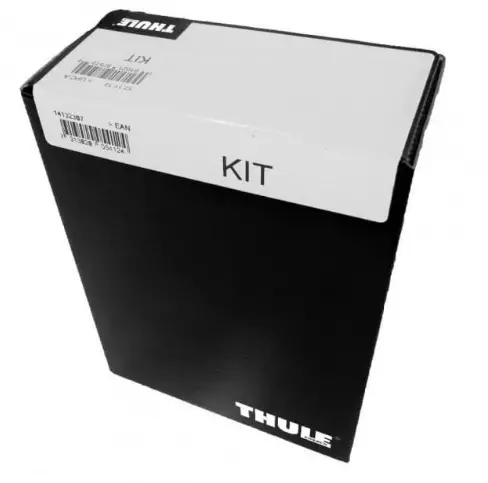

KIT

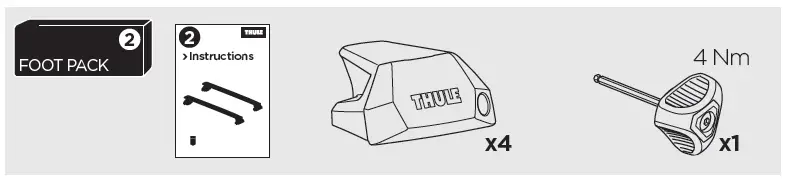

FOOT PACK
FEATURES

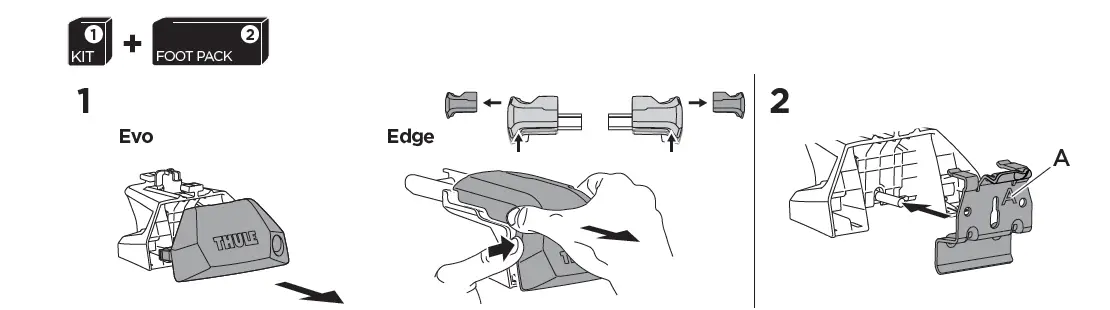

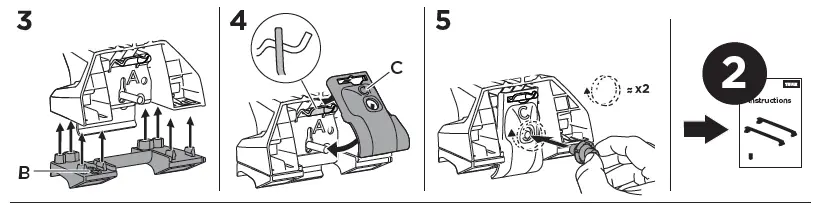

INSTALLATION
Thule Sweden AB, Borggatan 5 335 73 Hillerstorp, SWEDEN
[email protected]
www.thule.com
© Thule Group 2022. All rights reserved.
