145139 Evo Clamp Kit
Instruction Manual
145139 Evo Clamp Kit
Bring your life

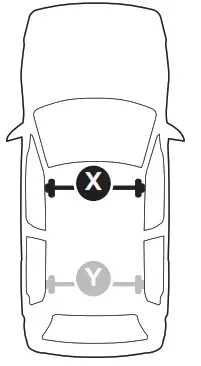

 | Evo X (scale) | Edge X (scale) |
| BMW 2-Series Active Tourer, 5-dr MPV, 14-22 | 39 | A |
 | X (mm/inch) |
| BMW 2-Series Active Tourer, 5-dr MPV, 14-22 | 1041 mm / 41 “ |

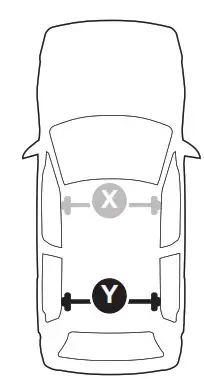

 | Evo Y (scale) | Edge Y (scale) |
| BMW 2-Series Active Tourer, 5-dr MPV, 14-22 | 36 | G |
 | Y (mm/inch) |
| BMW 2-Series Active Tourer, 5-dr MPV, 14-22 | 1011 mm / 39 3 /4“ |

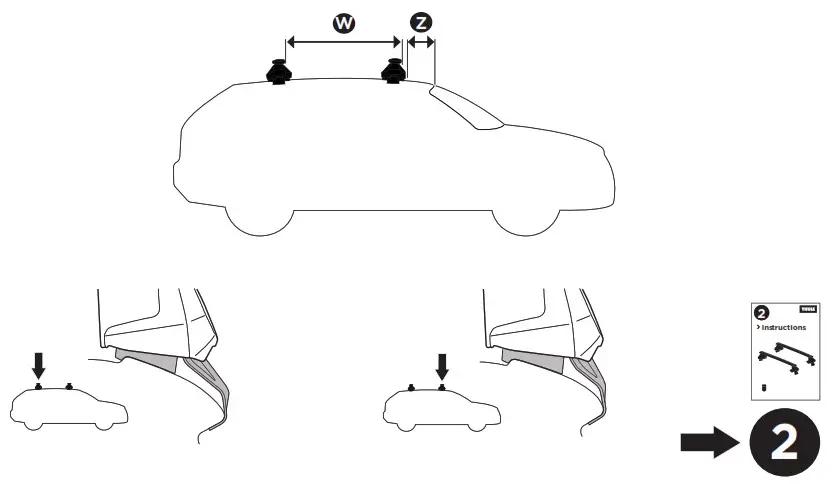

| W (mm/inch) | Z (mm/inch) | |
| BMW 2-Series Active Tourer, 5-dr MPV, 14-22 | 700 mm/27 1/2“ | 350 mm /13 3/4“ |
Thule Sweden AB, Borggatan 5
335 73 Hillerstorp, SWEDEN
[email protected]
© Thule Group 2019. All rights reserved.
www.thule.com
5562610001
