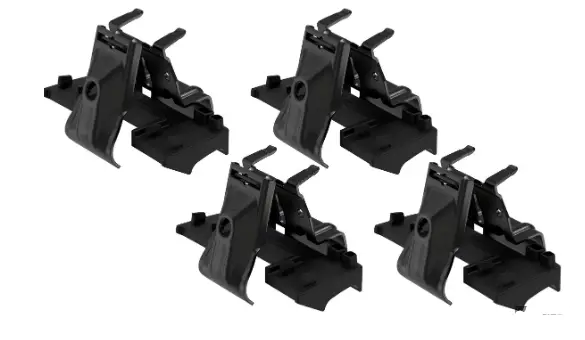

THULE 186061 Evo Flush Rail Mounting Kit
Product Information
| Kit Number | 186061 |
|---|---|
| Vehicle Compatibility | KIA Carens, 5-dr MPV, 2013-2021 |
| Compatible Vehicle Type | Vehicles with flush railing |
| Spare Part Number | 54201 |
| Manufacturer | Thule Sweden AB |
| Address | Borggatan 5, 335 73 Hillerstorp, SWEDEN |
| Website | www.thule.com |
| Contact Number | 5560013003 |
Product Usage Instructions
- Ensure that your vehicle has flush railing for compatibility with this kit.
- Locate the foot pack labeled “2” and carefully follow the instructions provided in the kit.
- Use four pieces of the spare part numbered “54201” as indicated in the instructions.
- Tighten all screws to a torque of 4 Nm using a suitable tool.

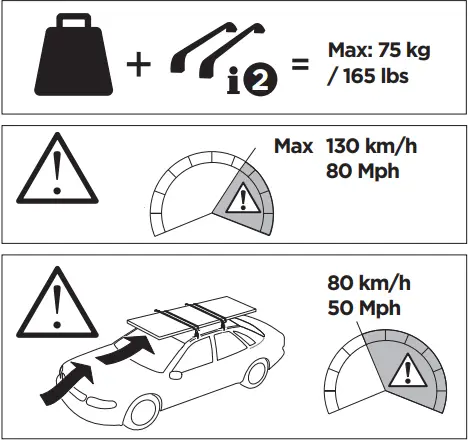

- The maximum load capacity for this product is 75 kg (165 lbs).
- Do not exceed a maximum speed of 130 km/h (80 mph) when the product is installed.
- When using the product, do not exceed a speed of 80 km/h (50 mph) with additional accessories attached.

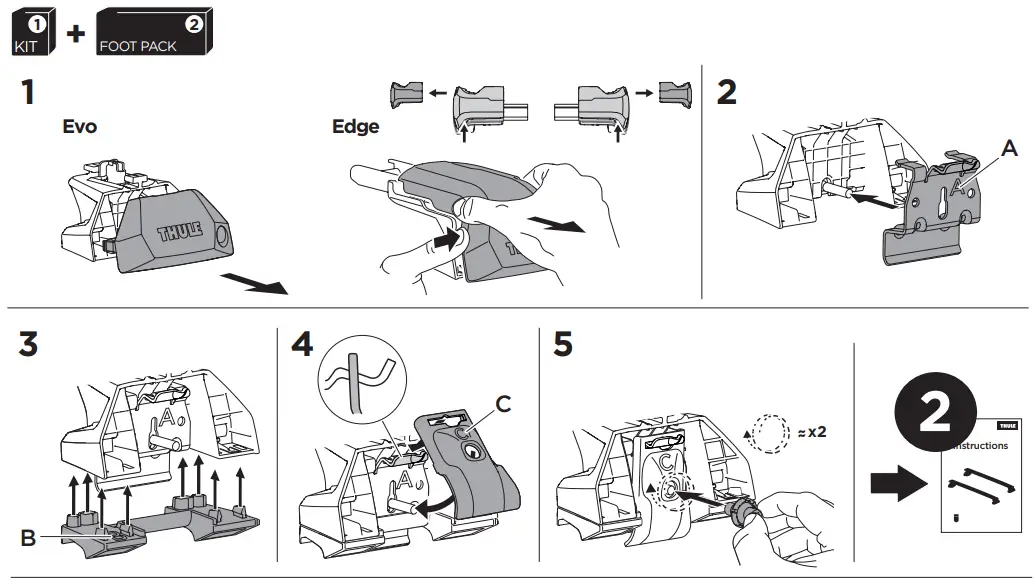

- Follow the provided visual instructions labeled “A,” “B,” “C,” and “!”.

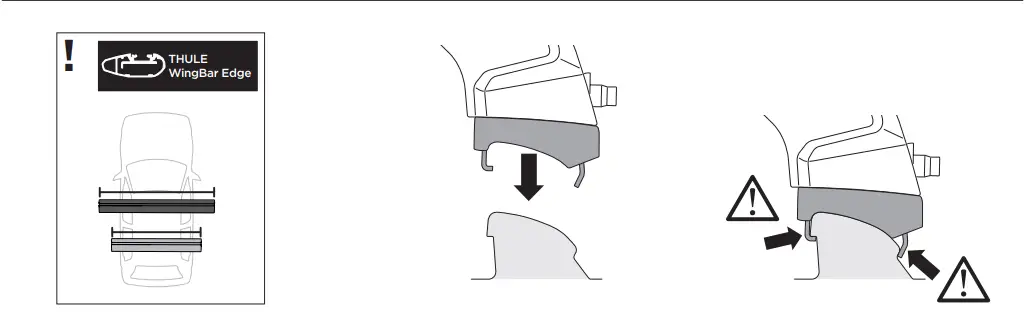

This kit is only for vehicles with flush railing.

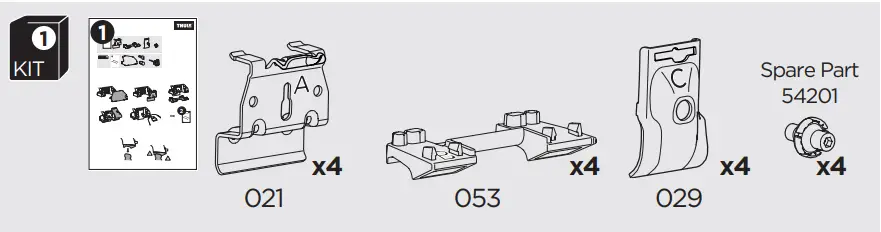

KIT

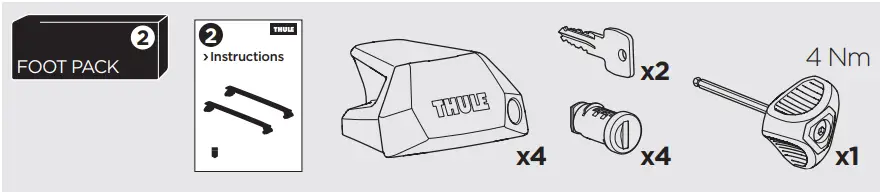

FOOT PACK
PRECAUTION
USING
