oe electronics INSTR1292 QIKDOC Connect Clamp Fix
QIKDOC Connect Clamp Fix instructions
- Cutout size

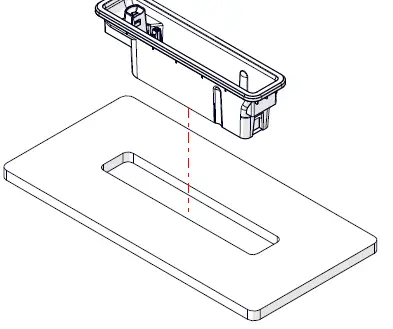

- Fit QIKDOC into surface

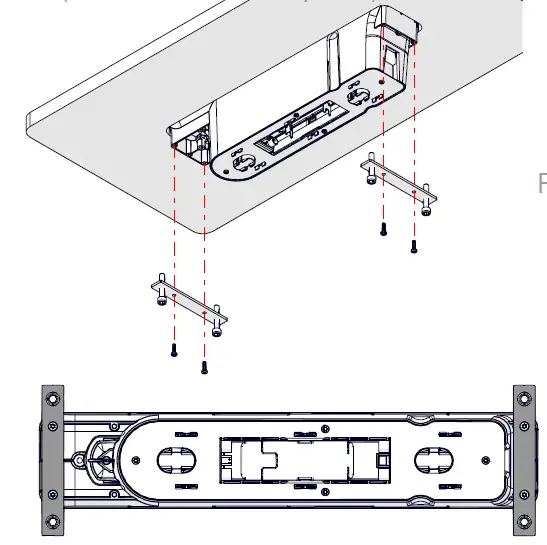

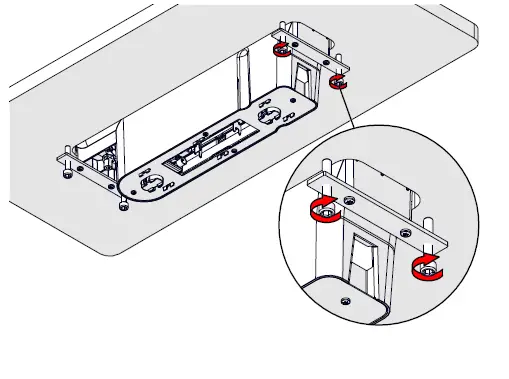

- Align clamp brackets with QIKDOC and screw into place using screws provided (a T10 Torx bit is required)
- Tighten bolts

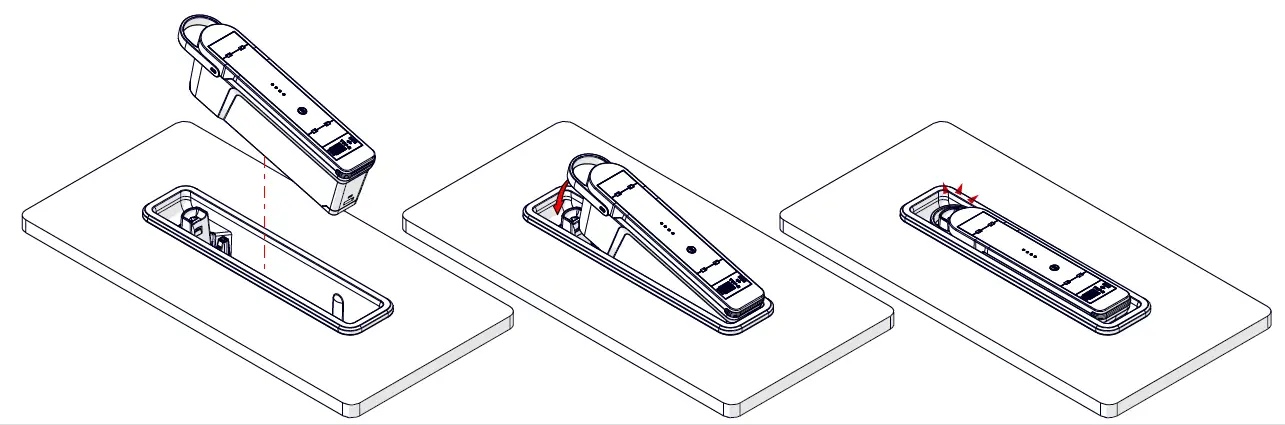

- Align QIKPAC CARRY with QIKDOC, slide the heel side of the QIKPAC CARRY into QIKDOC first and rotate down until click is heard

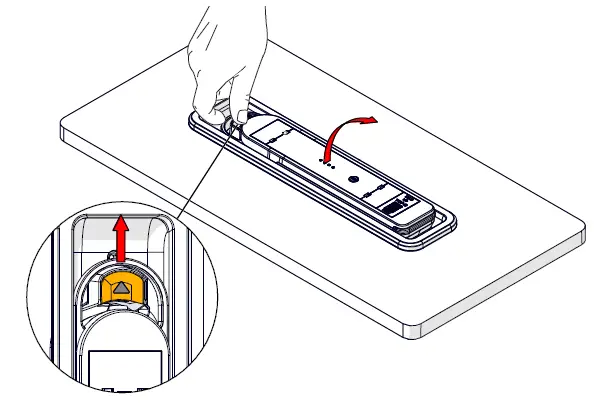

- Pull thumb release (highlighted orange) to release QIKPAC CARRY

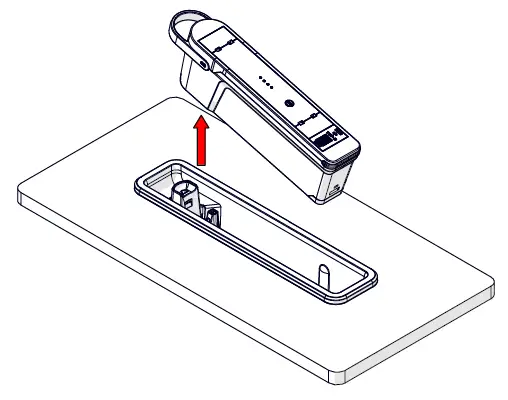

- Lift QIKPAC CARRY from QIKDOC

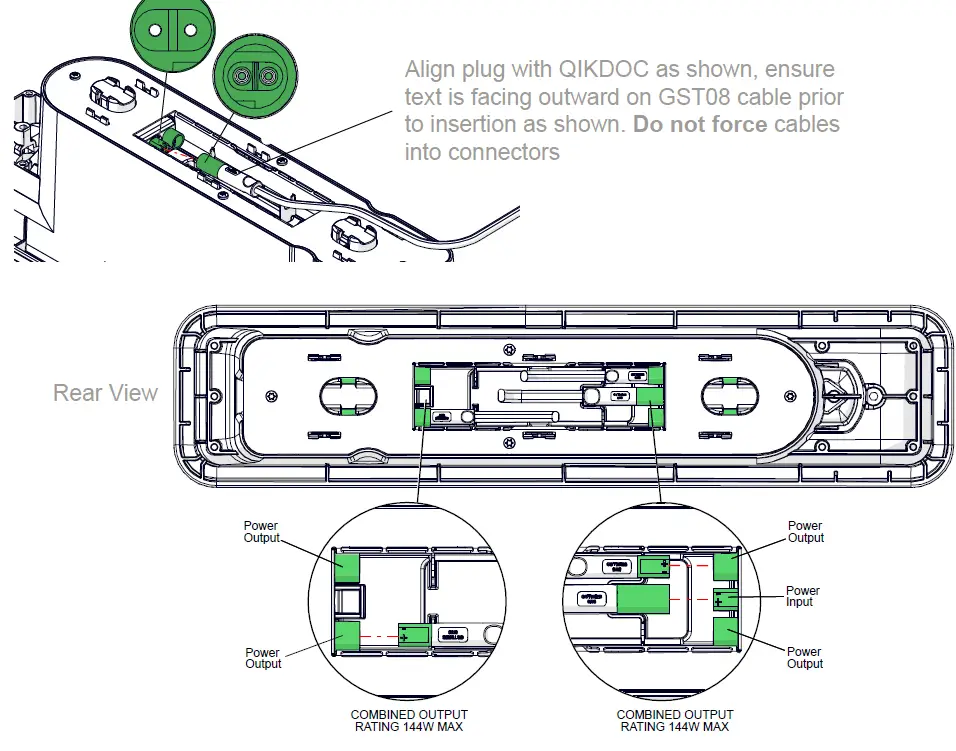

- Connect GST08 cable(s) to underside of QIKDOC (where applicable*)

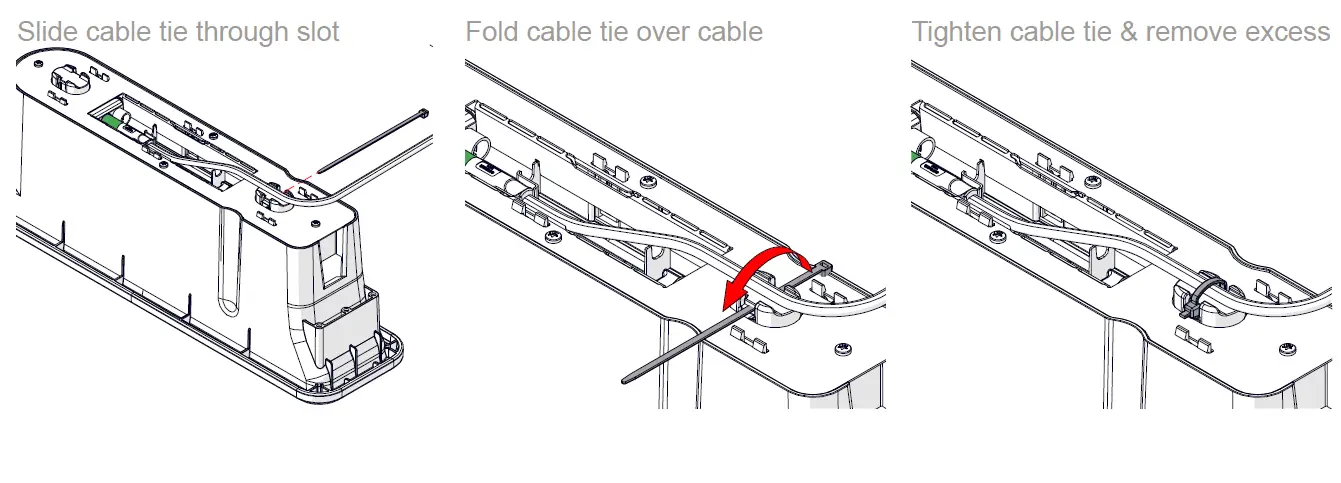

- Cable tie GST08 cable(s) into place
