oe electronics INSTR1295 QIKDOC Locate Screw Fix

QIKDOC Locate Screw Fix instructions

Horizontal Fitting

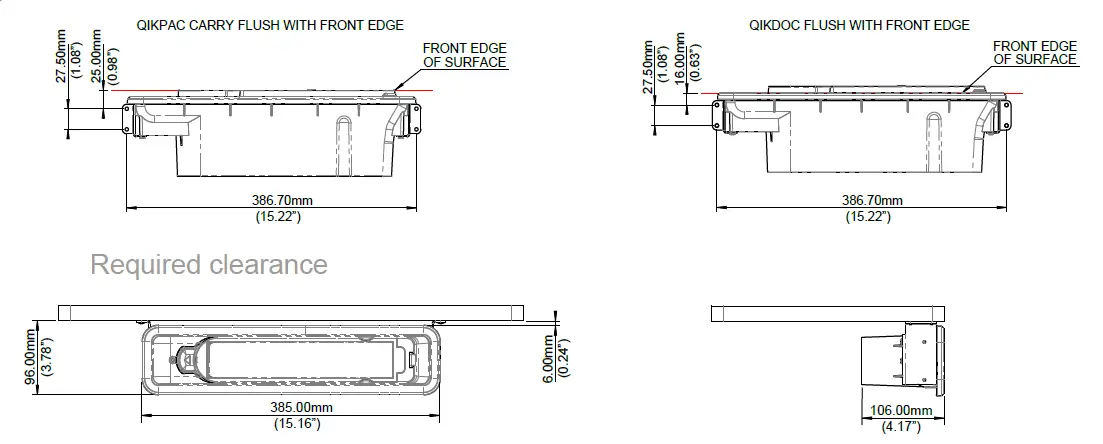

1. Screw locations

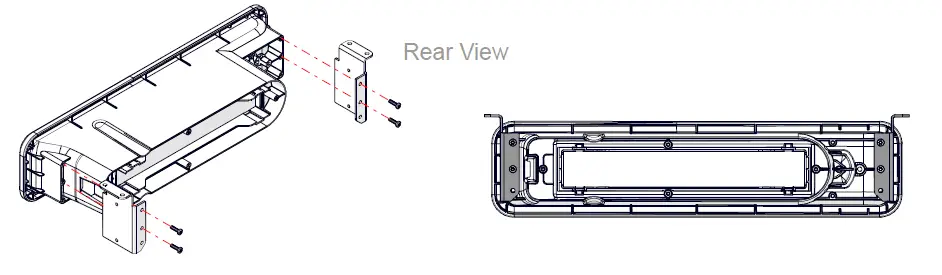

2. Fit brackets to QIKDOC using screws provided (a T10 Torx bit is required)

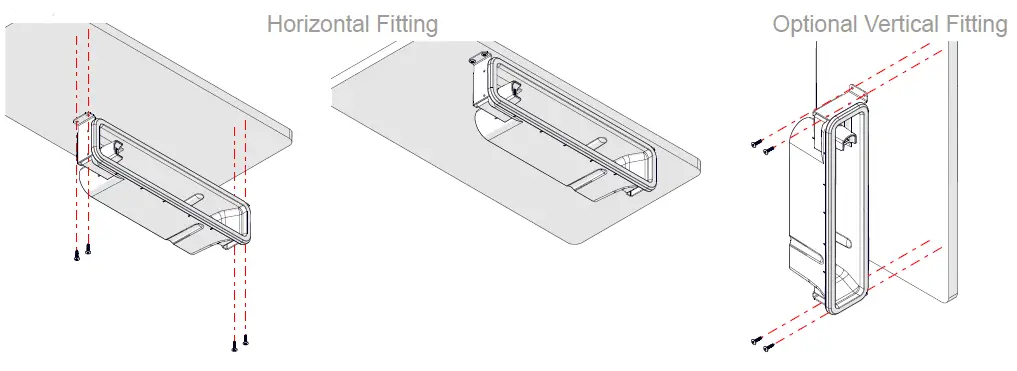

3. Screw QIKDOC into place

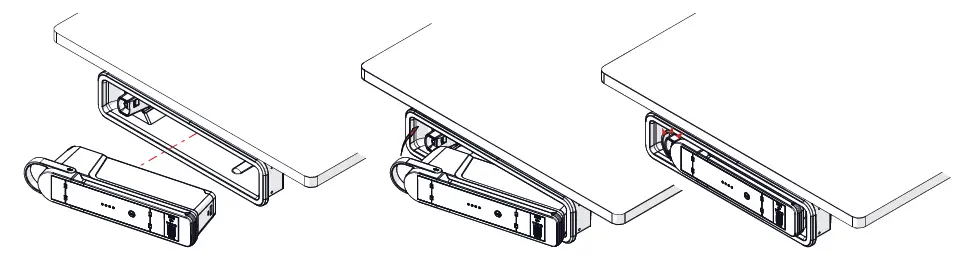

4. Align QIKPAC CARRY with QIKDOC, slide the heel side of the QIKPAC CARRY into QIKDOC first and rotate round until click is heardRemoving QIKPAC CARRY from QIKDOC (Horizontal)

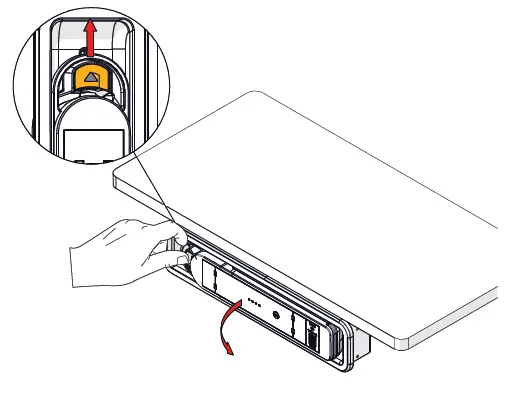

5. Pull thumb release (highlighted orange) to release QIKPAC CARRY

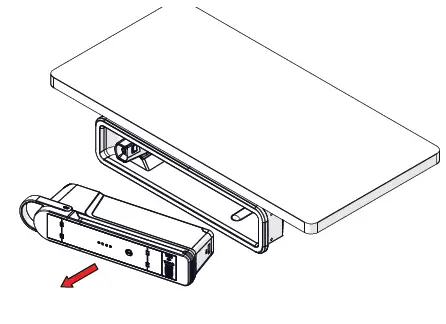

6. Lift QIKPAC CARRY from QIKDOC
