1 Huskey HU40500 PORTABLE GENERATOR User Manual

2 INTRODUCTION

3 SPECIFIC SAFETY RULES

Huskey HU40500 PORTABLE GENERATOR User Manual

Your new generator has been engineered and manufactured to a high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.

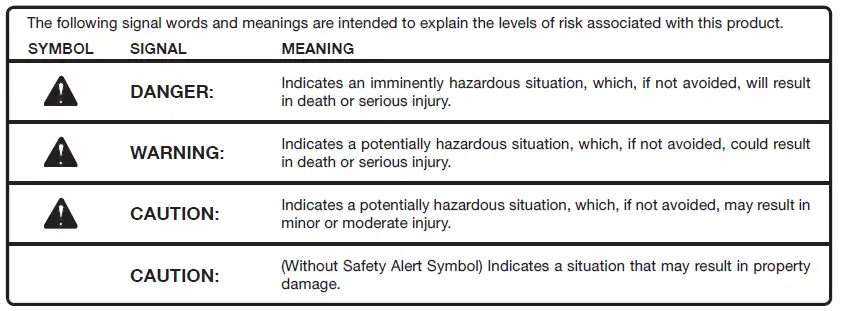

DANGER
You WILL be KILLED or SERIOUSLY HURT if you do not follow the instructions in this operator’s manual. Thank you for your purchase.

INTRODUCTION

This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product, making it easy to maintain and operate.

DANGER

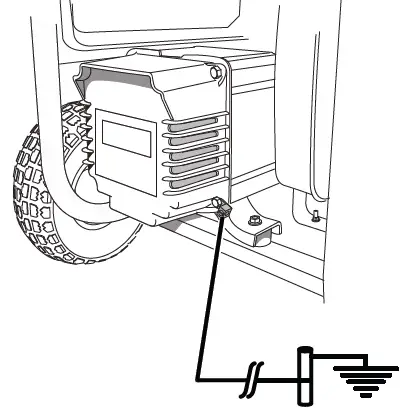

GROUNDING THE GENERATOR
To avoid the risk of shock or electrocution, the generator must be properly grounded. The nut and ground terminal on the frame must always be used to connect the generator to a suitable ground source. The ground path should be made with #8 size wire. Connect the terminal of the ground wire between the lock washer and the nut, and tighten the nut fully. Connect the other end of the wire securely to a suitable ground source. The National Electric Code contains several practical ways in which to establish a good ground source. If a steel or iron rod is used, it should be at least 5/8 in. diameter, and if a nonferrous rod is used, it should be at least 1/2 in. diameter and be listed as material for grounding. Drive the rod or pipe to a depth of 8 ft. If a rock bottom is encountered less than 4 ft. down, bury the rod or pipe in a trench.

All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be “Double Insulated.”
It is recommended to:

Use electrical devices with 3-prong grounded plugs.
Use an extension cord with a 3-pole receptacle and a 3-prong plug at opposite ends to ensure continuity of the ground protection from the generator to the appliance.

Check and adhere to all applicable federal, state, and local regulations relating to grounding specifications. Consult a qualified electrician or service personnel if the grounding instructions are not completely understood or if in doubt as to whether the generator is properly grounded.

DANGER

Carbon Monoxide
Using a generator indoors WILL KILL YOU IN MINUTES. Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even if you cannot smell the exhaust, you could be breathing CO.

Never use a generator inside homes, garages, crawl spaces, or other partly enclosed areas. Deadly levels of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply enough fresh air.
ONLY use a generator outdoors and far away from open windows, doors, and vents. These openings can pull in the generator exhaust.

Even when you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air RIGHT AWAY. See a doctor. You could have carbon monoxide poisoning.

WARNING
Read and understand all instructions. Failure to follow all instructions listed below may result in electrocution, fire, and/or carbon monoxide poisoning, which will cause death or serious injury.

WARNING
National Electric Code requires generators to be grounded to an approved earth ground. Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

SAVE THESE INSTRUCTIONS
This manual contains important instructions for HU40500 that should be followed during the installation and maintenance of the generator and batteries.

Do not allow children or untrained individuals to use this unit.
Never start or run the engine inside a closed or partially enclosed area. Breathing exhaust fumes will kill you.
Wear eye protection which is marked to comply with ANSI Z87.1 as well as hearing protection when operating this equipment.
Keep all bystanders, children, and pets at least 10 feet away.
Wear sturdy and dry shoes or boots. Do not operate while barefoot.
Do not operate generator when you are tired or under the influence of drugs, alcohol, or medication.
Keep all parts of your body away from any moving parts and all hot surfaces of the unit.
Do not touch bare wire or receptacles.
Do not use generator with electrical cords which are worn, frayed, bare, or otherwise damaged.
Before storing, allow the engine to cool and drain fuel from the unit.
Do not operate or store the generator in rain, snow, or wet weather.
Store the generator in a well-ventilated area with the fuel tank empty. Fuel should not be stored near the generator.
Empty fuel tank, close fuel valve, and restrain the unit from moving before transporting in a vehicle.
Allow engine to cool for five minutes before refueling.
To reduce the risk of fire and burn injury, handle fuel with care. It is highly flammable.
Do not smoke while handling fuel.
Store fuel in a container approved for gasoline.
Position the unit on level ground, stop engine, and allow to cool before refueling.
Loosen fuel cap slowly to release pressure and to keep fuel from escaping around the cap.
Tighten the fuel cap securely after refueling.
Wipe spilled fuel from the unit.
Never attempt to burn off spilled fuel under any circumstances.
Generators vibrate in normal use. During and after the use of the generator, inspect the generator as well as the extension cords and power supply cords connected to it for damage resulting from vibration. Have damaged items been repaired or replaced as necessary? Do not use plugs or cords that show signs of damage such as broken or cracked insulation or damaged blades.
For power outages, permanently installed stationary generators are better suited for providing backup power to the home. Even a properly connected portable generator can become overloaded.
This may result in overheating or stressing the generator components, possibly leading to generator failure.
Use only authorized replacement parts and accessories and follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of shock or injury.
Maintain the unit per maintenance instructions in this Operator’s Manual.
Inspect the unit before each use for loose fasteners, fuel leaks, etc. Replace damaged parts.

SPECIFIC SAFETY RULES

WARNING
When this generator is used to supply a building wiring system: the generator must be installed by a qualified electrician and connected to a transfer switch as a separately derived system in accordance with NFPA 70, National Electrical Code. The generator shall be connected through a transfer switch that switches all conductors other than the equipment grounding conductor. The frame of the generator shall be connected to an approved grounding electrode. Failure to isolate the generator from the power utility can result in death or injury to electric utility workers.

The exhaust contains poisonous carbon monoxide, a colorless, odorless gas. Breathing exhaust can cause loss of consciousness and can lead to death. If running in a confined or partially-enclosed area, the air may contain a dangerous amount of carbon monoxide. To keep exhaust fumes from building up, always provide adequate ventilation.
Always use a battery-powered carbon monoxide detector when running the generator. If you begin to feel sick, dizzy, or weak while using the generator, shut it off and get to fresh air immediately. See a doctor. You may have carbon monoxide poisoning.
Place the generator on a flat, stable surface with a slope of no more than 4°.
Operate in a well-ventilated, well-lit area isolated from working areas to avoid noise interference.
Operating the generator in wet conditions could result in electrocution. Keep the unit dry.
Keep the generator a minimum of 3 feet away from all types of combustible material.
Do not operate the generator near hazardous materials.
Do not operate the generator at a gas or natural gas filling station.
Do not touch the muffler or cylinder during or immediately after use; they are HOT and will cause burn injury.
Do not connect to a building’s electrical system unless a transfer switch has been properly installed by a qualified electrician.
Do not allow the generator’s gas tank to overflow when filling. Fill to 1 in. below the top deck of the gasoline tank to allow for fuel expansion. Check the ventilation hole inside the fuel tank cap for debris. Do not block the vent.
Do not smoke when filling the generator with gasoline.
Shut down the engine and allow to cool completely before adding gasoline or lubricant to the generator.
Do not remove the oil dipstick or the fuel tank cap when the engine is running.
Pay close attention to all safety labels located on the generator.
Keep children a minimum of 10 feet away from the generator at all times.
The unit operates best in temperatures between 23°F and 104°F with a relative humidity of 90% or less.
Specific modifications for high-altitude performance are needed if the generator will always be operated at altitudes above 5,000 feet. Contact your nearest authorized service center for more information and to have these modifications performed.
The operating voltage and frequency requirement of all electronic equipment should be checked prior to plugging them into this generator. Damage may result if the equipment is not designed to operate within a +/- 10%voltage variation, and +/- 3 hz frequency variation from the generator nameplate ratings. To avoid damage, always have an additional load plugged into the generator if
solid-state equipment (such as a television set) is used. A power line conditioner is recommended for some solid-state applications.
Save these instructions. Refer to them frequently and use them to instruct others who may use this product. If you loan someone this product, loan them these instructions also.

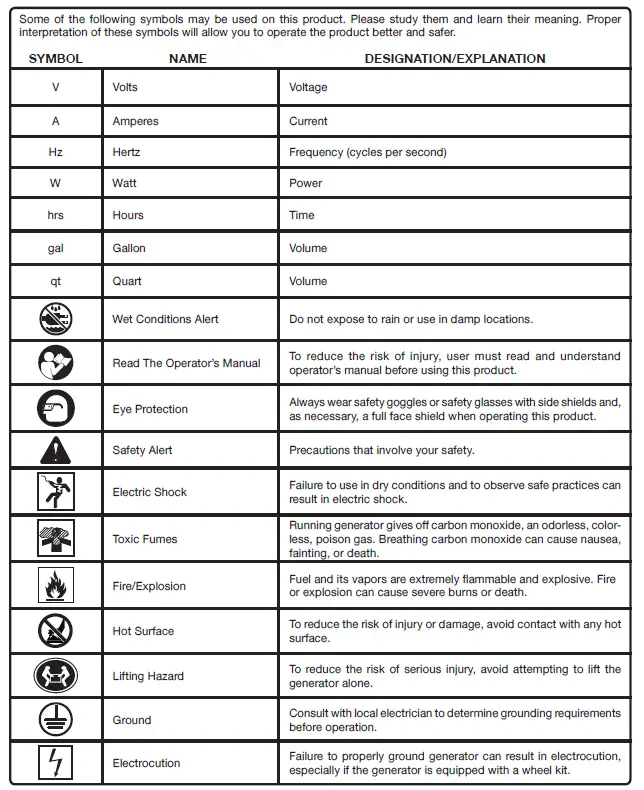

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service, contact your nearest authorized service center or call 1-866-340-3912. When servicing, use only identical replacement parts. Observe all normal safety precautions to avoid electrical shock.To avoid death or serious personal injury, do not attempt to operate this product until you read thoroughly and understand completely the operator’s manual. If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call Husky customer service for assistance.The operation of any product can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and, when needed, a full face shield. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always wear eye protection which is marked to comply with ANSI Z87.1.

SAFETY LABELS

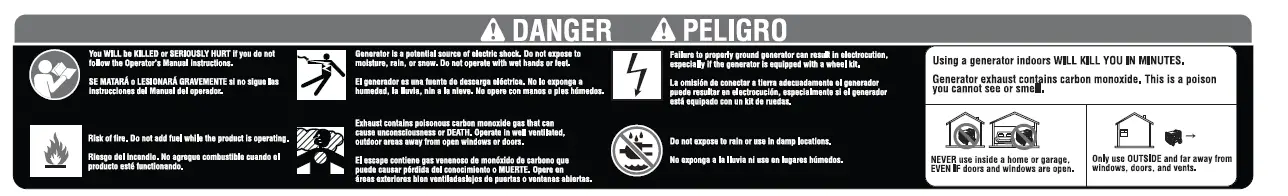

The information below can be found on the generator. For your safety, please study and understand all of the labels before starting the generator. If any of the labels come off the unit or become hard to read, contact an authorized service center for replacement.

You WILL be KILLED or SERIOUSLY HURT if you do not follow the Operator’s Manual instructions.
Risk of Fire. Do not add fuel while the product is operating.
The generator is a potential source of electric shock. Do not expose to moisture, rain, or snow. Do not oper-ate with wet hands or feet.
The exhaust contains poisonous carbon monoxide gas that can cause un-consciousness or DEATH. Operate in well-ventilated, outdoor areas away from open windows or doors.
Failure to properly ground the generator can result in electrocution, especially if the generator is equipped with a wheel kit.
Do not expose to rain or use in damp locations.
Using a generator indoors WILL KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.
NEVER use it inside a home or garage, EVEN IF doors and windows are open.
Only use OUTSIDE and far away from windows, doors, and vents.

FUEL WARNING
No smoking when filling with gasoline. Do not overfill. The full level is 1 in. below the top of the fuel neck. Stop the engine for five minutes before refueling to avoid the heat from the muffler igniting
fuel vapors.

ENGINE LUBRICANT WARNING
You must add lubricant before first op- rating the generator. The oil reservoir capacity is 1.1 qt. Always check the lubricant level before each operation. The lubricant level should always register between the hatched areas on the dipstick. The unit is equipped with a sensor that will automatically shut off the engine if the lubricant level falls below a safe limit.

GROUNDING WARNING
National Electric Code requires generators to be grounded to an approved earth ground.

HOT SURFACE WARNING
Do not touch the muffler or aluminum cylinder of the engine. They are very HOT and will cause severe burns. Don’t put any flammable or combustible materials in the direct path of the exhaust.

ELECTRICAL

EXTENSION CORD CABLE SIZE

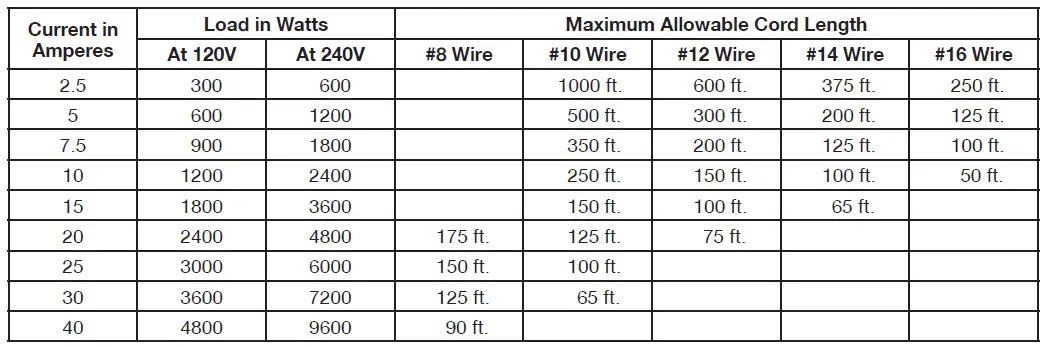

Refer to the table below to ensure the cable size of the extension cords you use are capable of carrying the required load. Inadequate size cables can cause a voltage drop, which can burn out the appliance and overheat the cord.

ELECTRIC MOTOR LOADS

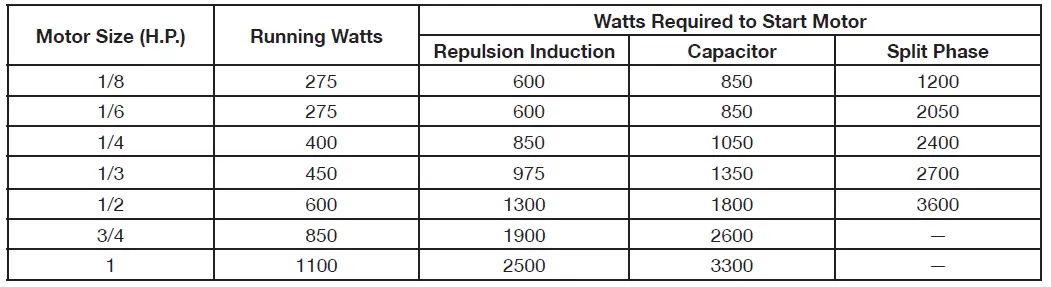

It is characteristic of common electric motors in normal operation to draw up to six times their running current while start-ing. This table may be used to estimate the watts required to start “Code G” electric motors; however, if an electric motor fails to start or reach running speed, turn off the appliance or tool immediately to avoid equipment damage. Always check the requirements of the tool or appliance being used compared to the rated output of the generator.

EXTENSION CORD

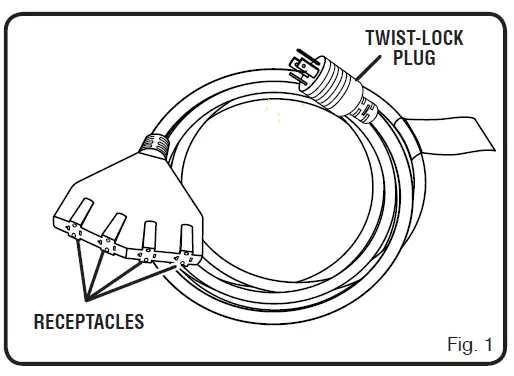

See Figure 1.
The generator is supplied with a 25 ft. 12 GA SJTW 4-conductor 105ºC extension cord. This cord is equipped with an L14-20P twist-lock plug on one end which plugs directly into the corresponding twist-lock receptacle on the control panel of the generator. The opposite end has four 5-20R receptacles that can be used to power individual loads. NOTE: For 120-volt use only. Make sure the loads do not exceed the 20 amp rating of the extension cord. Circuit breaker protection is provided for on the control panel of the generator. The receptacles on the extension cord are color coded with blue and red receptacles. When several loads are powered at the same time, it is best to keep equal loads supplied to each separately colored half if possible. Each half of the connector is capable of sustaining 20 amps of current provided the generator is capable of supplying 4800 watts of power. Check nameplate ratings for total wattage capability of the generator. Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time. Follow these simple steps.

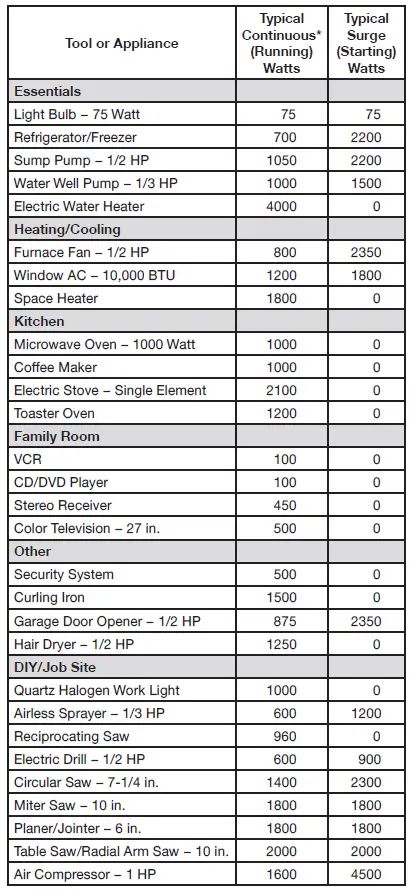

Select the items you will power at the same time.
Total the continuous (running) watts of these items. This is the amount of power the generator must produce to keep the items running. See the wattage reference chart at right.
Estimate how many surge (starting) watts you will need. Surge wattage is the short burst of power needed to start electric motor-driven tools or appliances such as a circular saw or refrigerator. Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2.

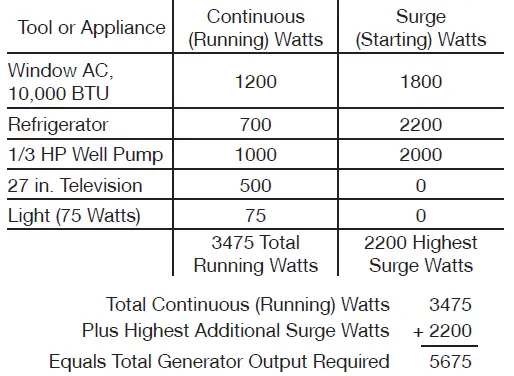

Example

POWER MANAGEMENT
To prolong the life of the generator and attached devices, it is important to take care when adding electrical loads to the generator. There should be nothing connected to the generator outlets before starting its engine. The correct and safe way to manage generator power is to sequentially add loads as follows:

With nothing connected to the generator, start the engine as described later in this manual.
Plug in and turn on the first load, preferably the largest load you have.
Permit the generator output to stabilize (engine runs smoothly and the attached device operates properly).
Plug in and turn on the next load.
Again, permit the generator to stabilize.
Repeat steps 4 and 5 for each additional load.

Never add more loads than the generator capacity. Take special care to consider surge loads in generator capacity as previously described.

CAUTION
Do not overload the generator’s capacity. Exceeding the generator’s wattage/amperage capacity can damage the generator and/or electrical devices connected to it.

The wattages listed are approximate. Check the tool or appliance for actual wattage.

FEATURES

PRODUCT SPECIFICATIONS
ENGINE

Engine Type………………………..4 Stroke, OHC (Chain Drive)
Bore x Stroke……………………………………….75 mm x 65 mm
Cooling System…………………………………………….Forced Air
Compression Ratio……………………………………………….8:3:1
Starting System………………………………………………….Recoil
Ignition System…………………………………………………….T.C.I.
Spark Plug………………..NGK BR-6HS or Champion RL86C
Engine Lubricant Volume…………………………………….1.1 qt.
Fuel Volume………………………………………………………..6 gal.

Generator

Rated Voltage………………………………………………120V/240V
Rated Amps………………………………………………41.7A/20.8A
Rated Output…………………………………………………..5,000 W
Maximum Output…………………………………………….6,250 W
Rated Frequency…………………………………………………60 Hz

Dimensions

Length…………………………………………………………….24.9 in.
Width………………………………………………………………21.1 in.
Height……………………………………………………………..24.1 in.
Weight……………………………………………………………159 lbs.

KNOW YOUR GENERATOR

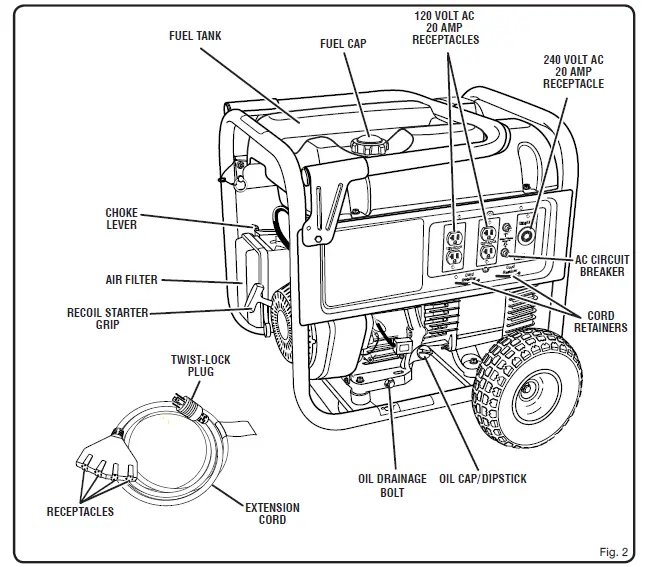

See Figure 2.
The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

AC CIRCUIT BREAKER
The circuit breaker is provided to protect the generator against electrical overload.

AIR FILTER
The air filter helps to limit the amount of dirt and dust drawn into the unit during operation.

CHOKE LEVER
The choke lever is used when starting the engine.

CORD RETAINERS
Use the cord retainers to prevent plugs from being accidentally pulled out of the 120-volt receptacles.

ENGINE SWITCH
The engine switch is used in combination with the recoil starter grip to start the generator. It is also used to turn the generator off.

EXTENSION CORD
A 25 ft. extension cord equipped with a twist-lock plug on one end and four 120V receptacles on the other is provided with the generator.

FUEL TANK
The fuel tank has a capacity of 6 gallons.

ROUND TERMINAL
The ground terminal is used to assist in properly ground-ing the generator to help protect against electrical shock. Consult with a local electrician for grounding requirements in your area.

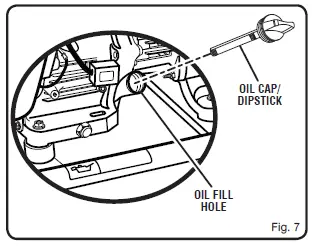

OIL CAP/DIPSTICK
Remove the oil fill cap to check and add lubricant to the generator when necessary.

OIL DRAINAGE BOLT
When changing the engine lubricant, the oil drainage bolt is loosened to allow the old engine lubricant to be drained.

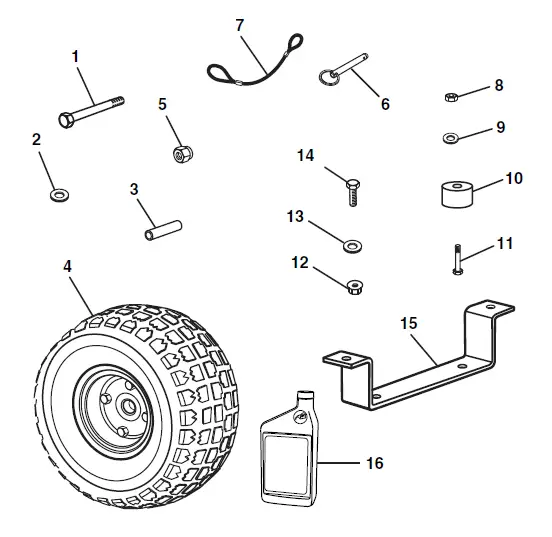

LOOSE PARTS LIST

The following items are included with the generator:

Bolt (3/8-16 x 4-1/4 in.)………………………………….2
Washer (3/8 in.)……………………………………………..6
Spacer (.38 ID)………………………………………………2
Wheel…………………………………………………………..2
Lock Nut (3/8-16)…………………………………………..2
Handle Lock Pin……………………………………………1
Lanyard………………………………………………………..1
Lock Nut (1/4-20)…………………………………………..2
Washer (1/4 in.)……………………………………………..2
Rubber Foot…………………………………………………2
Bolt (1/4-20 x 1-1/2 in.)………………………………….2
Flange Nut (5/16-18)………………………………………2
Washer (5/16 in.)……………………………………………2
Bolt (5/16-18 x 1 in.)………………………………………2
Frame Support……………………………………………..1
Engine Lubricant…………………………………………..1
Operator’s Manual (not shown)……………………….1

ASSEMBLY

UNPACKING
This product requires assembly.

Carefully cut the box down the sides then remove the machine and any accessories from the box. Make sure that all items listed in the packing list are included. NOTE: This machine is heavy and requires a minimum of two people to lift. To avoid back injury, lift with your legs and not your back.
Inspect the unit carefully to make sure no damage occurred during shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
If any parts are damaged or missing, please call 1- 866-340-3912 for assistance.
If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury.
Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misused and could result in a hazardous condition leading to possible serious personal injury.
Do not attempt to operate the generator until assembly is complete. Failure to comply could result in possible serious personal injury.
Insert bolt through the foot, then through frame support as shown.
Thread the washer over the bolt, then install a nut. Tighten nut securely.
NOTE: Be careful not to overtighten so that foot mate-rial collapses.
Repeat with the remaining foot.
Raise the end of the generator where the recoil starter is located high enough to gain access to the frame bottom; securely position props underneath to support.
Align the holes on the frame support with the holes on the generator frame.
Slide a washer on the bolt, then insert the bolt through the hole in the generator frame so it extends down through the frame support.
Install the flange nut and tighten it securely.
Repeat on another side.
- Bolts (3/8-16 x 4-1/4 in.)
- Washers (3/8 in.)
- Spacers (.38 ID)
- Wheels
- Lock Nuts (3/8-16)

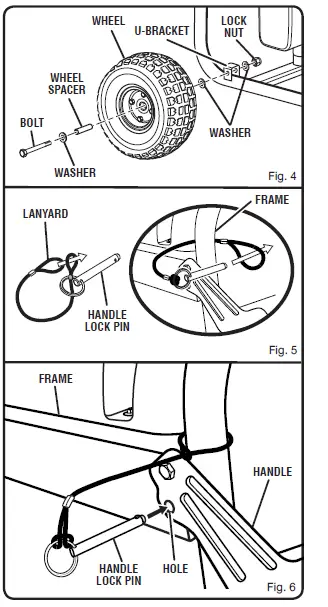

Raise the end of the generator opposite the handle high enough to gain access to the frame bottom; securely position props underneath to support.
Insert a wheel spacer into the center of the wheel.
Place a washer on the bolt, then slide bolt through the wheel.
Thread another washer on the bolt, then slide the bolt through the U-bracket frame on the generator.
Place a washer on end of bolt.
Install nut on the bolt and tighten securely.
Repeat the process on the other side to install the second wheel.
Locate the following items:
handle lock pin
Lanyard
Attach the lanyard to the handle lock pin and the handle as shown in figure 5.
Insert the pin through the hole in the handle and the generator frame to secure the handle in place.
Do not attempt to lift the unit by the handle assembly. If it is necessary to lift the generator, always grasp by the frame. Use proper lifting techniques to avoid back injury.

OPERATION

Carbon Monoxide. Using a generator indoors WILL KILL YOU IN MINUTES.
Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even if you cannot smell the exhaust, you could be breathing CO.
Never use a generator inside homes, garages, crawl spaces, or other partly enclosed areas. Deadly levels of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply enough fresh air.
ONLY use a generator outdoors and far away from open windows, doors, and vents. These openings can pull in the generator exhaust. Even when you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air RIGHT AWAY. See a doctor. You could have carbon monoxide poisoning.
Failure to properly ground the generator can result in electrocution, especially if the generator is equipped with a wheel kit. National Electric Code requires generators to be properly grounded to an approved earth ground. Call an electrician for local grounding requirements.
Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

APPLICATIONS
This generator is designed to supply electrical power for operating compatible electrical lighting, appliances, tools, and motor loads.

BEFORE OPERATING THE UNIT

Only use OUTSIDE and far away from windows, doors, and vents.
NEVER use it inside a home or garage, EVEN IF doors and windows are open.
Always position the generator on a flat firm surface.
CAUTION
Attempting to start the engine before it has been properly filled with lubricant will result in equipment failure.

CHECKING/ADDING LUBRICANT
See Figure 7.
Engine lubricant has a major influence on engine performance and service life. For general, all-temperature use, SAE 10W-30 is recommended. Always use a 4-stroke motor lubricant that meets or exceeds the requirements for API service classification SJ.
NOTE: Non-detergent or 2-stroke engine lubricants will damage the engine and should not be used.

Unscrew the oil cap/dipstick and remove.
Wipe the dipstick clean and re-seat in the hole; do not re-thread.
Remove the dipstick again and check the lubricant level. The lubricant level should fall between the hatched areas on the dipstick.
If the level is low, add engine lubricant until the fluid level rises to the upper portion of the dipstick.
Replace and secure the oil cap/dipstick.

CHECKING/ADDING FUEL
See Figure 8.

Remove the fuel cap.
Fill the fuel tank to 1 in. below the top of the fuel neck.
Replace and secure the fuel cap.
NOTE: Always use unleaded gasoline with a pump octane rating of 86 or higher. Never use old, stale, or contaminated gasoline, and do not use an oil/gas mixture. Do not allow dirt or water into the fuel tank.

USING FUEL STABILIZER
Fuel gets old, oxidizes, and breaks down over time. Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the fuel stabilizer manufacturer’s directions for the correct ratio of stabilizer to fuel.

Add stabilizer to fuel tank, then fill with gasoline following previous instructions.
NOTE: Fuel stabilizer and gasoline can be mixed prior to filling the tank by using a gas can or other approved fuel container and shaking gently to combine.
Replace and secure the fuel tank cap.
Start and run the engine for at least 5 minutes to allow the stabilizer to treat the entire fuel system.

OXYGENATED FUELS
Some conventional gasoline are blended with alcohol or an ether compound. These gasoline are collectively referred to as oxygenated fuels. To meet clean air standards, some areas of the United States and Canada use oxygenated fuels to help reduce emissions. If using an oxygenated fuel, make sure it is unleaded and meets the minimum octane rating requirements. Before using an oxygenated fuel, try to confirm the fuel’s contents. Some states/provinces require this information to be posted on the pump. The following are the EPA-approved percentages of oxygenates: Ethanol (ethyl or grain alcohol) 10% by volume. You may use gasoline containing up to 10% ethanol by volume. Gasoline containing ethanol may be marketed under the name “Gasohol.” Do not use E85 fuel. MTBE (methyl tertiary butyl ether) 15% by volume. You may use gasoline containing up to 15% MTBE by volume. Methanol (methyl or wood alcohol) 5% by volume. You may use gasoline containing up to 5% methanol by volume as long as it also contains cosolvents and corrosion inhibitors to protect the fuel system. Gasoline containing more than 5% methanol by volume may cause starting and/or performance problems. It may also damage the metal, rubber, and plastic parts of the generator or your fuel system. If you notice any undesirable operating symptoms, try another service station or switch to another brand of gasoline.

NOTE
Fuel system damage or performance problems resulting from the use of an oxygenated fuel containing more than the percentages of oxygenates stated previously are not covered under warranty.

CAUTION
On a level surface with the engine off, check the lubricant level before each use of the generator.

STOPPING THE ENGINE

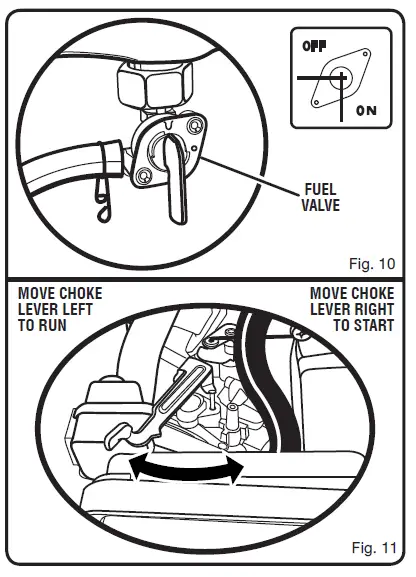

See Figures 9 – 10.
To stop the engine under normal operating conditions

MAINTENANCE

When servicing, use only identical Husky replacement parts. Use of any other parts may create a hazard or cause product damage. Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at an authorized service center.

GENERAL MAINTENANCE
Keep the generator in a clean and dry environment where it is not exposed to dust, dirt, moisture, or corrosive vapors. Do not allow the cooling air slots in the generator to become clogged with foreign materials such as leaves, etc. Do not use a garden hose to clean the generator. Water entering the fuel system or other internal parts of the unit can cause problems that will decrease the life of the generator.

Use a soft bristle brush and/or vacuum cleaner to loosen and remove dirt and debris.
Clean air vents with low-pressure air that does not exceed 25 psi.
Wipe the exterior surfaces of the generator with a damp cloth.
Release latches on left side of air filter cover. Remove the cover and set aside.
Remove the filter element.
If the filter element is dirty, clean with warm, soapy water. Rinse and let dry.
Apply a light coat of engine lubricant to the element, then squeeze it out.
Replace the element in the air filter unit.
Replace the air filter cover and latch to secure.

CHANGING ENGINE LUBRICANT

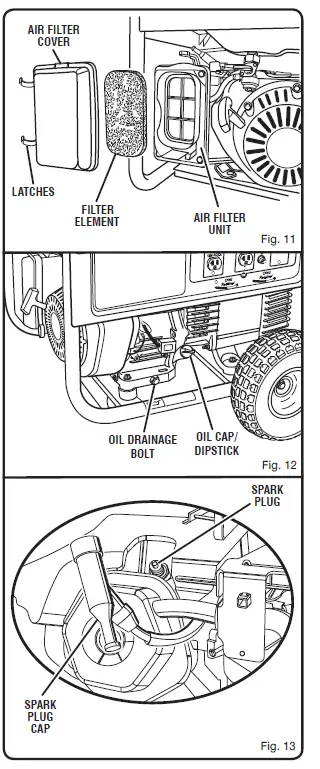

See Figure 12.

Remove the oil cap/dipstick.
Place a container underneath the oil drainage bolt to collect used lubricant as it drains.
Unscrew the oil drainage bolt and remove it.
Allow the lubricant to drain completely.
Reinstall the oil drainage bolt and tighten it securely.
Refill with lubricant following the instructions in the Checking/Adding Lubricant section.
Reinstall the oil cap/dipstick.

See Figure 13.
The spark plug must be properly gapped and free of deposits in order to ensure proper engine operation. To check:

Remove the spark plug cap.
Clean any dirt from around base of spark plug.
Remove the spark plug using wrench provided.
Inspect the spark plug for damage, and clean with a wire brush before reinstalling. If the insulator is cracked or chipped, spark plug should be replaced.
NOTE: If replacing, use the following recommended spark plugs or equivalent: NGK BR-6HS or Champion RL86C.
Measure the plug gap. The correct gap is 0.028−0.031 in.(0.7-0.8 mm). To widen gap, if necessary, carefully bend the ground (top) electrode. To lessen gap, gently tap the ground electrode on a hard surface.
The seat spark plug in position; thread in by hand to prevent cross-threading.
Tighten with a wrench to compress the washer. If spark plug is new, use 1/2 turn to compress washer appropriate amount. If reusing old spark plug, use 1/8 to 1/4 turn for proper washer compression.
NOTE: An improperly tightened spark plug will become very hot and could damage the engine.

CLEANING THE EXHAUST PORT AND
MUFFLER
Depending on the type of fuel used, the type and amount of lubricant used, and/or your operating conditions, the exhaust port and muffler may become blocked with carbon deposits. If you notice a power loss with your gas-powered products, you may need to remove these deposits to restore performance. We highly recommend that only qualified service technicians perform this service.

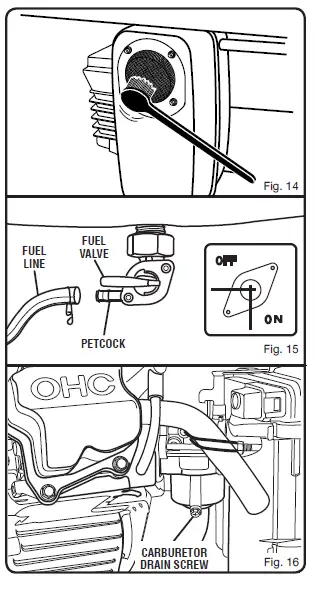

See Figure 14.

Inspect the spark arrestor for breaks or holes. Replace if necessary. To purchase a replacement spark arrestor contact Husky customer service at 1-866-340-3912.
Use a brush to remove carbon deposits from the spark arrestor screen as needed.
Turn the engine switch OFF ( O ).
Turn the fuel valve to the OFF position.
Remove the fuel line from the petcock by squeezing the ends of the retaining clip and sliding the fuel line off.
Install one end of a drain line over the petcock, and place the other end in a fuel container large enough to catch the fuel being drained from the tank.
Turn the fuel valve to the ON position.
When the fuel has drained from the tank, close the fuel valve and reinstall the fuel line on the petcock.
Turn the engine switch OFF ( O ).
Turn the fuel valve to the OFF position.
Position a suitable container under the carburetor drain screw to catch fuel; loosen the screw.
Allow fuel to drain completely into the container.
Retighten the drain screw.
Turn the engine switches OFF ( O ).
Turn the fuel valve to the OFF position.
Make sure the engine and exhaust of the unit is cool.
Keep unit level to prevent fuel spillage.
Do not drop or strike unit or place it under heavy objects.

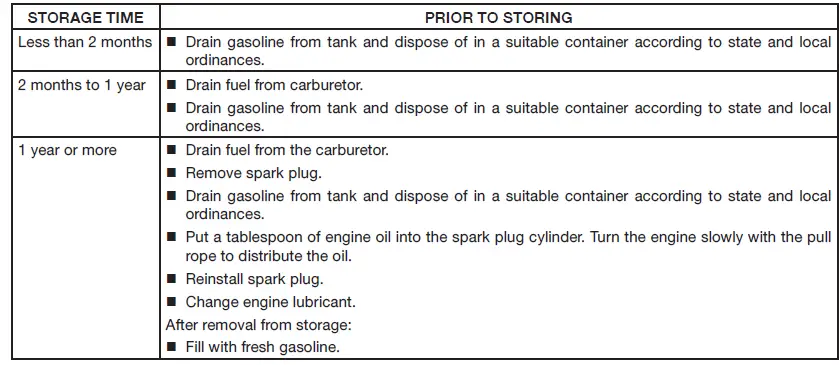

STORAGE
When preparing the generator for storage, allow the unit to cool completely then follow the guidelines below.

MAINTENANCE SCHEDULE

These items should only be carried out by an authorized service center.
NOTE: Maintenance should be performed more frequently when the generator is used in dusty areas. When the generator has exceeded the maximum figures specified in the table, maintenance should still be cycled according to the intervals of time or hours stated herein.

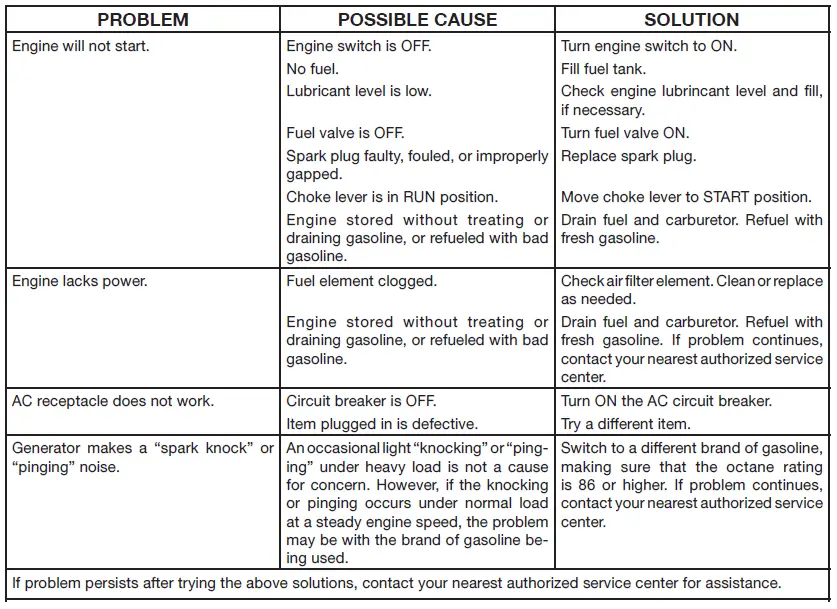

TROUBLESHOOTING

If the problem persists after trying the above solutions, contact your nearest authorized service center for assistance.The following symptoms may indicate problems that will affect the emissions level of the unit:

Hard starting or stalling after starting
Rough idle
Misfiring or backfiring under load
Afterburning (backfiring)
Black exhaust smoke or high fuel consumption

If you encounter any of these symptoms, have the unit inspected and repaired by the nearest authorized service center.

WARRANTY

Techtronic Industries North America, Inc., (the Company) warrants to the original retail purchaser that this Husky Product is free from defects in material and workmanship and agrees to repair or replace, at the Company’s sole discretion, any defective Product free of charge within these time periods from the date of purchase:

Two years, if the Product is used solely for personal, family, or household use;
One year, if the Product is used for business or commercial use.

This warranty applies only to Products sold within the United States of America, the District of Columbia, Canada, Mexico, the Commonwealth of Puerto Rico, the Virgin Islands, Guam, the Canal Zone, or American Samoa. This warranty is not transferable and does not cover damage resulting from defects other than in material or workmanship, or damage caused by unreasonable use, including the failure to provide reasonable and necessary maintenance. Other items not covered under this warranty include:

Transportation charges for sending the product to the Company or its authorized service representative for warranty service, or for shipping repaired or replacement products back to the customer; these charges must be borne by the original retail purchaser.
Engine. Your Product is equipped with an engine that is covered exclusively by a separate warranty from the engine manufacturer. Please refer to the engine manual included with the Product for warranty information related to the engine.
Damages caused by abuse, accident, misuse, neglect, alteration, modification, the effects of corrosion, erosion, normal wear and tear or repairs by other than the Company or its authorized service representative.

The warranty is voided if the customer fails to install, maintain and operate the product in accordance with the instructions and recommendations of the Company as set forth in the Product’s operator’s manual or if the Product is used as rental equipment. The Company will not pay for repairs or adjustments to the Product, or for any costs or labor, performed without the Company’s prior authorization.

SAVE YOUR SALES SLIP
Proof of purchase in the form of your dated sales receipt, cash register slip, etc. showing the serial number and the model of your Product will be required before the Company and/or its authorized service representatives can perform warranty service on the Product.

EXCLUSIONS AND LIMITATIONS
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, APPLICABLE TO THIS PRODUCT, SHALL BE LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY. THE WARRANTY SERVICE DESCRIBED ABOVE IS THE EXCLUSIVE REMEDY UNDER THIS WARRANTY. THE COMPANY SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW A LIMITATION ON THE DURATION OF IMPLIED WARRANTIES, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL, OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

HOW TO OBTAIN WARRANTY SERVICE
For warranty service: Call toll-free 1-866-340-3912, or write to Techtronic Industries North America, Inc., P.O. Box 35, Hwy. 8, Pickens, SC 29671. For warranty service outside the USA, please contact your local Husky dealer.

LIMITED 3-YEAR ENGINE WARRANTY
Limited Manufacturer’s Warranty from Subaru Robin (Effective with engines purchased from Robin America, Wood Dale, IL, after April 1, 2008) Robin America, Inc., a division of Fuji Heavy Industries, Ltd. (herein “Subaru Robin”), warrants that each new engine sold by it will be free, under normal use and service, from defects in material and workmanship for a period listed below from the date of sale to the original retail purchaser. Subaru Robin’s obligation under this Limited Warranty shall be limited to the repair and replacement, at Subaru Robin’s option, of any part or parts which upon examination is/are found, in Subaru Robin’s judgment, to have been defective in material or workmanship. It shall be a condition of Subaru Robin’s obligation under this Limited Warranty that Subaru Robin, directly or through one of its Distributors or Service Centers authorized to service the particular engine involved, receive prompt notice of any warranty claim and that the engine or the part or parts claimed to be defective be promptly delivered, transportation prepaid, to such Distributor or Service Center for inspection and repair. All repairs qualifying under this Limited Warranty must be performed by Subaru Robin or one of its authorized Distributors or Service Centers.

WARRANTY PERIODS
Subaru Robin Four-Cycle, Air-cooled, Gasoline Engines – Limited 3-YEAR Warranty (EX / EH Series 4.3hp or greater) The repair or replacement of any part or parts under this Limited Warranty shall not extend the term of the engine warranty beyond the original term as set forth above. LIMITATIONS AND EXCLUSIONS: This Limited Warranty shall not apply to:

Bent or broken crankshaft or resultant damage caused by vibration related to a bent or broken crankshaft. Also, the damage is caused by loose engine mounting bolts or improper or imbalanced accessories or blades mounted to the crankshaft.
Repairs are required because of prolonged storage including damage caused by old or contaminated fuel in the fuel tank, fuel lines or carburetor, sticky valves or corrosion and rust of engine parts.
Repair required due to overheating. (Most often caused by overloaded or clogged or damaged or missing flywheel, fan, inlet air passages, cooling fins or air shrouds).
Dirt or grit-related wear caused by improper air cleaner maintenance (most often resulting in worn pistons, piston rings, cylinders, valves, valve guides, carburetor or other internal components).
Broken or scored parts caused by low lubricant level, dirty or improper grade of lubricant.
Engine tune-ups and normal maintenance service including, but not limited to, valve adjustment, normal replacement of service items, fuel and lubricant, etc.
Any engine which has been subject to negligence, misuse, accident, misapplication or over-speeding.
Any engine that has been installed, repaired or altered by anyone in a manner which in Subaru Robin’s sole judgment adversely affects its performance or reliability.
Any engine which has been fitted with or repaired with parts or components not manufactured or approved by Subaru Robin which in Subaru Robin’s sole judgment adversely affects its performance or reliability.
Instances when normal use has exhausted the life of a component or an engine.
The customer is responsible for all transportation charges in connection with any warranty work.

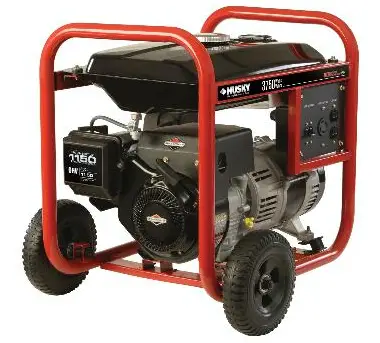

OPERATOR’S MANUAL PORTABLE GENERATOR 5,000 WATT HU40500

WARNING
The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

CALIFORNIA PROPOSITION 65

SERVICE
Now that you have purchased your product, should a need ever exist for repair parts or service, simply contact your nearest Authorized Service Center. Be sure to provide all pertinent facts when you call or visit. Please call 1-866-340-3912 for your nearest Authorized Service Center.

MODEL NO. AND SERIAL NO
The model number of this product will be found on a plate attached to the engine. Please record the model number and serial number in the space provided below.

HOW TO ORDER REPAIR PARTS
When ordering repair parts, always give the following information:
