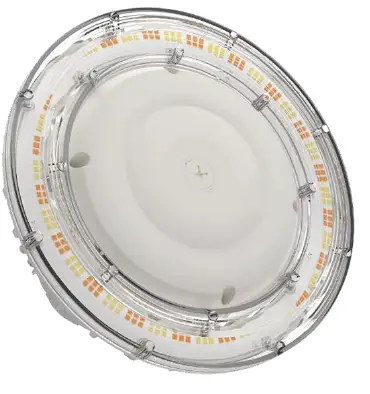

LEDone LOC-RDCP-MW LED LOC-RDCP MW MCCT Canopy Light
FEATURES
FEATURES- Default Wattage: 75W
- Default CCT: 5,000K
- IP65 rated
- Easy installation and maintenance
- Corrosion and rust proof
- 50,000 hours lifetime
SUITABLE APPLICATIONS
- Warehouses
- Stadiums
- Factories
- Parking Lots
- Shopping Malls
- Supermarkets
- Logistic Centers
- Auto dealerships
CONSTRUCTION: Heavy die-cast aluminum housing with polyester powder-coated finish
OPTICAL SYSTEM: Seoul 2835 LED chips. Frosted lens. 135° beam angle.
WARR ANTY: 5-year limited warranty. Actual performance may differ as a result of end-user environment and application.
ELECTRICAL: Available as 120-277V input. -20°C to 50°C, -4°F to 122°F
INSTALLATION & MOUNTING: Wall Mounting with quick mount back plate for easy installation.
CONTROLS & DIMMING: 0-10V dimming comes standard.
| MODEL NUMBER – 5,000K | WATTAGE | LUMENS | EFFICACY | CRI | POWER FACTOR | THD | REPLACES |
| LOC-RDCP-MW(40/50/60/75)MCCT(30/40/50)DLV | 40W | 5,400LM | 135LM/W | 70 | 0.9 | 20% | 100W – 320W HID |
| LOC-RDCP-MW(40/50/60/75)MCCT(30/40/50)DLV | 50W | 6,750LM | 135LM/W | 70 | 0.9 | 20% | 100W – 320W HID |
| LOC-RDCP-MW(40/50/60/75)MCCT(30/40/50)DLV | 60W | 8,100LM | 135LM/W | 70 | 0.9 | 20% | 100W – 320W HID |
| LOC-RDCP-MW(40/50/60/75)MCCT(30/40/50)DLV | 75W | 10,125LM | 135LM/W | 70 | 0.9 | 20% | 100W – 320W HID |
DLC Product ID:L OC-RDCP-MW(40/50/60/75)MCCT(30/40/50)DLV – S-OYSRW7
| Series | Wattage Options | Color Temperature Options | Dimming | Voltage |
| LOC-RDCP | 40W 50W 60W 75W | 3000K 4000K 5000K | D = 0-10V | LV = 120-277V |

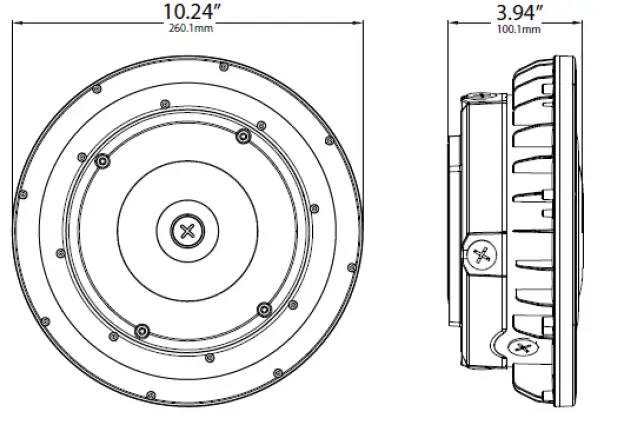

MEASUREMENTS
| MODEL | QUANTITY | WEIGHT | UPC CODE |
| LOC-RDCP-MW(40/50/60/75)MCCT(30/40/50)DLV | 1 | 4.85 lbs | 00810050941532 |
OPTIONAL ACCESSORIES
- Motion Sensor LOC-ANT-5-4T(compatible with remote control)
- Remote Control LOC-RC-100

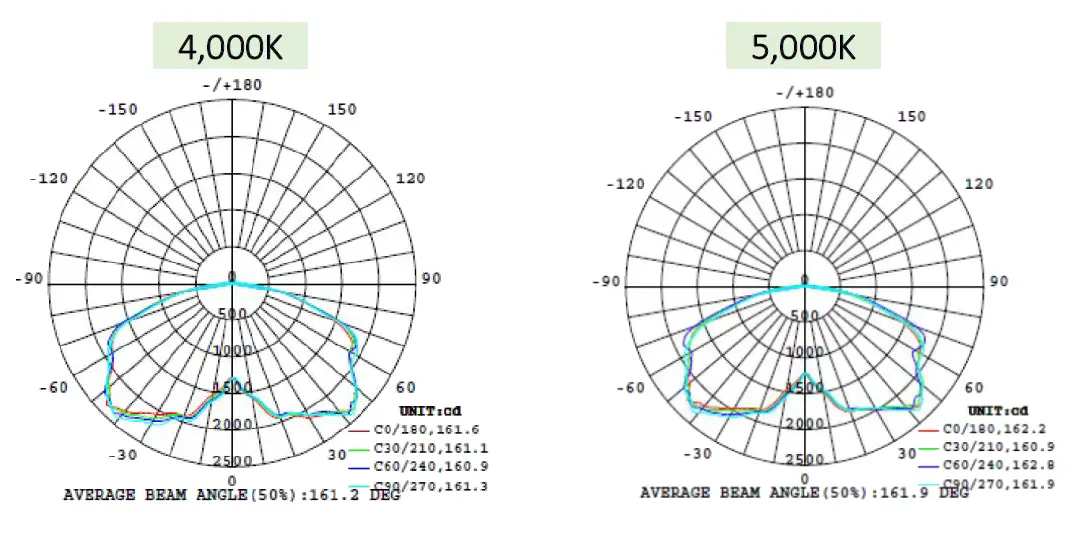

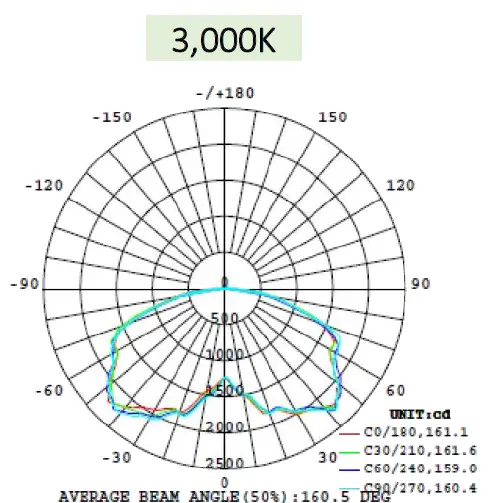

PHOTOMETRIC DATA
BUG Rating: B3-U3-G2
