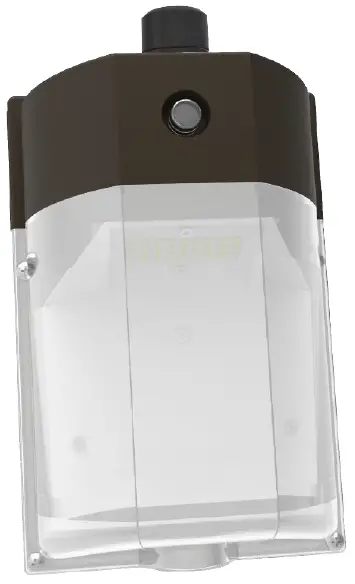

LEDone LOC-MWP-MW LED MW MCCT Mini Wall Pack Light Series
FEATURES
- IP65 rated
- Easy installation and maintenance
- Corrosion and rust proof
- Semi cut-off
- BUG: B1 U3 G2
- 50,000 hours lifetime
SUITABLE APPLICATIONS
- Warehouses
- Stadiums
- Factories
- Parking Lots
- Shopping Malls
- Supermarkets
- Logistic Centers
- Auto dealerships
Special Order:
- Other colors
- Clear lens
CONSTRUCTION:
Heavy die-cast aluminum housing with polyester powder-coated finish. Integral secondary heat sink to optimize the thermal transfer and maximize the performance of the LEDs. Frosted lens.
OPTICAL SYSTEM:
Philips Lumi leds 3030 LED chips. High-quality tempered glass optics. 125° beam angle.
WARRANTY
5-year limited warranty. Actual performance may differ as a result of end-user environment and application.
ELECTRICAL
Available as 120-277V input. -20°C to 50°C, -4°F to 122°F
INSTALLATION & MOUNTING
Wall Mounting with quick mount back plate for easy installation.
CONTROLS & DIMMING
Photocell included. Continuous dimming to 10% or below.
| MODEL NUMBER | WATTAGE | LUMENS | EFFICACY | CRI | POWER FACTOR | THD | REPLACES |
| LOC-MWP-MW(8/10/15/25)MCCT(30/40/50) | 8W | 1,097.28LM | 137.16LM/W | 71 | 0.923 | 12% | 30W – 50W HID |
| LOC-MWP-MW(8/10/15/25)MCCT(30/40/50) | 10W | 1,371.6LM | 137.16LM/W | 71 | 0.923 | 12% | 30W – 50W HID |
| LOC-MWP-MW(8/10/15/25)MCCT(30/40/50) | 15W | 2,057.4LM | 137.16LM/W | 71 | 0.923 | 12% | 30W – 50W HID |
| LOC-MWP-MW(8/10/15/25)MCCT(30/40/50) | 25W | 3,429LM | 137.16LM/W | 71 | 0.923 | 12% | 30W – 50W HID |

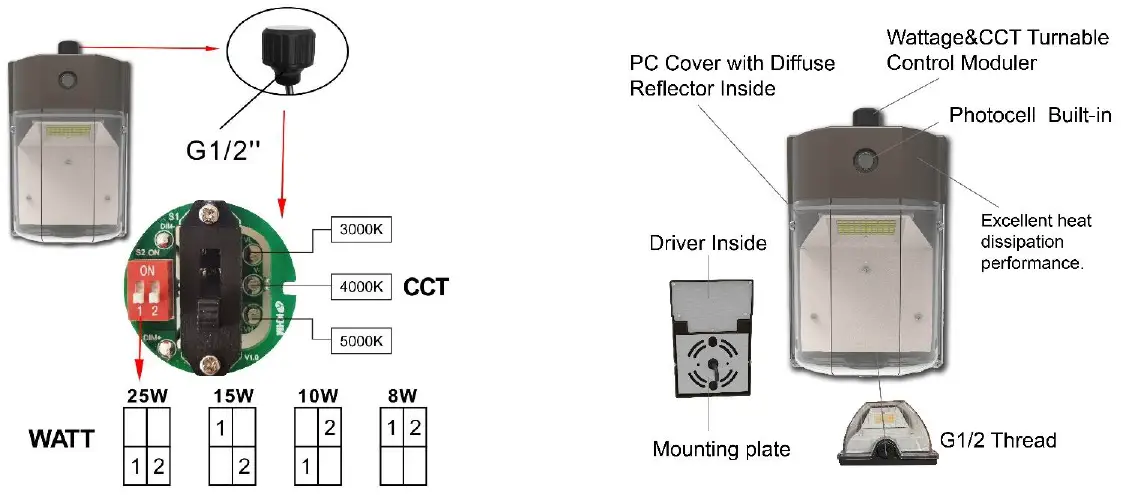

Series
- LOC-MWP-MW
Wattage
- 8W
- 10W
- 15W
- 25W
Color Temperature
- 3000K
- 4000K
- 5000K

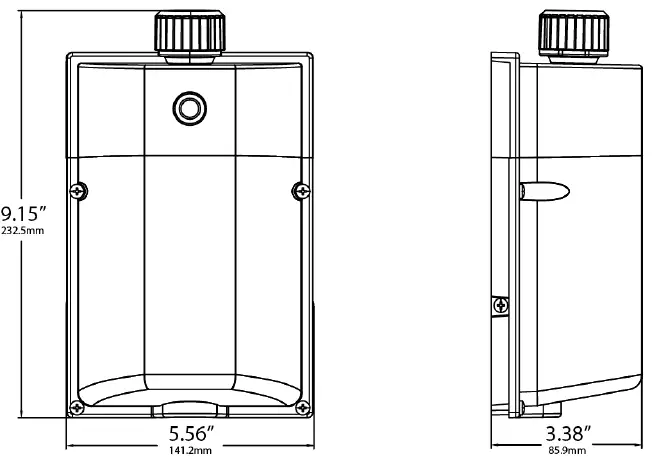

MEASUREMENTS
| MODEL | QUANTITY | WEIGHT | UPC CODE |
| LOC-MWP-MW(8/10/15/25)MCCT(30/40/50) | 1 | 2.10 lbs | 00810050941587 |
| LOC-MWP-MW(8/10/15/25)MCCT(30/40/50) (white color) | 1 | 2.10 lbs | 00810050941594 |

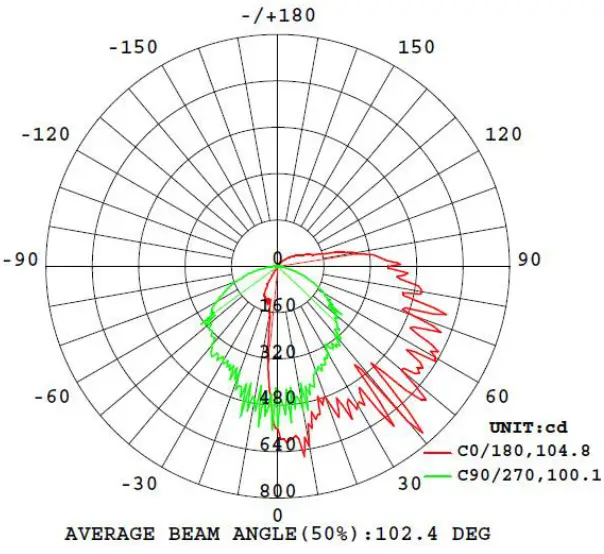

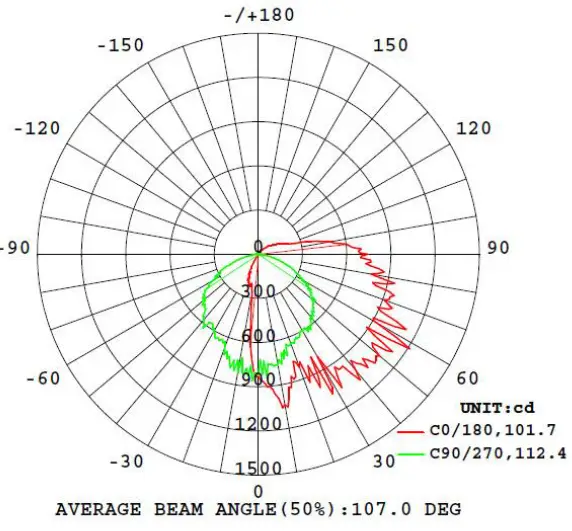

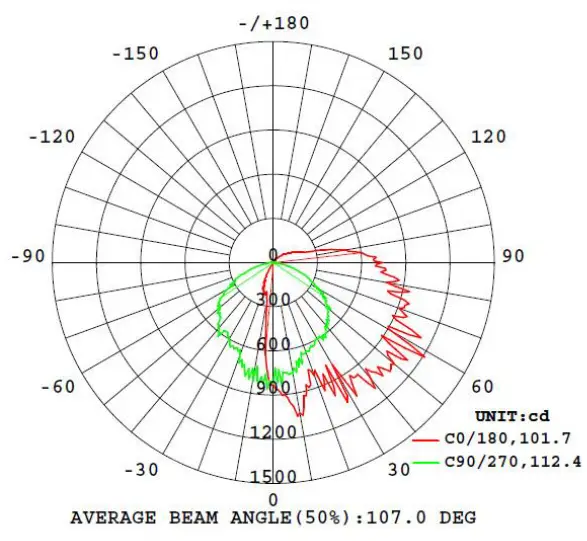

PHOTOMETRIC DATA
8W
10W

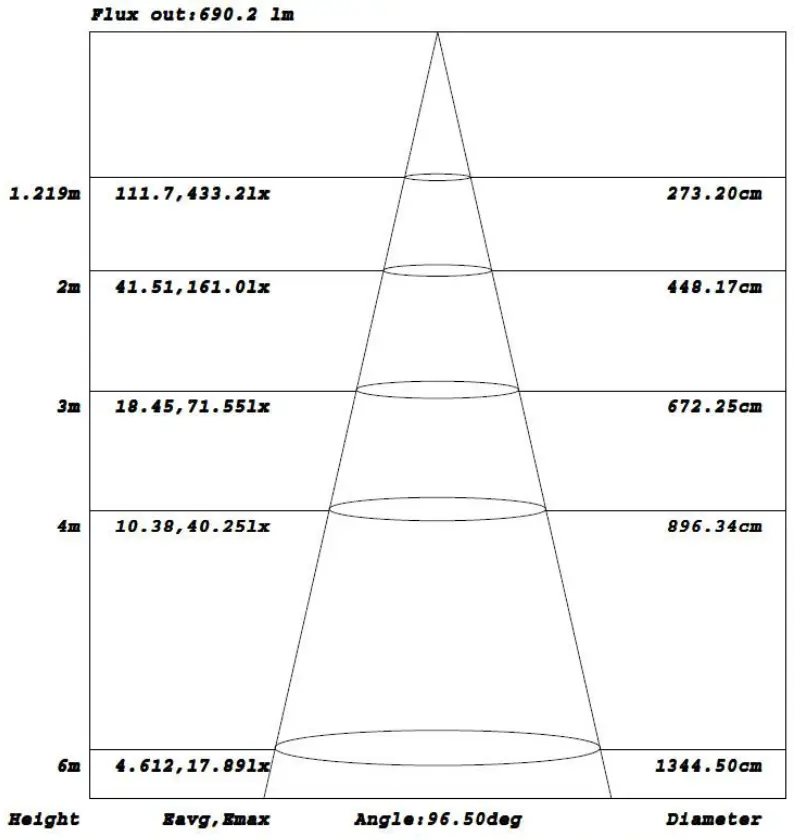

Note:
The curves indicate the 1lluminated area and the average 1llumination when the 1uminaire is at a different distance.
15W
25W
