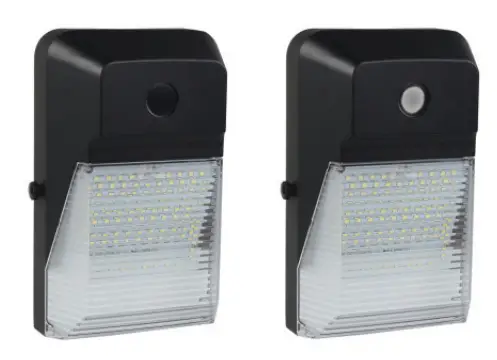

Mini LED Wall Pack
MWP Series
User Manual
Important: Read all instructions prior to installation.
Wall and Conduit Installation Instructions
- Remove power from the circuit.

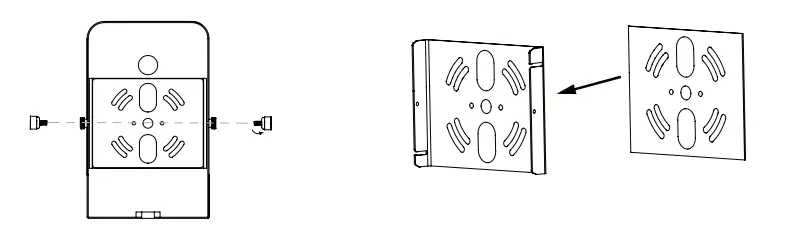

- Remove 2 plastic thumb screws from both sides of the light. Remove mounting bracket from light. Peel the adhesive film from Foam Gasket and stick to the mounting bracket, while lining up the cut-outs.

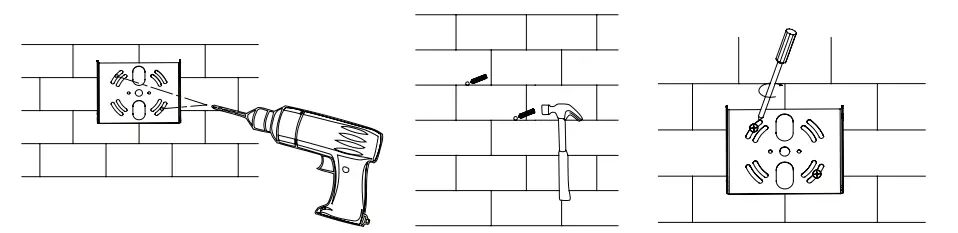

- Drill 2 holes on the wall using the bracket as a guide for holes. Drive wall anchors into holes. Attach the mounting bracket to the wall using 2 screws (not provided).

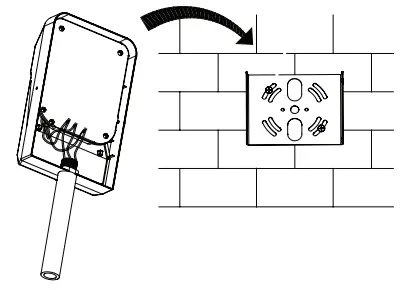

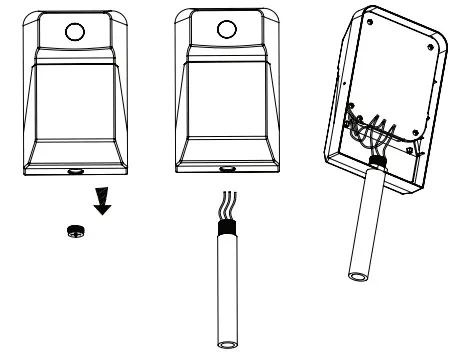

- Remove a knockout from the bottom of the light. Pull wires from the conduit through knockout and make wire connections to the main supply. Attach conduit onto the light.
- Attach the light to bracket and tighten 2 plastic thumb screws.
Included Parts
1 – Mini LED Wall Pack
1 – Foam Gasket
Specifications
| MWP-40K20 / MWP-40K20-S / MWP-50K20 / MWP-50K20-S | |
| IP Rating | IP65 |
| Operating Temperature | -4°–113° F(-20°–45° C) |
| Weight | 1.8 lb (0.8 kg) |
Check the product label for specific electrical specifications related to installation.
Improper installation will void warranty.

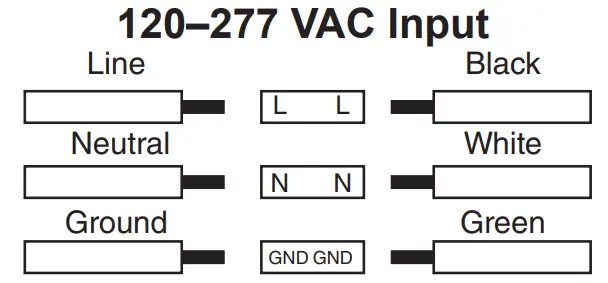

Wire Diagram

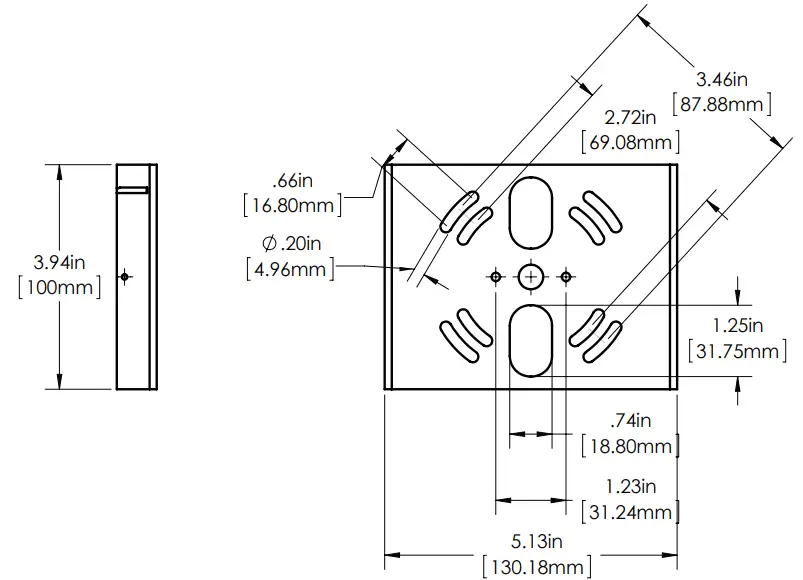

Mounting Bracket Dimensions
Safety and Notes
- The product should be installed and serviced in accordance with applicable national, state, and local building and electrical codes.
- To reduce the risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures.
- Avoid looking directly into the lamp when illuminated.
- Ensure all amounts are securely attached and will support the weight of the fixture.
Failure to properly support fixtures may result in damage or injury, for which the manufacturer does not assume responsibility.
J-Box Installation Instructions
- Remove power from the circuit.
- Remove 2 plastic thumb screws from both sides of the light. Remove mounting bracket from light. Peel the adhesive film from Foam Gasket and stick to the mounting bracket, lining up the cut-outs.

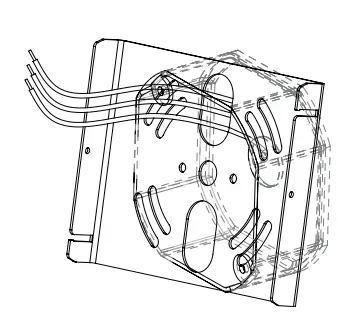

- Mount bracket to J-box with 2 screws (not included). Pull wires from J-box through the bracket.

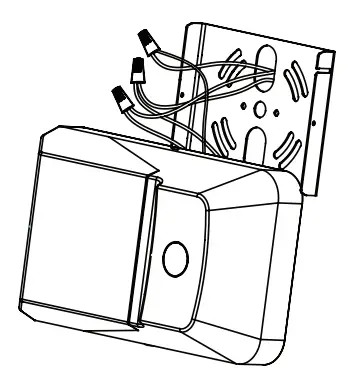

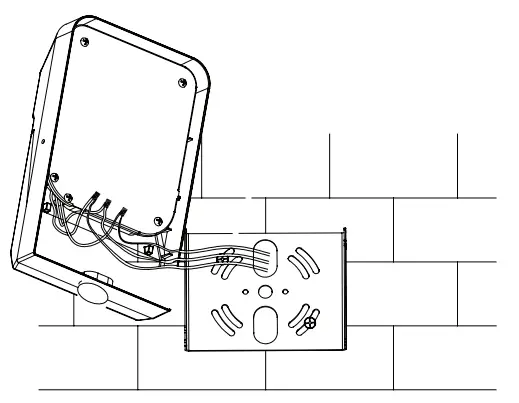

- Use slots to temporarily hang light on the mounting bracket to J-box. Make wire connections to the main supply. Push connected wires through the bracket into J-box.
Note: Wire connections can stay within light.
- Mount light on the bracket. Secure with 2 plastic thumbscrews on both sides.
Rev Date: V2 03/31/2021
