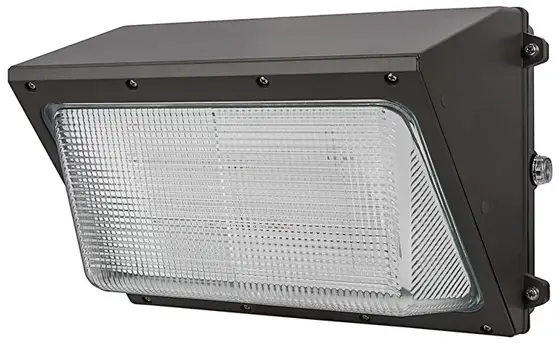

WPG Series LED Wall Pack with Glass Lens
User Manual
Specifications
| WPG | -50K28W-S | -50K40W-S | -50K60W-S | -50K80W-S | -50K100W-S | -50K120W-S |
| Operating Temperature | -4°-104° F (-20°-40° C) | |||||
| IP Rating | IP65 | |||||
| Dimming | 0-10 V (non-photocell models only) | |||||
Check product label for specific electrical specifications related to installation.
Improper installation will void warranty.
Included Parts
- 1 – Foam Mounting Gasket
- 1 – Knockout Plug
- 5 – Wire Nuts
- 4 – M4 x 38 mm Phillips Screws
Note: Photocell equipped models also include preinstalled photocell sensor, which turns light on when ambient light is below 30 lx.

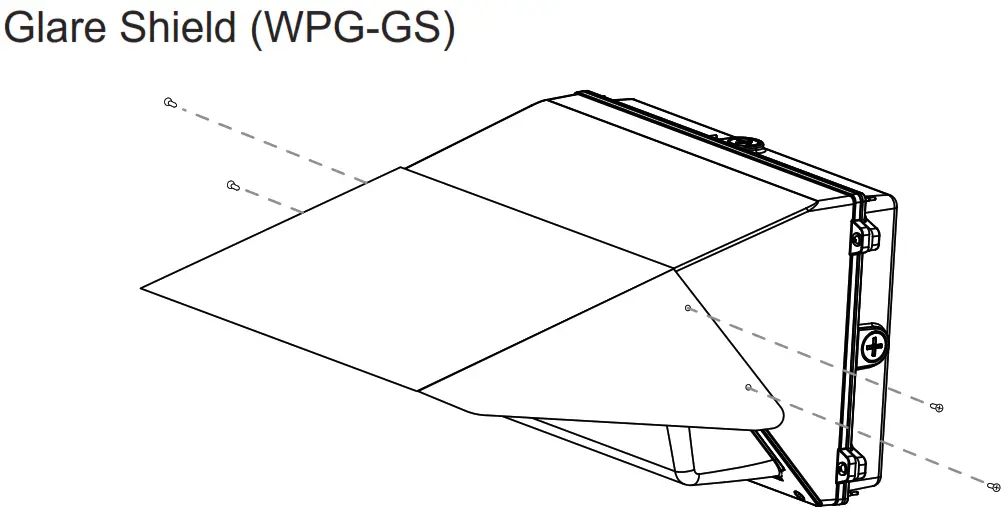

Optional Accessories

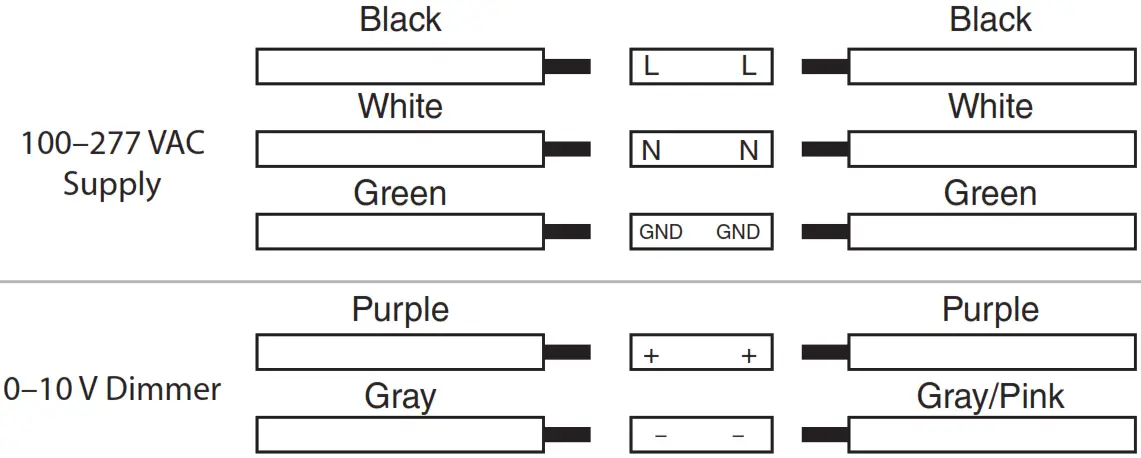

Wire Diagram
Safety Notes
- This product should be installed and serviced by a certified electrician in accordance with applicable national, state, and local building and electrical codes.
- To reduce the risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures.
- Avoid looking directly into lamp when illuminated.
- Ensure all mounts are securely attached and will support the weightof the fixture. Failure to properly support fixture may result in damage or injury, for which the manufacturer does not assume responsibility.
Important: Read all instructions prior to installation.
LED Wall Pack With Glass Lens

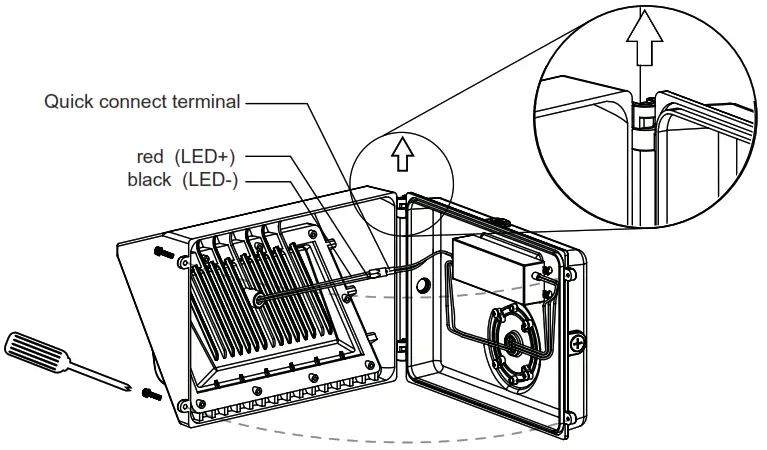

Opening Fixture
Important: Illustrations are also representative of photocell models.

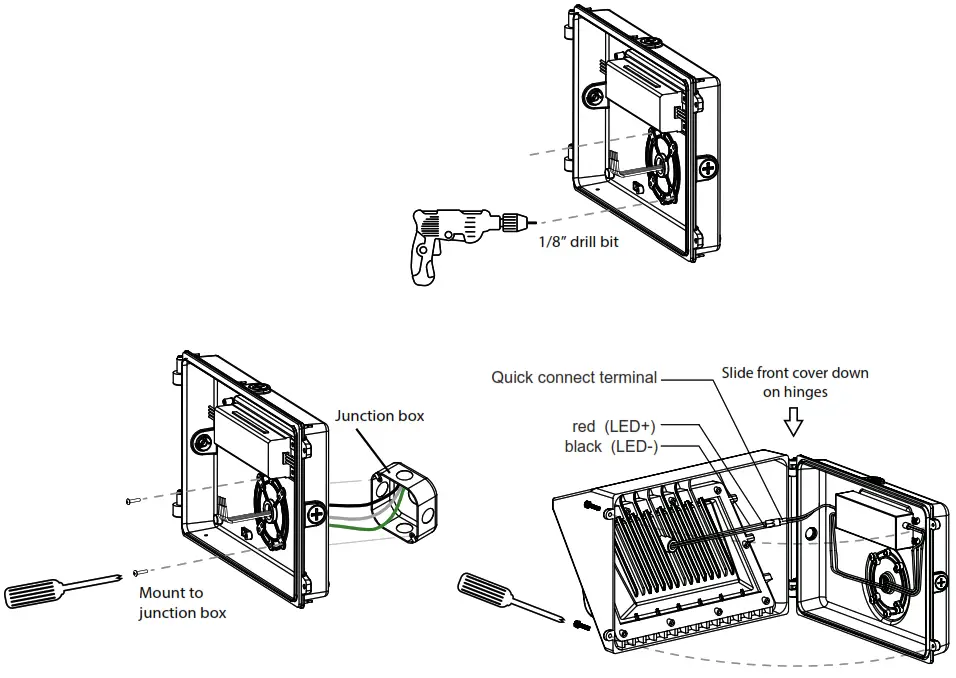

Installation: Mounting to J-box
Important: Illustrations are also representative of photocell models.

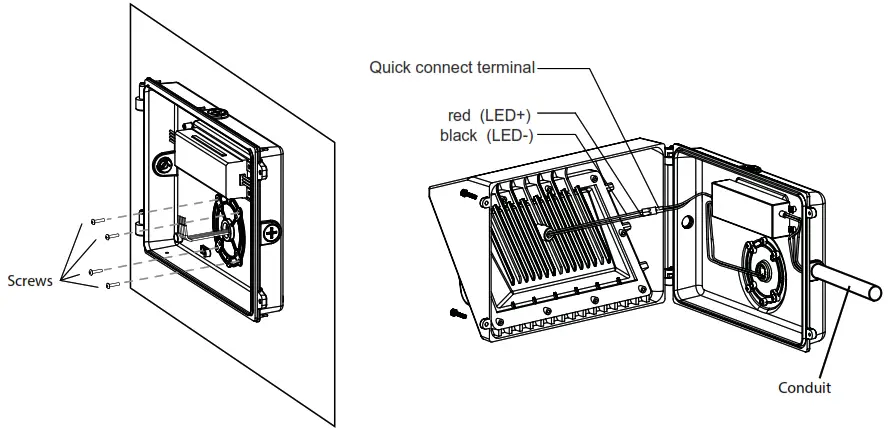

Installation: Mounting to Wall/Conduit
Important: Illustrations are also representative of photocell models.
Dimensional Drawings
Important: Illustrations are also representative of photocell models.

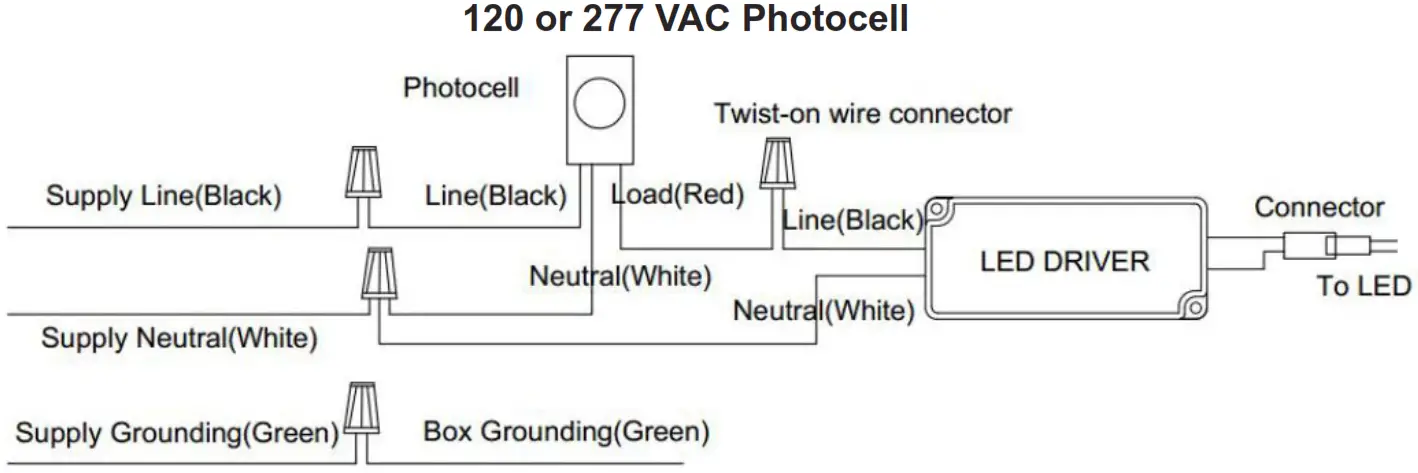

Photocell Wiring Diagram
Rev Date: V1 09/30/2021
