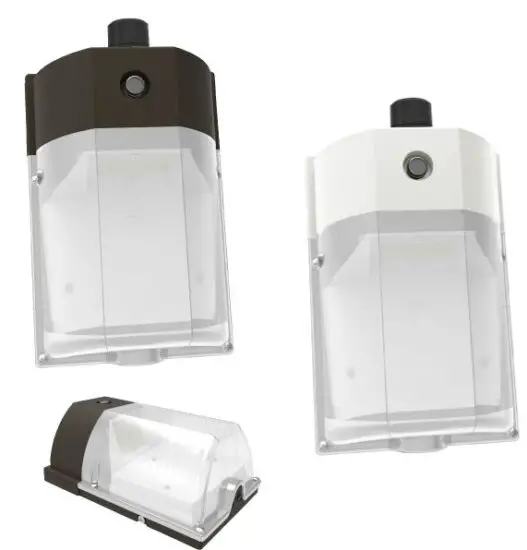

LEDone LOC-MWP-MW Outdoor Mini Wall Pack User Manual
FEATURES
- IP65 rated
- Easy installation and maintenance
- Corrosion and rust proof
- Semi cut-off
- 50,000 hours lifetime
SUITABLE APPLICATIONS
- Warehouses
- Stadiums
- Factories
- Parking Lots
- Shopping Malls
- Supermarkets
- Logistic Centers
- Auto dealerships
CONSTRUCTION:
Heavy die-cast aluminum housing with polyester powder-coated finish. Integral secondary heat sink to optimize thermal transfer and maximize performance of the LEDs. Frosted lens.
OPTICAL SYSTEM:
Philips Lumileds 3030 LED chips. High quality tempered glass optics. 125° beam angle.
WARRANTY:
5-year limited warranty. Actual performance may differ as a result of end-user environment and application.
ELECTRICAL:
Available as 120-277V input. -20°C to 50°C, -4°F to 122°F
INSTALLATION & MOUNTING:
Wall Mounting with quick mount back plate for easy installation.

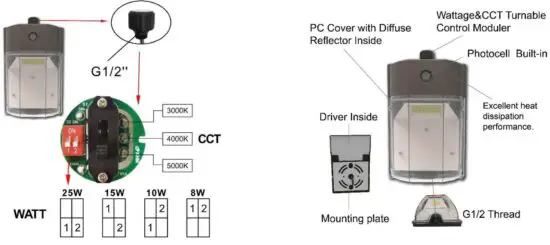

CONTROLS & DIMMING: Photocell included.

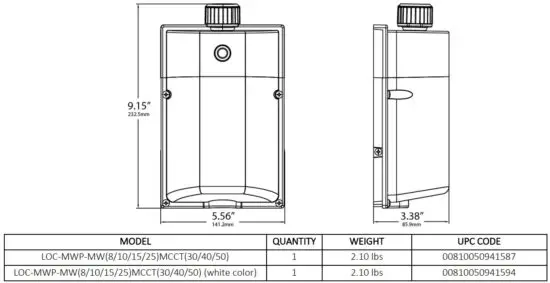

MEASUREMENTS

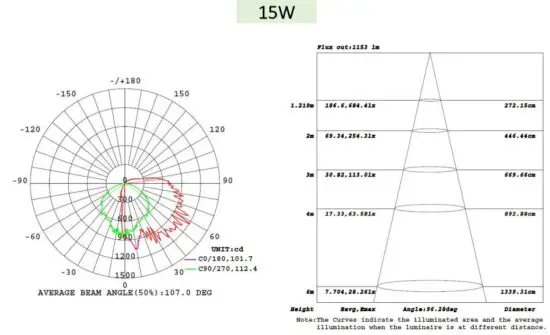

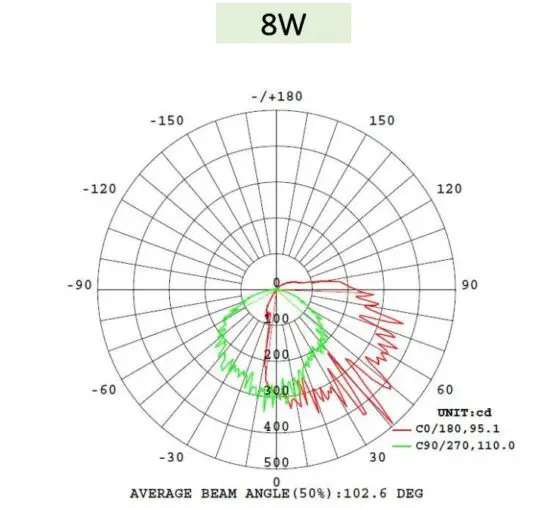

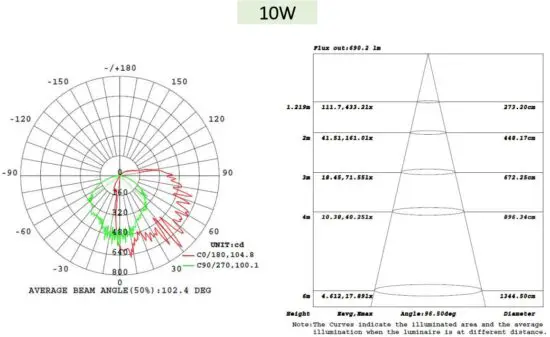

PHOTOMETRIC DATA
Phone: (844) LEDONE6 | Fax: 1-510-217-9461 | Web: www.ledonecorp.com
