C-WP-A-FCA C-Lite Full Cutoff LED Wall Pack
Instruction Manual

INSTALLATION INSTRUCTIONS PHOTOCELL OPTIONS

LOCATING KNOCKOUT

Locating knockout in an adjustable fitter:
a. Remove the wiring compartment cover from the adjustable fitter using a Phillips screwdriver.

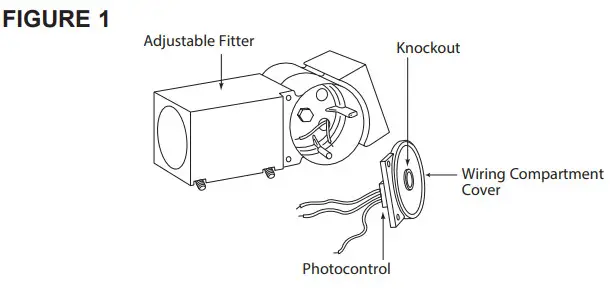

b. Using a hammer and a punch, remove knockout of wiring compartment cover. See Figure 1.
c. See photocontrol installations. (On backside)
d.

WALLPACKS WITHOUT KNOCKOUTS

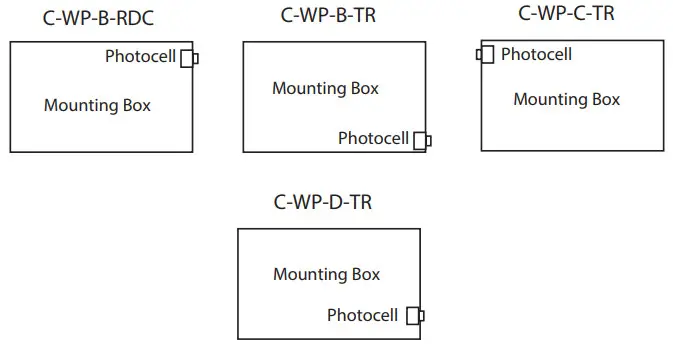

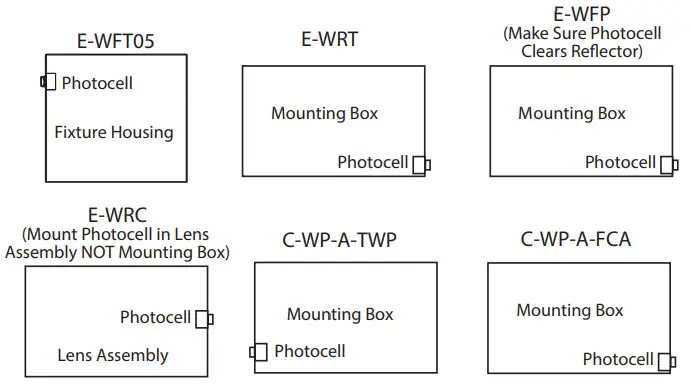

1. Refer to mounting diagrams, Figure 2, for correct fixture series and drill an 11/16” (17mm) hole in the location indicated. Make sure the photocell will fit properly before drilling.
2. See photocontrol installation

FIGURE 2

MOUNTING DIAGRAMS

PHOTOCONTROL INSTALLATION

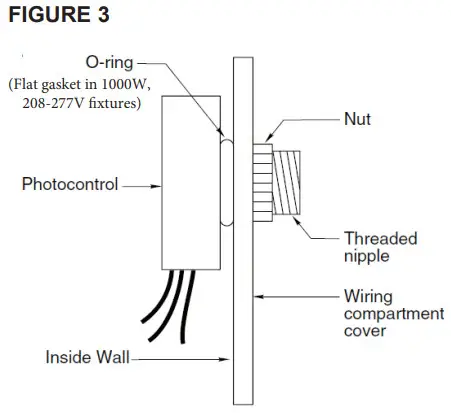

1. Remove the nut from the photocell, and leave the o-ring. See Figure 3.
2. Slide photocell through the opening.
3. Thread nut on to threaded nipple of photocontrol and tighten to ensure a waterproof seal.

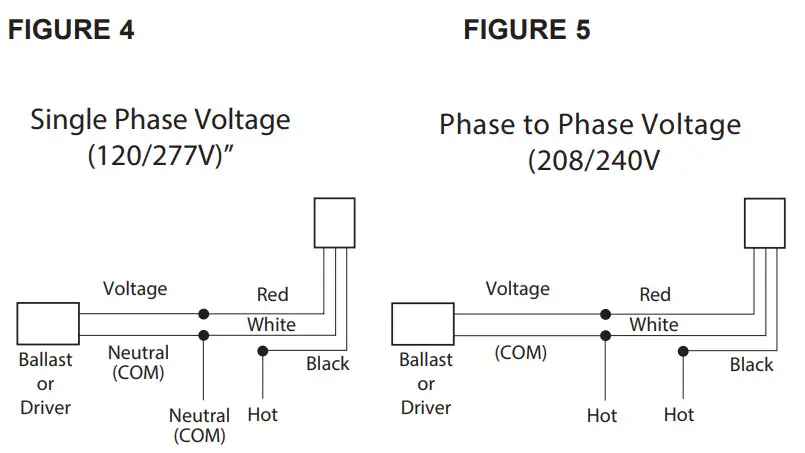

4. Wire photocontrol according to Figure 4 if wiring phase to neutral or Figure 5 if wiring phase to phase. In all cases make sure the photocontrol voltage is rated for the supply voltage.
5. Reinstall any parts removed during the installation of the photocontrol.

WIRING

1. Wire according to Single Phase Voltage or Phase to Phase Voltage.
