LIGHTING THE WAY FOR SIXTY YEARS

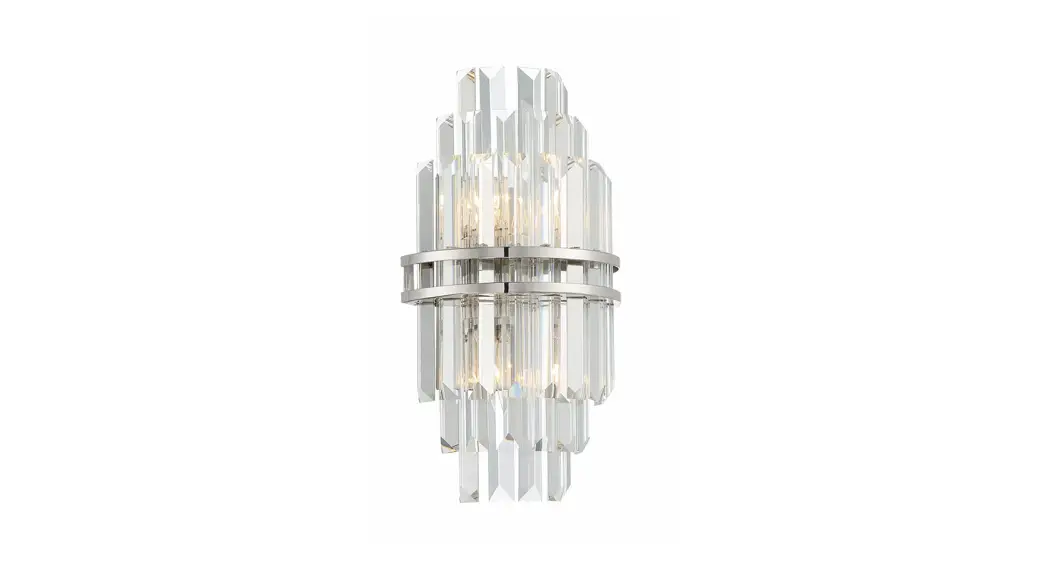

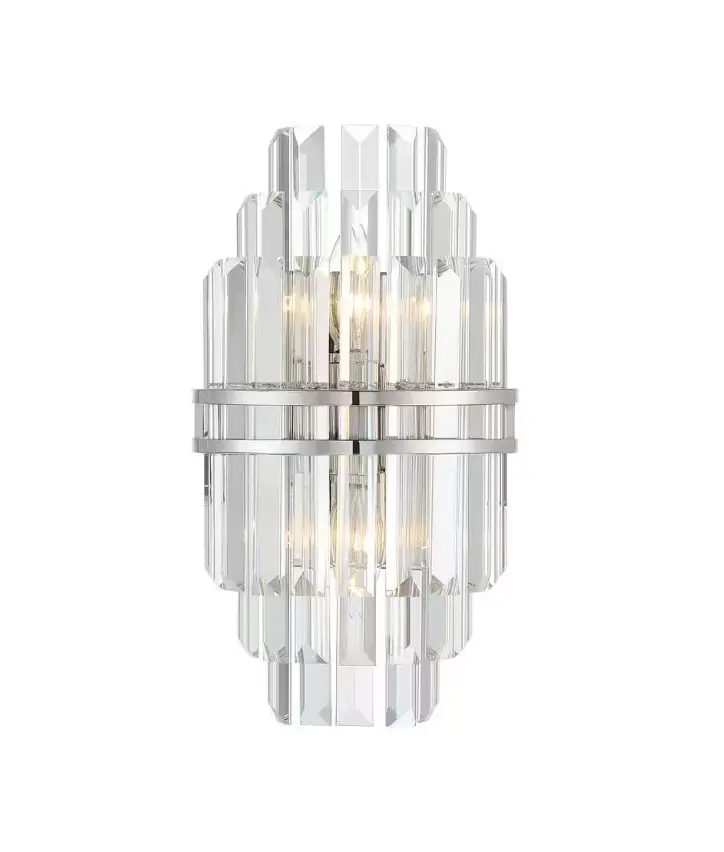

MODEL #HAY-1402-PN
ASSEMBLY INSTRUCTION

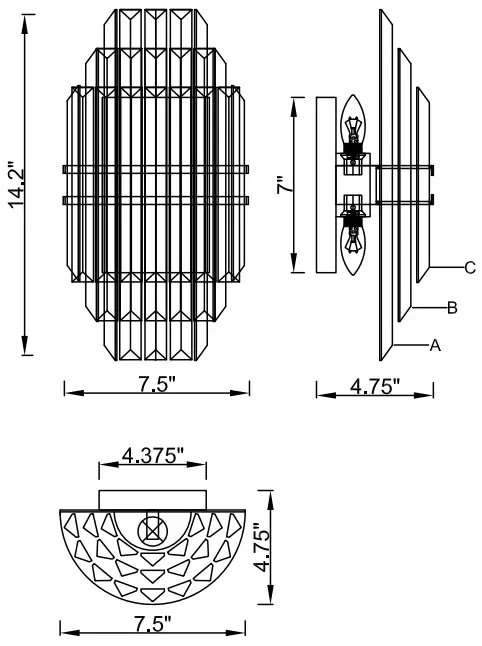

DETAILED ILLUSTRATION
Short end above frame
WARNING:
Electrical Danger
Turn Power Off)
All electrical components must be installed by a licensed electrician In accordance with the National Electric Code and the appropriate local electrical codes.
You will need 2-Candelabra Base Bulb 40 Watts Recommended 60 Watts Max USE LED BULBS FOR EXTENDED USE This fixture is Dry rated
How to Install
- Do a complete inventory of all parts and components before you start installing.
- After safety attaching fixture into outlet box.install bulbs (not included) and proceed to connecting the power.
- When you begin to dress the fixture,start with crystal labeled (A).
- IMPORTANT: Apply crystal sets in alphabetical order.

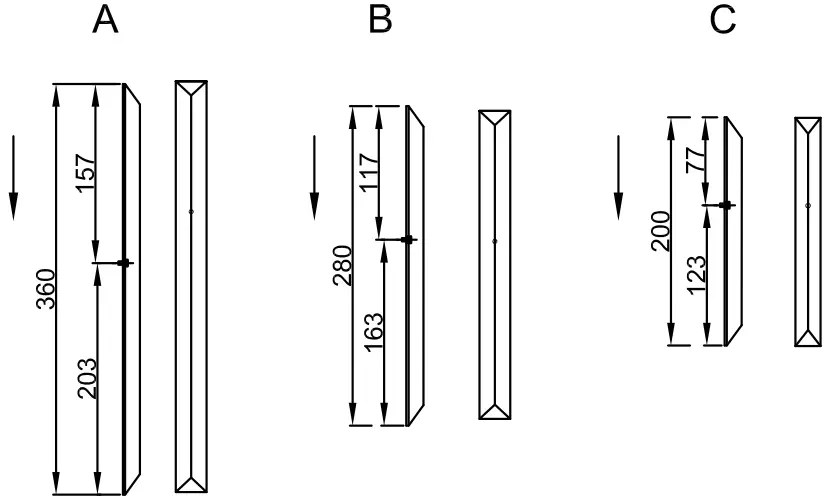

Crystal Sets
A. 5Sets. (1)22x360mm
B. 7Sets. (1)22x280mm
C. 9Sets. (1)22x200mm
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov

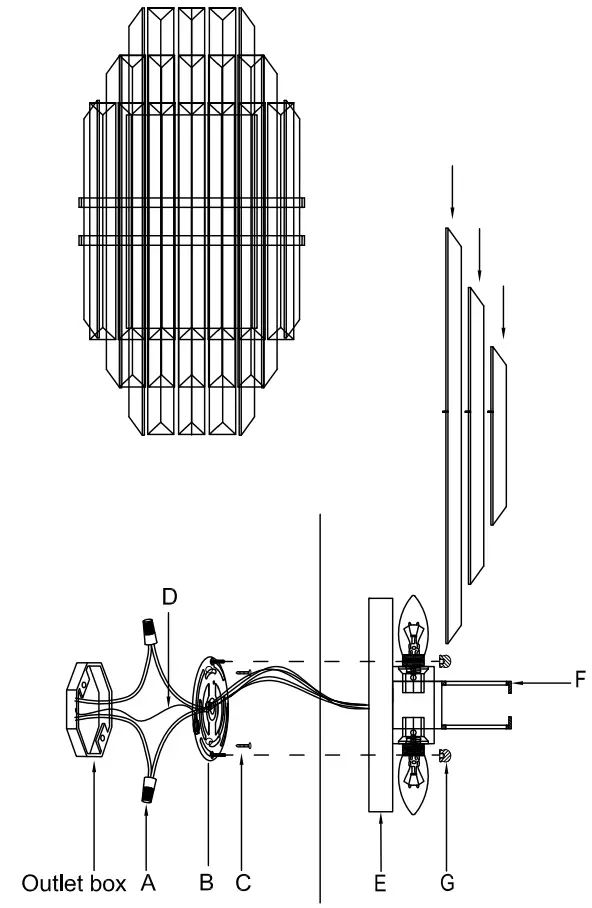

Part Number
Part Numbers
A. (2)-Wire Connector
B. (1)-Mounting Plate
C. (2)-Outlet Box Screws
D. (1)-Ground Wire
E. (1)-Backplate; w4.375″ x 7″ x h0.75″ (XF81402PNBP4.375IN)
F. (1)-Frame
G. (2)-Ball Nut (XFB1402PNBANUT)
