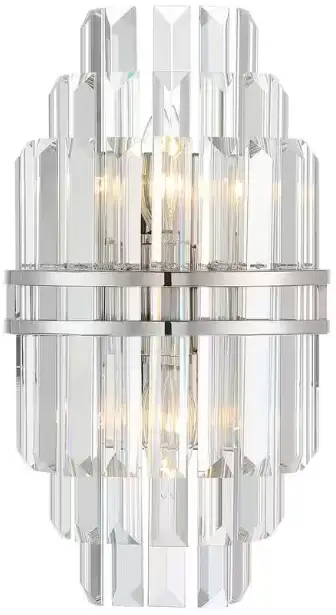

CRYSTORAMA HAY-1402-PN Light Polished Nickel Wall Mount Instruction Manual
Dimensions

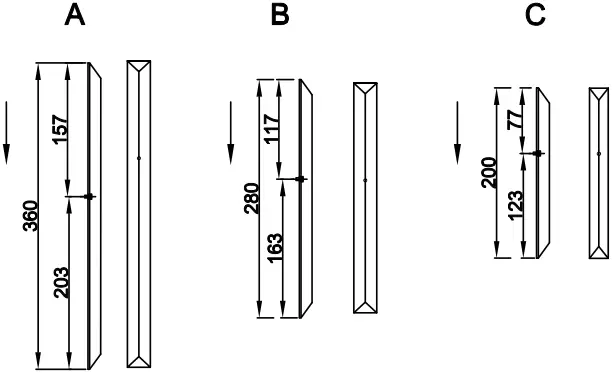

DETAILED ILLUSTRATIONS
Short end above frame
Crystal Sets
- A. 5Sets. (1)22x360mm
- B. 7Sets. (1)22x280mm
- C. 9Sets. (1)22x200mm
Safety Instructions
 |  |
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes. | You will need 2-Candelabra Base Bulb 40 Watts Recommended 60 Watts Max USE LED BULBS FOR EXTENDED USE This fixture is Dry rated |
WARNING:
This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.
For more information go to: www.P65Warnings.ca.gov
How to Install
- Do a complete inventory of all parts and components before you start installing.
- After safety attaching fixture into outlet box, install bulbs (not included) and proceed to connecting the power.
- When you begin to dress the fixture, start with crystal labeled (A).
- IMPORTANT: Apply crystal sets in alphabetical order.

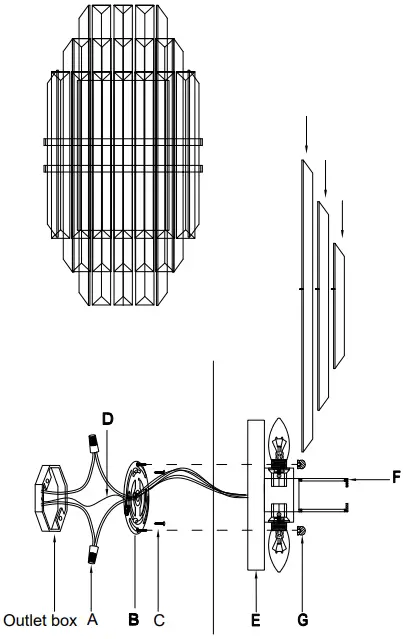

Part Number
- A. (2)-Wire Connector
- B. (1)-Mounting Plate
- C. (2)-Outlet Box Screws
- D. (1)-Ground Wire
- E. (1)-Backplate; w4.375″ x 7″ x h0.75″ (XFB1402PNBKP4.375IN)
- F. (1)-Frame
- G. (2)-Ball Nut (XFB1402PNBANUT)
