PAY-922-VG Payton 2-Light
Vibrant Gold Wall Mount
Instruction Manual
ASSEMBLY INSTRUCTION
LIGHTING THE WAY FOR SIXTY YEARS
MODEL #PAY-922-VG
 |  |
WARNING:
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 2-Candelabra Base Bulb 40Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
The fixture is damp rated

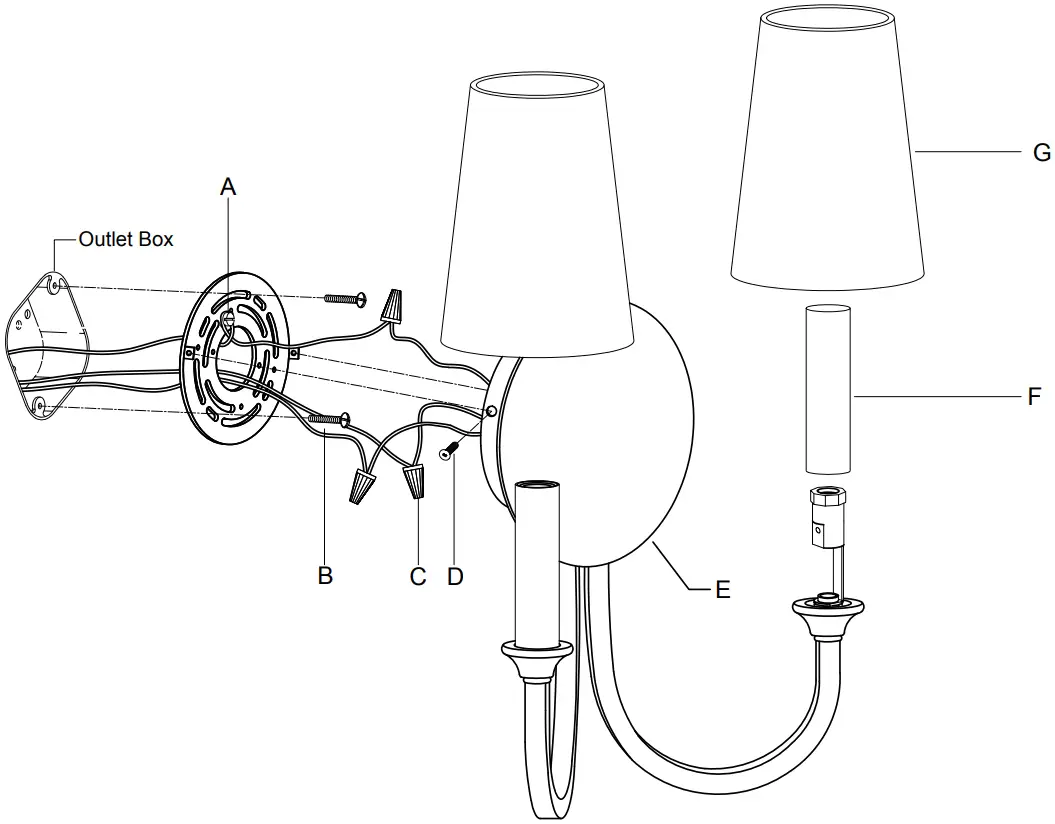

How to Install
- Install the mounting plate onto the outlet box using two outlet box screws
- Attach the backplate onto the mounting plate and secure with screws.
- Slide the candle sleeve over the socket. Slide the shade over the candle sleeve.
WARNING: This product can expose you to lead which is known to the State of California to cause cancer and/or birth defects or reproductive harm For more information go to www.P65W.arnings.ca.gov
Part Number
A. (1)-Mounting plate
B. (2)-Outlet Box Screws
C. (3)-Wire Connector
D. (2)-Screw

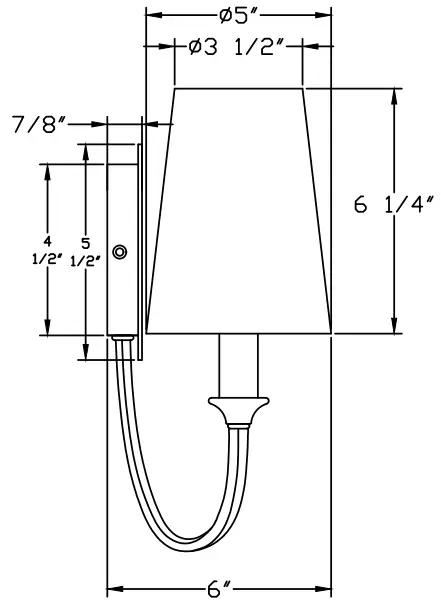

E. (1)-Backplate(W5.5″xH7/8″) XEH922VGBKP5.5IN
F. (1)-Metal Sleeve(Ø7/8″xH3.3″) XEH921VGCDL3.3IN
G. (1)-Fabric Shade(W5″xH6.25″) XEH921SHA6.25IN
