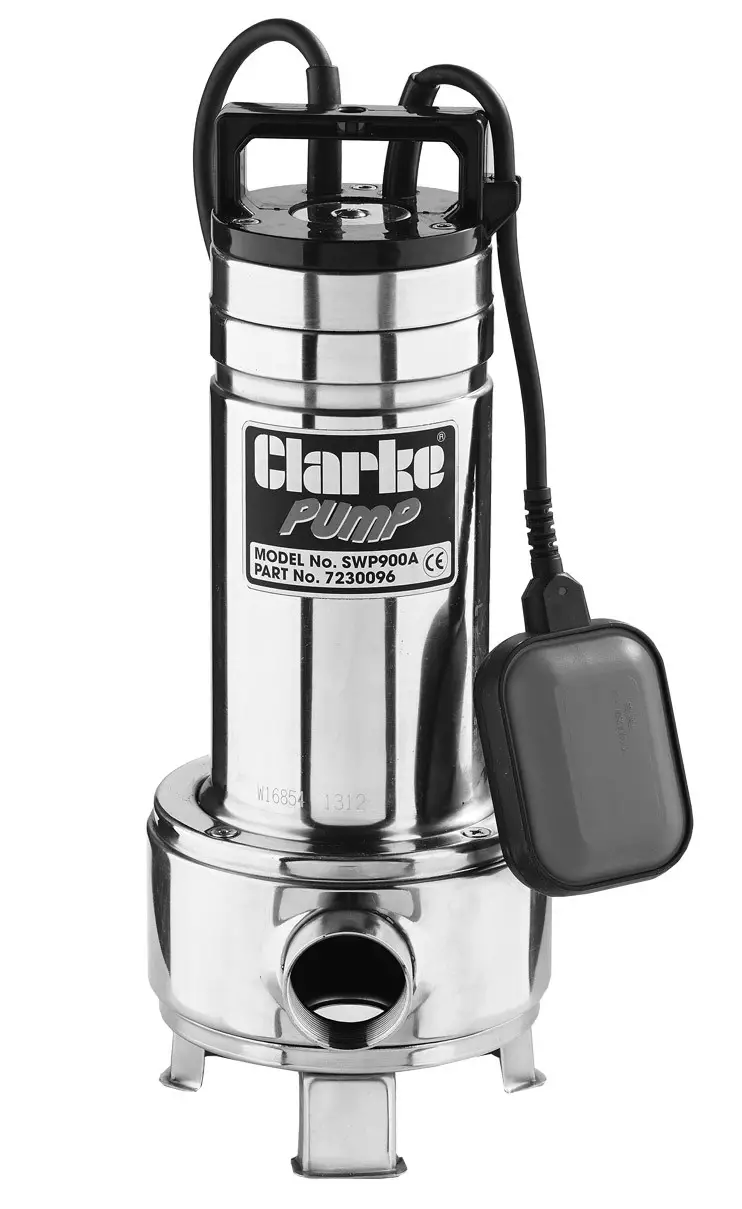

SUBMERSIBLE SEWAGE PUMP
MODEL NO: SWP900A
PART NO: 7230096
OPERATION & MAINTENANCE
INSTRUCTIONS

INTRODUCTION

Thank you for purchasing this CLARKE Submersible Sewage Pump.
This pump is designed for pumping waste and clean water or sewage containing bodies up to 31mm.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not affect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through the purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE  regulations in relation to the treatment, recycling & recovery, and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognized disposal facility.

SAFETY INSTRUCTIONS

GENERAL

1. Read all instructions before use and save these instructions for future use.
2. An approved residual current device (RCD) that has a tripping current of less than 30mA MUST be used for all operations.
3. The electrical supply must be the same as that on the rating plate.
4. ALWAYS make sure that your hands are dry when connecting or disconnecting from the mains supply.
5. NEVER pull the mains lead to disconnect the pump from the mains socket.
6. The main plug must be kept away from the water at all times.
7. DO NOT allow children or unauthorized people to touch the pump, cables, or connections.
8. Disconnect the pump from the main supply when not in use.
9. If necessary have the pump repaired by a qualified person.
10. Keep the mains lead away from heat, oil, and sharp edges.
11. If you have to use an extension lead with this product, it must be designed for outdoor use and incorporate a cable suitable for use with  Class I appliances.
12. Disconnect the pump from the electrical supply and wear gloves during servicing or maintenance.

PUMP SPECIFIC

1. DO NOT pump explosive/flammable liquids or chemicals.
2. NEVER allow the pump to run dry or operate out of the water (manual mode only).
3. Submersible pumps should always be submerged and stored vertically.
4. Disconnect the pump from the mains supply before placing it into or removing it from the water.
5. ALWAYS check the plug and all cables for damage before use.
6. DO NOT use the pump if damaged. Refer to qualified service personnel for repair.
7. NEVER carry or lower the pump by the power cable or sensor cable always use the handle or a rope tied securely to the handle.
8. NEVER insert your fingers into the pump whilst it is connected to the mains.
9. NEVER use the submersible pump in a swimming pool when there are people or animals in the pool.
10. Keep the pump clear of any sediment by standing it on a platform or brick or suspending it at a suitable depth.
11. DO NOT use the pump if the water is liable to freeze, as this can cause damage to the pump.
    Remove the pump from the water and store it in a frost-free location.

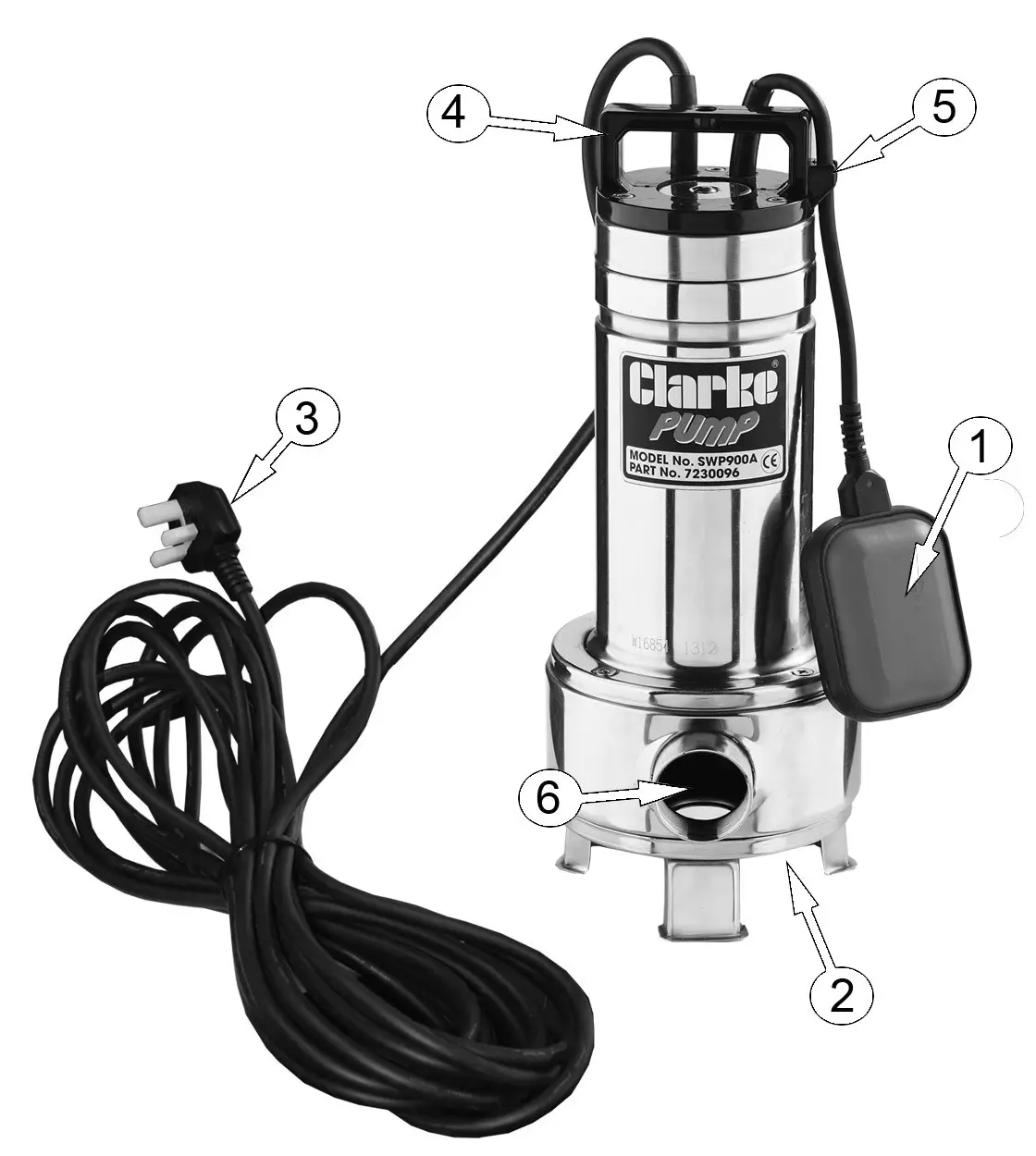

OVERVIEW

Remove all packaging and make sure that the unit contains no visible damage. Dispose of all packaging appropriately.

ELECTRICAL CONNECTIONS

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE  PRODUCT TO THE MAIN SUPPLY.

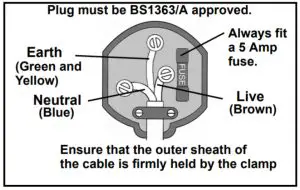

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a  replacement fitted, following the wiring instructions are shown below. The old plug must be discarded safely, as insertion into a power socket could cause an electrical hazard.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE COLOURED IN ACCORDANCE WITH  THE FOLLOWING CODE: BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

If the colors of the wires in the power cable do not agree with the markings on the plug.

• The BLUE wire must be connected to the terminal marked N or colored black.
• The BROWN wire must be connected to the terminal marked L or colored red.
• The YELLOW AND GREEN wire must be connected to the terminal marked E or colored green.

AN APPROVED RESIDUAL CURRENT DEVICE (RCD) WHICH HAS A TRIPPING CURRENT OF LESS THAN 30 mA MUST BE  USED.
If you are not sure, consult a qualified electrician. DO NOT try to do any repairs.

USING THE PUMP

WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE PUMP IF IT IS DAMAGED IN ANY WAY.
WARNING: THE WATER BEING PUMPED WILL BE POLLUTED IF THIS PUMP BECOMES DAMAGED AND LUBRICANT WITHIN THE PUMP ESCAPES.

1. Connect a suitable hose (not supplied) to the pump outlet.
   • Suitable hoses are available from your local Clarke dealer.
2. Place the pump on a flat surface in the area that you want to drain.
   • If there is sediment in the operating area, the pump should be placed vertically on house bricks, or similar.
   • Ensure the pump is positioned with adequate space so that the movement of the float switch is not restricted – recommended minimum area of 50 x 50cm.
   • ALWAYS raise/lower the pump using a rope attached to the lifting handle.
   • Take all necessary precautions as described on page 3.
   • The pump inlet must be fully submerged before the pump is switched on.
3. Connect the mains plug to a high sensitivity residual current device (RCD) which has a tripping current of less then 30mA.
4. Switch the mains power supply on.
   • The pump will begin to drain water.
   • As the water level falls, so will the float switch, until it stops the pump.
   • You can adjust the position at which the float switch lead clips to the side of the pump, If the length of the float switch lead is short the pump will turn on and off earlier.
5. When finished, disconnect the pump from the mains power supply.

CAUTION: DO NOT ALLOW THE PUMP TO RUN DRY

OVERLOAD SWITCH
These pumps are fitted with a thermal overload switch. If the pump overheats for any reason, it will automatically switch the pump OFF.  Once the pump has cooled (at least 5-10 minutes), the pump will automatically restart.

MAINTENANCE

WARNING: BEFORE CHECKING THE CONDITION OF THE PUMP, ENSURE IT IS UNPLUGGED FROM THE MAIN SUPPLY. IF THE UNIT IS HARD WIRED, ENSURE THE CIRCUIT BREAKER IS OPEN.

This pump should require no maintenance other than regular cleaning.
If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice.

CLEANING

1. Check the pump installation regularly to ensure the water inlet is clear of leaves or other debris.
2. Take extra care to remove any debris from around the impeller.

NOTE: Do not attempt to repair the pump yourself, as you may damage the waterproof seal and invalidate your guarantee. Repairs must be carried out by your CLARKE dealer, or contact the CLARKE Service Department, on 020 8988 7400.

STORAGE
When the pump is not being used for extended periods, clean and dry it thoroughly and store in indoors. if the pump is left in water, it must be run at least once a week to prevent it from seizing up.

TROUBLESHOOTING

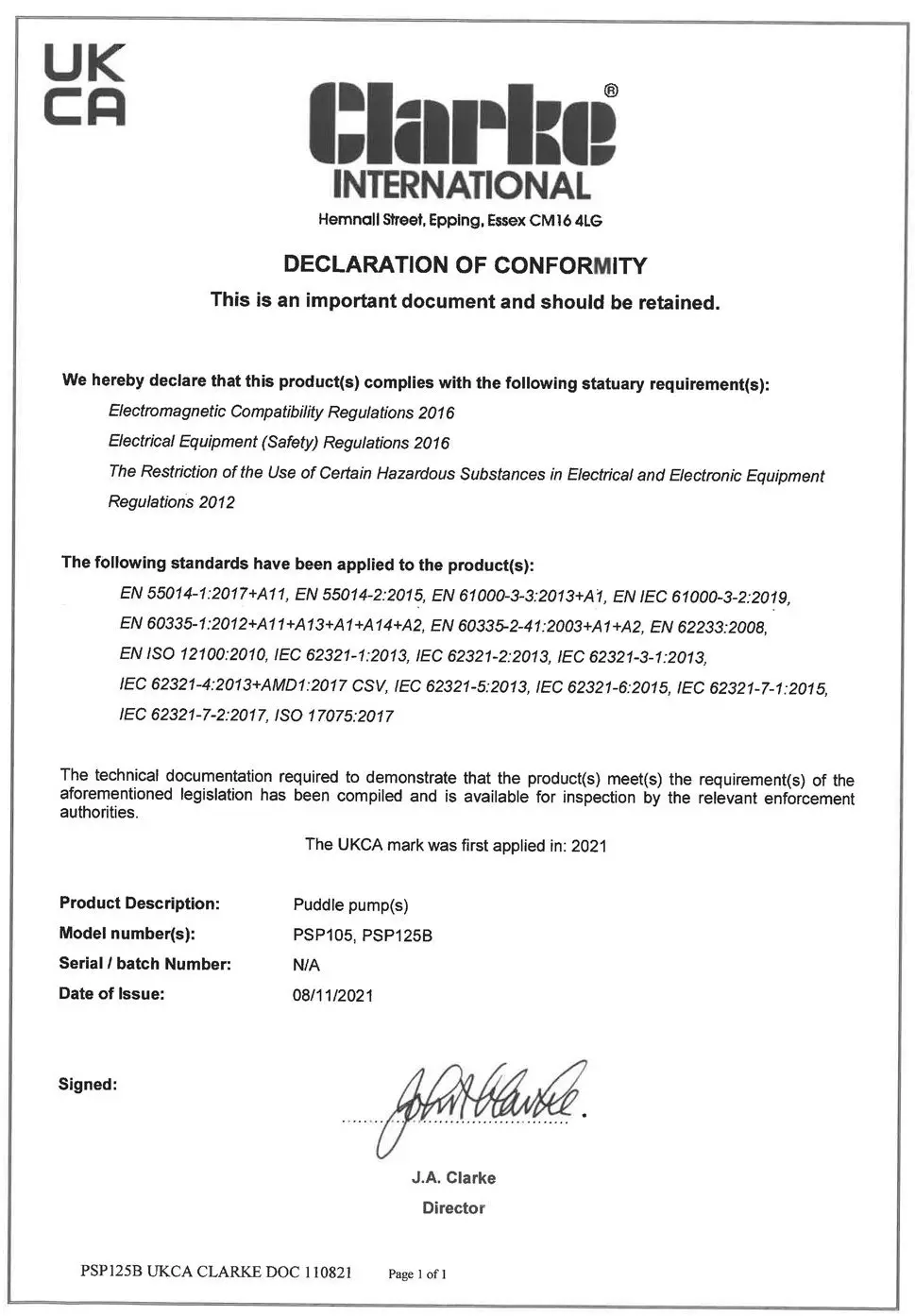

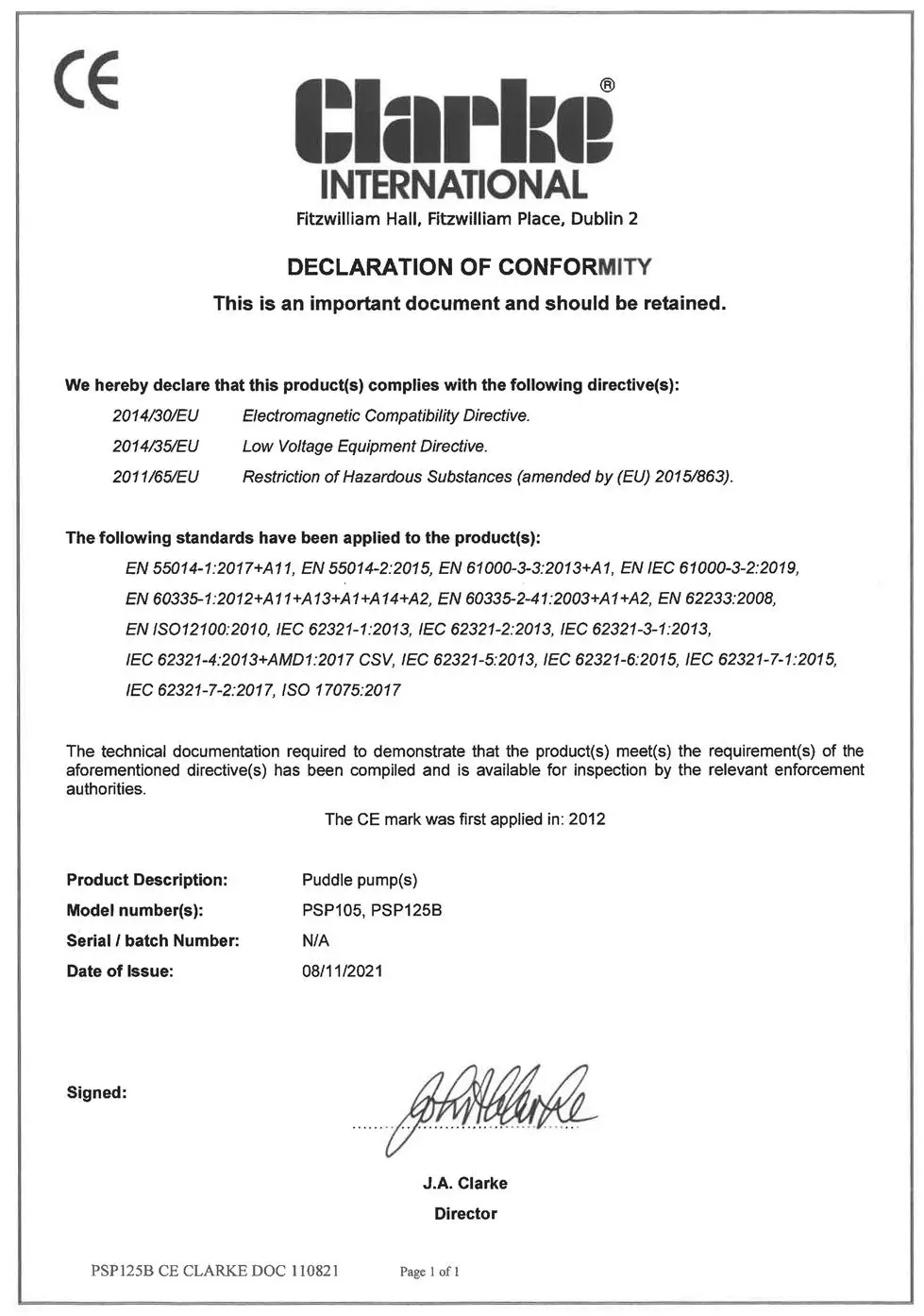

DECLARATION OF CONFORMITY

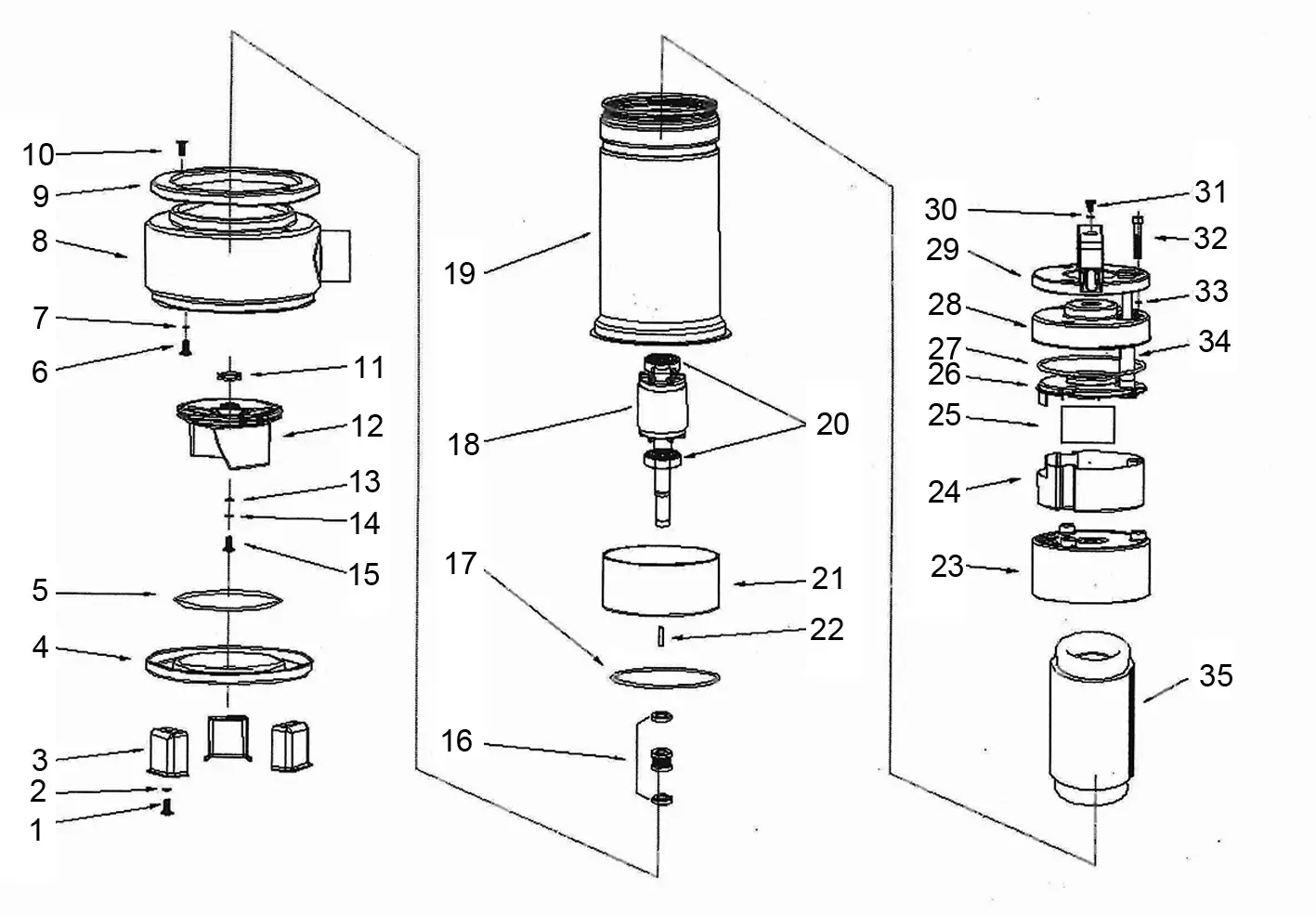

PARTS LIST & DIAGRAM

ACCESSORIES

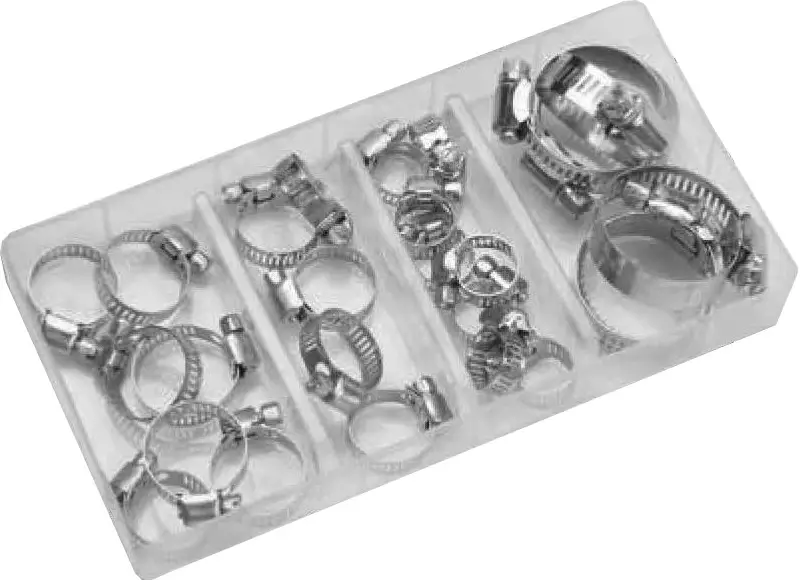

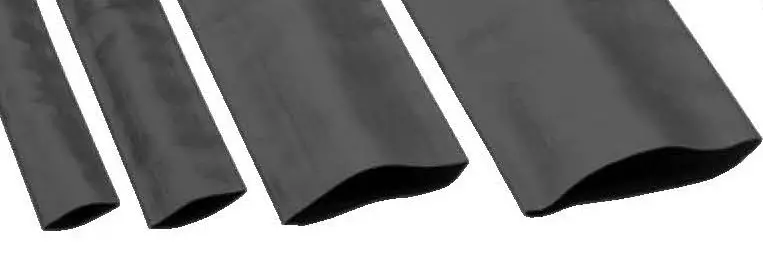

Layflat Hoses	Assorted Hose Clip Set – CHT672
• Available in 100 meter coils or per meter. • Available in 1” – 3” Diameter.	• 26 piece assorted hose clip set in various sizes, Including. 8  x16mm, 6 x 22mm, 4 x 25mm, 2 x 28mm, 2 x 35mm & 4 x  40mm clips. • Zinc plated for corrosion resistance.

SPECIFICATIONS

A SELECTION FROM THE VAST RANGE OF

PARTS & SERVICE:
0208 988 7400
Parts Enquiries
[email protected]
Servicing & Technical Enquiries
[email protected]
SALES: UK 01992 565333 or Export 00 44 (0)1992 565335
Clarke INTERNATIONAL Hemnall Street, Epping, Essex CM16 4LG
www.clarkeinternationat.com
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
