AURA LIGHT 26628304920 Sevede CE 35W 4900 Dali Installation Guide
Installation Instructions
- Luminaire ceiling brackets
VERSION
C:C MIN. (mm) C:C MAX. (mm) Sevede CE 600
300 540
Sevede CE 1200 600 1100

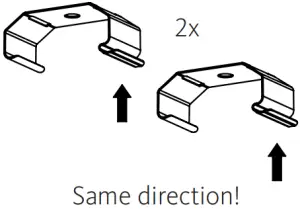

- Mount luminaire ceiling brackets (2x). Screws not provided.

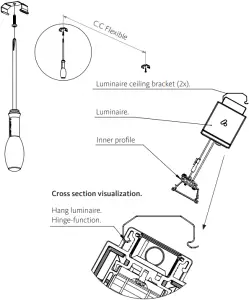

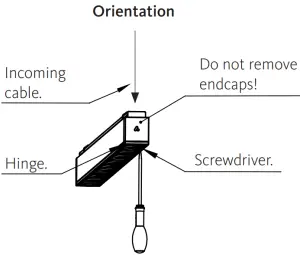

- Mount luminaire.

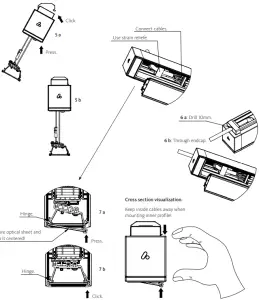

- Prepare cable.
- Secure luminaire.

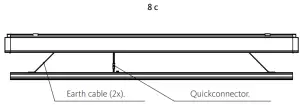

- Electrical installation.

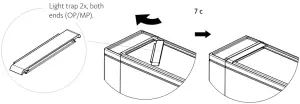

- Mount inner profile.
Cross section visualization.
Keep inside cables away when mounting inner profile!

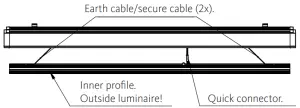

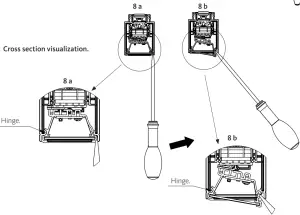

- Removal of inner profile.
Only for maintenance.
Cross section visualization.

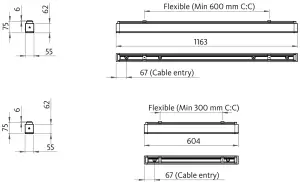

Dimensions
Note: The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Basic insulation between supply- and control-terminals (DALI).
Customer Support
Aura Light AB, Sweden
Phone customer service +46 (0)20 32 30 30
[email protected], www.auralight.com
