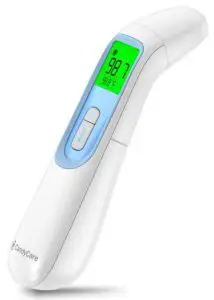

CandyCare 23395055 Infrared Thermometer User Guide

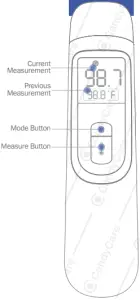

Product Overview

3 Modes To Measure Temperature

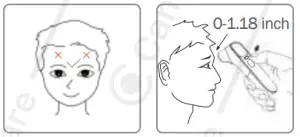

Forehead Mode

• Step 1: Press Mode Button
• Step 2: Choose Adult or Child  .
• Step 3: Point temperature probe at the CENTER of the forehead with a distance of 0-1.18 inch (0-3 cm).
• Step 4: Press and release the Measure Button to receive your temperature reading.

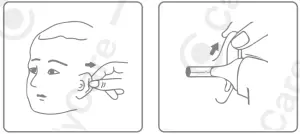

In-Ear Mode

• Step 1: Remove magnetic probe cover and fit probe gently into ear canal.
• Step 2: Press and release the Measure Button to receive your temperature reading.

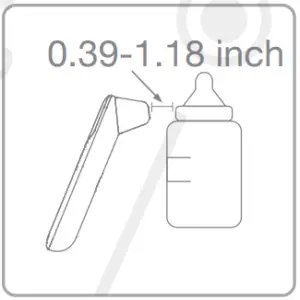

Object Mode

Point temperature probe at the object with a distance of 0.39-1.18 inch (1-3 cm).

ATTENTION:

• ALWAYS keep the Infrared Sensor and the LCD Display CLEAN.
• For In-Home Use ONLY.
• WAIT at least 10 seconds between each measurement.
• The user and thermometer should be in the same room for 30 minutes before use.

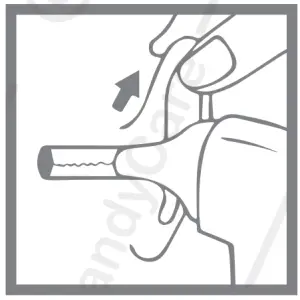

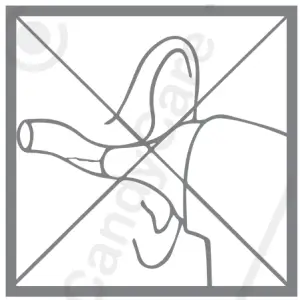

MEASURING TIPS

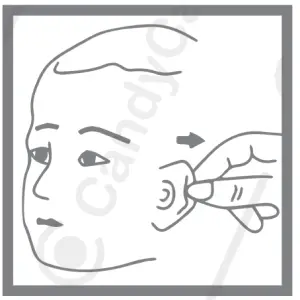

1. Children UNDER age 1:
   Gently pull the ear straight back.

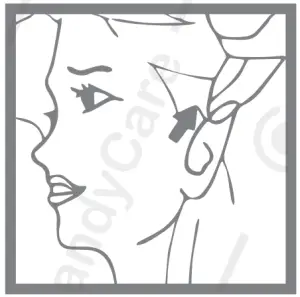

2. Children age 1 to Adult:
   Gently pull the ear up and back.

3. NEVER force the thermometer into the ear canal.

4. Pull the ear up and back. Then, guarantee the ear canal is straight. Finally, allow the infrared sensor ray to read the temperature.

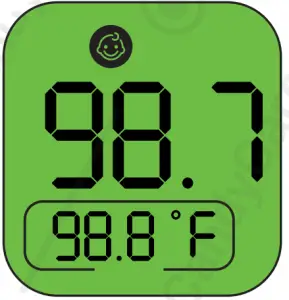

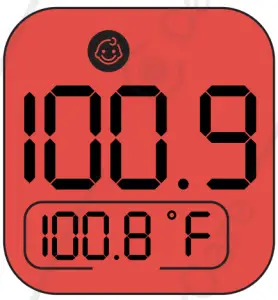

3-Colored LED Fever Indicator

Safe:

• 89.6 ◦F ≤ T ≤ 99.5 ◦F
• (32 ◦C ≤ T ≤ 37.5 ◦C )


Slight Fever:

• 99.7 ◦F ≤ T ≤ 100.4 ◦F
• (37.6 ◦C ≤ T ≤ 38.0 ◦C)


High Fever:

• 100.6 ◦F ≤ T ≤ 109.2 ◦F
• (38.1 ◦C ≤ T ≤ 42.9 ◦C )


Using The Thermometer

Silent Mode
Press and hold the Measure Button for 5 seconds to switch to Mute/Un-mute (Silent Mode).

Memory Recording Data
Press and hold the Mode button for 5 seconds to enter Memory Recordings Mode. Press this button again to go through all 40 previously recorded temperature Memory Recordings one-by-one. If there is no value, a display will show “-“.

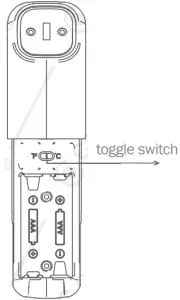

°C & °F Conversion
Open the Battery Cover and flip the toggle switch to change between °C and °F.

Batteries
Requires 2x AAA batteries to operate. However, batteries are NOT included.

Measure In-Ear Temperature

• Ear must be clean (no earwax).
• Always take a temperature in the same ear.
• If the eyebrow or forehead is covered with hair, dirt, or sweat, you must clean it properly for a correct measurement.


Measure Forehead Temperature

• If the eyebrow or forehead is covered with hair, dirt, or sweat, you must clean it properly for a correct measurement.
• Do not hold the thermometer for a prolonged period of time since it is sensitive to ambient temperature.


Measure Object Temperature

• Simply point the infrared sensor at an object to accurately measure its temperature.
