No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of CLMBR, Inc.

The information in this document is subject to change without notice. CLMBR makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. CLMBR reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of CLMBR to notify any person of such revisions or changes. Windows is a registered trademark of Microsoft, Inc. Other brand or product names are trademarks of their respective holders.

Compliance Information

For FCC (USA)
Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules and Industry Canada licence exempt RSS standard(s). Operation is subject to the following two conditions:

this device may not cause harmful interference, and
this device must accept any interference received, including interference that maycause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

FCC& IC Radiation Exposure Statement:
This equipment complies with FCC and Canada radiation exposure limits set forth foran uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

For IC (Canada)
CAN ICES-003(B)/NMB-003(B)

For CE (EU)
The device complies with the radio equipment Directive 2014/53/EU

Warning – To prevent the risk of fire or shock hazards, and do not expose the product to moisture.

! Warning – Please do not open or disassemble the product as this may cause electric shock.

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit.

Do：

Turn off the product before cleaning.
Use a soft cloth moistened with mild detergent to clean the product housing.
Use only the qualified power adapter that comes with your device.
Disconnect the power plug from AC outlet if the product is not going to beused for an extended period of time.

Don’t：

Do not use abrasive cleaners, waxes or solvents for your cleaning.
Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.

Caution

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
Avis d’utilisation

Overview

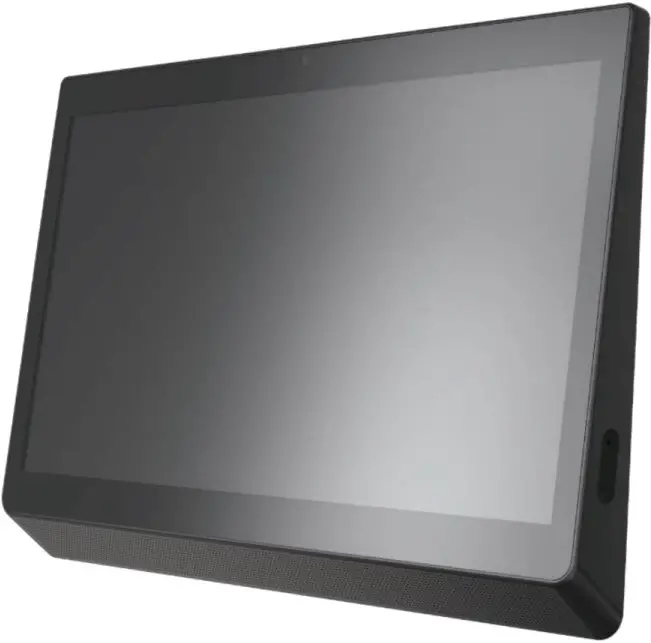

The CLMBR-17002 is a thinner 21.45″ touch computer that offers a unique screw less design with expandability and flexibility, making expansion and accessory installation much easier. The versatility of CLMBR-17002 is an exceptional choice for applications in all fitness sectors.

Feature

Support MTK MT8385 processor.
Support Wi-Fi 802.11a/b/g/n/ac & BT5.0 1T1R.
Support 8MP FF camera.
Support screen rotation.
Unique screw less design for better user experience.
Patented I/O design for better wiring management while implementation.

Specifications

System
CPU	MTK MT8385, Quad-core Cortex-A73 up to 2.0GHz, Quad-core Arm Cortex-A53 up to 2.0GHz
GPU	Mali-G72 MP3 up to 800MHz
APU	Dual-core APU up to 500MHz
Memory	6GB dual channel LPDDR4
Storage	64GB eMMC
Input Power	DC in 12V/4A
Display	Dual channel LVDS, resolution up to 1920x1080P60
Touch	ZCC 21.5-inch P-Cap touch sensor (EETI 80H84 controller), supports 10 fingers touch function.
Audio	Woofer x 1 (4Ω/5W) and Tweeter x 2 (4Ω/2W)
Camera	8MP fixed-focus

G-sensor	Support screen rotation
Network	Wi-Fi 802.11a/b/g/n/ac, 2T2RBluetooth 5.0 (Support BLE), 1T1R
External IO Ports	1 x USB2.0 Type-C HOST 1 x 12V DC IN 1 x Power button 2 x Volume button (+/-)
OS Version	Android 11.0 or later
Operation Temp	0°C~40°C
Storage Temp.	-20°C to 60°C
Operation Humidity	20~80%, Non-Condensing
Storage Humidity	10~90%, Non-Condensing
LCD Touch Panel
Size	21.45” TFT LCD
Brightness(non-touch screen)	Typical 350 cd/m2; min. 320 cd/m2
Brightness(P-CAP with ZCC)	Typical 212.5 cd/m2; min. 170 cd/m2
Number of Pixels	1920 (H) × 1080 (V)/ 60Hz
Touch Type	P-CAP/ 10 points
Environment
Certificate	CE, FCC, CB
Compliance	IP65 (Only Front Bezel)
Dimension (W x H x D)	521.9 mm x 350.16 mm x 65 mm
Net Weight	4.91 Kg
Gross Weight	TBD

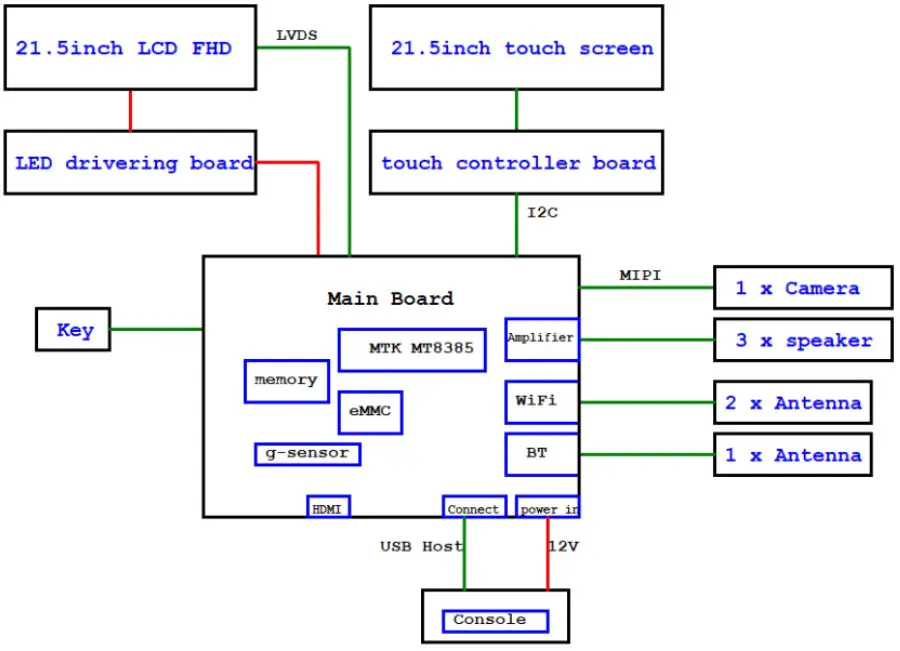

Block Diagram

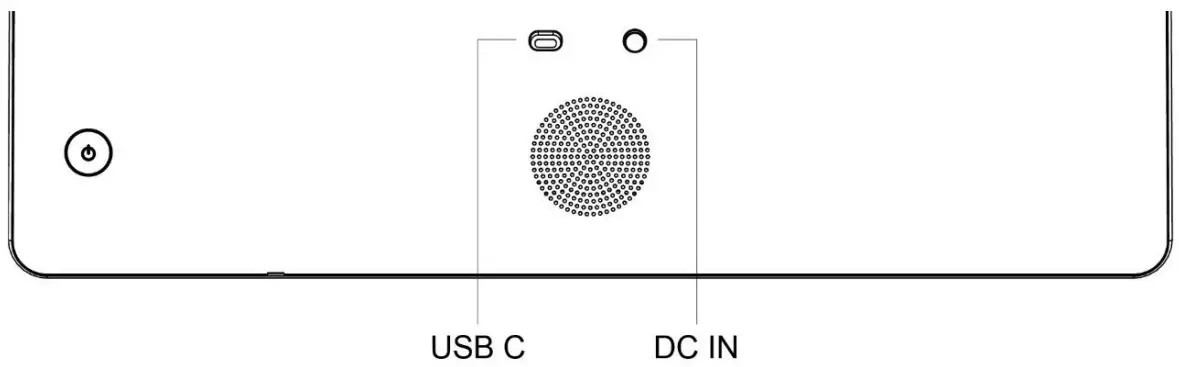

Interface Connectors

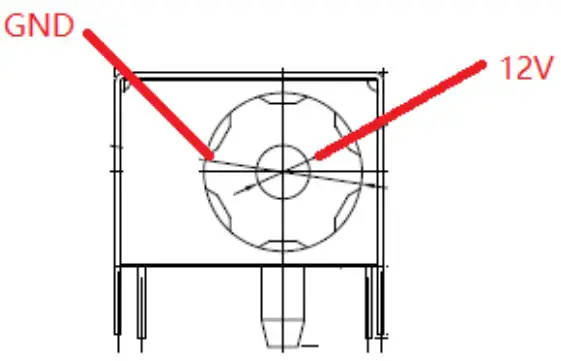

12V DC IN

Pin #	Signal Name	Pin #	Signal Name
1	12V	2	GND

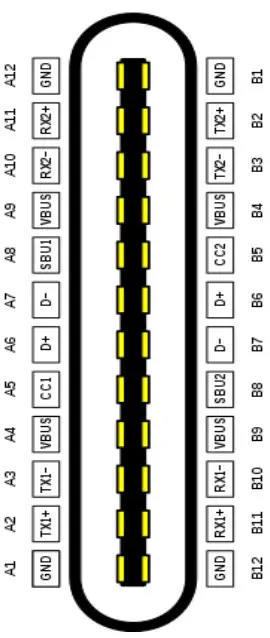

USB-C

Pin #	Signal Name	Pin #	Signal Name
A1	GND	B12	GND
A2		B11
A3		B10
A4	VBUS	B9	VBUS
A5		B8
A6	Dp1	B7	Dn2
A7	Dn1	B6	Dp2
A8		B5
A9	VBUS	B4	VBUS
A10		B3
A11		B2
A12	GND	B1	GND

Package Overview

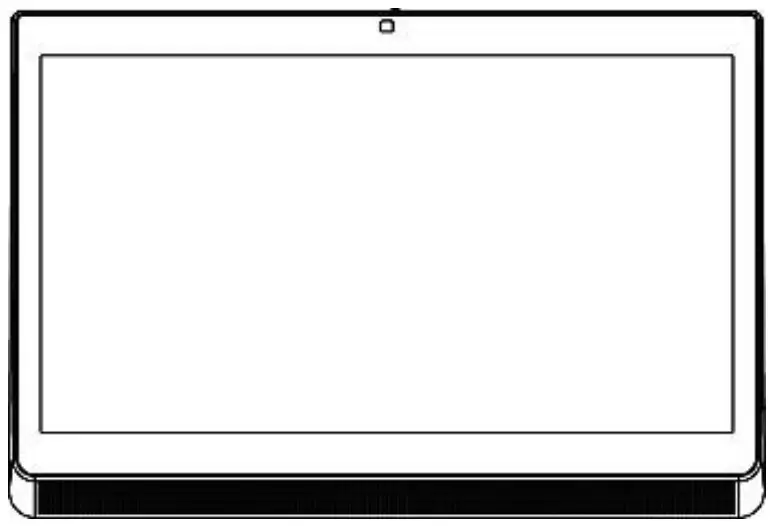

Clmbr Connected
Power Cord DC

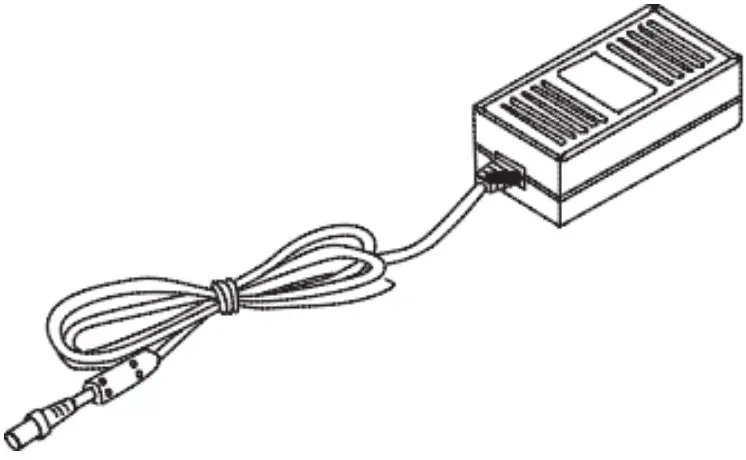

Power Supply

Warning!
This product is intended to be supplied by a UL Listed Power Adapter, rated 12Vdc, 4A minimum. (complied with LPS or PS2) Tma = 40 degree C minimum, and the altitude of operation = 2000m minimum. If it needs further assistance with purchasing the power source, please contact to CLMBR for further information

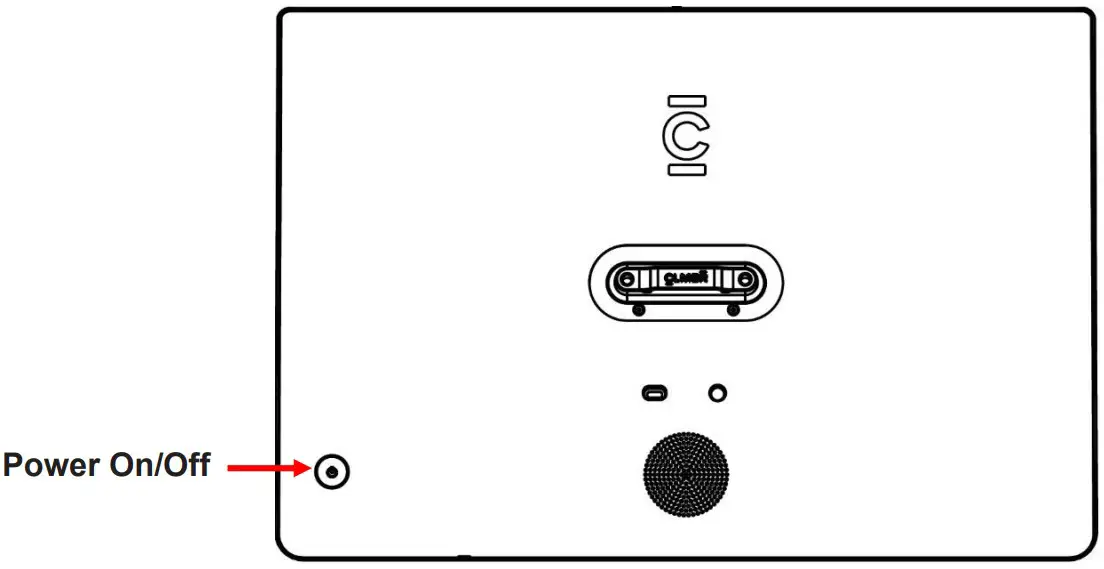

Power On / Off

Function	Description
Power on	Press the power button 5 sec, device will reboot
Sleep	Press the power button to enter sleep mode, and press again to resume from sleep
Power off	Press the power button 2 sec and click power off, device will enter deep sleep mode

Dimension

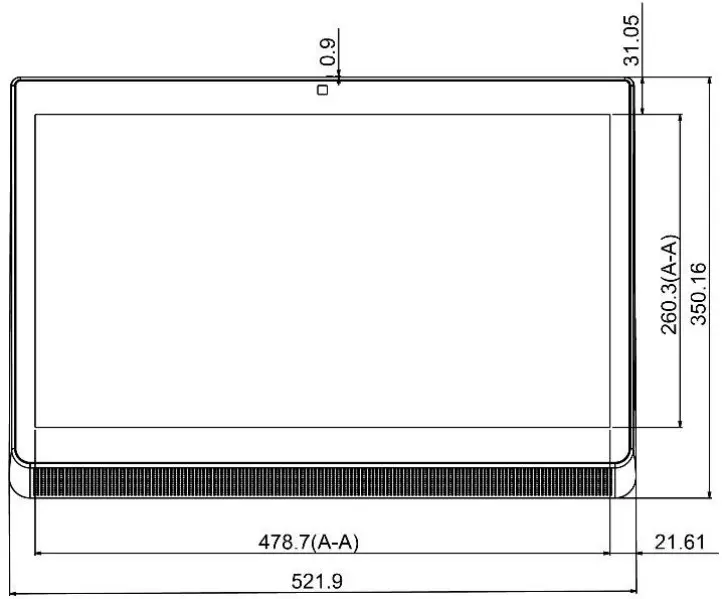

Front View

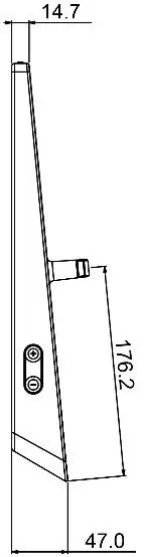

Side View

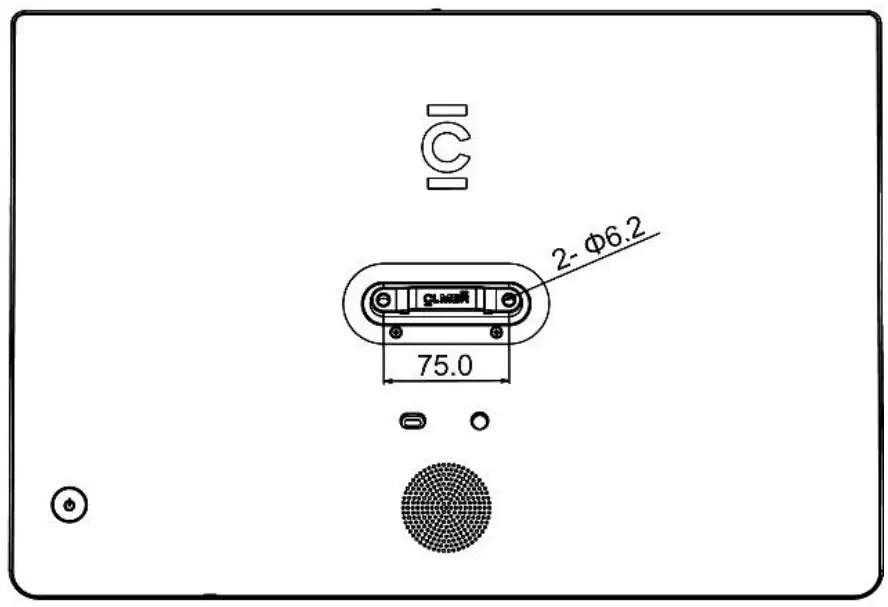

Rear View

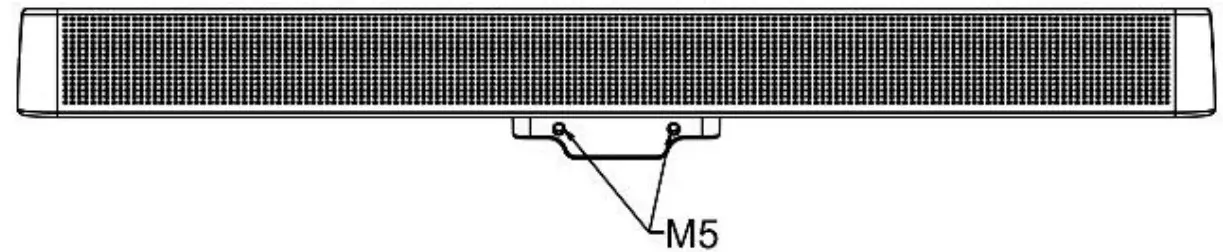

Bottom View

Declaration of the Presence Condition of the Restricted Substances Marking

Clmbr Connected Equipment name: Clmbr Connected CLMBR-17002 Type designation (Type): CLMBR-17002
Unit	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
Plastic Parts	○	○	○	○	○	○
Metal Parts	－	○	○	○	○	○
Cable component	－	○	○	○	○	○
LCD Panel	－	○	○	○	○	○
Touch Panel	－	○	○	○	○	○
PCBA	－	○	○	○	○	○
Software	○	○	○	○	○	○
Note 1：〝Exceeding 0.1 wt %〞and〝exceeding 0.01 wt %〞indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.。 Note 2：〝○〞indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 3：The〝−〞indicates that the restricted substance corresponds to the exemption.
