LifeSafty Power AMAG 16DR ProWire Unified Power Wall Mount

Product Information

The AMAG 16DR is a ProWire Unified Power wall mount model that provides access power systems for AMAG M2150 or M4000 series controllers. It is a dual voltage system that can be programmed for failsafe / fail secure operation at either 12 or 24 VDC. The system consists of two C8 or M8 control modules that provide sixteen access control inputs capable of voltage or dry contact activation, and sixteen outputs that are programmable for failsafe / fail secure operation. It also includes two D8 modules that provide sixteen auxiliary outputs.
The system is designed for uniform operation, maintenance, and servicing across an enterprise. It comes with a pre-installed wire harness for panel power, lock control, faults, and tamper switch. The wiring is point-to-point, labeled, color-coded, twisted pair, and shielded communication. The cable management options include tie wrap or wire duct. The system is managed and can monitor power, batteries, and sixteen outputs. It is UL294 and ULC S319 joint LSP / AMAG integrated listing compliant.
The system comes in two enclosure styles – E6A1 and E8A – wall mount E8A. The model nomenclature includes power rating, accessory boards & enclosure, wiring option, and system type. The wiring options are T16-A, T16-C, P16-A, and P16-C. The system type includes distributed outputs auxiliary and control. The enclosure/cable management dimensions are H x W x D (inches).

Usage Instructions

The AMAG 16DR is a power supply system that provides access control inputs and outputs for AMAG M2150 or M4000 series controllers. Follow the below instructions to use the system:

1. Choose the appropriate model nomenclature based on your requirements.
2. Mount the system on the wall using the selected enclosure style.
3. Connect the power supply board to 120/230VAC 50/60Hz input.
4. Configure the system for failsafe / failsecure operation at either 12 or 24 VDC.
5. Connect the access control inputs and outputs to the AMAG M2150 or M4000 series controllers.
6. Connect the auxiliary outputs to other devices as required.
7. Monitor the system for power, batteries, and sixteen outputs.
8. In case of faults or tampering, refer to the user manual for troubleshooting instructions.

Overview

These ProWire Unified Power wall mount models are single and dual voltage access power systems, precision wired for AMAG M2150 or M4000 series controllers. ProWire enables the specification and installation of standardized access power equipment across an enterprise for uniform operation, maintenance and servicing.
The two C8 or M8 control modules provide sixteen access control inputs capable of voltage or dry contact activation, and sixteen outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the power supply fire alarm interface. The two D8 modules provide sixteen auxiliary outputs. In these dual voltage systems, each output is configurable for 12 or 24VDC operation.

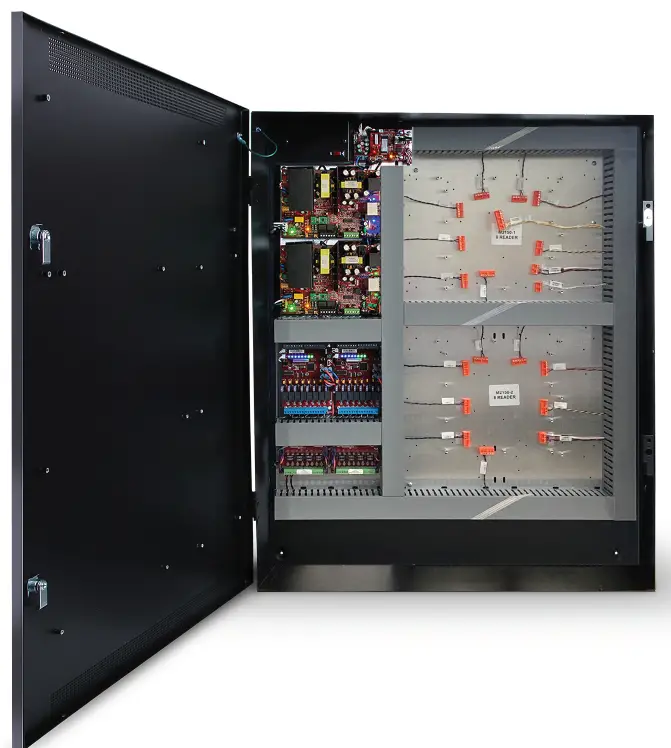

ProWire Unified Power enclosures are painted steel with removable backplate, lock, keys and and tamper switch and come 100% factory tested – ready for final panel installation and field wire termination.

Product Features

• Guarantees uniform installations across an enterprise
• Pre-installed wire harness for panel power, lock control, faults and tamper switch
• Point-to-point wiring; labeled, color-coded, twisted pair, shielded communication
• Tie wrap or wire duct cable management options
• Managed systems monitor power, batteries and sixteen outputs
• UL294, ULC S319 joint LSP / AMAG integrated listing

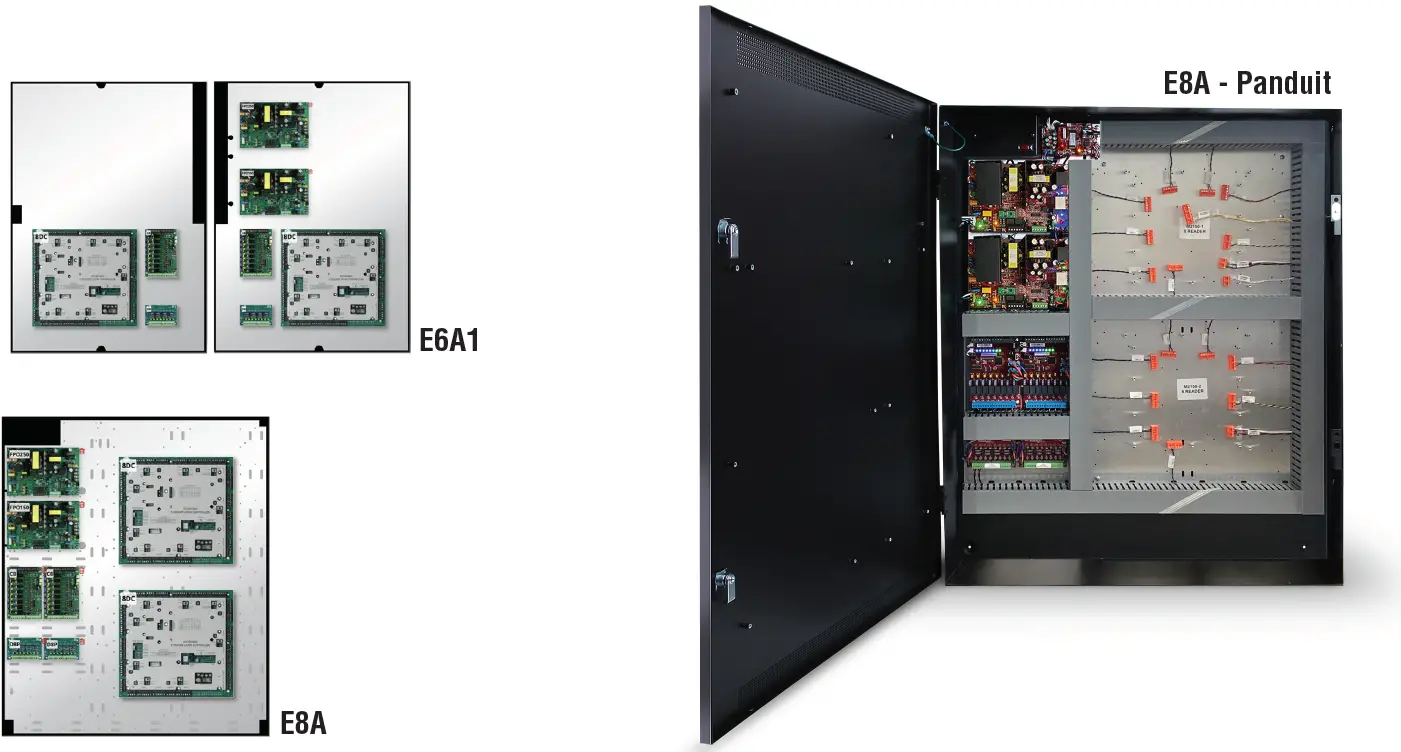

Enclosure Styles

E6A1, E8A – Wallmount

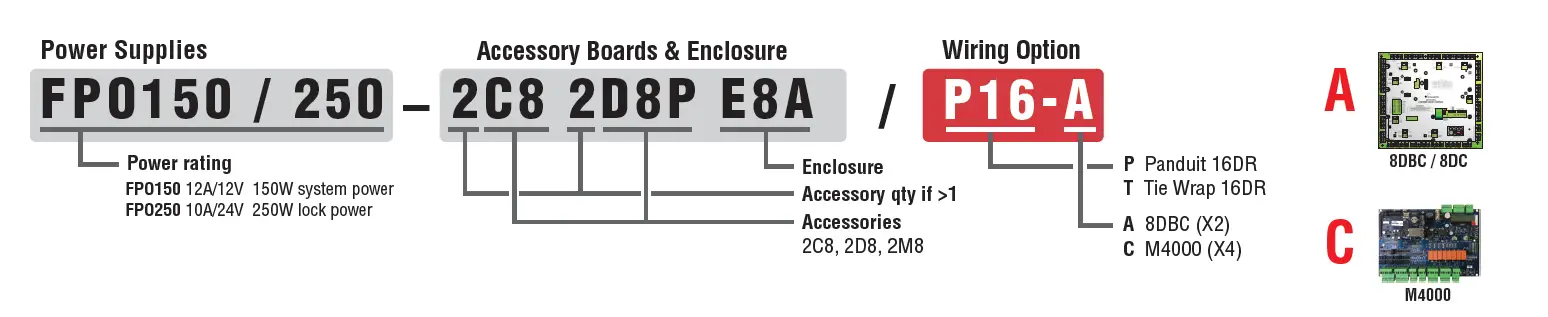

Model Nomenclature

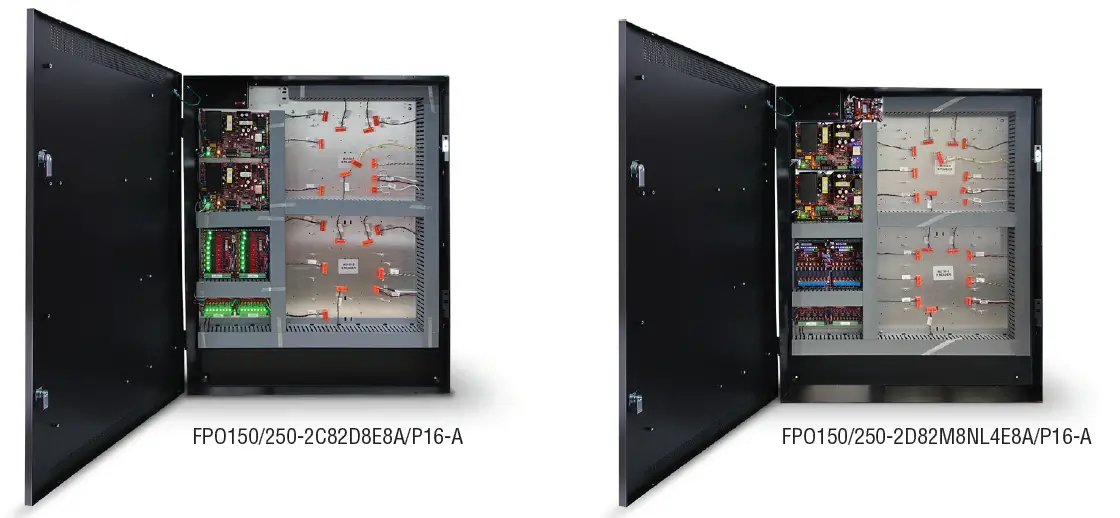

Dual Voltage 12A/12V and 10A/24V – medium enclosure

Dual Voltage 12A/12V and 10A/24V – large enclosure

Model wiring option “P16-A” calls out A wired Panduit. Modify model number to order other options, i.e., FPO150/250-2C82D8E8A/T16-A (A wired tie wrap)

System Specifications

Power Supplies	FPO150	Power supply board 12A/12V, 150W
	FPO250	Power supply board 10A/24V, 250W
		Input 120/230VAC 50/60Hz | Single voltage 142 Watts (1.42A) | Dual voltage 452 Watts (3.77A) Overload and short circuit protection Over temperature protection Polarized AC power supply disconnect
Battery Charging		Independent built-in charger for sealed lead-acid or gel type batteries Microprocessor dual rate charging of 12 or 24V battery sets Automatic switchover to standby battery when AC fails Zero voltage drop when switched over to battery backup
Supervision		AC Fault (form “C” contacts) System Fault (form “C” contacts) System Fault conditions: Low or no battery | short to earth ground | power supply failure
Distribution Modules	D8 (X2)	16 auxiliary outputs, fused at 3A per output
	C8 (X2)	16 relay lock control outputs, fused at 3A per output
	M8 (X2)	16 relay managed outputs, fused at 3A per output
Network Management	NL4	Four port module. Monitors and reports power supply status. Tests and reports battery health status.
	M8	Monitors eight (8) individual outputs. Remote reset each output. Set window thresholds for voltage & current.
Enclosure Options	E6A1	Size: 30.00H x 23.00W x 6.50D in. (76.20 x 58.12 x 16.51 cm) | Weight: 47 lbs.
	E8A	Size: 36.00H x 30.00W x 6.50D in. (91.44 x 76.20 x 16.50 cm) | Weight: 70 lbs.

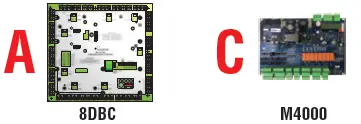

Wiring Suffix	T16-A | P16-A	T = Tie Wrap P = Panduit 16 = Door count A = 8DBC (X2)
	T16-C | P16-C	T = Tie Wrap P = Panduit 16 = Door count C = M4000 (X4)
Regulatory Compliance	UL / ULC	UL294, ULC S319
	CSA / FCC	CSA C22.2 #107.1 | FCC Part 15, CSFM

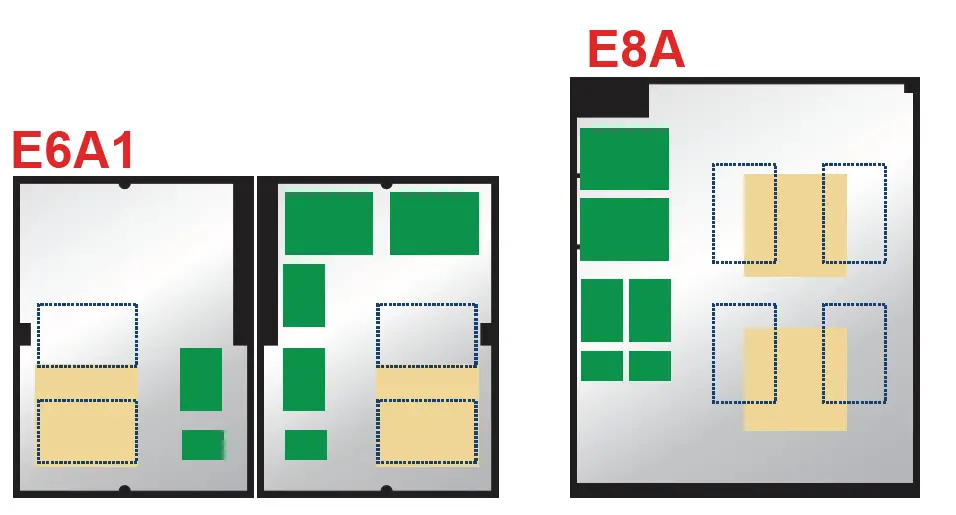

Board Locations/Wiring Examples
