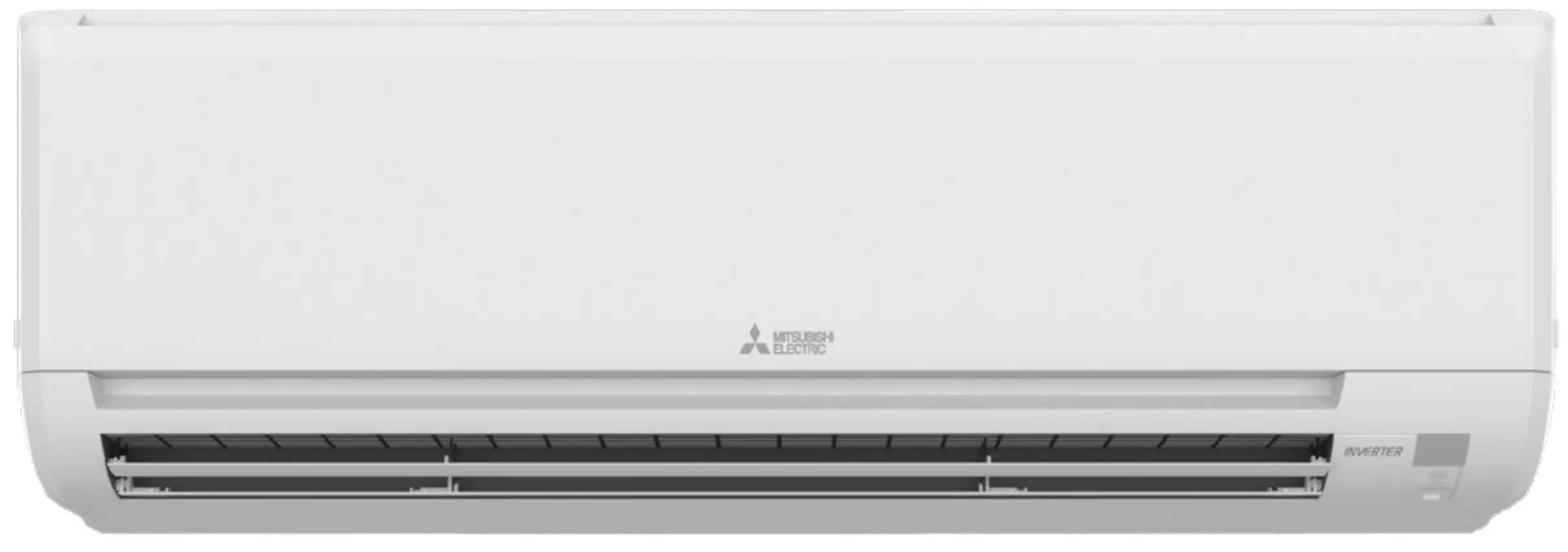

MITSUBISHI ELECTRIC MSZ-GS06NA BTU Wall Mounted Unit Owner’s Manual
GENERAL FEATURES
- Slim wall-mounted indoor units provide zone comfort control
- Dual Barrier Coating applied to the heat exchanger, vanes and fan to prevent hydrophilic and hydrophobic dirt build-up
- Optional Microparticle Filter designed to capture PM2.5
- The outdoor unit powers the indoor unit, and should a power outage occur,\ the system is automatically restarted when power returns
- Quiet operation
- Smart Set: recalls a preferred preset temperature setting at the touch of a button
- Built-in backup/auxiliary heater control available
- Multiple fan speed options: Quiet, Low, Medium, High, Super-high, Auto
- Multiple control options available:
- Back-lit screen handheld remote controller (provided with the unit)
- kumo cloud® smart device app for remote access
- Third-party interface options
- Wired or wireless controllers
SPECIFICATIONS
| Specifications | System | ||
| Unit Type | MSZ-GS06NA | ||
| Cooling Capacity1, 3 | BTU/H | 6,000 | |
| Heating Capacity2, 3 | BTU/H | 7,200 | |
| Electrical | Voltage, Phase, Frequency | 208/230, 1, 60 | |
| Guaranteed Voltage Range | V AC | 187 – 253 | |
| Voltage: Indoor – Outdoor, S1-S2 | V AC | 208/230 | |
| Voltage: Indoor – Outdoor, S2-S3 | V DC | 24 | |
| Short-circuit Current Rating [SCCR] | kA | 5 | |
| Indoor Unit | MCA | A | 1.0 |
| Fan Motor Full Load Amperage | A | 0.5 | |
| Fan Motor Output | W | 30 | |
| Airflow Rate at Cooling, Dry | CFM | 134–160–222–307–381 | |
| Airflow Rate at Cooling, Wet | CFM | 121–144–200–276–343 | |
| Airflow Rate at Heating, Dry | CFM | 134–160–222–307–390 | |
| Sound Pressure Level [Cooling] | dB[A] | 19–22–30–37–45 | |
| Sound Pressure Level [Heating] | dB[A] | 19–22–30–37–43 | |
| Drain Pipe Size | In. [mm] | 5/8 [15.88] | |
| Coating on Heat Exchanger | Dual Barrier Coating | ||
| External Finish Color | Munsell 1.0Y 9.2/0.2 | ||
| Unit Dimensions | W x D x H: In. [mm] | 31-7/16 x 9-1/8 x 11-5/8 [798 x 232 x 295] | |
| Package Dimensions | W x D x H: In. [mm] | 33-1/2 x 12 x 14 [850 x 300 x 350] | |
| Unit Weight | Lbs. [kg] | 23 [10.4] | |
| Package Weight | Lbs. [kg] | 26 [11.5] | |
| Refrigerant | Type | R410A | |
| Piping | Gas Pipe Size O.D. [Flared] | In.[mm] | 3/8 [9.52] |
| Liquid Pipe Size O.D. [Flared] | In.[mm] | 1/4 [6.35] | |
NOTES:
Conditions
Cooling (Indoor // Outdoor) °F 80 DB, 67 WB // 95 DB, 75 WB 2
Heating at 47°F (Indoor // Outdoor) °F 70 DB, 60 WB // 47 DB, 43 WB
Capacity varies based on the number of indoor units operating and the model of the Multi-zone Outdoor Unit. For reference to connected capacity charts, please refer Multi-zone Outdoor Unit Operational Performance.
INDOOR UNIT ACCESSORIES: MSZ-GS06NA
| Control Interface | BACnet® and Modbus® Interface | □ PAC-UKPRC001-CN-1 |
| CN24 Relay Kit | □ CN24RELAY-KIT-CM3 | |
| IT Extender | □ PAC-WHS01IE-E | |
| kumo station® for kumo cloud® | □ PAC-WHS01HC-E | |
| System Control Interface | □ MAC-334IF-E | |
| Thermostat Interface | □ PAC-US444CN-1 | |
| Thermostat Interface | □ PAC-US445CN-1 | |
| USNAP Adapter | □ PAC-WHS01UP-E | |
| Wireless Interface for kumo cloud® | □ PAC-USWHS002-WF-2 | |
| Remote Sensor | Wired Remote Sensor | □ M21EAA307 |
| Wireless temperature and humitity sensor for kumo cloud® | □ PAC-USWHS003-TH-1 | |
| Wired Remote Controller | Deluxe Wired MA Remote Controller† | □ PAR-40MAAU |
| Simple Ductless Wired Remote Controller | □ PAC-SDW01RC-1 | |
| Simple MA Remote Controller† | □ PAC-YT53CRAU-J | |
| Touch MA Controller† | □ PAR-CT01MAU-SB | |
| Wireless Remote Controller | kumo touch™ RedLINK™ Wireless Controller | □ MHK2 |
| Lockdown bracket for remote controller | □ RCMKP1CB | |
| Condensate | Blue Diamond (Advanced) Mini Condensate Pump w/ Reservoir & Sensor (208/230V) [recommended] | □ X87-721 |
| Blue Diamond (MicroBlue) Mini Condensate Pump (110/208/230V) up to 18,000 BTU/H | □ X86-003 | |
| Blue Diamond Alarm Extension Cable — 6.5 Ft. | □ C13-192 | |
| Blue Diamond MultiTank — collection tank for use with multiple pumps | □ C21-014 | |
| Blue Diamond Sensor Extension Cable — 15 Ft. | □ C13-103 | |
| Drain Pan Level Sensor/Control | □ SS610E | |
| Fascia Kit for MicroBlue Pump, mounts the MicroBlue and sensor directly beneath indoor unit | □ T18-016 | |
| Refco Condensate Pump (100-240 VAC) | □ GOBI-II | |
| Refco Condensate Pump (100-240 VAC) up to 120,000 BTU/H | □ COMBI | |
| Sauermann Condensate Pump | □ SI30-230 | |
| Disconnect Switch | (30A/600V/UL) [fits 2” X 4” utility box] – Black | □ TAZ-MS303 |
| (30A/600V/UL) [fits 2” X 4” utility box] – White | □ TAZ-MS303W | |
| Filter | Anti-allergy Enzyme Filter | □ MAC-408FT-E |
| Microparticle (PM2.5) Filter | □ MAC-EMF515FT-E | |
| Lineset | 15’ x 1/4” x 15’ / 3/8” Lineset (Twin-Tube Insulation) | □ MLS143812T-15 |
| 30’ x 1/4” x 30’ / 3/8” Lineset (Twin-Tube Insulation) | □ MLS143812T-30 | |
| 50’ x 1/4” x 50’ / 3/8” Lineset (Twin-Tube Insulation) | □ MLS143812T-50 | |
| 65’ x 1/4” x 65’ / 3/8” Lineset (Twin-Tube Insulation) | □ MLS143812T-65 |
NOTES:
† Requires MAC-334IF-E
- M-Series EZ FIT® Recessed Ceiling Cassette, Floor-mount and Wall-mount
Allows indoor units to connect to an MA Controller:
Deluxe MA Remote Controller
Simple MA Controller
Touch MA Controller

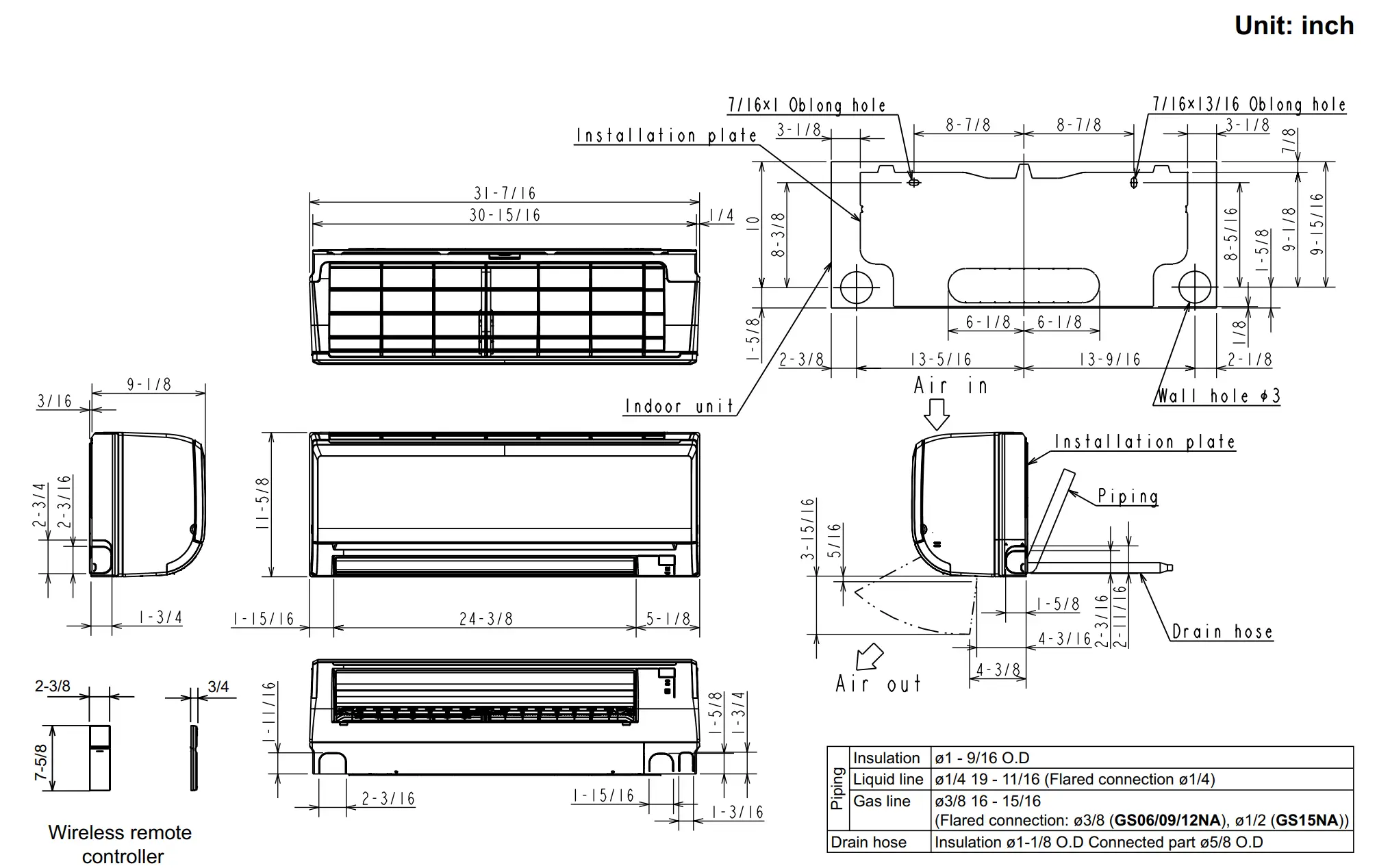

INDOOR UNIT DIMENSIONS: MSZ-GS06NA
| Piping | Insulation | ø1 – 9/16 O.D |
| Liquid line | ø1/4 19 – 11/16 (Flared connection ø1/4) | |
| Gas line | ø3/8 16 – 15/16(Flared connection: ø3/8 (GS06/09/12NA), ø1/2 (GS15NA)) | |
| Drain hose | Insulation ø1-1/8 O.D Connected part ø5/8 O.D | |
