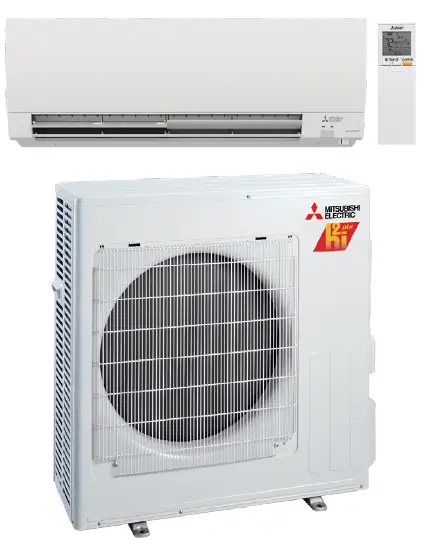

MITSUBISHI ELECTRIC MSZ-FS15NA Wall Mounted Air Conditioning System
15,000 BTU/H DELUXE WALL-MOUNTED INDOOR UNIT 15,000 BTU/H HYPER-HEATING OUTDOOR UNIT W/BASE PAN HEATER
- Job Name
- System Reference
- Date
Indoor Unit MSZ-FS15NA
Outdoor Unit MUZ-FS15NAH
INDOOR UNIT FEATURES
- Slim wall-mounted indoor units provide zone comfort control
- Dual Barrier Coating applied to the heat exchanger, vanes and fan to prevent hydrophilic and hydrophobic dirt build-up
- Multiple fan speed options: Quiet, Low, Medium, High, Super-high, Auto
- 3D i-see Sensor® enables advance features:
○ Indirect or Direct Airflow for personalized comfort
○ Absence Detection for energy-saving mode - Double Vane features:
○ Separates airflow to deliver air across a large area
○ Simultaneously deliver to air separate sections of a room
○ Generates more comfortable natural airflow pattern - Multiple control options available:
○ Back-lit screen handheld remote controller (provided with unit)
○ kumo cloud® smart device app for remote access
○ Third-party interface options
○ Wired or wireless controllers - Triple-action Filtration: Nano Platinum Filter, Deodorizing Filter, & Electrostatic Anti-Allergy Enzyme Filter
- Hot-Start Technology: no cold air rush at equipment startup or when restarting after Defrost Cycle
- Quiet operation
OUTDOOR UNIT FEATURES
- INVERTER-driven compressor and LEV provide high efficiency and comfort while using only the energy needed to maintain maximum performance
- H2i plusTM performance offers 100% heating capacity at -5° and 70% to 81% heating capacity at -13° F
- Blue Fin anti-corrosion treatment applied to the outdoor unit heat exchanger for increased coil protection and longer life
- Built-in base pan heater
SPECIFICATIONS
MSZ-FS15NA & MUZ-FS15NAH
|
Cooling at 95°F1 | Maximum Capacity | BTU/H | 19,000 |
| Rated Capacity | BTU/H | 14,000 | |
| Minimum Capacity | BTU/H | 6,450 | |
| Maximum Power Input | W | 2,010 | |
| Rated Power Input | W | 1,000 | |
| Moisture Removal | Pints/h | 4.0 | |
| Sensible Heat Factor | 0.70 | ||
| Power Factor | % | 96.0/96.0 | |
|
Heating at 47°F2 | Maximum Capacity | BTU/H | 24,000 |
| Rated Capacity | BTU/H | 16,000 | |
| Minimum Capacity | BTU/H | 5,150 | |
| Maximum Power Input | W | 3,360 | |
| Rated Power Input | W | 1,155 | |
| Power Factor | % | 98.0/98.0 | |
|
Heating at 17°F3 | Maximum Capacity | BTU/H | 22,730 |
| Rated Capacity | BTU/H | 10,000 | |
| Maximum Power Input | W | 3,210 | |
| Rated Power Input | W | 950 | |
| Heating at 5°F4 | Maximum Capacity | BTU/H | 19,360 |
| Maximum Power Input | W | 2,730 | |
| Heating at -5°F6 | Maximum Capacity | BTU/H | 16,000 |
| Heating at -13°F7 | Maximum Capacity | BTU/H | 14,400 |
|
Efficiency | SEER | 22.2 | |
| EER1 | 14.0 | ||
| HSPF [IV] | 12.0 | ||
| COP at 47°F2 | 4.06 | ||
| COP at 17°F at Maximum Capacity3 | 2.08 | ||
| COP at 5°F at Maximum Capacity4 | 1.91 | ||
| COP at -5°F at Maximum Capacity6 | 1.91 | ||
| COP at -13°F at Maximum Capacity7 | 1.9 | ||
| ENERGY STAR® Certified | Yes | ||
|
Electrical | Voltage, Phase, Frequency | 208/230, 1, 60 | |
| Guaranteed Voltage Range | V AC | 187 – 253 | |
| Voltage: Indoor – Outdoor, S1-S2 | V AC | 208/230 | |
| Voltage: Indoor – Outdoor, S2-S3 | V DC | 24 | |
| Short-circuit Current Rating [SCCR] | kA | 5 | |
| Recommended Fuse/Breaker Size (Oudoor) | A | 20 | |
| Recommended Wire Size [Indoor – Outdoor] | AWG | 14 | |
| Power Supply | Indoor unit is powered by the outdoor unit | ||
|
Indoor Unit | MCA | A | 1.0 |
| Fan Motor Full Load Amperage | A | 0.65 | |
| Fan Motor Output | W | 40 | |
| Fan Motor Type | DC Motor | ||
| Airflow Rate at Cooling, Dry | CFM | 225–262–304–355–437 | |
| Airflow Rate at Cooling, Wet | CFM | 194–225–261–305–376 | |
| Airflow Rate at Heating, Dry | CFM | 201–272–350–410–514 | |
| Sound Pressure Level [Cooling] | dB[A] | 27–31–35–39–44 | |
| Sound Pressure Level [Heating] | dB[A] | 25–31–37–40–46 | |
| Drain Pipe Size | In. [mm] | 5/8 [15.88] | |
| Coating on Heat Exchanger | Dual Barrier Coating | ||
| External Finish Color | Munsell 1.0Y 9.2/0.2 | ||
| Unit Dimensions | W x D x H: In. [mm] | 36-7/16 x 9-3/16 x 12 (+11/16) [925 x 234 x 305 (+17)] | |
| Package Dimensions | W x D x H: In. [mm] | 39 x 12-1/4 x 15-1/2 [990 x 310 x 400] | |
| Unit Weight | Lbs. [kg] | 29 [13.5] | |
| Package Weight | Lbs. [kg] | 34 [15.4] | |
| Indoor Unit Operating Temperature Range | Cooling Intake Air Temp [Maximum / Minimum]* | °F | 90 DB, 73 WB / 67 DB, 57 WB |
| Heating Intake Air Temp [Maximum / Minimum] | °F | 80 DB / 70 DB | |
|
Outdoor Unit | MCA | A | 18.0 |
| MOCP | A | 20 | |
| Fan Motor Full Load Amperage | A | 0.93 | |
| Fan Motor Output | W | 50 | |
| Airflow Rate | CFM | 1801/1949 | |
| Refrigerant Control | LEV | ||
| Defrost Method | Reverse Cycle | ||
| Coating on Heat Exchanger | Blue Fin Coating | ||
| Sound Pressure Level, Cooling1 | dB(A) | 51 | |
| Sound Pressure Level, Heating2 | dB(A) | 55 | |
| Compressor Type | Twin Rotary | ||
| Compressor Model | SNB172FQKMT | ||
| Compressor Rated Load Amps | A | 17 | |
| Compressor Locked Rotor Amps | A | 13.6 | |
| Compressor Oil Type // Charge | oz. | FV50S // 0.40 | |
| External Finish Color | Munsell 3Y 7.8/1/1 | ||
| Base Pan Heater | Built-in | ||
| Unit Dimensions | W x D x H: In. [mm] | 33-1/16 x 13 x 34-5/8 [840 x 330 x 880] | |
| Package Dimensions | W x D x H: In. [mm] | 38-3/4 x 16-3/4 x 39 [980 x 420 x 990] | |
| Unit Weight | Lbs. [kg] | 118 [53.5] | |
| Package Weight | Lbs. [kg] | 135 [61] | |
| Outdoor Unit Operating Temperature Range | Cooling Air Temp [Maximum / Minimum]* | °F | 115 DB / 14 DB |
| Cooling Thermal Lock-out / Re-start Temperatures** | °F | -4 / 0 | |
| Heating Air Temp [Maximum / Minimum] | °F | 75 DB, 65 WB / -13 DB, -14 WB | |
| Heating Thermal Lock-out / Re-start Temperatures** | °F | -18 / -14 | |
|
Refrigerant | Type | R410A | |
| Charge | Lbs, oz | 3, 7.0 | |
| Chargeless Piping Length | Ft. [m] | 25.0 [7.5] | |
| Additional Refrigerant Charge Per Additional Piping Length | oz./Ft. [g/m] | 0.216 [20] | |
|

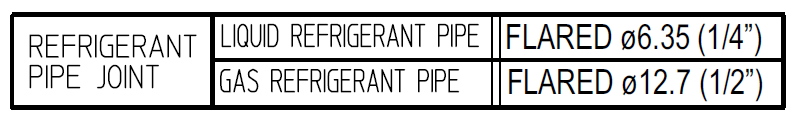

Piping | Gas Pipe Size O.D. [Flared] | In.[mm] | 1/2 [12.7] |
| Liquid Pipe Size O.D. [Flared] | In.[mm] | 1/4 [6.35] | |
| Maximum Piping Length | Ft. [m] | 100 [30] | |
| Maximum Height Difference | Ft. [m] | 50 [15] | |
| Maximum Number of Bends | 10 | ||
Note
- AHRI Rated Conditions 1Cooling (Indoor // Outdoor) °F 80 DB, 67 WB // 95 DB, 75 WB
- (Rated data is determined at a fixed compressor speed) 2Heating at 47°F (Indoor // Outdoor) °F 70 DB, 60 WB // 47 DB, 43 WB
- 3Heating at 17°F (Indoor // Outdoor) °F 70 DB, 60 WB // 17 DB, 15 WB
- Conditions 4Heating at 5°F (Indoor // Outdoor) °F 70 DB, 60 WB // 5 DB, 4 WB
- 5Heating at -4°F (Indoor // Outdoor) °F 70 DB, 60 WB // -4 DB, -5 WB
- 6Heating at -5°F (Indoor // Outdoor) °F 70 DB, 60 WB // -5 DB, -6 WB
- 7Heating at -13°F (Indoor // Outdoor) °F 70 DB, 60 WB // -13 DB, -14 WB
Outdoor Unit Operating Temperature Range (Cooling Air Temp (Maximum / Minimum)):
Applications should be restricted to comfort cooling only; equipment cooling applications are not recommended for low ambient temperature conditions.
Outdoor Unit Operating Temperature Range (Cooling Thermal Lock-out / Re-start Temperatures; Heating Thermal Lock-out / Re-start Temperatures):
System cuts out in heating mode to avoid thermistor error and automatically restarts at these temperatures
INDOOR UNIT ACCESSORIES
|
Control Interface | BACnet® and Modbus® Interface | □ PAC-UKPRC001-CN-1 | |
| CN24 Relay Kit | □ CN24RELAY-KIT-CM3 | ||
| IT Extender | □ PAC-WHS01IE-E | ||
| kumo station® for kumo cloud® | □ PAC-WHS01HC-E | ||
| Lockdown bracket for remote controller | □ RCMKP1CB | ||
| System Control Interface | □ MAC-334IF-E | ||
| Thermostat Interface | □ PAC-US444CN-1 | ||
| USNAP Adapter | □ PAC-WHS01UP-E | ||
| Wireless Interface for kumo cloud® | □ PAC-USWHS002-WF-2 | ||
| Remote Sensor | Wired Remote Sensor | □ M21EAA307 | |
| Wireless temperature and humitity sensor for kumo cloud® | □ PAC-USWHS003-TH-1 | ||
|
Wired Remote Controller | Deluxe Wired MA Remote Controller† | □ PAR-40MAAU | |
| Simple MA Remote Controller† | □ PAC-YT53CRAU-J | ||
| Touch MA Controller† | □ PAR-CT01MAU-SB | ||
| Wireless Remote Controller | kumo touch™ RedLINK™ Wireless Controller | □ MHK2 | |
|
Condensate | Blue Diamond (Advanced) Mini Condensate Pump w/ Reservoir & Sensor (208/230V) [recommended] | □ | X87-721 |
| Blue Diamond (MicroBlue) Mini Condensate Pump (110/208/230V) up to 18,000 BTU/H | □ | X85-003 | |
| Blue Diamond Alarm Extension Cable — 6.5 Ft. | □ | C13-192 | |
| Blue Diamond MultiTank — collection tank for use with multiple pumps | □ | C21-014 | |
| Blue Diamond Sensor Extension Cable — 15 Ft. | □ | C13-103 | |
| Drain Pan Level Sensor/Control | □ SS610E | ||
| Fascia Kit for MicroBlue Pump, mounts the MicroBlue and sensor directly beneath indoor unit | □ | T18-016 | |
| Sauermann Condensate Pump | □ | SI30-230 | |
| Disconnect Switch | (30A/600V/UL) [fits 2” X 4” utility box] – Black | □ TAZ-MS303 | |
| (30A/600V/UL) [fits 2” X 4” utility box] – White | □ TAZ-MS303W | ||
| Filter | Electro Static Anti-allergy Enzyme Filter | □ MAC-2330FT-E | |
| Platinum Deodorizing Filter | □ MAC-3000FT-E | ||
|
Lineset | 15’ x 1/4” x 15’ / 1/2” Lineset (Twin-Tube Insulation) | □ | MLS141212T-15 |
| 30’ x 1/4” x 30’ / 1/2” Lineset (Twin-Tube Insulation) | □ | MLS141212T-30 | |
| 50’ x 1/4” x 50’ / 1/2” Lineset (Twin-Tube Insulation) | □ | MLS141212T-50 | |
| 65’ x 1/4” x 65’ / 1/2” Lineset (Twin-Tube Insulation) | □ | MLS141212T-65 | |
MSZ-FS15NA
NOTES:
Requires MAC-334IF-E
M-Series EZ FIT® Recessed Ceiling Cassette, Floor-mount and Wall-mount
Allows indoor units to connect to an MA Controller:
- Deluxe MA Remote Controller
- Simple MA Controller
- Touch MA Controller
OUTDOOR UNIT ACCESSORIES
MUZ-FS15NAH
| Air Outlet Guide | Air Outlet Guide | □ MAC-890SG-E | |
| Drain Socket | Drain Socket | □ MAC-871DS | |
| Hail Guards | Hail Guard | □ HG-A7 | |
|
Mini-Split Wire | 14 Gauge, 4 wire MiniSplit Cable—250 ft. roll | □ | S144-250 |
| 14 Gauge, 4 wire MiniSplit Cable—50 ft. roll | □ | S144-50 | |
| 16 Gauge, 4 wire MiniSplit Cable—250 ft. roll | □ | S164-250 | |
| 16 Gauge, 4 wire MiniSplit Cable—50 ft. roll | □ | S164-50 | |
| Mounting Pad | Condensing Unit Mounting Pad: 16” x 36” x 3” | □ ULTRILITE1 | |
| Outdoor Unit 3-1/4 inch Mounting Base (Pair) – Plastic | □ DSD-400P | ||
|
Stand | 18” Single Fan Stand | □ QSMS1801M | |
| 24” Single Fan Stand | □ QSMS2401M | ||
| Condenser Wall Bracket | □ QSWB2000M-1 | ||
| Condenser Wall Bracket -Stainless Steel Finish | □ QSWBSS | ||
| Outdoor Unit Stand — 12” High | □ QSMS1201M | ||

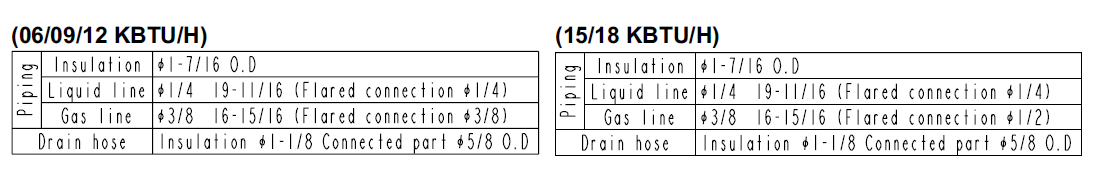

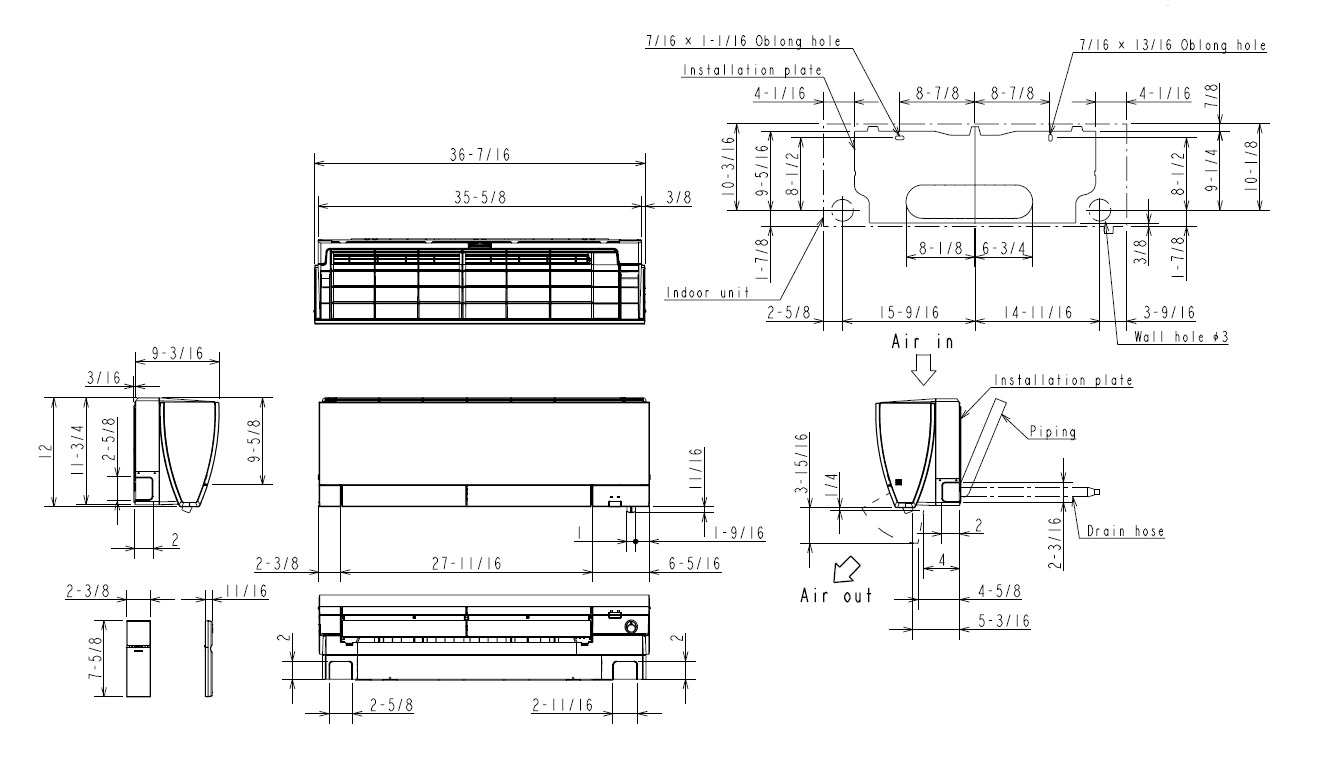

INDOOR UNIT DIMENSIONS MSZ-FS15NA

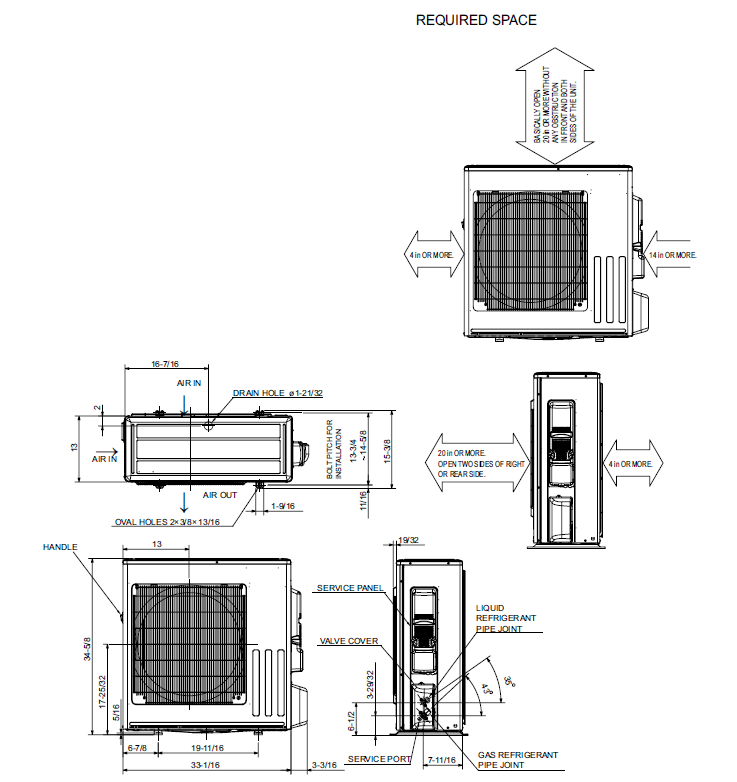

OUTDOOR UNIT DIMENSIONS MUZ-FS15NAH
1340 Satellite Boulevard Suwanee, GA 30024
Toll Free: 800-433-4822 www.mehvac.com
FORM# MSZ-FS15NA & MUZ-FS15NAH – 202108
Specifications are subject to change without notice. © 2021 Mitsubishi Electric Trane HVAC US LLC. All rights reserved.
