TSH25 Touch Safe Heaters
Instruction Manual
SCE-TSH25 Touch Safe Heaters

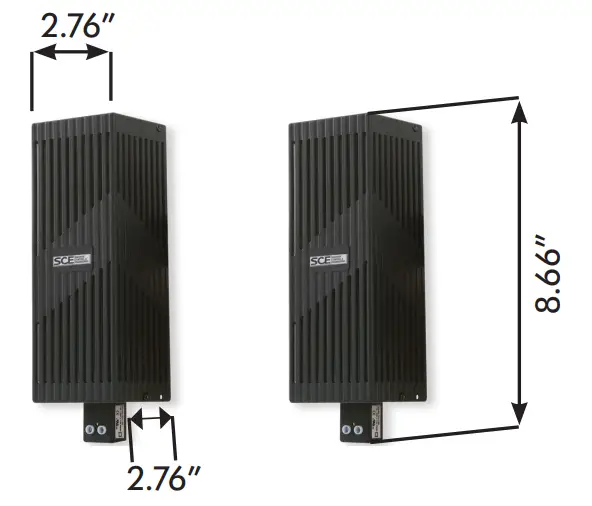

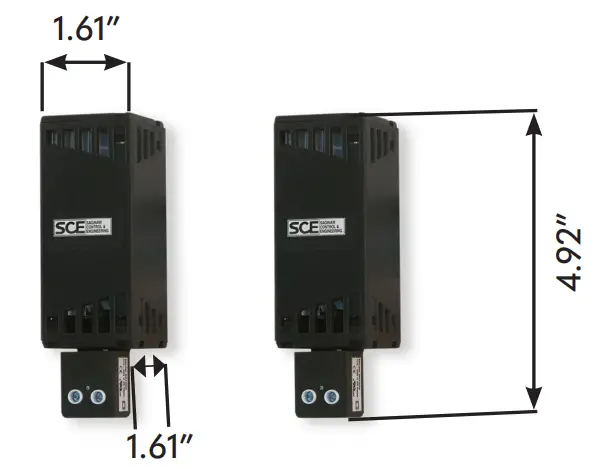

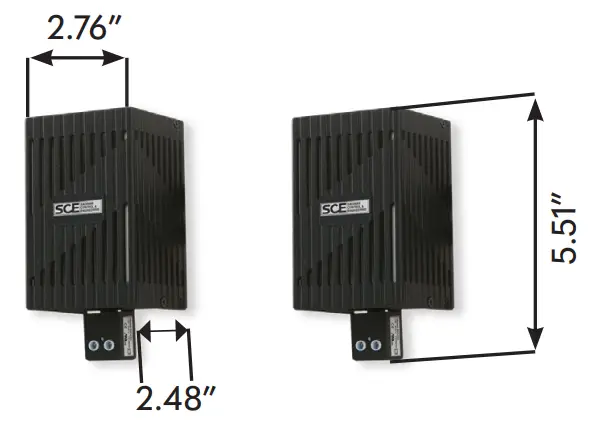

| SCE-TSH25 & SCE-TSH50 | SCE-TSH75 & SCE-TSH100 | SCE-TSH150 |
 |  |  |
MODEL SELECTION:
- Determine the surface area of the enclosure in square feet.
- Select the Touch Safe Heater unit from the chart based on square feet of the enclosure.
- Units should be installed in the lower quarter of the enclosure.
- When enclosure width is greater than height, two smaller units will heat the area more efficiently than one larger unit.
SURFACE AREA EQUATION:
2[(Height x Width)+(Height x Depth)+(Width x Depth)] ÷ 144

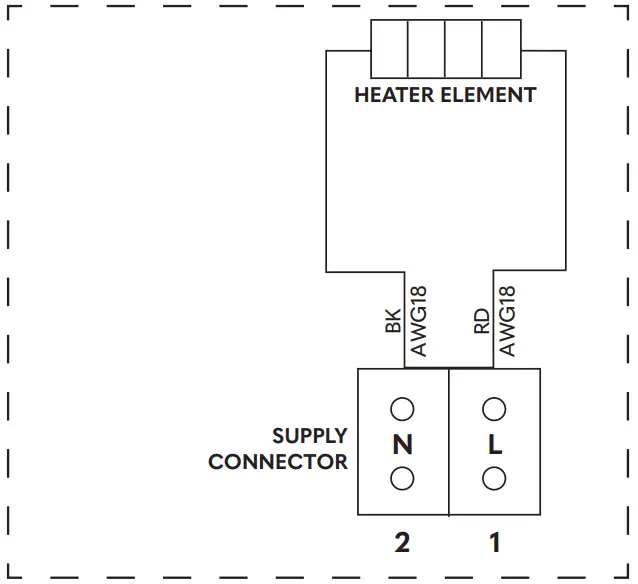

CIRCUIT DIAGRAM
NOTES
- All heaters are delivered with a DIN rail Clip 1.37”.
- Maximum Surface Temperature on casting: 80C/176F.
- 4.75” Minimum Thermal Safety gap required above or to side of this device.
| FT2 AREA | TSH-25 | TSH-50 | TSH-75 | TSH-100 | TSH-150 |
| 0 – 8 | One | ||||
| 9 -16 | One | ||||
| 17-24 | One | ||||
| 25 – 32 | One | ||||
| 33 – 40 | One | ||||
| 41- 48 | One | ||||
| 49 – 56 | One | ||||
| 57 – 64 | One | ||||
| 65 – 72 | One | ||||
| 73 – 80 | One | ||||
| 81- 88 | One | ||||
| 89 -120 | One |
