MPMC AIO-30 Hybrid Power Station Owner’s Manual
Design Standards
AIO® is a new range of secure integrated hybrid power station. With diesel generator, solar power, battery storage ,wind turbine an dihybrid solar Inverter in one secure unit. AIO® is mainly developed for residents Power, Reduce the dependence on Main Power an de crease the consumption cost.
Benefits
- Integrated installation, convenient storage and trans potation; ·High return on investment and quick return;
- Simple operation and easy maintenance; ·Power and Capacity can be expanded, meet different user needs; Accept customer customization, suitable for various scenarios;
Warranty
Battery Performance: 2000 cycles(80%DOD)or2years after manufacture; ·Generator: 18 months after manufacturer 1500 hours running time;
| General Specification | |
| Model | AIO-30 |
| System Rated Output Power | 30 kVA |
| Rated Output Voltage | 400V/230V@50Hz/60Hz,3ph.(According to customer requirements) |
| Min. Battery Storage Capacity | 40 kWh |
| Max. Battery Storage Capacity | 60 kWh |
| Output Terminals | Copper terminals & CEE 63A/5P Socket |
| Expand Dimension(W*D*H) | 9000*6350*7000mm |
| Loading Dimension(W*D*H) | 5900*2280*2230mm |
| Net .Weight | 8500kg |
| Loading Capacity of 40’HC | 2 units |
| Discharge Temperature Range | -20℃~50℃ |

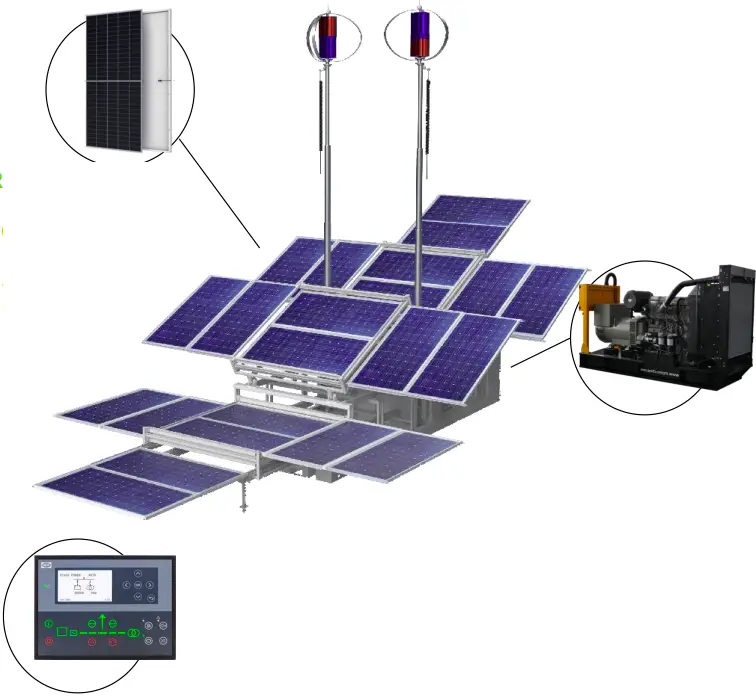

SOLAR PANEL
MAX.POWER：10120W With HIGH EFFICIENCY UP TO 21%~!!
GENERATORRATEDPOWER：16kWWith LOWCONSUMPTIONDOWNTO5.3L/H~!!
NTELLIGENT PCS with EMS EASY OPERATION ON ONE SCREEN

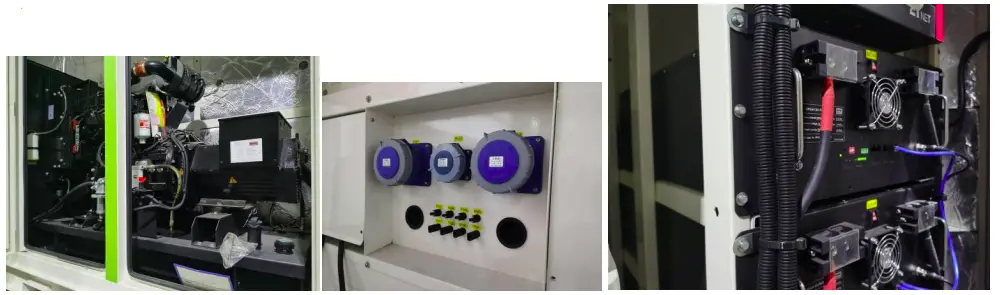

Fits the practical application & guaranteed by high-quality manufacturing technology
Generator Set
| Prime Power | 20 kVA |
| Fuel Consumption | 5.3 L/h@100% load |
| Fuel Type | Diesel(Nature Gas Engine for option) |
| Fuel Tank Capacity | 12 hours |
| Base Functions | Automatic Start-up / Alarm / Automatic Stop / Emergency Stop / Load Management |
| Solar Panel | |
| Maximum Power | 460W |
| Qty. | 22pcs |
| Energy storage battery | |
| Cell Type | LFP(LiFePO4) |
| Pack Model | MF51100 |
| Pack Capacity | 5 kWh |
| Pack Rated Voltage | 51.2 VDC |
| Charger/Discharge Current | 97.7 A(1.0C) |
| Battery Rack Voltage | 345.6V~708V |
| Rated Cycle Life | ≥2000（80% DOD） |
| Power Conversion System | |
| EMS | ASC 150(DEIF) |
| AC Voltage Range | 400V(480V@60HZ) |
| Max.Charge/Discharge Current | 90A |
| Max.Conversion Efficiency | 97.6% |
| Rated Output Power | 30kVA(0.8leading~0.8lagging) |
| DC/DC Converter | |
| Solar Controller | MPPT*6 |
| Wind Turbine | |
| Rated Power | 400W*2pcs |
| Stand Running Condition | Start-up wind speed>2m/s;Rated wind speed>10m/s;Survival wind speed<45m/s |
Options
| Engine | Alternator | Fuel System | Hybrid Power Station |
| Water Jacket Preheater Oil PreheaterOil manual pump | PMG excitation Space heater Winding temperature measuring | 12 / 24 hour base tank Bunded fuel tank External fuel tank Automatic fuel feedingSwitch between external tank and base tank (three-way valve) | Deepsea, ComAp, Smartgen etc. controllerTrailerTools with the machine |

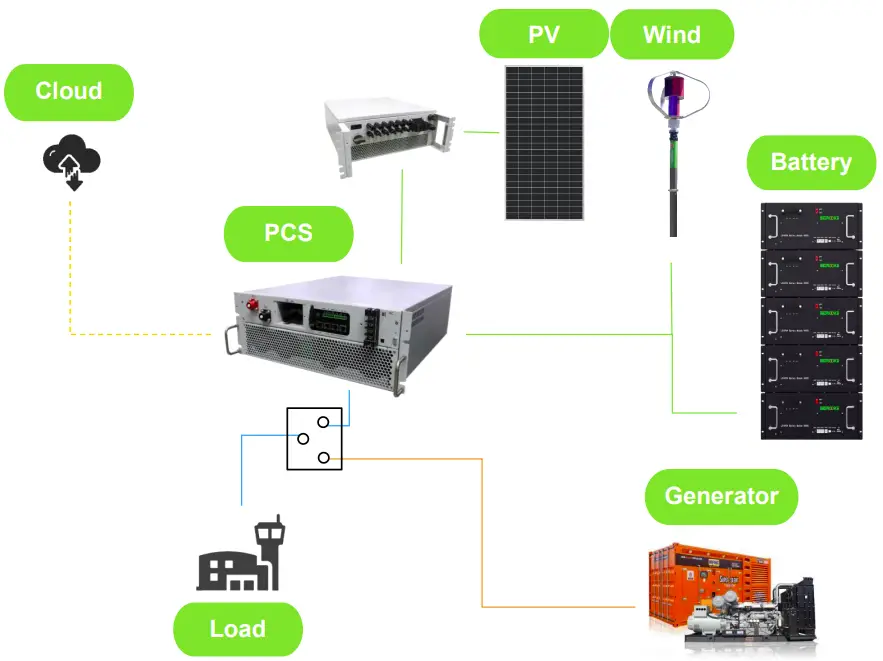

Basic Logic
| Power Priority | Highest | Secondary | Back Up |
| PV | Battery | Generator | |
| Functions | Take load/charge | Take load | Take load/charge |
