MPMC AIO-20 Hybrid Power Station Owner’s Manual
Design Standards

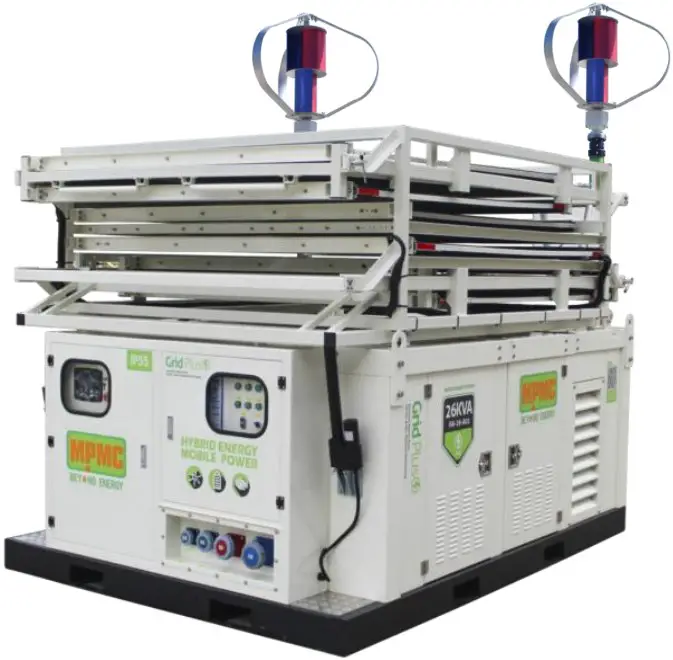

AIO® is a new range of secure integratedhybridpower station. With diesel generator, solar power, battery storage,wind turbineandhybridsolar Inverter in one secure unit. AIO® is mainly developed for residentsPower, Reduce the dependence on Main Power anddecrease the consumption cost.
Benefits
- Integrated installation, convenient storageandtransportation;
- High return on investment and quick return;
- Simple operation and easy maintenance;
- Power and Capacity can be expanded, meet different user needs;
Accept customer customization, suitablefor various scenarios;
Warranty
Battery Performance: 2000 cycles(80%DOD)or2years after manufacture; ·Generator: 18 months after manufactureor 1500 hours running time;
| General Specification | |
| Model | AIO-20 |
| System Rated Output Power | 20 kVA |
| Rated Output Voltage | 400V/230V@50Hz/60Hz,3ph.(According to customer requirements) |
| Min.Battery Storage Capacity | 20 kWh |
| Max.Battery Storage Capacity | 40 kWh |
| Output Terminals | Copper terminals & CEE 32A/5P Socket |
| Expand Dimension(W*D*H) | 5900*6350*7000mm |
| Loading Dimension(W*D*H) | 3950*2280*2230mm |
| Net.Weight | 2800kg |
| Loading Capacity of 40’HC | 3 units |
| Discharge Temperature Range | -20℃~50℃ |

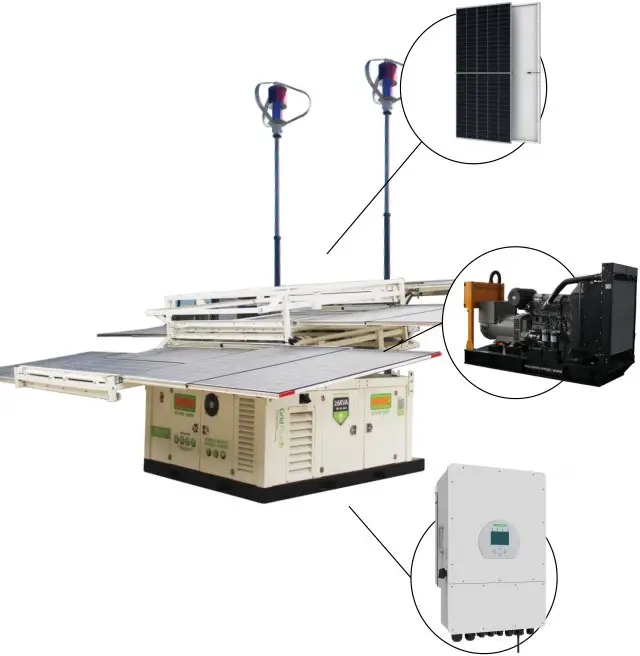

SOLAR PANEL MAX. POWER：5040 W With HIGH EFFICIENCY UP TO21%~!!
GENERATOR RATED POWER：10kW With LOW CONSUMPTION DOWN TO 3.7L/H~!!
INTELLIGENT INVERTER ONE PIECE FOR SOLAR & BATTERY & GRID & GENERATOR

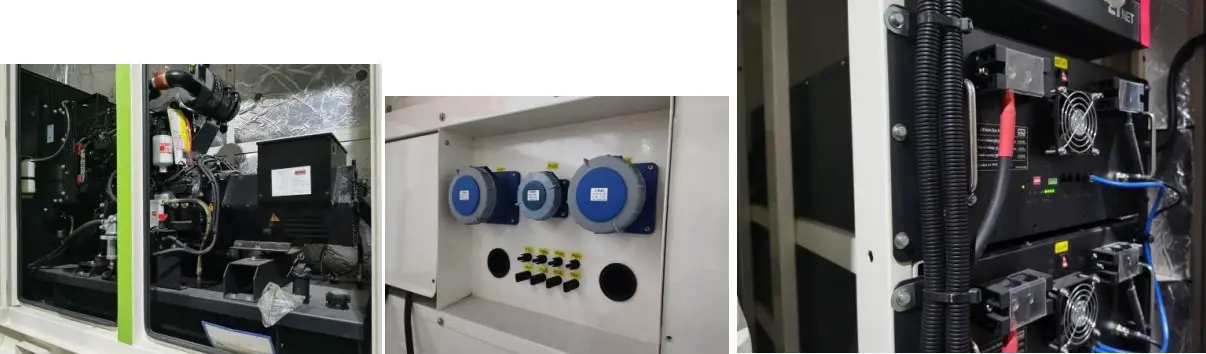

Fits the practical application & guaranteed by high-quality manufacturing technology
Generator Set
| Prime Power | 13 kVA |
| Fuel Consumption | 3.7 L/h@100% load |
| Fuel Type | Diesel(Nature Gas Engine for option) |
| Fuel Tank Capacity | 24 hours |
| Base Functions | Automatic Start-up / Alarm / Automatic Stop / Emergency Stop / Load Management |
| Solar Panel | |
| Maximum Power | 420W |
| Power Tolerance | 0~+5W |
| Qty. | 12pcs |
| Energy storage battery | |
| Cell Type | LFP(LiFePO4) |
| Pack Model | MF51100D |
| Pack Capacity | 5 kWh |
| Pack Rated Voltage | 51.2 VDC |
| Discharge Depth | 90% |
| Charger/Discharge Current | 97.7 A(1.0C) |
| Battery Rack Voltage | 43.2V~59V |
| Rated Cycle Life | ≥2000（80% DOD） |
| Hybrid Inverter System | |
| Solar Controller | MPPT*4 ways |
| AC Voltage Range | 380~415Vac |
| Max.Charge/Discharge Current | 420A |
| Max.Conversion Efficiency | 97.6% |
| Rated Output Power | 20kVA(0.8leading~0.8lagging) |
| Wind Turbine | |
| Rated Power | 400W*2pcs |
| Stand Running Condition | Start-up wind speed>2m/s;Rated wind speed>10m/s;Survival wind speed<45m/s |
Options
| Engine | Alternator | Fuel System | Hybrid Power Station |
| Water Jacket Preheater Oil PreheaterOil manual pump | PMG excitation Space heater Winding temperature measuring | 12 / 24 hour base tank Bunded fuel tank External fuel tank Automatic fuel feedingSwitch between external tank and base tank (three-way valve) | Deepsea, ComAp, Smartgen etc. controllerTrailerTools with the machine |

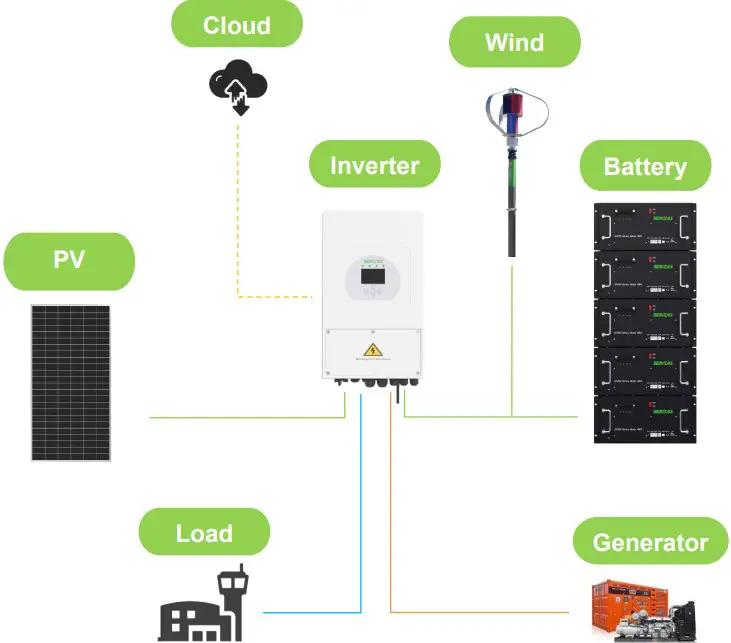

Basic Logic
| Power Priority | Highest | Secondary | Back Up |
| PV | Battery | Generator | |
| Functions | Take load/charge | Take load | Take load/charge |
Follow us https://www.facebook.com/mpmcgroup
https://www.linkedin.com/company/mpmcpowertech/
https://www.youtube.com/user/MPMCGenerator
All information in this document is substantially correct at time of printingandmay be altered subsequently. Final weight and dimensions will depend oncompleted specification.
