Model: GSB-10

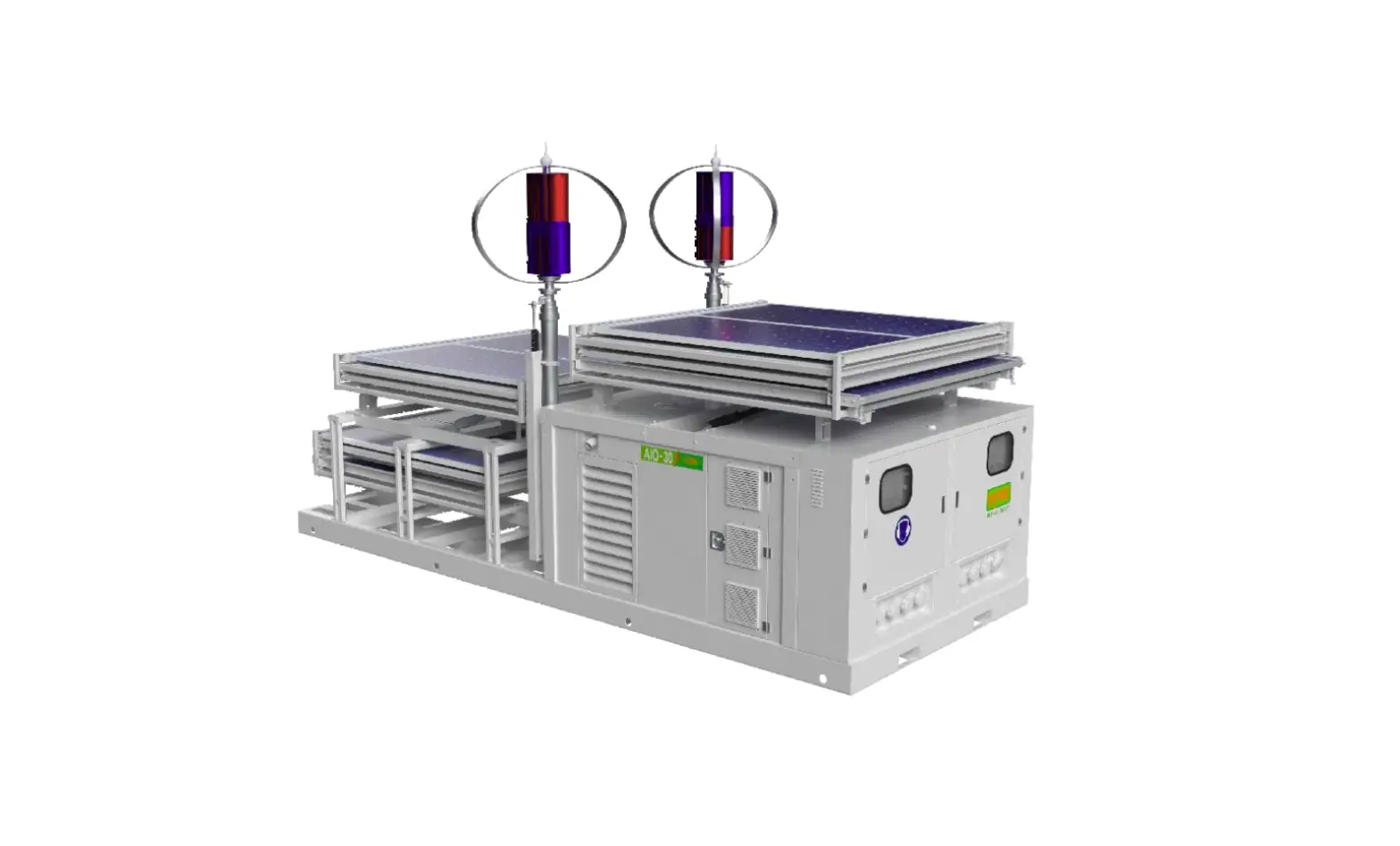

HYBRID POWER STATION
Design Standards
GSB® is a new range of secure integratedhybrid power station. With diesel generator, solar power, battery storage and hybridsolar
Inverter in one secure unit. GSB® is mainly developed for residents Power, Reduce the dependence on Main Power and decrease the consumption cost.
Benefits
·Integrated installation, convenient storage and transportation; ·High return on investment and quick return; ·Simple operation and easy maintenance; ·Power and Capacity can be expanded, meet different user needs; ·Accept customer customization, suitablefor various scenarios;
Warranty
Battery Performance: 2000 cycles(80%DOD)or2years after manufacture;
Generator: 18 months after manufacture or 1500hours running time;
General Specification
| Model | GSB-10 |
| System Rated Output Power | 10 kVA |
| Rated Output Voltage | 400V/230V@50Hz/60Hz,3ph. (According to customer requirements) |
| Min. Battery Storage Capacity | 10 kWh |
| Max. Battery Storage Capacity | 20 kWh |

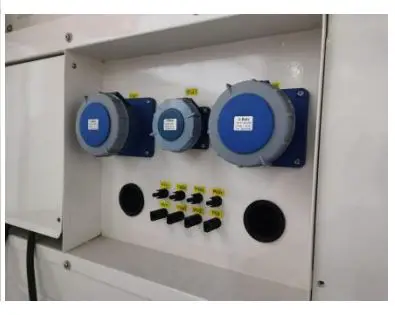

| Output Terminals | Copper terminals & CEE 16A/5P Socket |
| Expand Dimension(W*D*H) | 2950*5400*3350mm |
| Loading Dimension(W*D*H) | 2950*1150*2200mm |
| Net. Weight | 2500kg |
| Loading Capacity of 40’HC | 8 units |
| Discharge Temperature Range | -20℃~50℃ |

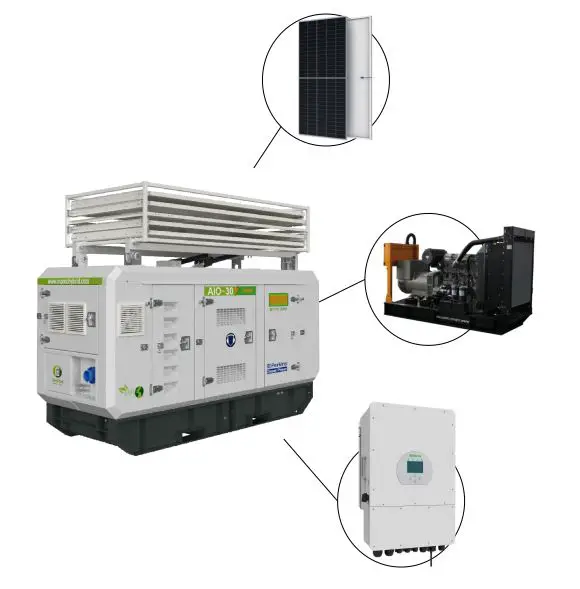

SOLARPANEL
MAX. POWER：
2750WWith HIGH EFFICIENCY UP TO
21%~!!
GENERATOR
RATED POWER：
7kWWith LOWCONSUMPTION
DOWN TO 2.6L/H~!!
INTELLIGENT INVERTER
ONE PIECE FOR SOLAR & BATTERY
& GRID
& GENERATOR
Fits the practical application & guaranteed by high-quality manufacturing technology

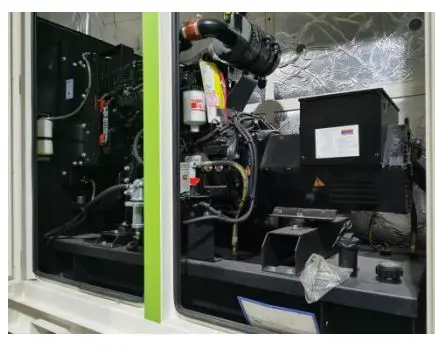

Generator Set
| Prime Power | 10 kVA |
| Fuel Consumption | 2.6 L/h@100% load |
| Fuel Type | Diesel(Nature Gas Engine for option) |
| Fuel Tank Capacity | 36 hours |
| Base Functions | Automatic Start-up / Alarm / Automatic Stop / Emergency Stop |
Solar Panel
| Maximum Power | 550W |
| Power Tolerance | 0~+5W |
| Max-Power Voltage (Vm) | 41.96VDC |
| Max-Power Current (Im) | 13.11A |
| Qty. | 5pcs |

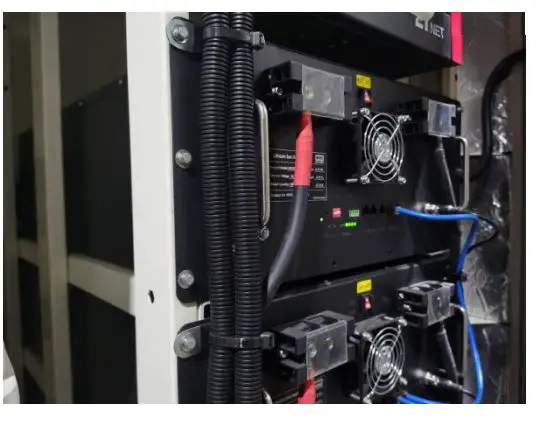

Energy storage battery
| Cell Type | LFP(LiFePO4) |
| Pack Model | MF51100D |
| Pack Capacity | 5 kWh |
| Pack Rated Voltage | 51.2 VDC |
| Discharge Depth | 90% |
| Charger/Discharge Current | 97.7 A(1.0C) |
| Battery Rack Voltage | 43.2V~59V |
| Rated Cycle Life | ≥2000（80% DOD） |
Hybrid Inverter System
| Solar Controller | MPPT*4 |
| AC Voltage Range | 380~415Vac |
| Max. PV Current | 26A*2 |
| Max. Charge/Discharge Current | 210A |
| Max. Conversion Efficiency | 97.6% |
| Rated Output Power | 10kVA(0.8leading~0.8lagging) |
Options
| Engine | Alternator | Fuel System | Hybrid Power Station |
| Water Jacket Preheater Oil Preheater Oil manual pump | PMG excitation Space heater Winding temperature measuring | 12 / 24 hour base tank Bunded fuel tank External fuel tank Automatic fuel feeding Switch between external tank and base tank (three-way valve) | Deepsea, ComAp, Smartened. controller Trailer Tools with the machine |

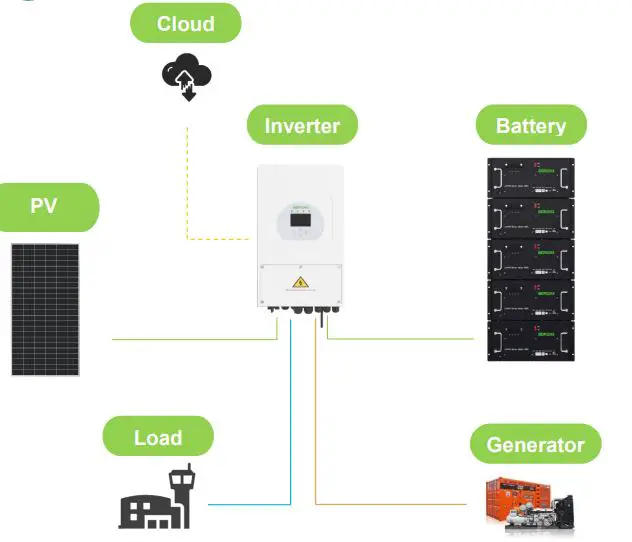

Basic Logic
Power Priority | Highest | Secondary | BackUp |
PV | Battery | Generator | |
Functions | Take load/charge | Take load | Take load/charge |
Follow us
https://www.facebook.com/mpmcgroup
https://www.linkedin.com/company/mpmcpowertech/
https://www.youtube.com/user/MPMCGenerator
All information in this document is substantially correct at time of printing and may be altered subsequently. Final weight and dimensions will depend oncompleted specification.
MPMC POWERTECH CORP. [email protected] | www.mpmc-china.com
Photographs are for illustrative purposes only and may not reflect final specification.
