FD150 Double Pole Single Fuse Cut-Out
User Manual
FD150 DOUBLE POLE SINGLE FUSE CUT-OUT

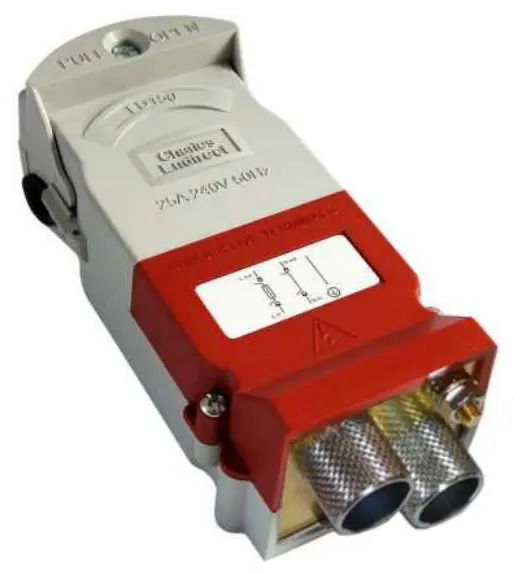

FD150 Double Pole Single Fuse Cut-Out
The cut outs have been designed for strength, durability, ease of installation and to meet the full requirements of BS 7654.
The range features a secure and quick release carrier to provide safe and easy access to fuses and outgoing terminals.
The standard FD150 are double pole for a BS88 pt 1 – AC19 Tag Type (LST).
Other options are available please contact our sales office for details.

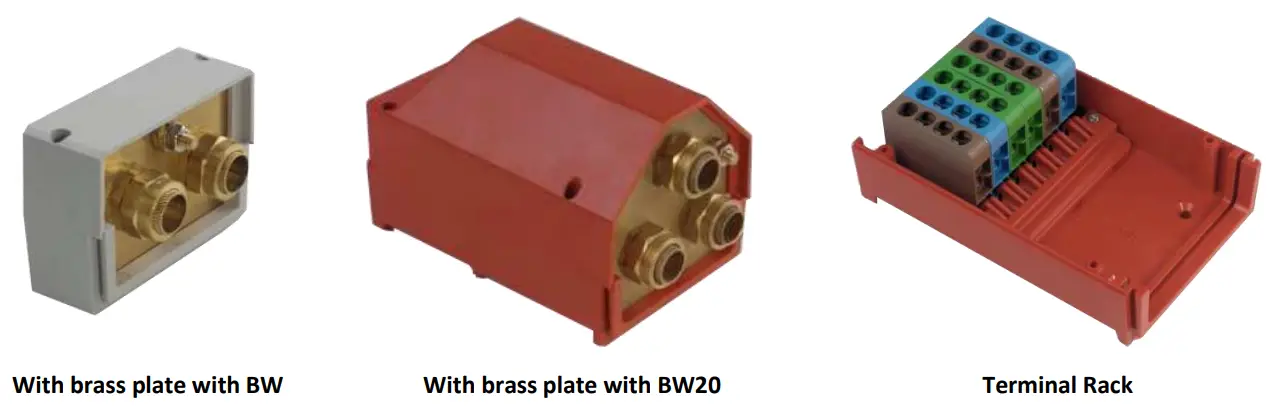

Extension Boxes, Terminals and Glandplates
For SWA cables up to 25mm2 (35mm2 circular), the range of extension boxes provide versatility, ease of termination and quick installation.
Designed for strength with moulded DIN rails and terminal clamps the boxes fit onto the cut outs and accept a range of gland plates – plastic plates for use with CETs, brass plates with holes to accept compression glands and brass plates fitted with ferrules.
Manufactured from brass, the live, neutral and earth terminals are fully insulated.
