Manual de instalare Invertor hybrid monofazat Growatt SPH3000-6000
single-phase Hybrid Inverter User Guide

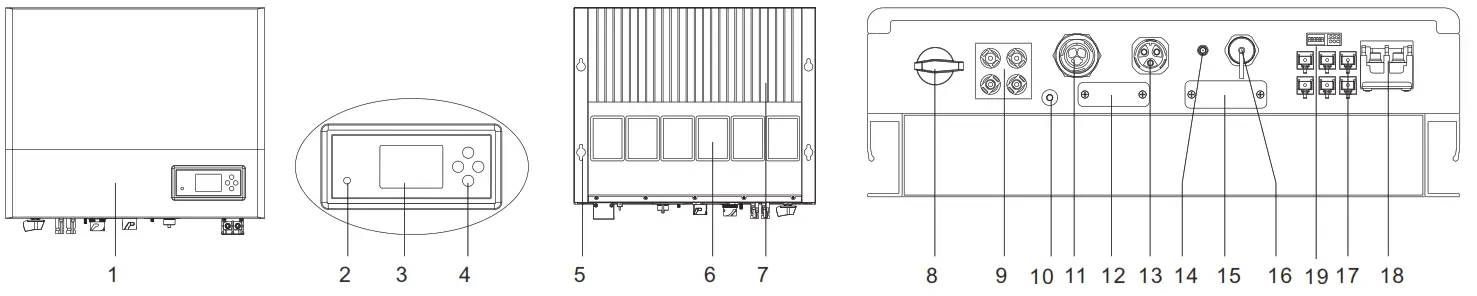

Overview
| 1. Front panel 2. Double-color LED 3. LCD screen 4. Push button 5. Wall hole | 6. Magnetic devices 7. Heat sink 8. PV switch 9. PV connector 10. Grounding screw | 11. AC grid connector 12. Reserved hole 13.EPS connector 14. Antenna hole 15.RS232 port | 16. USB port 17. Communication ports 18. Battery power terminal 19. DIP and Dry connector |
Note:
- If SP-CT is used to communicate with the hybrid inverter. Please plug in the antenna in (14).
- Function introduction of communication ports (17) in the following
Note:
- This file will be updated from time to time due to product upgrades or other reasons. Unless otherwise agreed, this document is intended as a guide only. All information and suggestions do not constitute an express or implied warranty. The final interpretation of the content is at Growatt.
- This document is for quick guidance installation only. For details, please refer to the User Manual.
- Machine damage caused by failure to follow the content is not covered by the warranty.
Installation

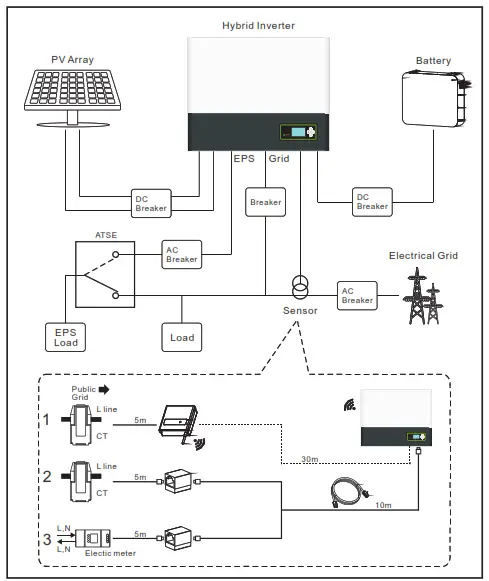

System Overview
Note:
The installation of this hybrid system needs to comprehensively consider the position of the battery and the power collector.

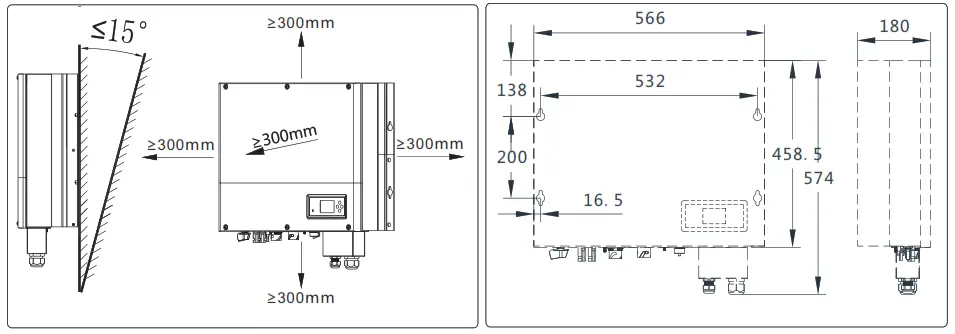

2.1 Installation requirements
Note:
The installation of this hybrid system needs to comprehensively consider the position of the battery and the power collector.

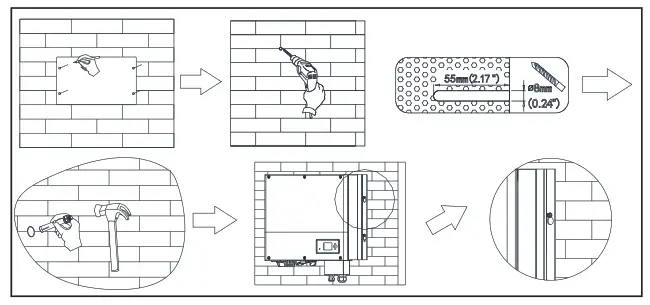

2.2 Wall mounting
Notes
Be careful: Avoid water and electricity pipes when punching holes in the wall, otherwise it may be dangerous.

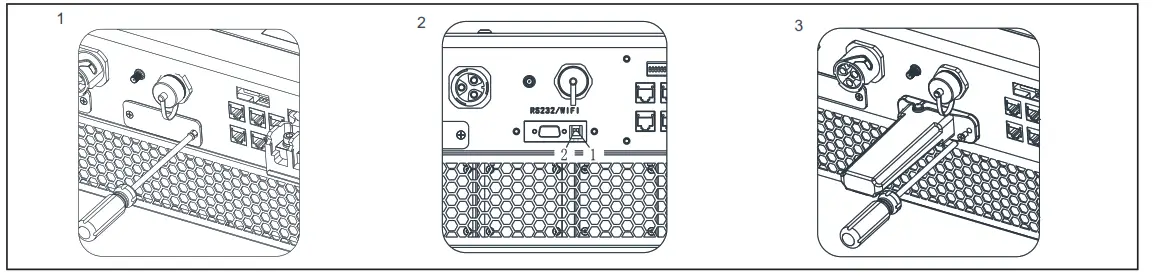

2.3 Monitoring device installation
Follow the installation steps:
- Remove the RS232 waterproof cover.
- Switch off all the DIP next to RS232
- Plug in the communication module.
Connecting cables
Please prepare the cable before connecting as follows.
| Number | Cable name | Type | Recommend module |
| 1 | grounding cable | Single multi-core yellow-green copper cable | Cable diameterAWG10 |
| 2 | AC output cable | Two or three different color multi-core copper cables | Cable diameter AWG10 |
| 3 | PV input cable | Photovoltaic dedicated cable (such as PV1-F ) | 4mm1 – Gmm2 |
| 4 | Battery power cable | Red and black multi-core copper | Cable diameter–‘AWG6 |
| 5 | Another communication cable | CATS E | / |
Notice
- Lithium battery has their own power line and communication line, so use them.
- Hybrid inverters include the basic communication line. So use them directly.
- Please make sure all the switches are off before connection. For your safety, please do not operate when power is on.

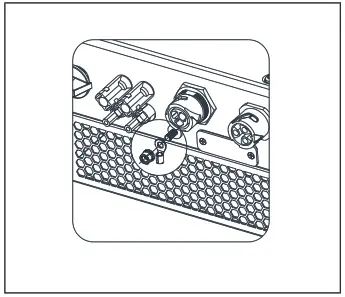

3.1 Grounding

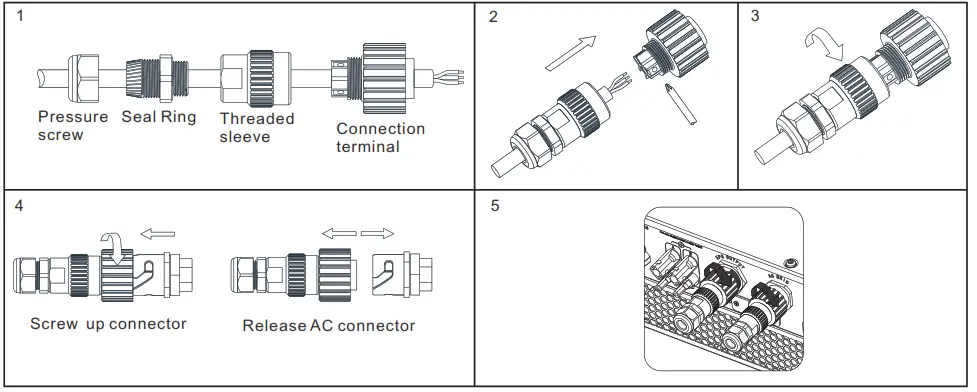

3.2 AC GRID and EPS output connection
The following diagram shows the AC output terminal of the Australian machine connection steps, EPS output terminal connection steps consistent with the above steps.
3.3 DC connection

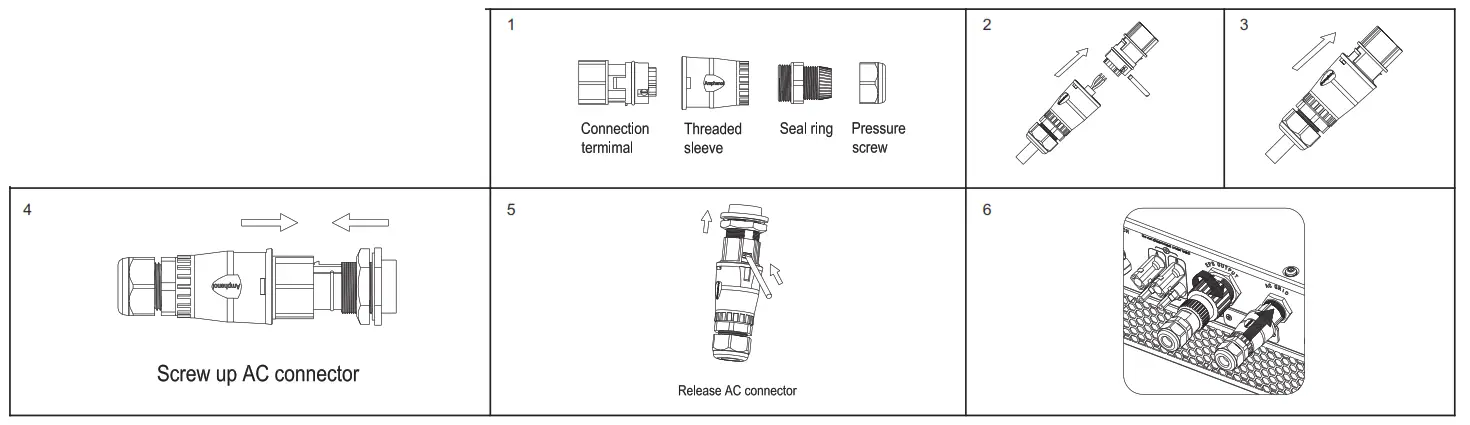

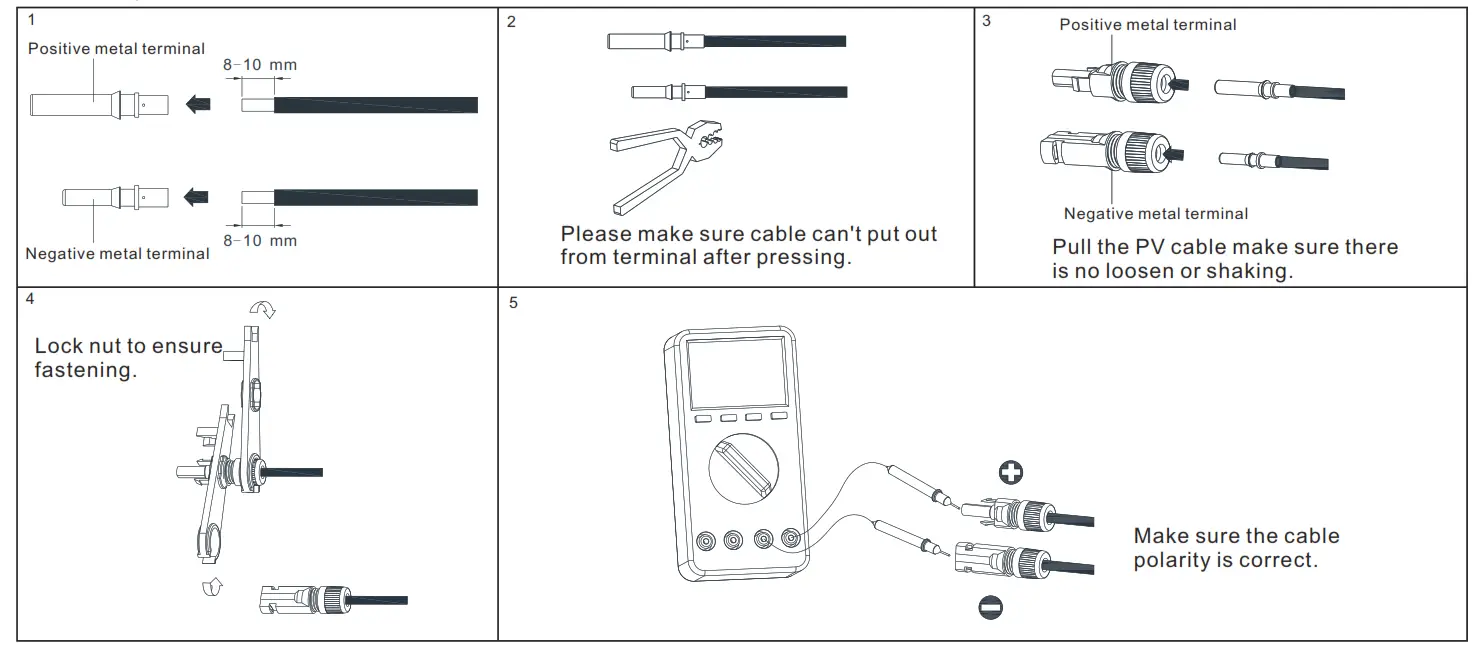

3.3.1 PV input terminal installation
3.3.2 Plugin PV terminal
Notes:
- Please make sure the PV input voltage/current is not beyond the specification before plug in.
- When installing the PV terminal, pay attention to the distinction between the positive and negative terminals and the one-on-one correspondence between the terminals and hybrid inverter.
- When the terminal is docked, there is a click sound. After the terminal is docked, gently pull the PV cable to observe whether the terminal is shaking or not.

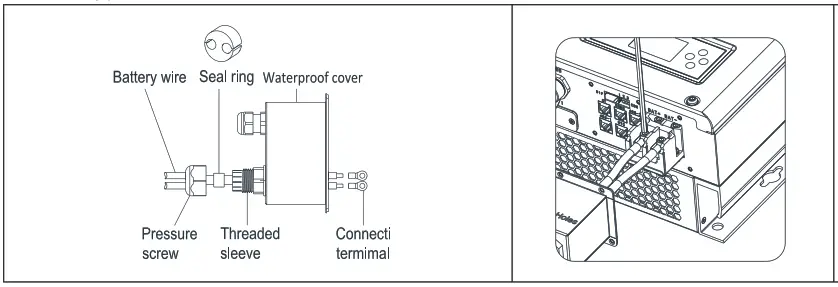

3.3.3 Battery power line connection
Installation steps as follow:
- Pass the battery power cables through the tightening nut, waterproof rubber plug and waterproof cover.
- Press OT terminal at the end of cables.
- Connect the power cable to hybrid inverter. Be careful the polarity.
- Be careful not to tighten the tightening nut at this time. After all the communication cables are installed, tighten them together.

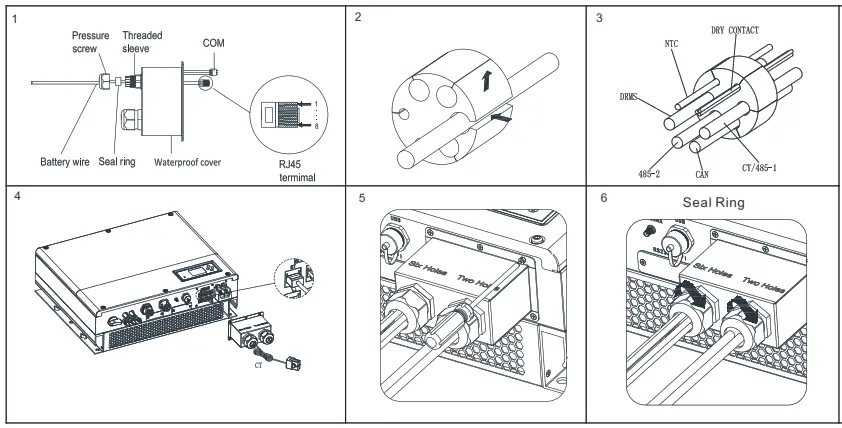

3.3.4 Communication cables installation
Post-installation check
| Number | Acceptance Criteria | Number | Acceptance Criteria |
| 1 | The hybrid inverter is installed correctly and firmly | 2 | shine wife-S or shine link or GPRS is installed correctly and firmly. |
| 3 | Cable wiring is reasonable, meets the requirements, has no broken skin, etc. | 4 | The ground wire confirms the connection and is reliable. |
| 5 | All switches off | 6 | All wires are correct and securely connected. |
| 7 | Cable tie port trimming, no sharp corners, etc. | 8 | All exposed terminals are well protected, no vacant ports. |
| 9 | Pay attention to packing all the residual materials. |
On-off hybrid inverter
Notes:
Before power on, please make sure all of the voltage and current are in the range of specification of the hybrid inverter. Otherwise, it will be damaged to the hybrid inverter. Follow are the steps of turn-on actions:
- Turn on the switch between Grid and hybrid inverter.
- Turn on the battery and the switch between battery and hybrid inverter.
- Turn on the PV switch
- If need to set up a hybrid inverter. Please turn to the user manual of the hybrid inverter for a detailed description.
- The shutdown steps are opposite to the above order.

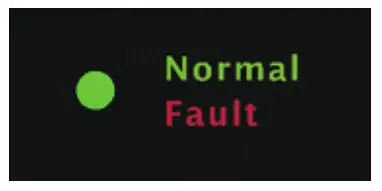

Status of hybrid inverter

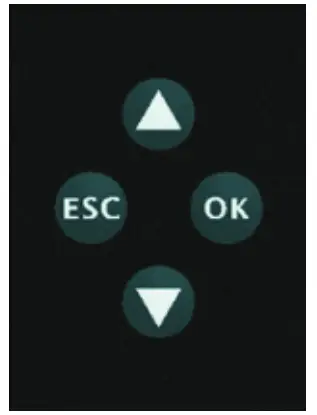

Customers can read more information by pushing the button. Follow the instruction of the button and LED.
| Mark | Description | Explanation | |
 | Push-button | Operation of the display screen and set system | |
 | The status symbol of SPH | Green light on | SPH run normally |
| Red light on | Fault state | ||
| Green light blinking | 1. Alarm state | ||
| Red light blinking | 2. Software updating | ||
