AIRZONE CB-ANT Main Control Board

AIRZONE MAIN CONTROL BOARD

Configurable electronic board that controls the system through wired and wireless devices. Externally powered at 110 / 230 Vac. Wall mounted.

Functionalities:

• Control and management of the thermostats (up to 6 zones).
• Power outlets for motorized elements.
• Remote zone on/off module (up to 6 zones).
• Control of optional auxiliary heat (up to two stages).
• Control gateway management.
• Communication with units of integral control of the installation.
• Communications with other external control systems through integration bus.

For further information about our products, go to myzone.airzone.es

N L

• V máx. 110/230 Vac
• I máx. 250 mA
• Frequency 60/50 Hz
• Stand-by consumption 400 mW
• Module over-current protection 250 mA

AZ1 – AZ2 – AZ3 – IU

• Shielded twisted pair2 x 0,22 + 2 x 0,5 mm2
• V máx 12 V

DM1

• Shielded twisted pair 2 x 0,22 + 2 x 0,5 mm2
• Communications protocol  MODBUS RS-485 Par – 19200 bps

Communications via radio

• Communications protocol Airzone
• Frequency  868.12 MHz (CEE) 915.2 MHz (EEUU, Canada, Austrialia, Nueva Zelanda)
• Radiation power 5 dBm
• Maximum distance in open space  40 m

M1 … M6

• Nº of outputs
• Maximum number of outputs per damper  2
• V max 12 V
• I max 150 mA

O1 – O2

• Nº of relays 2
• V max 24 Vdc / 48 Vdc
• I max 1 A

Operating temperatures

• Storage -20 … 70 ºC
• Operation0 … 50ºC

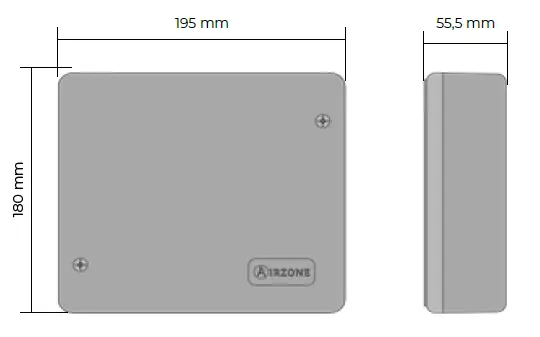

Mechanical aspects

• Protection class IP 21
• Weight  616 g

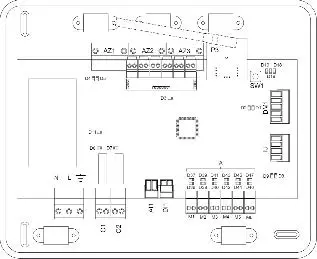

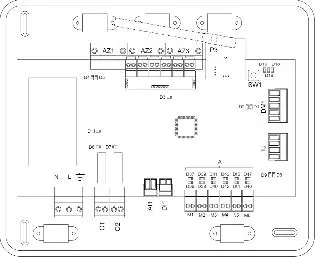

DEVICE ELEMENTS

Description

• AZ1/2/3
  Airzone connection bus
• P3 Wireless module
• SW1 SW1
• DM1  Automation bus
• IU  AC unit bu
• M1…M6 Actuator outputs
• DI1
  Alarm input (normally close)
• AI1 Temperature probe
• O1
  Auxiliary heat stage 1 output
• O2
  Auxiliary heat stage 2 output
• N L Power
• ON/OFF
  Contact on/off (optional)

ASSEMBLY

This device complies with FCC / ISED regulatory notices.

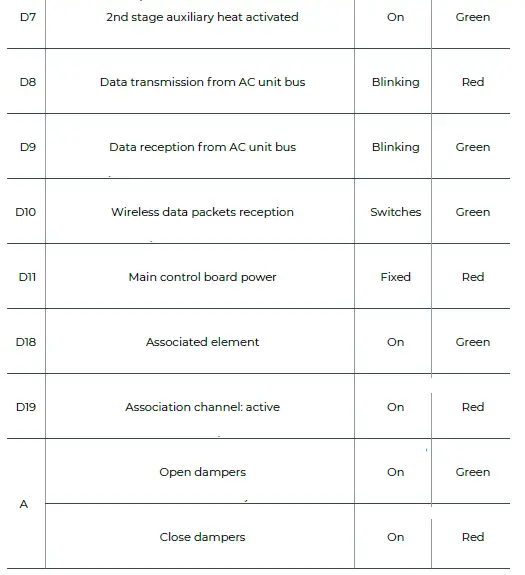

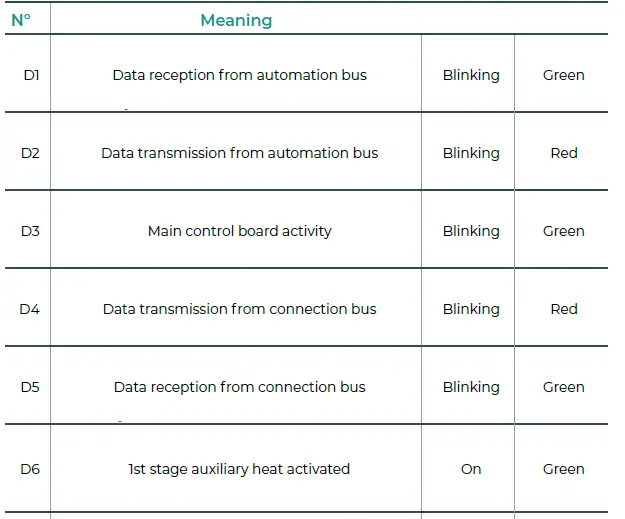

SELFDIAGNOSIS

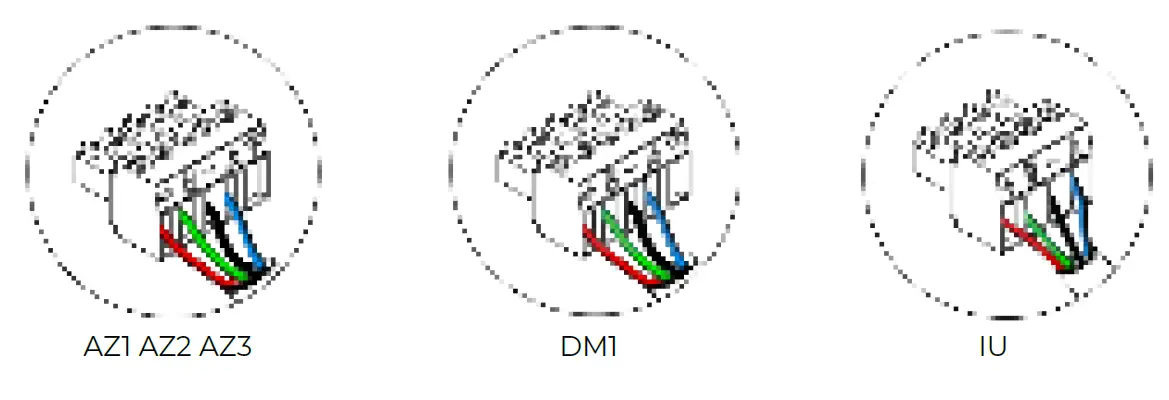

CONNECTION

Do not connect the “-“ pole to the “+” terminal. It may damage the device.

• Neutral
• Phase
• Ground

• + Blanco
• B lack/Brown I

• Type Airzone Central V1.3
• Licence 215562
• Application
  Variable air volume system (without h/c coil)
  Heating    Cooling
• Control accuracy (K)     0.3          0.3

• A Blue
• – Black
• B Green
• + Red
