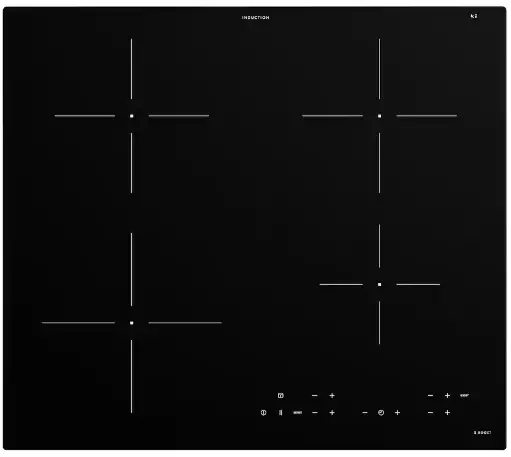

IKEA MATMASSIG Induction Hob

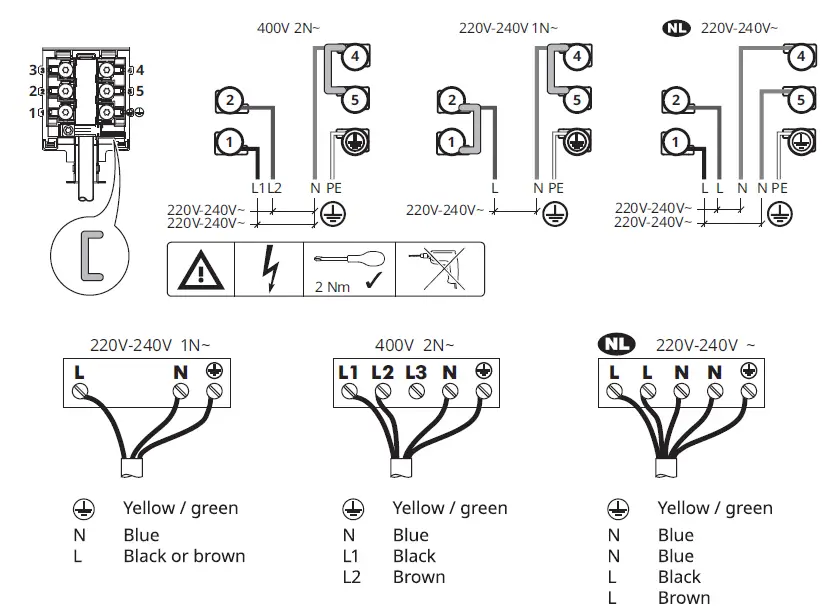

Fixation Process
How we Fix it?

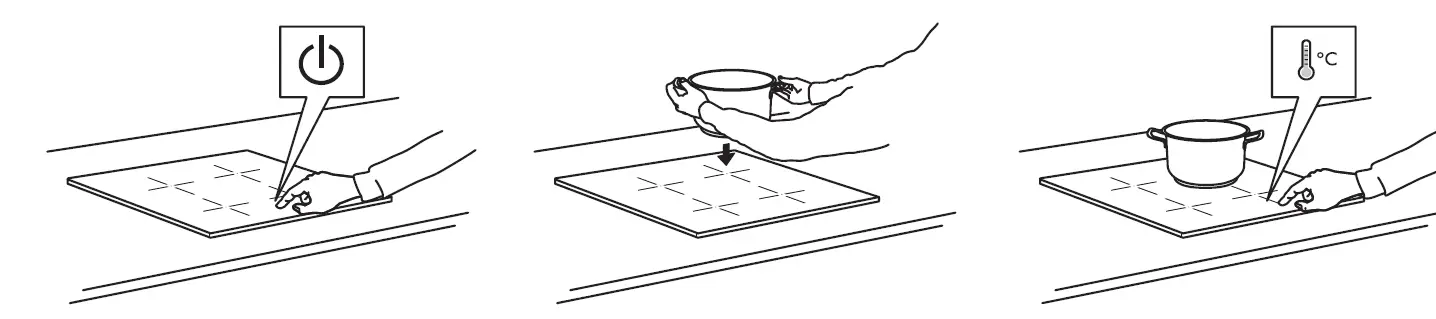

How we start it ?
Operating Process

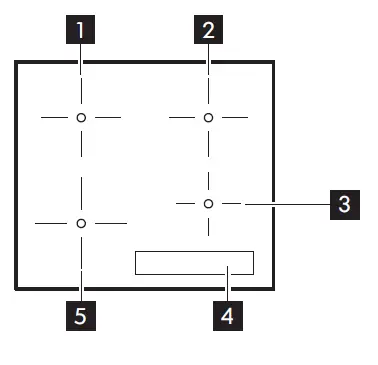

Product description
- Cooking zone
- Cooking zone
- Cooking zone
- Control panel
- Cooking zone
Residual heat
The indicator signals that a cooking zone is still hot. After you switch off the appliance, the cooking zones need some time to cool down.

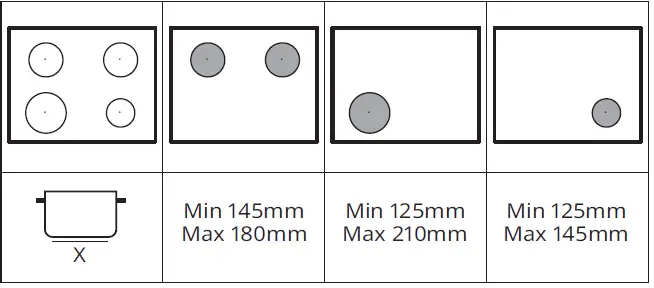

Cookware indicator
The indicator signals that the cookware is incorrect or too small, or there is no cookware on the cooking zone.

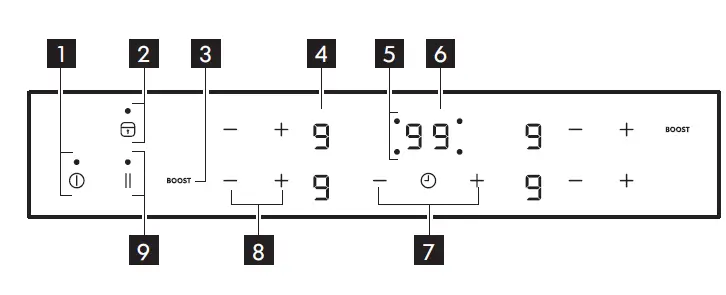

Control panel
- On / Off.
- Lock / Child Lock / Cleaning mode
- Booster.
- A heat setting display
- Timer indicators of cooking zones.
- Timer display: 00 – 99 minutes.
- To increase or decrease the time.
- To increase or decrease the heat settings.
- Pause.
Functions
Booster
The function activates and deactivates the maximum heat setting.
Pause
The function sets all cooking zones that operate to the lowest heat setting.
Lock / Child Lock / Cleaning mode
The function locks / unlocks the control panel.
Automatic Switch Off
The function switches off the appliance automatically in certain conditions (e.g. when all cooking zones are deactivated).
Off Sound Control
The function deactivates and activates the sounds.
Power exchange function
The function divides the available power between the cooking zones to protect the fuses of the house installation.
Troubleshooting
If you encounter an issue with your appliance in the full version of the available on: www.ikea.com
Technical data
Product Information Sheet according to Ecodesign Regulation
| Model identification | MATMASSIG 104.670.93 804.672.40 | |
| Type of hob | Built-In Hob | |
| Number of cooking zones | 4 | |
| Heating technology | Induction | |
| Diameter of circular cooking zones Ø | Left front Left rear Right front Right rear | 21.0 cm 18.0 cm 14.5 cm 18.0 cm |
| Energy consumption per cooking zone EC electric cooking | Left front Left rear Right front Right rear | 188.9 Wh/kg 178.8 Wh/kg 183.4 Wh/kg 176.9 Wh/kg |
| Energy consumption of the hob EC electric hob | 182.0 Wh/kg | |
| IEC / EN 60350-2, BS EN 60350-2 – Household electric cooking appliances – Part 2: Hobs Methods for measuring perforance. | ||
To download the full version visit www.ikea.com
