MÄSTERLIG
1x
 |  |  2 Nm |  |

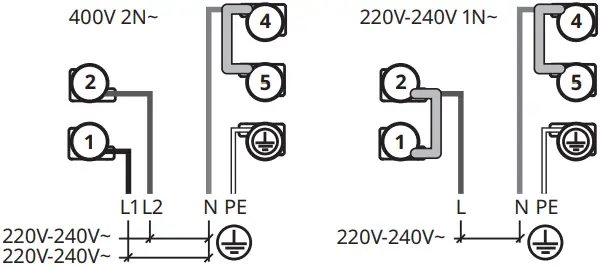

220V-240V 1N~
Yellow / green
N Blue
L Black or brown
400V 2N~
Yellow / green
N Blue
L1 Black
L2 Brown
 |  |  |  |
 | Min 145mm | Min 125mm Max 145mm | Min 145mm |

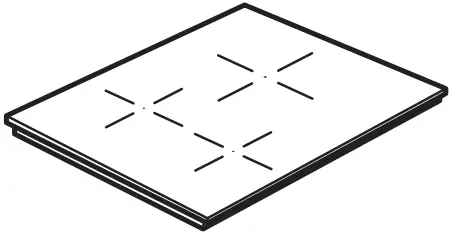

Product description
- Cooking zone
- Double cooking zone
- Control panel
- Cooking zone

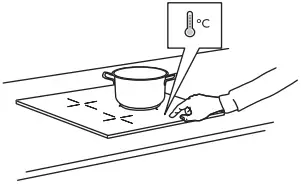

Residual heat
The indicator signals that a cooking zone is still hot. After you switch off the appliance, the cooking zones need some time to cool down.
Cookware indicator
The indicator signals that the cookware is incorrect or too small, or there is no cookware on the cooking zone.

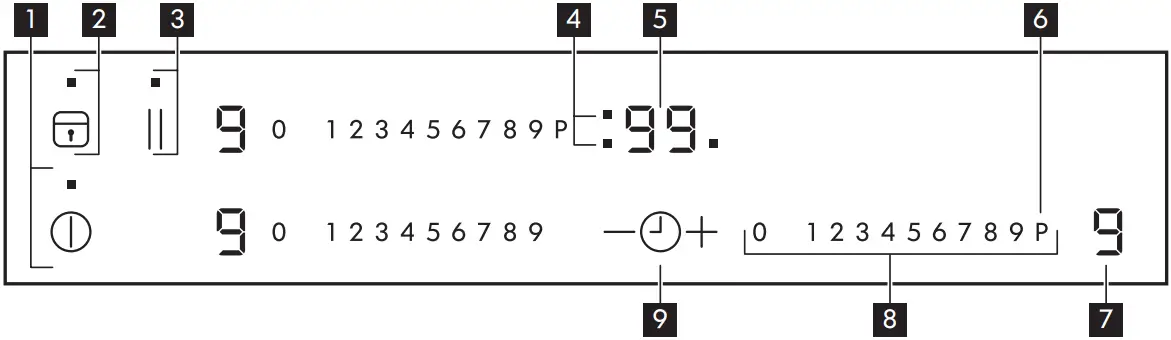

Control panel
- On / Off.
- Lock / Child Lock.
- STOP+GO.
- Timer indicators of cooking zones.
- Timer display: 00 – 99 minutes.
- Booster.
- The current power setting.
- To set a power setting: 0 – 9.
- To increase or decrease the time.
Functions
Booster
The function activates and deactivates the maximum heat setting.
STOP+GO
The function sets all cooking zones that operate to the lowest heat setting.
Lock / Child Lock
The function locks / unlocks the control panel.
Timer
The function specifies how long a cooking zone should operate.
Automatic Switch Off
The function switches off the appliance automatically in certain conditions (e.g. when all cooking zones are deactivated).
Off Sound Control
The function deactivates and activates the sounds.
Power exchange function
The function divides the available power between the cooking zones to protect the fuses of the house installation.

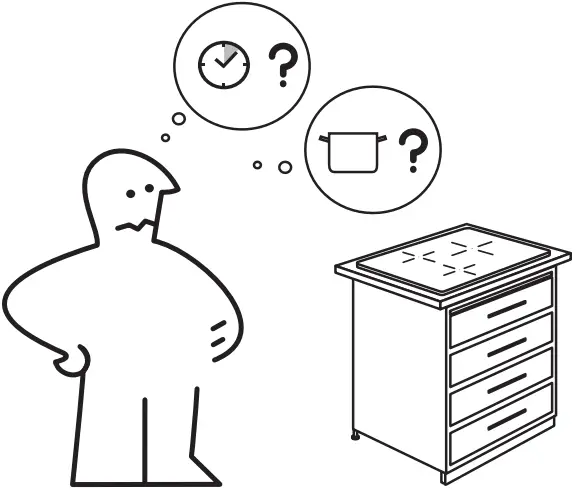

Troubleshooting
If you encounter an issue with your appliance, check “Troubleshooting” chapter in the full version of the User Manual available on: www.ikea.com.
Technical data
Product Information*
| Model identification | MÄSTERLIG 802.228.27 | |
| Type of hob | Built-In Hob | |
| Number of cooking zones | 3 | |
| Heating technology | Induction | |
| Diameter of circular cooking zones (Ø) | Left front Left rear Right rear | 14.5 cm 18.0 cm 28.0 cm |
| Energy consumption per cooking zone (EC electric cooking) | Left front Left rear Right rear | 183.4 Wh / kg 178.8 Wh / kg 192.1 Wh / kg |
| Energy consumption of the hob (EC electric hob) | 184.8 Wh / kg | |
| * For European Union according to EU 66/2014. For Belarus according to STB 2477-2017, Annex A. For Ukraine according to 742/2019. | ||
| EN 60350-2 – Household electric cooking appliances – Part 2: Hobs – Methods for measuring performance. | ||
To download the full version visit www.ikea.com
867378792-A-092023
© Inter IKEA Systems B.V. 2023 21552 AA-2333365-4
