IKEA 804.672.40 MATMÄSSIG Induction Hob
WARNING

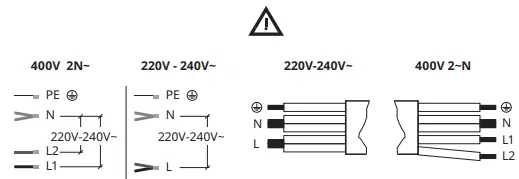

WIRING
220V – 240V
- PE green-yellow
- N: blue and blue
- L black and brown
400V 2~N
- green – yellow / PE
- blue and blue: N
- black L1
- brown L2

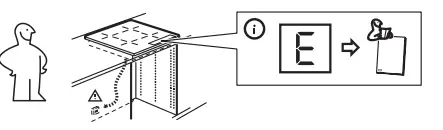

INFO

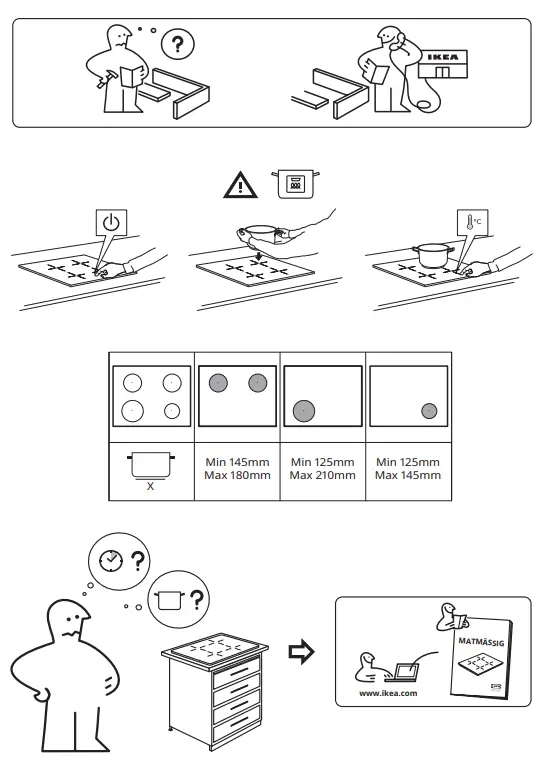

INSTALLATION INSTRUCTION

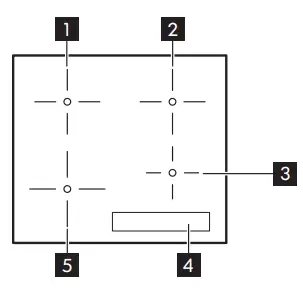

Product Description
- Cooking zone
- Cooking zone
- Cooking zone
- Control panel
- Cooking zone
Residual heat
- The indicator signals that a cooking zone is still hot. After you switch off the appliance, the cooking zones need some time to cool down.
Cookware indicator
- The indicator signals that the cookware is incorrect or too small, or there is no cookware in the cooking zone.
Control panel
- On / 0ff.
- Lock / Child Lock / Cleaning mode.
- Booster.
- A heat setting display:
- Timer indicators of cooking zones.
- Timer display: 00 – 99 minutes.
- To increase or decrease the time.
- To increase or decrease the heat settings.
- Pause
Functions
Booster
- The function activates and deactivates the maximum heat setting.
Pause
- The function sets all cooking zones that operate to the lowest heat setting.
Lock / Child Lock / Cleaning mode
- The function locks/unlocks the control panel.
Timer
The function specifies how long a cooking zone should operate.
Automatic Switch
- The function switches off the appliance automatically in certain conditions (e.g. when all cooking zones are deactivated). 0ԑ4oVnE Control
- The function deactivates and activates the sounds.
Power limitation
- The function lets you select the power level to fit the limits of the house installation fuses.
Power exchange function
- The function divides the available power between the cooking zones to protect the fuses of the house installation.
Troubleshooting
- If you encounter an issue with your appliance, check the “Troubleshooting” chapter in the full version of the User Manual available on: www.ikea.com.
Technical data
Product Information
| Model identification | MATMÄSSIG 804.672.40 104.670.93 | |
| Type of hob | Built-In Hob | |
| Number of cooking zones | 4 | |
| Heating technology | Induction | |
| Diameter of circular cooking zones (Ø) | Left front Left rear Right front Right rear | 21.0 cm 18.0 cm 14.5 cm 18.0 cm |
| Energy consumption per cooking zone (EC electric cooking) | Left front Left rear Right front Right rear | 188.9 Wh / kg 178.8 Wh / kg 183.4 Wh / kg 176.9 Wh / kg |
| Energy consumption of the hob (EC electric hob) | 182.0 Wh / kg | |
| * For European Union according to EU 66/2014. For Belarus according to STB 2477-2017, Annex A. For Ukraine according to 742/2019. | ||
| EN 60350-2 – Household electric cooking appliances – Part 2: Hobs – Methods for measuring performance. | ||
- To download the full version visit www.ikea.com
- © Inter IKEA Systems B.V. 2022
