Aeropex
User Guide
How to Set Up Aeropex
1. Charge
Charge the headphones with the included magnetic charging cable. The LED indicator will turn from red to blue when charging is complete.
2. Pair
Start with your headphones powered off. Enter pairing mode by pressing and holding volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
3. Connect
Open your device’s Bluetooth® menu and select “Aeropex by AfterShokz.” Audrey says “connected” and the LED indicator will flash blue one time.
| Function | Action | Prompt / “Audrey Says'”” |
| Play / pause music | Click once | One beep |
| Skip to next song | Double-click while music is playing | One beep |
| Back to previous song | Three-click while music is playing | One beep |
| Answer call | Click once | Two beeps |
| End call | Click once | One beep |
| Answer call waiting and hang up on current caller | Press and hold for 2 seconds | One beep |
| Reject a call | Press and hold for 2 seconds | Two beeps |
| Prompt device’s voice assistant | Press and hold for 2 seconds | Device beep |
| Redial last number | Double-click (when idle) | “Redial last number” |

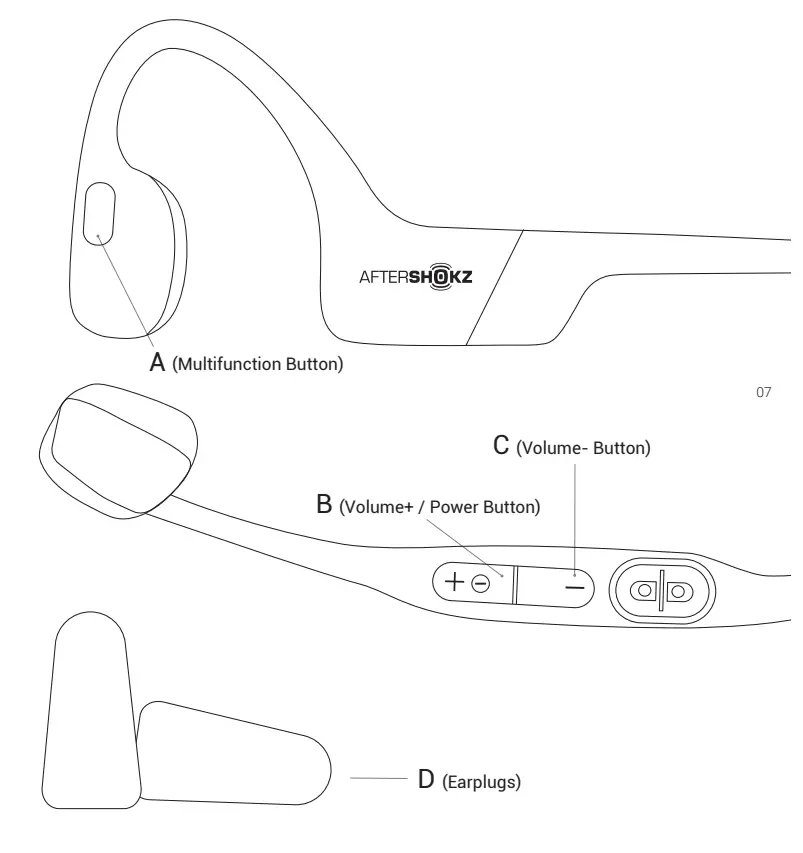

Volume+ / Power Button (B); Volume- Button (C)
| Function | Action | Prompt / “Audrey Says™” |
| Power on | Press and hold volume+ for 2 seconds | “Welcome to AfterShokz” |
| Power off | Press and hold volume+ for 3 seconds | “Power off” |
| Mute | Press and hold both buttons for 2 seconds while on a call | “Mute on” or “Mute off” |
| Change EQ setting | Press and hold both buttons for 3 seconds while music is playing | “EQ changed” |
| Check battery status | Click the volume+ or volume- button while music is paused | “Battery high/Battery medium/ Battery low/Charge me” |
| Adjust volume | Click the volume+ or volume- button to adjust the volume while music is playing | One beep |
Specifications
| Part number AS800 | Frequency response | 20Hz~20kHz |
| Speaker type Bone conduction transducer | Sensitivity | 105 ± 3dB |
| Bluetooth® version Bluetooth® v5.0 | Microphone | -38dB ± 3dB |
| Wireless range | 10 m | Battery Li-Polymer battery | ||
| Compatible profiles | A2DP, AVRCP, HSP, HFP | Weight | 26 g | |
| Continuous play | Up to 8 hours | Standby time | Up to 10 days | |
| Charge time | 2 hours | Warranty | 2 years | |
| Frequency band | 2402MHz~2480MHz | Maximum RF output power | 4dBm | |
| Charge voltage | 5V±5% | Water resistance | IP67 | |
| attery capacity | 145 mAh | |||
LED Indicator
| Solid red | Charging |
| Solid blue | Charging complete |
| Flashes red and blue | Pairing mode |
| Flashes blue | Incoming call |
| Flashes red every 2 minutes | Low battery |
Multipoint Pairing
Multipoint pairing allows Aeropex to be connected to two devices at once, allowing users to seamlessly transition between the two.
- Start with your headphones powered off.
- Press and hold volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
- Press and hold the multifunction button and volume+ button for 3 seconds. Audrey says “multipoint enabled.”
- Open your first device’s Bluetooth® menu and select “Aeropex by AfterShokz.” Audrey says “connected”.
- Turn your headphones off.
- Re-enter pairing mode by pressing and holding volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
- Open your second device’s Bluetooth® menu and select “Aeropex by AfterShokz.” Audrey says “connected.”
- Turn your headphones off.
- Turn your headphones on. Your headphones are now connected to both devices.
- To turn multipoint pairing off: Press and hold the multifunction button and volume- button for 3 seconds. Audrey says “multipoint disabled.” More information: bit.ly/ASMultipoint
Moisture Detected Alert
These headphones can detect liquid such as water, sweat, and rain. If the headphones are plugged into the charger while wet, the LED indicator will flash red and blue. The headphones will also vibrate and emit a beep. If this happens, remove the charging cable from the headphones, dry them completely and then proceed with charging.
How to Reset Your Headphones
- Start with your headphones powered off.
- Enter pairing mode by pressing and holding volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
- Press and hold the multifunction button, volume+ button and volume- button (all three buttons) simultaneously for 3-5 seconds, until you hear two beeps or feel vibrations.
- Turn your headphones off. Aeropex is now reset and can be re-paired to your device.
Optional Accessories
Earplugs (D)
Use headphones in environments where it is safe to block out ambient noise, such as on a train or airplane.
- Roll earplugs firmly between fingers and place them in the ears.
- While music is playing adjust EQ settings to reduce or enhance bass while wearing earplugs, press and hold volume+ and volume- buttons simultaneously.
- Switch EQ to the original setting when you take out the earplugs.
Manufacturer
AfterShokz LLC
6057 Corporate Dr., East Syracuse, NY 13057
Let us take care of you! We’ve got your back against defects.
Register your Aeropex at
register.aftershokz.com
