User Guide
How to Set Up Aeropex
- Charge
Charge the headphones with the included magnetic charging cable. The LED indicator will turn from red to blue when charging is complete. - Pair
Start with your headphones powered off. Enter pairing mode by pressing and holding volume+ until the LED indicator flashes red and blue. - Connect
Open your device’s Bluetooth® settings and select “Aeropex by AfterShokz.” Audrey says “connected” and the LED indicator will flash blue.

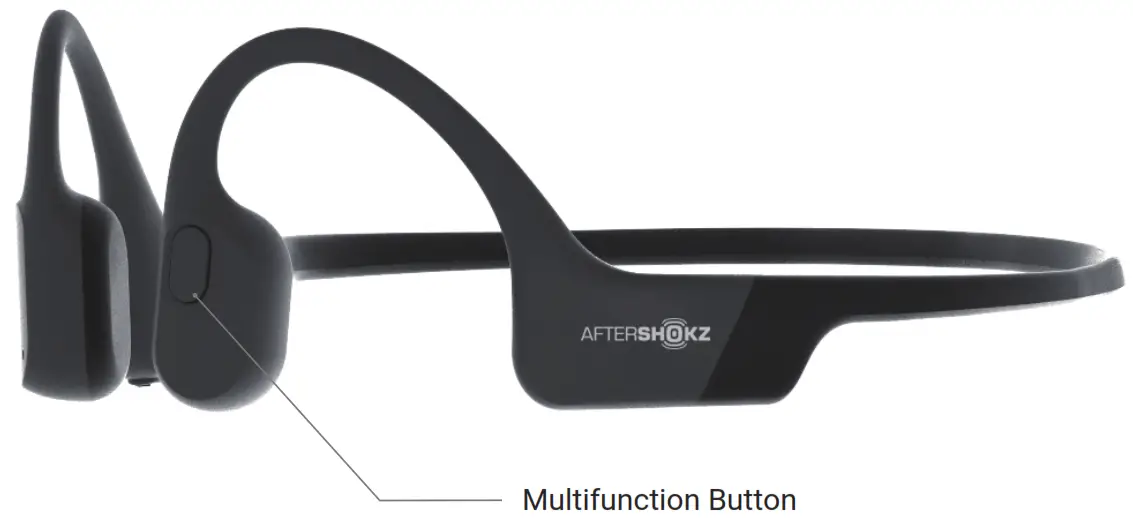

| Function | Action | Prompt/Audrey Says |
| Play/pause music | Click once | One beep |
| Next song | Double-click while music is playing | One beep |
| Previous song | Triple-click while music is playing | One beep |
| Answer call | Click once | Two beeps |
| End call | Click once | One beep |
| Answer call waiting and end current call | Press and hold for 2 seconds | One beep |
| Ignore a call | Press and hold for 2 seconds | Two beeps |
| Activate voice assistant | Press and hold for 2 seconds | Device beeps |
| Redial last number | Double-click on standby | *Redial last number” |
Power/Volume+ (B); Volume- (C)
| Function | Action | Prompt/Audrey Says |
| Power on | Press and hold volume+ for 2 seconds | Welcome to AfterShokz |
| Power off | Press and hold volume+ for 3 seconds | Power off |
| Mute | Press and hold volume+ and volume buttons for 2 seconds while on a call | Mute on/Mute off |
| Change EQ setting | Press and hold volume+ and volume buttons for 2 seconds while music is playing | EQ changed |
| Check battery status | Click the volume+ or volume button while music is paused | Battery high/Battery medium/ Battery low/Charge me’ |
| Adjust volume | Click the volume+ or volume- button to adjust volume while music is playing | One beep |
Specifications
| Part number | AS800 |
| Speaker type | Bone conduction transducer |
| Bluetooth ® version | Bluetooth® v5.0 |
| Frequency response | 20Hz~20kHz |
| Sensitivity | 105 ± 3dB |
| Microphone | -38dB ± 3dB |
| Wireless range | 10 m |
| Compatible profiles | A2DP, AVRCP, HSP, HFP |
| Continuous play | Up to 8 hours |
| Charge time | 2 hours |
| Frequency band | 2402MHz~2480MHz |
| Charge voltage | 5V±5% |
| Battery capacity | 145 mAh |
| Battery | Li-Polymer battery |
| Weight | 26 g |
| Standby time | Up to 10 days |
| Warranty | 2 years |
| Maximum RF output power | 5dBm |
| Water resistance | IP67 |

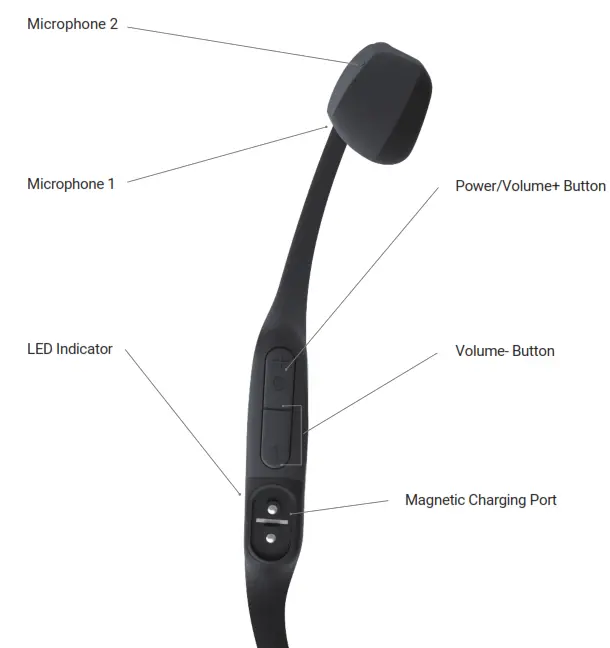

LED Indicator
| Solid red | Charging |
| Solid blue | Charging complete |
| Flashes red and blue | Pairing mode |
| Flashes blue | Incoming call |
| Flashes red every 2 minutes | Low battery |
Multipoint Pairing
Multipoint Pairing allows Aeropex to be connected to two devices, allowing users to seamlessly transition between the two.
- Start with your headphones powered off.
- Press and hold volume+ the LED indicator flashes red and blue.
- Press and hold the Multifunction Button and Power/Volume+ Button for 3 seconds. Audrey says “multipoint enabled.”
- Open your first device’s Bluetooth ® menu and select “Aeropex by AfterShokz.” Audrey says “connected”.
- Turn your headphones off.
- Re-enter pairing mode by pressing and holding the Power/Volume+ Button the LED indicator flashes red and blue.
- Open your second device’s Bluetooth ® menu and select “Aeropex by AfterShokz.” Audrey says “connected.”
- Turn your headphones off.
- Turn your headphones on. Your headphones are now connected to both devices.
- To turn off the Multipoint Pairing function: Repeat Step 1 and 2. Then press and hold the Multifunction Button and Volume- Button for 3 seconds until you hear “multipoint disabled.”
Moisture Detection Alarm
These headphones can detect liquid such as water, sweat, and rain. If the headphones are plugged into the charger while wet, the LED indicator will flash red and blue. The headphones will also vibrate and emit a beep. If this happens, remove the charging cable from the headphones, dry them completely and then proceed with charging.
How to Reset Your Headphones
- Start with your headphones powered off.
- Enter pairing mode by pressing and holding volume+ until the LED indicator flashes red and blue.
- Press and hold the Multifunction Button, Power/Volume+ Button, and Volume- Button (all three buttons) simultaneously for 3-5 seconds, until you hear two beeps or feel vibrations.
- Turn your headphones off. Aeropex is now reset and can be re-paired to your device.
Optional Accessories
Earplugs (D)
Use with headphones in environments where it is safe to block out ambient noise, such as on a train or airplane.
- Roll earplugs firmly between fingers and place in ears.
- While music is playing to adjust EQ settings to reduce or enhance bass while wearing earplugs, press and hold volume+ and volume- buttons simultaneously.
- Switch EQ to original setting when you take out the earplugs.
Manufacturer
AfterShokz LLC
3200 Gracie Kiltz Lane, Suite 400 Austin, TX 78758
