User Guide

Contents hide

1 How to Set Up Aeropex

2 Multifunction Button (A)

3 Volume+ / Power Button (B); Volume- Button (C)

4 Speciﬁcations

5 LED Indicator

6 Multipoint Pairing

7 Moisture Detected Alert

8 How to Reset Your Headphones

9 Optional Accessories

10 Manufacturer

11 Documents / Resources

11.1 References

12 Related Posts

How to Set Up Aeropex

Charge
Charge the headphones with the included magnetic charging cable. The LED indicator will turn from red to blue when charging is complete.
Pair
Start with your headphones off. Enter pairing mode by pressing and holding volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
Connect
Open your device’s Bluetooth ® menu and select “Aeropex by AfterShokz.” Audrey says “connected” and the LED indicator will flash blue one time.

Let us take care of you! We’ve got your back against defects.
Register your Aeropex at register.aftershokz.com

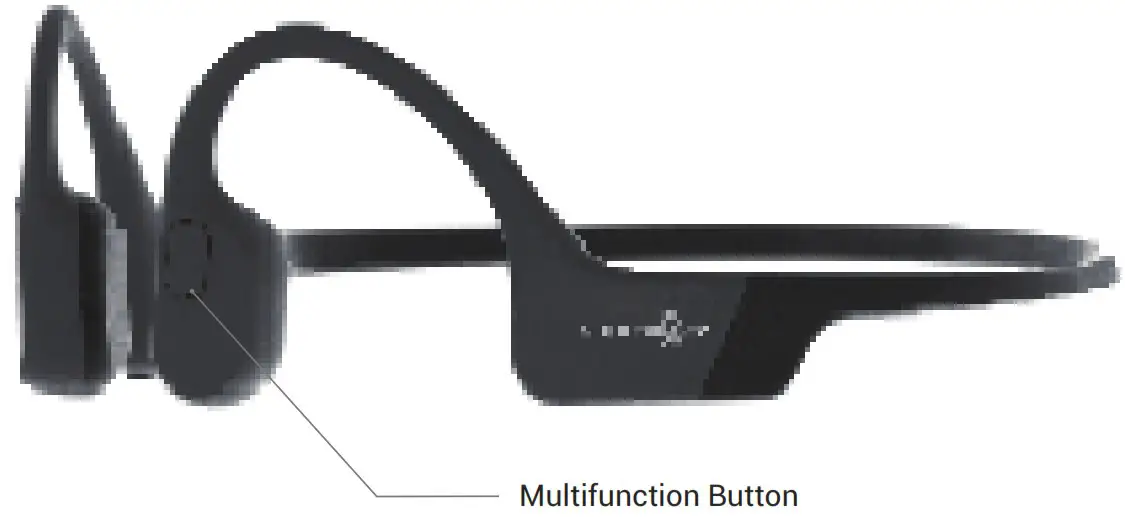

Multifunction Button (A)

Function	Action	Prompt / “Audrey Says™”
Play/pause music	Click once	One beep
Skip to next song	Double-click while music is playing	One beep
Skip to previous song	Three-click while music is playing	One beep
Answer call	Click once	Two beeps
End call	Click once	One beep
Answer call waiting and hang up on current caller	Press and hold for 2 seconds	One beep
Reject a call	Press and hold for 2 seconds	Two beeps
Prompt device’s voice assistant	Press and hold for 2 seconds	Device beep
Redial last number	Double-click (when idle)	Redial last number

Volume+ / Power Button (B); Volume- Button (C)

Function	Action	Prompt / “Audrey Says™”
Power on	Press and hold volume+ for 2 seconds	“Welcome to AfterShokz”
Power off	Press and hold volume+ for 3 seconds	“Power off”
Mute	Press and hold both buttons for 2 seconds while on a call	“Mute on” or “Mute off”
Change EQ setting	Press and hold both buttons for 3 seconds while music is playing	“EQ changed”
Check battery status	Click the volume+ or volume button while music is paused	“Battery high/Battery medium/ Battery low/Charge me”
Adjust volume	Click the volume+ or volume- button to adjust volume while music is playing	One beep

Speciﬁcations

Part number	AS800	Frequency response	20Hz~20KHz
Speaker type	Bone conduction transducer	Sensitivity	105 ± 3dB
Bluetooth ® version	Bluetooth® v5.0	Microphone	-38dB ± 3dB
Wireless range	10 m	Battery	Li-Polymer battery
Compatible proﬁles	A2DP, AVRCP, HSP, HFP	Weight	26 g
Continuous play	Up to 8 hours	Standby time	Up to 10 days
Charge time	2 hours	Warranty	2 years
Frequency band	2402MHz~2480MHz	Maximum RF output power	0dBm
Charge voltage	5V±5%	Water resistance	IP67
Speaker impedance	8.5ohm±20%	Battery capacity	145 mAh

LED Indicator

Solid red	Charging
Solid blue	Charging complete
Flashes red and blue	Pairing mode
Flashes blue	Incoming call
Flashes red every 2 minutes	Low battery

Multipoint Pairing

Multipoint pairing allows Aeropex to be connected to two devices at once, allowing users to seamlessly transition between the two.

Start with your headphones off.
Press and hold volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
Press and hold the multifunction button and volume+ button for 3 seconds. Audrey says “multipoint enabled.”
Open your first device’s Bluetooth ® menu and select “Aeropex by AfterShokz.” Audrey says “connected”
Turn your headphones off.
Re-enter pairing mode by pressing and holding volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
Open your second device’s Bluetooth ® menu and select “Aeropex by AfterShokz.” Audrey says “connected.”
Turn your headphones off.
Turn your headphones on. Your headphones are now connected to both devices.
To turn multipoint pairing off: Press and hold the multifunction button and volume- button for 3 seconds. Audrey says “multipoint disabled.”

More information: bit.ly/ASMultipoint

Moisture Detected Alert

This device can detect liquid residue. During charging, if there is sweat or other liquid residues in the charging interface, the device’s light will flash blue and red. The core of the headphones will also vibrate and emit a “Beeb Beeb” warning sound. Please dry the liquid on the charging port and then the device can be charged normally.

How to Reset Your Headphones

Start with your headphones off.
Enter pairing mode by pressing and holding volume+ until Audrey says “pairing” and the LED indicator flashes red and blue.
Press and hold the multifunction button, volume+ button, and volume- button (all three buttons) simultaneously for 3-5 seconds, until you hear two beeps or feel vibrations.
Turn your headphones off. Aeropex is now reset and can be re-paired to your device.

Optional Accessories

Earplugs (D)
Use with headphones in environments where it is safe to block out ambient noise, such as on a train or airplane.

Roll earplugs firmly between fingers and place in ears.
To adjust EQ settings to reduce or enhance bass while wearing earplugs, press and hold volume+ and volume- buttons simultaneously.
Switch EQ to original setting when you take out the earplugs.
