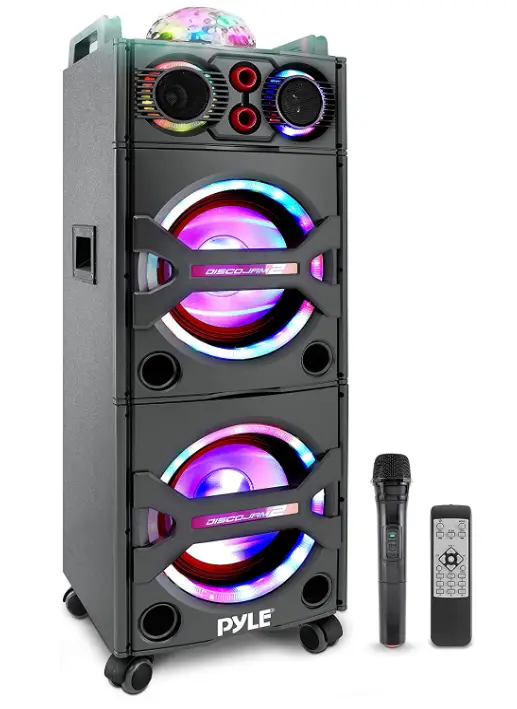

Pyle PSUFM1043BT Portable Bluetooth PA Speaker System
Pyle
INTRODUCTION
The wireless karaoke PA portable Bluetooth speaker has two 10″ subwoofers and two 3″ tweeters, together with 2000 watts of peak output and 1000 watts of RMS power at 4 ohms, allowing it to reproduce surround sound in its whole and with excellent bass response. With Bluetooth for wireless audio streaming, this box-style loud Bluetooth speaker system is compatible with devices like iPhone, Android smartphones, iPad, tablets, and PCs. Ideal for usage inside and outside of a residential house. The best audio sources are WAV, FLAC, or AIFF. The Pyle bluetooth speaker karaoke PA system has two 1/4″ mic/guitar inputs, an FM radio with auto scan, an SD card reader, RCA (L/R) & Aux (3.5mm) inputs, and a USB flash drive that may be used as an MP3 player. A wireless microphone is included. SPL maximum: 128 db.
The Bluetooth party speaker with lights on wheels has multi-color flashing disco LED lights that can liven up any event and are ideal for patio parties or other events at night when a colorful presence is noticed. These Bluetooth-enabled Pyle PA wireless speakers are excellent for karaoke, stage acts, and crowd management. It has removable moving wheels, a handle, and is completely portable so you can take it anywhere.
CAUTION
No user serviceable parts inside. Please return to the agents or a similarly qualified service center for repair.
SAFETY INSTRUCTIONS
- Please read the user manual carefully before use. Retain for future reference.
- All warnings on the appliance and in the user manual should be adhered to.
- Do not use the appliance near water
- Ventilation do not block any of the ventilation opening.
- Do not install near any heat sources or fire
- Do not install in an airtight location.
- Keep the cord and plugs in good order.
- The unit may be wiped down with a damp cloth once the unit has been switched off and the plug removed.
- Unplug the during lightning storms or when not in use for long periods of time.
- Keep foreign objects and liquid from entering the unit to avoid short circuit ,fire and electrical accident.
- Keep the appliance in a dry location.
- Refer all servicing to the agent or a similarly qualified service center for repair.
SPECIFICATIONS
AMP
- OUTPUT POWER: 2000Watt (p. m. p. o)
- IMPEDANCE: 4ohms
- FREQUENCY RESPONSE: 45-20KHz
- S/N RATIO: 93d8+3dB
OTHER ITEM
- ELECTRICITY SUPPLY: AC110V/220V.60Hz/50Hz
- PACKING LIST
- MANUAL: 1 BOOK
- SIGNAL WIRE: 1 PIECE
- POWER CORD: 1 PIECE

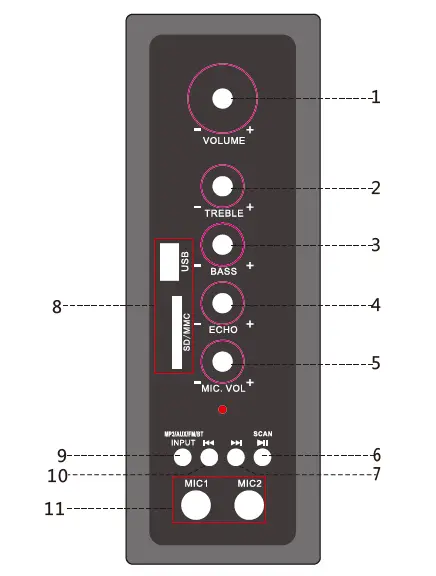

FUNCTION OF FRONT BOARD
- Volume adjustment
- Treble adjustment
- Bass Adjustment
- Mic echo adjustment
- Mic volume adjustment
- MP3 pause/play
- MP3 next song/FM next frequency/Vol+
- USB/SD/MMC cord connector
- AUX/DVD/MP3/FM/BT input selected
- MP3 last song/FM last frequency/Vol-
- MIC input jack
FUNCTION OF BACKBOARD
- AUX- Input
- 110 V and 220 V Voltage Switch
- Electricity Supply Ac110V/220V,60Hz/50Hz
- FM Ant
- LED Power ON/OFF
- Power ON/OFF
SIMPLE TROUBLESHOOTING
When you are in use this speaker run into problem below, pl consult the way below mentioned. If after dispose the problem still exist, pl look for the qualified technician or contact our company. To prevent get the electrics shock or expand the scope of the malfunction. Do not repair by yourself.
| Symptom | Possible Problem | Solution |
| No Function light & No sound | 1. P lug is not well connected | Insert the plug into electrical outlet |
| 2. Speaker power button is not turn ed on | Turn on the button | |
|
Function light on but No sound | 1. Cable misconnected | Turn off the power, c heck the input jack to ensure proper audio signal is connected to relevant input jack |
| 2. Speakers are no t c connected or misconnected | Power off, then c heck and confirm the c able connection again | |
| 3. Audio signal is not transmitted to speaker | Check all the speaker if there is audio signal output | |
| If the problem exists after checking related procedures above, pleas e refer to the appointed service agent or professional technician to fix it. Do not attempt to open the cover, otherwise we assumes no responsibility. | ||
FAQs
After connecting Bluetooth, an extra sound constantly comes from speaker even when volume is low. It sounds when u back up the car like pop pop pop.
It could be feedback from other nearby connected bluetooth devices, make sure your iPod or mp4 device are only synched with your Pyle. If you’re still hearing the “pop” sound and within your return and exchange window, please return! I didn’t have any issues with my Pyle bluetooth speaker. It still works great!
Can I use an iPod?
I’m sorry, I haven’t try an iPod with this.
How do I connect the bluetooth?
please press the INPUT button then choose Bluetooth. Go to your mobile phone settings > Open the Bluetooth > Choose the Name of the Speaker > Then hit connect. For more info, kindly visit our website pyleaudio.com. Type the model number on the search box PSUFM1043BT
What size woofers ?
the Sound System: Dual 10” Woofers, Dual 3” Tweeter.
How to tell which mode that the unit is in? How many times to press the input to change modes? Nothing lights up on input ???
Press the input mode button once to switch between each mode. When you power up your Pyle, it’s already lit(red light) and in aux mode for connecting mics, instruments. Then press the input(first press), you’ll hear the “bluetooth” chime. Press again(second press) you’ll in radio mode. You change the radio channels by pressing the forward and reverse arrow buttons located under the input button.
Input is 110 or 110 to 220 volt ?
This unit is a dual voltage unit which will work on both 110 volts and 220 volt.
Do this item come with recharger battery?
But they never mansion directly into the wall.
Does it has rechargeable batteries?
it doesn’t have rechargeable batteries.
Can I connect this machine to my entertainment system receiver?
yes you can use the input port at the back of the unit.
Do it have a CD player ?
it doesn’t have a cd player.
I bought this under the impression it was rechargeable as the description states. It is not rechargeable. Why is this being sold under false pretense
So glad I scrolled down and found this Austin and answer. Almost purchased. Description stated rechargeable battery. It’s been years, you’d think Amazon would have them correct this misleading description.
Can you use two of them at the same time ?
Not really sure! each one comes with a mic. If you are using blue tooth 2 will probably work.
does what inputs does it have
Left and right stereo cable outputs. Mic inputs and SD card slot.
Does it have equalizer?
No equalizer but it has a bass, treble and mid buttons.
How many watts
it is 2000 Watts unit.
